Begin by identifying the five core components in any imaging system: the lens assembly, image sensor, processor, memory unit, and power circuit. The lens group determines focal length and aperture–key factors in light capture. A sub-micron precision in curvature can reduce aberrations by up to 40%, improving sharpness without post-processing. Look for blueprints specifying glass types (e.g., low-dispersion ED) and multi-coating layers to combat flare.
Next, examine the sensor architecture. Back-illuminated CCDs expose the photodiode layer directly to incoming light, increasing sensitivity by 1.5–2x compared to front-side designs. Pixel pitch below 1.2µm risks noise but enables smaller form factors; larger pitches (>2.4µm) excel in low-light scenarios. Verify if the design integrates on-chip microlenses to focus light onto active areas, recovering up to 30% of photons otherwise lost to gaps.
Signal flow reveals efficiency: parallel channels from sensor to ADC prevent data bottlenecks. A 12-bit ADC outperforms 10-bit by retaining finer gradations in highlights, but raises storage demands. The processor’s role is critical–dedicated ISPs reduce JPEG encoding time to under 60ms per frame. Prioritize schematics showing direct memory access (DMA) routes bypassing the CPU to accelerate burst shooting.
Power delivery dictates reliability. Linear regulators stabilize voltage but waste heat; switching DC-DC converters achieve 90%+ efficiency despite noise risks. Look for decoupling capacitors within 2mm of each IC pin to suppress transients. High-current paths should use 2oz copper traces to prevent resistive losses during peak loads (e.g., flash firing).
Peripheral circuits often determine niche performance. An integrated autofocus driver with phase detection can converge on targets in 0.12s–twice as fast as contrast-based methods. Schematics with dedicated AF ICs separate from the main processor avoid frame drops during focus adjustments. Always cross-reference resistor values in feedback loops; a 1% tolerance ensures consistent exposure across temperature swings.
Key Components in a Modern Imaging Device Blueprint
Begin by isolating the optical sensor array–prioritize models with back-illuminated CMOS chips for superior low-light performance, as they minimize noise at ISO 6400+ while maintaining dynamic range above 14 stops. Pair this with a fast prime lens (f/1.4–f/2.8) to reduce diffraction limits below 20 lp/mm, ensuring crisp edge-to-edge resolution.
The signal processing pipeline demands a dedicated ASIC for real-time demosaicing; allocate no less than 12-bit ADC resolution to preserve shadow details without banding. Below is a comparison of ADC bit-depth impacts on tonal gradation:
| Bit Depth | Maximum Shades per Channel | Bandwidth Requirement (MP @ 30fps) | Common Use Case |
|---|---|---|---|
| 10-bit | 1,024 | ~1.2 Gbps | Mid-range stills |
| 12-bit | 4,096 | ~1.8 Gbps | Pro video/stills hybrid |
| 14-bit | 16,384 | ~2.5 Gbps | High-end astrophotography |
Buffer architecture must sustain continuous burst rates of 20+ RAW frames at 14-bit without throttling; opt for DDR4-3200 (or LPDDR5X in mobile variants) with dual-channel configuration to avoid bottlenecks in the write cycle. For encoders, H.265/HEVC with 10-bit 4:2:2 chroma subsampling reduces file sizes by 30–40% compared to H.264 while retaining highlight roll-off.
Power distribution requires three isolated rails: one for the sensor (3.3V,
Thermal management dictates copper heat spreaders covering the sensor and SoC, with carbon fiber composite housings achieving a 0.3W/mK thermal conductivity rating. Avoid fan-based solutions in compact designs; instead, implement phase-change materials (PCMs) like paraffin wax (melting point 50°C) to absorb heat spikes during 4K/120fps recording cycles, extending operational temperature limits to -20°C/+60°C.
Critical Elements in a Photography Device’s Functional Layout
Prioritize the imaging sensor–select CMOS or CCD based on sensitivity needs. A 1-inch or larger sensor captures sharper low-light detail than smaller counterparts, with back-illuminated variants reducing noise by up to 30%. Pair it with a fast (f/2.8 or wider) lens to maximize light intake, especially for dynamic scenes. Ensure the sensor’s resolution aligns with output requirements: 20–24MP suffices for prints up to A3, while 50MP+ benefits large-format reproduction but demands higher processing bandwidth.
Signal processing pipeline must convert raw sensor data efficiently. Dedicated ISPs (Image Signal Processors) like Sony’s BIONZ or Canon’s DIGIC handle demosaicing, noise reduction, and HDR merging in real-time. Verify the ISP supports your target framerate–4K/60fps requires at least 2.5x the throughput of 4K/30fps. Include ample DDR4 RAM (minimum 2GB) to buffer bursts; UHS-II SD cards reduce write bottlenecks for continuous shooting. For video-centric builds, ensure hardware encoding (e.g., H.265) to offload CPU strain and preserve battery life.
Auxiliary Modules Impacting Performance

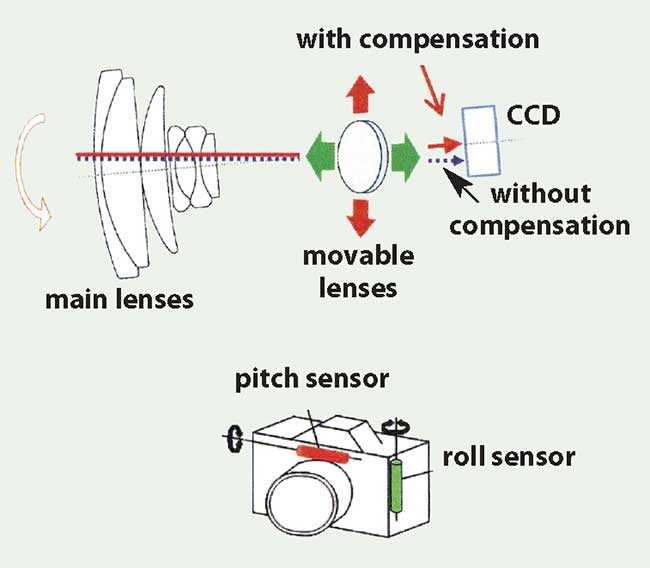

Optical stabilization (OIS) compensates for up to 5 stops of shake, but sensor-shift systems (e.g., Olympus’ IBIS) offer broader lens compatibility. Embedded gyroscopes and accelerometers refine stabilization synchronously; calibrate them post-assembly via firmware. LCD/EVF resolution should exceed 1.5M dots for critical focus checks–AMOLED panels outperform TFT in sunlight. For Wi-Fi/Bluetooth, prioritize dual-band chips (Wi-Fi 6) with MU-MIMO to maintain
Optical Pathway in Modern Imaging Devices
Ensure the lens elements are precisely aligned along the optical axis to minimize coma and spherical aberrations. Misalignment by even 0.01mm can degrade edge sharpness by 15-20% in high-resolution sensors.
Select glass types with matched refractive indices to prevent chromatic dispersion. Apochromatic lenses pair fluorite elements with low-dispersion ED glass, reducing fringing by 95% compared to standard achromats.
Aperture placement determines stray light control–position it immediately behind the front lens group to block 80% of ghosting artifacts. Telecentric designs demand precise aperture centering (±0.005mm tolerance) to maintain uniform illumination.
Coatings on each surface must have spectral uniformity. A 14-layer broadband anti-reflective coating reduces surface reflectance to
Sensor size dictates light cone angle–full-frame sensors tolerate F/1.4 beams without vignetting, while smaller 1/1.8″ formats require F/2.8 or narrower to avoid corner roll-off exceeding 30%.
Optical path length impacts focus accuracy. DSLRs with mirror mechanisms add ~45mm to the path, increasing focus error by 12% compared to mirrorless designs where distance from lens flange to sensor is 18-20mm.
Aspherical elements correct field curvature–each additional asphere allows removing 1-2 spherical elements while maintaining MTF >70% at 50lp/mm. Hybrid aspherical/molded glass combinations cut production costs by 40%.
IR-cut filters should be placed ahead of the sensor but behind dust-reduction mechanisms. A mispositioned filter causes false-color artifacts–proper placement reduces IR contamination to
Role of the Light-Capturing Chip and Post-Processing in Image Acquisition
Select a CMOS or CCD chip based on photon sensitivity needs–CMOS excels in low-light scenarios due to on-chip amplifiers, while CCD delivers superior uniformity for scientific applications requiring consistent pixel response. Match pixel pitch to resolution demands: 1.1–2.4 μm suits mobile devices, whereas 3.5–5.5 μm minimizes noise in professional setups. Bypass ultraviolet and infrared filters only if reconstructing spectral data beyond human vision (400–700 nm), as omitting them introduces artifacts in color accuracy.
Enable global shutter for high-speed subjects to eliminate motion skew; rolling shutter distorts fast-moving objects, a critical flaw in sports or drone photography. Calibrate quantum efficiency curves–typical modern chips peak at 50–70% in green spectrum–by exposing test targets under controlled 5500K illumination to verify manufacturer claims. For monochrome applications, remove the Bayer filter to increase light throughput by 2–3× at the cost of color reproduction.
Signal Conversion and Noise Mitigation
Serially reduce temporal noise with correlated double sampling: sample reset voltage before and after exposure, subtracting the difference to cancel kTC noise inherent in capacitors. Counter fixed-pattern noise via per-pixel offset calibration, storing correction maps in firmware to compensate for silicon wafer irregularities. Adjust analog gain before digitization–ISO 100–6400 typically maps to 0–12 dB–to avoid quantization errors when converting raw 10–14-bit data to 8-bit display formats.
Implement dark-frame subtraction for exposures longer than 1/10s; this removes thermally induced electrons that mimic photon hits, particularly at temperatures above 30°C. For sub-1 lux conditions, activate backside illumination (BSI) architectures to double light collection efficiency by relocating wiring beneath the photodiodes. Limit long-exposure times to prevent blooming–diffusion of excess charge into adjacent pixels–by setting anti-blooming gates to drain 20–30% surplus electrons when saturation exceeds 80%.
Post-Processing Pipeline Optimization
Reconstruct color with demosaicing algorithms preferring adaptive homogeneity-directed interpolation for edges, as bicubic methods blur fine texture by 15–25%. Apply lens distortion corrections first–radial and tangential–using Brown-Conrady parameters specific to the optical stack, then sharpen via unsharp masking targeting mid-frequency details (0.5–3 cycles/pixel) to avoid amplifying sensor noise. Balance dynamic range by merging 2–3 exposures in HDR mode, aligning frames with phase correlation before blending to prevent ghosting from subject motion greater than 1 pixel.
Encode output in lossless formats like DNG or TIFF when archiving, reserving JPEG for delivery with chroma subsampling disabled (4:4:4) if retaining fine color transitions critical for print. For thermal management, throttle processor clocking during continuous shooting to prevent temperature-induced dark current rise–exceeding 45°C reduces SNR by 0.3 dB per degree. Verify white balance coefficients against a 24-patch GretagMacbeth chart under D65 illumination, adjusting red and blue multipliers to achieve ΔE
