Begin by locating the fuel injection system–its arrangement determines efficiency. High-pressure pumps, typically inline or common-rail types, deliver precise metered dosages to individual cylinders. Verify spray patterns in injectors; improper atomization leads to incomplete combustion, increased particulate emissions, and reduced thermodynamic performance. Opt for sac-hole nozzles for superior hydrocarbon breakup, though they require stricter maintenance to prevent carbon buildup.
Examine the air intake tract, where forced induction systems–turbochargers or mechanical superchargers–boost volumetric efficiency. Turbochargers should pair with intercoolers to drop intake temperatures below 150°C, minimizing detonation risks while improving air density. Wastegates or variable-geometry turbos prevent over-boost, but mismatched sizing creates lag or excessive backpressure, degrading power delivery. For naturally aspirated setups, camshaft profiles must synchronize valve timing with piston motion to maximize cylinder filling.
The combustion chamber design critically affects swirl and squish. Direct-injection models favor bowl-in-piston shapes to enhance turbulence, while indirect-injection versions rely on pre-chambers. Aluminum castings reduce weight but mandate tighter clearances; forged components endure higher thermal loads but demand superior cooling. Coolant pathways must prioritize critical areas: cylinder liners, exhaust valves, and turbo manifolds. Glycol-based coolants outperform water-only mixtures in thermal stability, but require corrosion inhibitors for prolonged use.
Lubrication circuits demand full-flow filtration with filters rated below 15 microns to protect crankshaft journals and bearings from abrasive contaminants. Dry-sump systems prevent oil starvation during high-G maneuvers, though wet-sump setups suffice for standard applications if pump capacity exceeds 10 liters/minute. Synthetic oils resist breakdown at extreme temperatures but increase parasitic loss in high-viscosity grades. Monitor oil pressure drop at start-up–consistent delays indicate potential pump failure or oil starvation.
Exhaust gas recirculation (EGR) pathways require precise metering to balance emissions and performance. Cooled EGR systems reduce NOx formation but elevate soot production, necessitating robust particulate filters downstream. Unburnt hydrocarbons accumulate in EGR coolers; schedule cleaning intervals to prevent efficiency loss. Catalytic converters (diesel oxidation catalysts) manage CO and HC emissions, but sulfur-sensitive variants demand ultra-low-sulfur fuel to avoid poisoning. Oxygen sensors must operate within 0.1–1.0V range–deviations signal incorrect air-fuel ratios or sensor degradation.
Technical Layout of Compression-Ignition Power Units

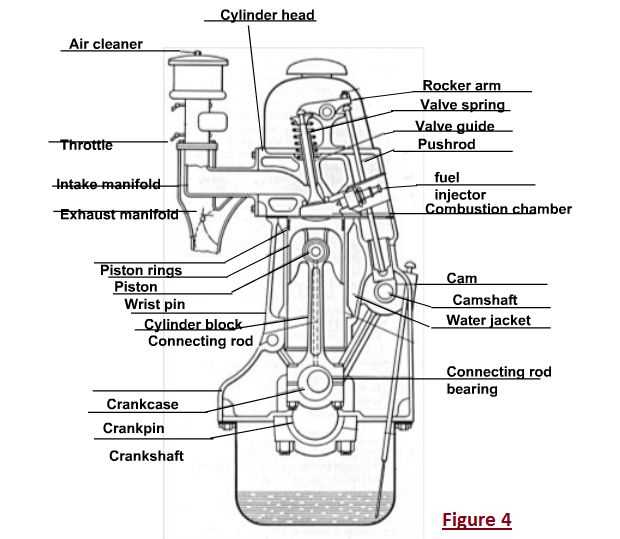

Begin with the core components: the crankshaft positioned at the base, connected to pistons via robust connecting rods. Each piston operates in a precisely machined cylinder bore, typically arranged in-line, V, or radial configurations depending on power output requirements. Ensure the cylinder block material–often cast iron or aluminum alloy–provides sufficient heat dissipation and structural integrity under peak combustion pressures exceeding 20 MPa.
Identify the fuel injection system as the heart of the mechanism. Common rail direct injection (CRDI) systems dominate modern designs, delivering pressurized fuel at 1,800–2,500 bar through electronically controlled injectors. Precisely timed pulses atomize the fuel into micron-sized droplets, optimizing combustion efficiency while minimizing particulate emissions. Verify injector nozzle geometry (e.g., 6–8 spray holes) aligns with the combustion chamber’s swirl pattern for uniform air-fuel mixing.
Key Auxiliary Systems Integration
Examine the turbocharging assembly: a turbine-driven compressor forces additional air into cylinders, increasing power density by up to 40% without enlarging displacement. Match the turbocharger’s compression ratio (typically 2:1–4:1) to the engine’s thermal limits–excessive boost risks pre-ignition in high-compression designs (14:1–22:1 ratios). Cooling circuits must handle heat loads: a dual-loop system separates high-temperature (200–250°C) exhaust gases from lower-temperature (
Validate the lubrication pathway: a gear-driven pump circulates oil at 3–5 bar through drilled galleries, coating bearings, camshaft lobes, and piston skirts. Use multi-grade oils (e.g., 15W-40) with anti-wear additives like zinc dialkyldithiophosphate to counteract boundary lubrication conditions during cold starts. Include a bypass filter for contaminants >5 microns, extending component life by reducing abrasive wear on crankpin journals.
Key Components and Their Symbols in Compression-Ignition Powerplant Blueprints
Begin by identifying high-pressure fuel delivery symbols–look for a straight horizontal line intersected by a small perpendicular arrow pointing upward, often labeled “FIP” (fuel injection pump). This notation differs from low-pressure systems (e.g., return lines) marked with dashed arrows. Verify injector symbols: a thick diagonal slash across a nozzle shape indicates mechanical injectors, while electronic variants show a wavy line connecting to a control module.
Critical Component Symbols Reference
| Component | Standard Symbol | Common Variants | Functional Notes |
|---|---|---|---|
| Turbocharger | Twin scrolls with exhaust inlet arrow | Single scroll, variable geometry (VGT) with adjustable vanes | Check for wastegate symbols adjacent to outlet–missing wastegate indicates fixed geometry |
| Intercooler | Parallel zigzag lines between air ducts | Water-cooled: double zigzag with fluid inlet/outlet; air-only: single zigzag | Verify fin density notation–more zigzags denote denser cooling |
| Oil pump | Circular gear pair with suction/discharge arrows | Gerotor: inner/outer gear circles; vane: offset crescent shape | Pressure relief valve added as spring-loaded triangle on discharge side |
Trace lubrication pathways using solid lines with droplets–dashed lines indicate filtered oil or bypass routes. Heat exchangers combine oil/coolant symbols: look for two overlapping rectangles with inlet/outlet arrows, where thicker walls denote oil cooler (vs. transmission fluid coolers with thinner walls). Crankcase ventilation typically merges with air intake symbol via a small circle with directional arrow–confirm PCV valve presence by a spring-loaded check valve notation.
Post-combustion symbols require distinguishing DPFs (diesel particulate filters) from catalytic converters: DPFs show a honeycomb matrix with inlet/outlet arrows, while DOCs (diesel oxidation catalysts) display a simpler grid pattern without depth notation. EGR (exhaust gas recirculation) paths use dotted arrows leading back to air intake, with cooler symbols shown as multiple parallel tubes if present. For electronic controls, prioritize ECU pinout symbols–solid circles with labels (e.g., “M+” for main relay) over generic connector shapes.
Creating a Technical Illustration of a Compression-Ignition Powerplant
Begin with cross-sectional outlines of the primary components: cylinder block, crankshaft housing, and cylinder heads. Use a 0.5mm technical pen for initial guidelines, ensuring proportions match manufacturer specifications–typically a 1.5:1 height-to-bore ratio for inline configurations. Label each outline with alphanumeric codes (e.g., C-1 for the first cylinder) to avoid confusion during detailing.
Sketch the fuel injection system by mapping high-pressure ducts as dashed lines (0.3mm, 60% opacity) connecting the injector nozzle to the pump assembly. Position injectors at a 15° angle relative to the cylinder axis for four-stroke designs. Include pressure values in MPa next to each duct (e.g., 180 MPa at the nozzle tip) using a 2.5pt sans-serif font to maintain readability.
Detail the combustion chamber with concentric circles for the piston crown, swirl notches, and valve recesses. For direct-injection models, emphasize the omega-shaped cavity with precise depth measurements (e.g., 12mm at TDC). Cross-hatch the piston skirt to distinguish it from the cylinder liner–use vertical lines spaced 1.5mm apart for steel alloys, or diagonal hatching (45°) for aluminum.
Draw the camshaft and valve train as mirrored profiles above the cylinders. For overhead camshafts, align lobes at 110° intervals for four valves per cylinder. Represent valve springs with coiled lines (5mm diameter, 3.5 turns) and label valve timing in degrees (e.g., IO: 12° BTDC). Use color-coding: red for intake valves, blue for exhaust.
Refining Fluid Dynamics and Auxiliary Systems
Outline the turbocharger with a scroll-shaped impeller and turbine housing connected via a solid shaft. Mark bearing locations with black dots (1.2mm diameter) and label oil passages (0.7mm dashed lines). For air-cooled variants, draw finned surfaces at 3mm spacing along the cylinder block–use parallel lines intersecting at 80° for aluminum fins.
Depict the lubrication circuit as dotted orange lines (0.4mm) tracing the main gallery, crankshaft bearings, and rocker arms. Place lubricant flow arrows (3mm triangles) every 30mm along the path, pointing toward moving components. Highlight critical pressure points (e.g., 0.4 MPa at camshaft journals) with yellow outlined circles.
Finalize with electrical components: draw glow plugs as 4mm cylinders at the cylinder head periphery, and alternator coils as six radial lines (2mm) intersecting the rotor. Number all sensors (e.g., “T-1” for coolant temperature) and terminate wiring to the ECU with zigzag resistors. Verify all measurements against a calibration template–maximum deviation: ±0.5mm for mechanical components, ±2° for angular alignments.
