Start by identifying the core elements: alternator, voltage regulator, battery, and electrical load pathways. A 12-volt lead-acid battery requires a minimum of 13.8 volts to recharge efficiently under normal operating conditions. Check the alternator’s output–most passenger vehicles generate between 13.5 and 14.8 volts at idle, rising slightly as engine speed increases. Failure to maintain this range indicates a faulty regulator or worn brushes in the alternator.
Examine wiring gauge next. A standard 4-cylinder engine typically uses 10-gauge wire for the main alternator-to-battery line, while larger 6- or 8-cylinder engines demand 8-gauge or thicker to handle higher amperage–up to 120 amps in modern setups. Corroded or undersized wires drop voltage by 0.1V per foot under load; replace any conductor with resistance above 0.2 ohms.
Locate the fusible link–usually a short segment of 14-gauge wire–between the alternator output and battery positive terminal. This link acts as a sacrificial fail-safe, melting at 200–250 amps to prevent fire. If absent or improperly sized, a short circuit can bypass the fuse box entirely, risking catastrophic damage to the onboard computer.
Test diode trio functionality by probing the alternator’s exciter terminal while the engine runs. A healthy trio reads 0.5V below battery voltage; readings matching battery voltage signal an open diode, while zero volts point to a short. Replace the rectifier assembly if more than one diode fails–isolated diode replacement is rarely cost-effective.
Verify ground paths between engine block, chassis, and battery negative post. A single rusted bolt or painted surface can add 0.3V resistance, reducing charging efficiency by 10–15%. Sand contact points to bare metal and apply dielectric grease before reassembly to prevent oxidation.
Electrical Circuit Overview for Vehicle Power Supply
Begin by identifying the alternator’s voltage regulator–ensure it delivers 13.8–14.5V under load for lead-acid batteries. Connect the positive terminal directly to the battery via a 6–8 AWG cable, bypassing the starter solenoid to reduce voltage drop. Install a 60A fuse within 7 inches of the battery’s positive post to prevent fire hazards from short circuits. Verify alternator output with a multimeter at the battery terminals while the engine runs at 2,000 RPM; readings below 13.2V indicate regulator failure or belt slippage. Use a 120A diode trio for isolating the field coil from accessory loads during engine shutdown to preserve battery charge.
Troubleshooting Voltage Irregularities
Check the ground path resistance–measure less than 0.1 ohms between the alternator housing and battery negative terminal. Replace corroded or undersized grounding straps, particularly in aluminum-frame vehicles, to prevent parasitic voltage loss. Test the voltage drop across the alternator’s output cable: with accessories on (headlights, blower at max), the drop should not exceed 0.5V over a 6-foot run. If readings stray, reroute cables away from heat sources and inspect connections for oxidation. For vehicles with start-stop systems, integrate an AGM-compatible regulator to handle frequent cycling without overcharging.
Core Elements of an Automotive Power Supply Network
Prioritize a high-output alternator with a voltage regulator capable of 14.2–14.8V at 50–120A for passenger vehicles; undersized units fail under auxiliary loads like heated seats or aftermarket audio. Select a serpentine belt with Kevlar reinforcement or EPDM compound to prevent slippage at 3000+ RPM–OEM rubber belts degrade within 60,000 miles under sustained heat cycles. Install a fuse-rated battery disconnect switch upstream of the main positive terminal to isolate parasitic draws exceeding 50mA during storage; neglecting this accelerates sulfation in AGM batteries by 20–30% over 12 months.
Route heavy-gauge wiring–4 AWG minimum for 100A circuits–to minimize voltage drop below 0.5V across 15-foot runs; copper-clad aluminum strands introduce resistance spikes up to 1.2V under pulse loads. Integrate a glass-mat separator battery with a 95% charge acceptance rate for start-stop systems; conventional flooded cells lose 1% capacity daily at 50% state of charge. Position the voltage sense line at the battery’s positive post rather than the alternator output; this compensates for cable losses up to 0.3V, preventing overcharging of lithium-iron-phosphate packs by 1.5–2.0V.
Add a transient voltage suppressor (TVS) diode rated for 200A peak pulse current across alternator terminals; inductive loads from solenoid actuators generate spikes exceeding 60V, degrading ECU firmware within 500 cycles. Use tin-plated ring terminals with adhesive-lined heat-shrink tubing for connections exposed to vibration; corrosion increases resistance by 7–15% annually in humid climates, necessitating terminal servicing every 30,000 miles. Verify ground paths with a megohmmeter–resistance above 0.2 ohms between engine block and chassis mandates supplemental straps; insufficient grounding induces phantom draws exceeding 800mA in idle systems.
How to Decode Electrical Blueprint Symbols in Vehicle Power Circuits
Begin by isolating the battery icon–typically a pair of parallel lines with a plus sign on the longer side. This marks the origin of high-voltage output, often 12V or 24V, and dictates polarity for all downstream connections. Adjacent rectangles or squares usually represent alternator assemblies; look for internal markings like “GEN” or wavy lines indicating windings. These components must align with the battery’s voltage rating to prevent reverse current flow or overloading.
Identify connectors by small circles or dots at wire intersections. Filled circles signal permanent soldered joints, while hollow ones indicate plug-in terminals. Trace these junctions to locate fuses–symbolized by zigzag lines or rectangles with an “F” inside–and relays, depicted as boxes with a diagonal line through them. Cross-reference the fuse values in amperes next to each symbol with the wire gauge table below to verify compatibility.
| Wire Gauge (AWG) | Max Current (A) | Fuse Rating (A) |
|---|---|---|
| 10 | 30 | 20–25 |
| 12 | 20 | 15–20 |
| 14 | 15 | 10–15 |
| 16 | 10 | 7.5–10 |
Ground points appear as inverted triangles or “GND” labels. Every circuit must terminate here to complete the loop; missing grounds cause erratic voltage readings. For diodes–single-direction current gates–spot arrow-shaped symbols with a perpendicular line. Ensure the arrow points away from the battery to block backfeed, which can damage voltage regulators.
Key Abbreviations in Circuit Blueprints
Memorize these common labels to speed up troubleshooting:
- B+: Direct battery positive
- L: Lamp or indicator circuit
- S: Switch-controlled line
- IG: Ignition-switched power
- EX: Exciter wire for alternator activation
- N: Neutral/ground return
Voltage regulators often hide behind a dashed rectangle or a “VREG” tag. Verify its presence on any network involving variable output components, as their absence risks spikes up to 18V on sensitive electronics. For AC ripple testing, attach an oscilloscope probe at the alternator’s output terminal–marked “BAT” or “A+”–and confirm the waveform stays below 500mV peak-to-peak under load.
Step-by-Step Analysis of Electrical Pathways in an Automotive Power Circuit
Begin by identifying the battery’s positive terminal–typically marked with a red cable and connected to the starter relay. Follow the heavy-gauge cable from the relay to the alternator’s output stud (often labeled “B+” or “Bat”). Verify the connection integrity by checking for corrosion or loose terminals, as resistance here disrupts voltage delivery. Use a multimeter to confirm a reading between 13.8V and 14.4V when the engine runs; deviations indicate regulator or rectifier faults.

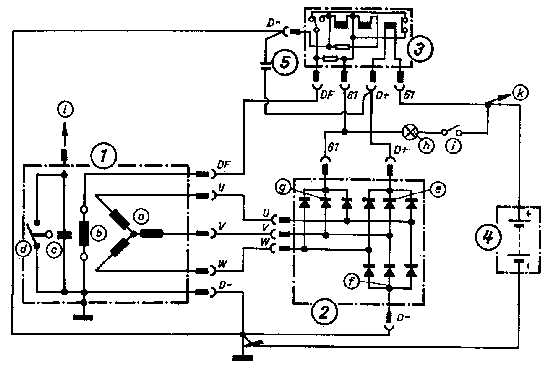

Trace the alternator’s stator windings next. Rotor excitation generates three-phase AC, converted to DC via the rectifier bridge–six diodes (three positive, three negative) mounted on a heat sink. Inspect diode pairs with an ohmmeter in both polarities: a failed diode shows continuity in one direction. Replace the entire bridge assembly if one diode fails, as partial repairs risk imbalanced output. Note the heat sink’s temperature during operation–excessive heat (>80°C) suggests overloading or poor cooling.
Voltage Regulation and Sensor Feedback
The voltage regulator monitors battery state via the ignition input (“Ign” or “L”) and adjusts rotor current to maintain 14.2V ±0.2V. Locate the regulator–often integrated into the alternator–and disconnect its wiring harness. Probe the “S” (sense) terminal with the engine off; it should mirror battery voltage. If not, check the fuse link or fusible wire between the battery and alternator. High resistance here falsely signals low voltage, causing overcharging.
Follow the excitation circuit from the ignition switch to the regulator’s “F” (field) terminal. Current flows through slip rings to the rotor, creating the magnetic field. Test rotor resistance (typically 2.5–5Ω) with the multimeter; lower readings indicate shorted windings. Replace the rotor if shorted–rewinding is rarely cost-effective. Ensure brushes contact the slip rings without excessive wear (minimum 5mm length); replace brushes if worn to prevent arcing.
Ground Path and Parasitic Loads
Trace the alternator’s case ground back to the engine block. A poor ground–often overlooked–creates voltage drop across the chassis, mimicking alternator failure. Clean contact surfaces with a wire brush and apply dielectric grease to prevent oxidation. Measure voltage drop between the alternator’s negative terminal and battery’s negative post while the engine runs; values >0.2V indicate unacceptable resistance.
Isolate parasitic loads by disconnecting the negative battery cable with the engine off and measuring current draw (should be 100mA) requires removing fuses sequentially to identify the culprit–commonly the ECU in “sleep” mode or faulty relays. Reconnect components only after verifying each circuit’s dormant state with an ammeter.
Cross-reference wiring with the manufacturer’s service manual for color codes and pinouts. For instance, Toyota’s field circuit often uses a yellow wire (IGN) and a black/white stripe (F), while GM employs purple (B+) and dark green (L). Mismatched colors or spliced wires corrupt sensor feedback, leading to erratic voltage regulation. Document all measurements to troubleshoot intermittent faults–voltage logs over several drive cycles reveal trends not evident in single tests.
