Begin by locating the float chamber–this component maintains a consistent fuel level by using a buoyant valve to shut off the fuel supply when the optimal level is reached. Ensure the needle valve moves freely; any restriction here disrupts the entire air-fuel ratio, leading to lean or rich mixtures. A well-sealed gasket between the chamber and the main body prevents vacuum leaks, which skew performance metrics.
Trace the venturi tube next, where the throttle plate regulates airflow velocity. The narrower the passage, the greater the depression created, pulling fuel from the main jet. Verify the jet’s orifice diameter–standard sizes (e.g., 1.0mm for idle, 1.5mm for mid-range) are precise; deviations cause hesitation or flooding. Cold-start mechanisms rely on a separate enrichment circuit; check that the choke plate fully seals to create sufficient vacuum for auxiliary fuel delivery.
Examine the idle circuit: a bypass hole or separate jet (typically 0.5mm) meters fuel when the throttle is barely open. Adjust the idle screw incrementally–each quarter-turn alters RPM by 50-100. The transition port, positioned just above the throttle plate, ensures seamless progression to part-throttle operation. Misalignment here causes stalling or surging. Finally, inspect the accelerator pump, which injects extra fuel during rapid throttle openings; a worn diaphragm or clogged nozzle results in flat spots under load.
Use a pressure gauge to test the fuel pump’s output–base readings should stabilize at 3-5 psi. Lower pressure indicates a failing pump or clogged filter. Clean the air filter regularly; a 20% reduction in airflow increases fuel consumption by 12%. For tuning, employ a dwell meter and vacuum gauge to cross-reference settings. Bench-test components with aerosol cleaner sprayed on potential leak points while the engine runs–RPM changes pinpoint the source.
Understanding the Functional Blueprint of Fuel Mixing Systems

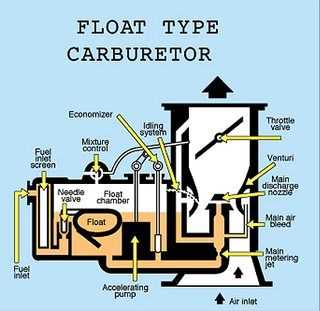

Begin by locating the float chamber in the technical illustration–it regulates fuel supply using a hinged valve and buoyant mechanism, maintaining consistent pressure. The venturi section, marked by a narrowing conduit, creates a pressure differential that draws fuel through the main jet at precisely calibrated rates (typically 1.0–2.5 mm diameter for most engines). For cold starts, engage the choke plate: a manual or automatic valve that restricts airflow, enriching the mixture by 12–15% more fuel than the stoichiometric ratio (14.7:1). Verify the idle circuit settings next–adjust the idle mixture screw incrementally (1/8 turns) while monitoring RPM stability at 700–900 RPM; exceeding this range risks fouling spark plugs.
Examine the accelerator pump linkage in the drawing–it injects a direct fuel burst (0.2–0.5 mL per activation) via a diaphragm or piston to prevent hesitation during rapid throttle openings. The economizer valve, often overlooked, activates under heavy load (above 75% throttle) to enhance power output by diverting additional fuel through a secondary jet. Inspect the air bleed passage for obstructions: clogged orifices (0.3–0.8 mm diameter) disrupt emulsification, leading to erratic air-fuel ratios. Replace jets annually if operating in dusty environments–abrasive particles degrade tolerances by 5–10% per 10,000 km.

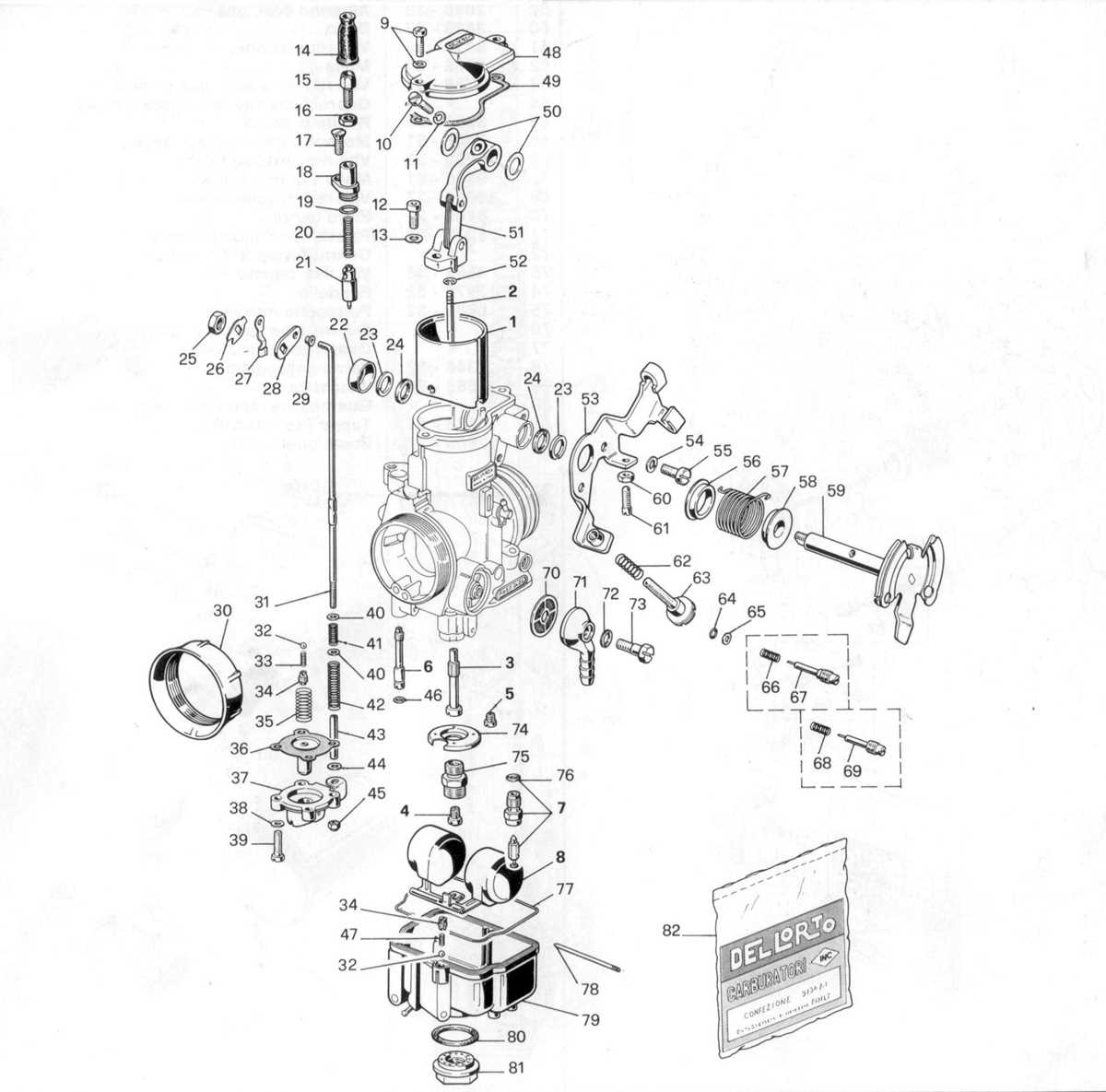

Key Components and Their Positions on a Fuel Mixing Device Blueprint
Begin by identifying the float chamber, typically located at the base of the assembly. This reservoir maintains consistent fuel levels through a hollow brass or plastic float linked to a needle valve. Ensure the float moves freely without binding–stiction here causes erratic fuel delivery or flooding. Adjust the float height by bending its tab: a clearance of 1.5mm between the float and the chamber lid (engine off) is standard for most small engines.
Trace the main jet from the float chamber upward–it threads into the bottom of the venturi or emulsion tube. This calibrated orifice meters fuel under high vacuum; a clogged or oversized jet leans the mixture, while a loose one allows raw fuel to flood the intake. Use numbered drill bits for cleaning, matching the jet’s stamped size (e.g., #120 = 1.20mm). Avoid wire; brass jets deform easily.
The throttle plate sits directly above the venturi bore, pivoting on a shaft controlled by the accelerator linkage. Inspect the plate’s edge for wear–gaps exceeding 0.1mm allow unmetered air, disrupting idle stability. Sub-zero temperatures warp plates; replace bent ones. Synchronize dual-plate setups by adjusting throttle stops to equalize vacuum at 1,000 RPM (engine warm).
- Choke valve: Mounted at the inlet mouth, this butterfly or sliding plate enriches cold starts. Check for full closure (no visible light between plate and bore) and linkage freedom. A stuck choke starves the engine; soak linkages in penetrating oil before forcing release.
- Idle circuit: Drilled passages adjacent to the throttle stop deliver fuel at low airflow. Locate the idle mixture screw–turning it clockwise leans the mix; optimal setting balances smooth idle with minimal exhaust smoke. Adjust only after engine reaches 190°F.
- Power valve: Activated via manifold vacuum, this secondary jet engages under load. Test by gently blowing through the vacuum port–air should pass freely. A failed valve causes hesitation; replace diaphragms every 2,000 hours.
Study the air bleed passages atop the main body–these tiny holes control emulsion ratios. Primary bleeds (often 0.5–0.8mm) pre-mix air with fuel; secondary bleeds fine-tune midrange response. Use compressed air to clear debris, never metal tools. Incorrect bleed sizes create bogging; consult the service manual for OEM specifications.
Critical Alignment Checks
- Verify the Pump Diaphragm seating by pressing the accelerator pump lever–fuel should squirt from the accelerator nozzle within 1 second. Delayed response indicates a worn pump cover gasket or torn diaphragm. Replace gaskets annually.
- Check Venturi Booster alignment by removing the top cap–misaligned boosters cause uneven fuel distribution across cylinders. Align with a straightedge; snug screws to 4 Nm torque.
Mark all gasket surfaces with a light coat of assembly lube before reassembly. Oxidation between aluminum and steel components seizes fasteners over time. For engines operating above 3,000 RPM, upgrade to Viton floats–standard nitrophyl floats absorb fuel, altering mixture density.
How to Read Air-Fuel Pathways in a Fuel Mixer Illustration

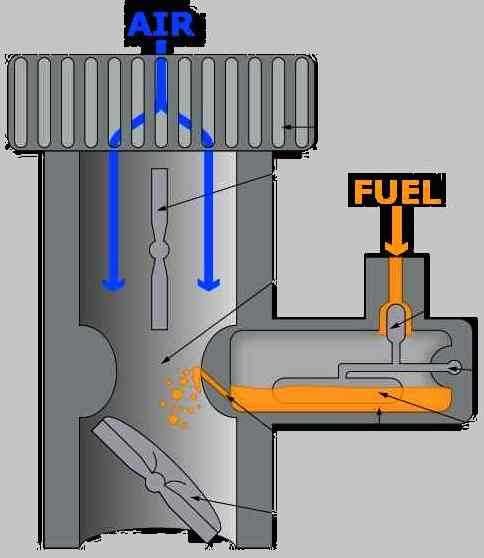

Start by locating the main venturi–the narrowest section of the airflow channel. Observe how incoming air accelerates here, creating a pressure drop that draws fuel from the discharge tube. This point is critical: mismatched diameters or obstructions here directly weaken fuel atomization. Check the float bowl level against manufacturer specs (typically 1.5–2.5 mm below the nozzle tip); an incorrect height floods or starves the engine.
- Trace the idle circuit first: follow the small passages branching from the main well to the idle jet. Look for progressive ports (if present) that open as the throttle plate rotates. These ensure smooth low-speed transitions.
- Examine the power valve linkage–some models activate an extra fuel feed under heavy load. A stuck valve causes hesitation or detonation.
- Note bypass channels for cold-start enrichment, often marked with red or yellow highlights. Filter screen clogs here mimic carburetor failure.
Compare throttle plate angles to airflow resistance markers printed alongside passages. At wide-open throttle, the air horn’s curvature should direct maximum flow into the venturi without turbulence; deviations indicate bent linkage or worn shaft bearings requiring replacement. Measure vacuum port positions: primary ports near the top control power output, while secondary ports (if equipped) adjust midrange torque.
Identify emulsion tubes inside the main well–tiny holes mix air with fuel before discharge. Count and verify their alignment: larger holes toward the top lean the mix, smaller holes at the bottom richen it. Replace tubes if the emulsion pattern deviates from factory specs; this restores precise air-fuel ratios across RPM ranges.
Step-by-Step Guide to Reading Fuel and Air Mixture Adjustments
Locate the mixture screws–typically one for idle (marked “I”) and one for high-speed (marked “H”)–on the side of the metering block. Turn each screw clockwise until it gently seats, counting the number of turns. Most engines default to 1.5 turns out from seated for initial calibration; record your baseline for later reference. If the engine stumbles or surges, the screw is either too lean (clockwise) or too rich (counterclockwise). Adjust in 1/8-turn increments, allowing the engine to stabilize for 10–15 seconds between changes.
Diagnosing Symptoms with Precision
| Symptom | Idle Screw (I) Adjustment | High-Speed Screw (H) Adjustment | Exhaust Smoke |
|---|---|---|---|
| Rough idle, stalling | +1/4 turn counterclockwise | No change | Black, sooty |
| High RPM bogging | No change | +1/8 turn counterclockwise | Light gray/transparent |
| Backfiring, pinging | -1/8 turn clockwise | -1/4 turn clockwise | White or bluish |
Attach a tachometer to monitor RPM while adjusting. Start the engine and warm it to operating temperature (2–3 minutes). For idle adjustments, set the throttle stop screw to 800–900 RPM, then fine-tune the idle mixture screw until the engine reaches peak RPM–this is the “sweet spot.” For high-speed adjustments, accelerate to 3/4 throttle, then adjust the high-speed screw until the engine runs smoothly without hesitation. If the RPM drops more than 200 during adjustment, revert to the last stable setting and re-test. Always re-check idle after altering high-speed settings, as changes interact.
