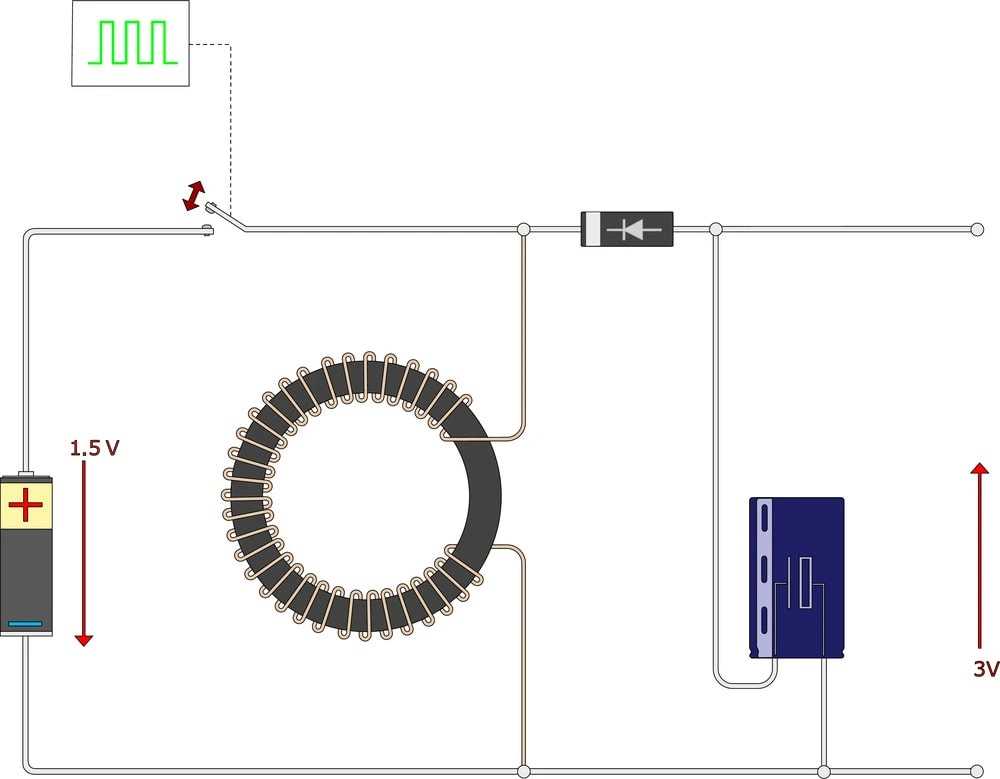

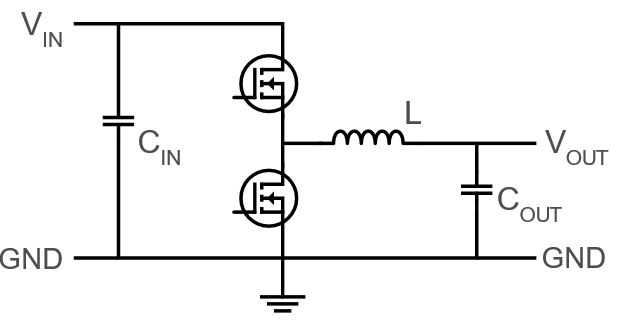

Start with a synchronous design if efficiency above 90% is critical. Use a low-side MOSFET with RDS(on) < 15 mΩ for 5–10 A loads and pair it with a high-side switch matched to input voltage–20 V gate rating suffices for 12 V in. Place input capacitors Cin = 22 µF (X7R, 25 V) directly across the MOSFETs to suppress switching noise; add a smaller 1 µF ceramic beside the controller IC to stabilize gate drive.
Select an inductor with current rating 30% above peak load. For 1 MHz operation, 10 µH, 18 A saturation toroidal cores keep ripple under 20%. Place the output capacitors Cout = 3 × 22 µF (X5R, 16 V) within 5 mm of the inductor to minimize ESR losses–avoid electrolytic for transient response. Add a single reverse-blocking diode only if cost constraints demand non-synchronous operation, but expect 3–5% lower efficiency.
Route feedback traces >1 mm wide and shield them with a ground pour to reject EMI. Position the compensation network Rc = 10 kΩ, Cc = 1 nF adjacent to the error amplifier to prevent instability. Use separate vias for power ground and signal ground, merging them at a single star point beneath the controller. For 3.3 V output, set the feedback divider R1 = 10 kΩ, R2 = 20 kΩ for optimal load regulation.
Test ripple with a 50 MHz bandwidth scope and a 1× probe; expect <50 mVpp at 2 A. Verify stability by injecting a step load from 10% to 90% full load–overshoot must remain under 5%. If inductor current exceeds 80% of saturation, increase core size or reduce switching frequency by 10–20%.
Key Components of a Step-Down Power Stage Visual Guide
Begin with a low-side N-channel MOSFET for high efficiency at switching frequencies above 100 kHz. Choose a device with RDS(on) under 10 mΩ and a gate charge below 20 nC to minimize conduction and switching losses. Pair it with a Schottky diode rated for at least 1.5× the input voltage to prevent reverse recovery issues during transitions.
Place the inductor between the switching element and output capacitor, selecting a value based on the desired ripple current. For a 5 V output at 1 A, a 10 μH inductor with a saturation current of 2 A and a DC resistance under 50 mΩ reduces core losses. Ensure the core material suits the operating frequency–ferrite for 100–500 kHz, powdered iron for lower ranges.
Critical Layout Practices
| Component | Trace Width (mm) | Spacing (mm) | Notes |
|---|---|---|---|
| VIN to switch | 2.5 | 1.2 | Avoid vias; use solid copper pour |
| Switch node | 5.0 | 2.0 | Minimize area; no adjacent traces |
| GND return | 3.0 | 1.5 | Star point at output capacitor |
Route the feedback path separately from noisy traces. Use a 10 kΩ resistor in series with the feedback pin of the controller IC to filter high-frequency noise, combined with a 1 nF ceramic capacitor to ground. Avoid ground loops by connecting the input and output capacitors’ negative terminals to a single point.
Select input capacitors with low ESR and ESL to handle pulsating current. For a 12 V input, use two 22 μF X7R ceramic capacitors in parallel to reduce ripple voltage below 50 mVpp. Place them within 5 mm of the switching element to suppress EMI. Output capacitors should balance ripple reduction and transient response–for a 5 V/1 A output, use a 47 μF tantalum or 100 μF polymer capacitor.
Implement soft-start with a 0.1 μF capacitor on the SS pin of the controller to limit inrush current. For adjustable outputs, set the feedback resistor divider to achieve VFB = 0.8 V (typical for PWM controllers), with R1 ≤ 10 kΩ and R2 calculated via R2 = R1 × (VOUT/VFB – 1). Add a 100 pF capacitor across R2 to dampen ringing.
Include an RC snubber (2.2 Ω + 470 pF) across the switching element to clamp voltage spikes from parasitic inductance. Test for stability by injecting a 10 kHz–1 MHz small-signal disturbance at the feedback node; phase margin should exceed 45° at the crossover frequency. For multi-layer boards, dedicate the bottom layer as a ground plane, stitching vias every 5 mm along high-current paths.
Validation Checklist
Measure efficiency at 20%, 50%, and 100% load with a digital power analyzer. Target ≥90% for loads above 500 mA. Use a differential probe (≤10× attenuation) to verify switch node ringing stays below 2× the input voltage. Thermally characterize the inductor core–ferrite should not exceed 80°C at full load. For high-voltage inputs (>48 V), add a bootstrap circuit with a 0.1 μF/50 V capacitor and a 1 N4148 diode to drive the N-channel MOSFET gate.
Critical Elements and Notation in a Step-Down Power Stage
Select an N-channel MOSFET with a drain-source voltage (VDS) at least 1.5× the input voltage to prevent avalanche breakdown under transient loads. Prioritize devices with RDS(on) below 50 mΩ for input voltages under 20 V to minimize conduction losses–infineon’s OptiMOS series or TI’s CSD86350Q offer optimized trade-offs between switching speed and thermal resistance.
Use a Schottky diode for the freewheeling path when the switch is off; its forward voltage drop (VF) should be ≤ 0.5 V at maximum load current. Avoid PN diodes–reverse recovery losses degrade efficiency at switching frequencies above 200 kHz. Brands like Vishay’s SS34 or ON Semiconductor’s MBR1045 provide balanced cost and performance.
The output inductor dictates ripple current; calculate its value using L = (Vin − Vout) × D × Tsw / ΔIL, where ΔIL is 20–40% of the maximum load current. Core material matters: powdered iron (e.g., Micrometals’ -26) saturates gradually, while ferrite (TDK’s PC40) offers higher permeability but sharper saturation–choose based on thermal constraints.
Input and output capacitors require different specifications. For the input, use low-ESR ceramic capacitors (Murata’s GRM series) to suppress high-frequency noise; place them as close as possible to the switch node. The output capacitor must handle RMS ripple current–electrolytic types (Nichicon’s PL series) work for bulk storage, but ceramics (Kemet’s CGA) excel in high-frequency apps due to lower ESR and ESL.
- Switching controller IC: Opt for fixed-frequency peak-current-mode (e.g., TI’s LM3481) for predictable EMI or hysteretic controllers (LT3757) for variable loads.
- Feedback network: Set the output voltage via R1 / R2 = (Vref / Vout) − 1, where Vref is typically 0.8–1.2 V. Use 1% tolerance resistors to maintain accuracy.
- Bootstrap circuit: Include a diode (1N4148) and capacitor (22 µF) for high-side gate drive if the controller lacks an internal charge pump.
Thermal management demands attention: the MOSFET’s junction temperature (Tj) should stay below 125°C under full load. Use thermal vias and copper pours on the PCB; apply thermal adhesive (Arctic’s MX-4) if heatsinks are impractical. For the inductor, derate saturation current by 30% to account for temperature rise.
Gate drive resistance (Rg) balances switching speed and EMI. Start with 10 Ω–50 Ω; increase if ringing exceeds 20% of the gate-source voltage. Add a snubber circuit (RC, 1 nF + 10 Ω) across the switch node if overshoot exceeds Vin + 20%.
Layout rules prevent instability: route the ground return path directly to the input capacitor, avoiding shared traces with the load. Keep high-current loops (switch node → inductor → capacitor) as small as possible. For noise-sensitive designs, separate analog and power grounds–use a star topology at the input capacitor’s negative terminal.

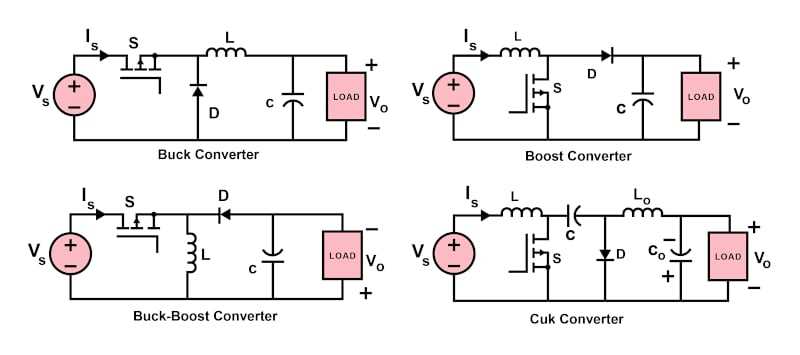

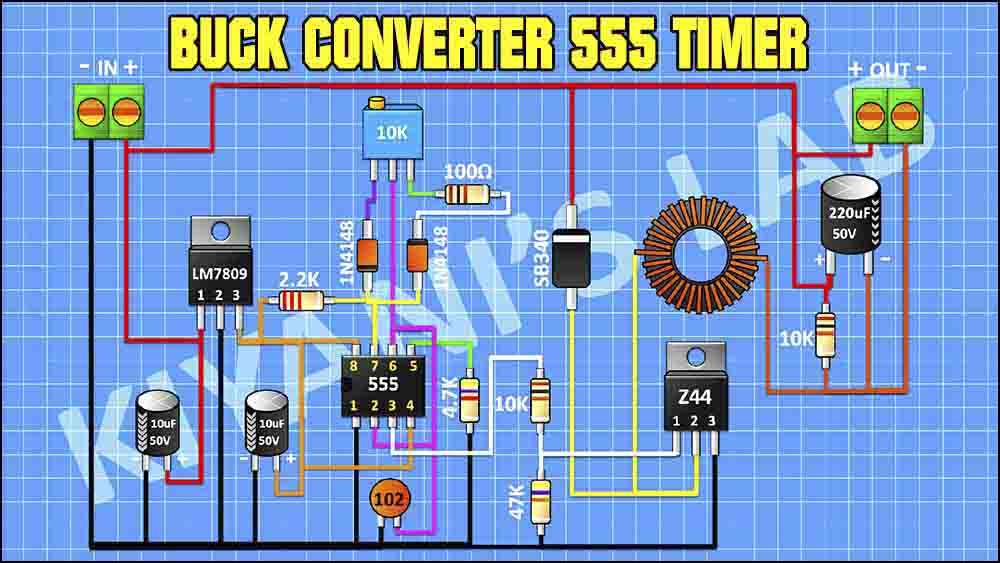

Step-by-Step Assembly of a Voltage-Stepdown Circuit
Select a switching regulator IC with a current rating at least 20% above your load’s maximum demand–this prevents thermal overload during transient spikes. For example, if your load draws 1.5A, choose a 2A or 3A regulator like the LM2596 or MP1584.
Mount the IC on a perforated board or PCB, ensuring the input and output traces are at least 2mm wide for currents above 1A; narrower traces create resistance and voltage drops. Use a ground plane for stability.
Connect the input capacitor (22–47µF, low-ESR ceramic or electrolytic) within 2mm of the regulator’s input pin. Longer leads introduce inductance, causing voltage ringing and reduced efficiency.
Wire the inductor between the regulator’s switch pin and output capacitor. Choose a value based on the formula: L = (Vout * (Vin – Vout)) / (Vin * fsw * ΔI), where fsw is the switching frequency (typically 500kHz) and ΔI is 20–30% of the maximum load current.
Place the output capacitor (47–220µF, rated for at least 1.5× Vin) directly at the output terminal. Reverse polarity destroys electrolytics; observe the correct orientation.
Add a feedback network using a voltage divider: R1 = 10kΩ and R2 calculated as R2 = R1 * (Vout / Vref – 1), where Vref is typically 0.8V or 1.25V, depending on the IC. Connect the divider midpoint to the feedback pin.
Solder a Schottky diode (e.g., 1N5822) from the switch pin to ground, cathode to switch pin. This freewheeling diode handles the inductor’s flyback current; omit it only if the IC has an internal synchronous rectifier.
Power the circuit with the input voltage, then measure the output with a load attached. Adjust R2 in 1% increments if the output voltage deviates by more than 2%. Verify efficiency by comparing Vin * Iin to Vout * Iout; expect 85–95% for well-designed circuits.
Determining Optimal Energy Storage Components for Switch-Mode Power Stage Stability
Select the inductor value based on the allowable current ripple, targeting 20-40% of the maximum load current. For a 5 A load, a ripple of 1–2 A (20–40%) ensures adequate headroom without excessive size. The formula L = (Vin − Vout) × D / (fsw × ΔIL) yields 47–100 µH for 12 V input, 5 V output, 500 kHz switching, and 1.5 A ripple. Round to standard values, favoring lower ESR types like ferrite-core or powdered-metal to minimize conduction losses.
Capacitor selection hinges on output voltage ripple and transient response. A ceramic 22–47 µF 6.3 V X5R capacitor placed directly at the output node suppresses high-frequency spikes, while a bulk electrolytic 100–220 µF handles load steps. Calculate ripple voltage ΔVout = ΔIL / (8 × fsw × C), ensuring
Inductor saturation current must exceed the peak switch current by at least 20%. For a 5 A continuous load, select a component rated for 6–8 A. Saturation manifests as sudden impedance collapse, distorting waveforms and risking catastrophic overcurrent. Powdered iron inductors tolerate higher ripple but require trade-offs in core volume; ferrite cores offer compact size but demand tighter thermal management due to lower thermal mass.
ESR and ESL of the output capacitor directly influence efficiency and stability. Ceramic capacitors excel at high frequencies but exhibit voltage derating; derate by 50% at 6.3 V to maintain capacitance. Polymer electrolytics reduce ESR losses but require attention to ripple current ratings–exceeding 50% of the rated value accelerates aging. Always match the capacitor bank’s RMS current capability to the inductor ripple current for optimal thermal performance.
The damping factor ζ of the LC network governs overshoot during load transients. A ζ > 0.5 prevents ringing; achieve this by pairing a moderately sized inductor (e.g., 68 µH) with a slightly overdamped capacitor (e.g., 33 µF ceramic + 150 µF electrolytic). Use the approximation ζ ≈ Rload × √(C / L) where Rload is the minimum load resistance. For Rload = 1 Ω, ζ ≈ 0.7, ensuring stable step-response.
Avoid resonant peaking by verifying the crossover frequency fc = 1 / (2π√(LC)) lies at least a decade below the switching frequency. For 500 kHz operation, target fc c ≈ 34 kHz, providing ample margin. If fc approaches fsw/10, increase capacitance or inductance proportionally.
Temperature dependence alters component behavior. Inductor permeability drops by 30% at 125°C, increasing ripple proportionally. Select cores with minimal temperature coefficient (e.g., MPP or Sendust) and use capacitors rated for the full operational temperature range. X5R/X7R ceramics exhibit ±15% capacitance variation over −55°C to +125°C; account for derating in margin calculations. Electrolytics suffer from increased ESR at low temperatures–avoid aluminum types in freezing environments.
Layout parasitics induce voltage spikes and instability. Route the inductor, switching node, and output capacitor with 1 oz copper to minimize loop inductance. Place the output capacitor within 5 mm of the load to mitigate ground bounce. Kelvin sensing at the feedback pin minimizes noise coupling; use a dedicated trace directly to the capacitor ground. Verify stability with load steps up to 5 A/µs–overshoot should settle within 50 µs for robust operation.
