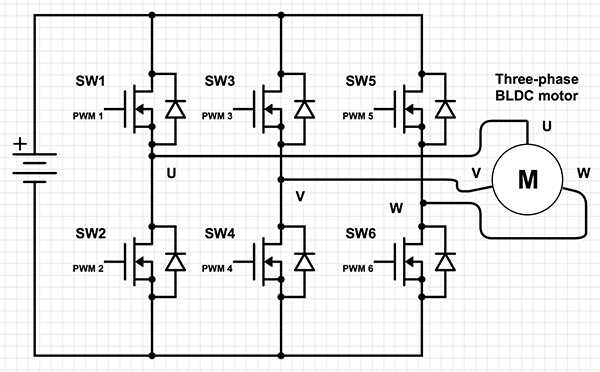

Start with a three-phase inverter circuit at the core of any high-efficiency rotary actuator design. Use six MOSFETs or IGBTs arranged in a bridge configuration–two per phase–with each leg switching 120 electrical degrees apart. Place gate drivers directly above and below each switch to minimize parasitic inductance; bypass capacitors rated for 100nF at 50V should sit within 5mm of each device.
For sensorless operation, integrate a back-EMF zero-crossing detection network on the inverter output. Sample each phase line-to-line voltage through 10kΩ series resistors and feed into a comparator set to 0.7V reference. Add 100pF low ESR caps across the comparator inputs to filter switching noise without delaying detection beyond 5μs.
Position feedback accuracy dictates torque ripple; employ either Hall-effect ICs spaced 60 mechanical degrees apart or a high-resolution magnetic encoder outputting 12-bit quadrature signals. Power Hall sensors with a regulated 5V supply, decoupled by 1μF ceramics, and route traces wider than 1.5mm to handle inrush currents up to 200mA.
Thermal coupling between the inverter stage and heat sink reduces junction case gradient. Apply thermal interface material rated for 0.3°C/W·cm² and torque mounting screws to 3Nm; this extends continuous current rating from 8A to 12A at 40°C ambient. Keep PWM switching frequency between 16kHz and 24kHz to balance audible noise and switching losses–below 5kHz generates noticeable harmonic hum, above 30kHz increases MOSFET power dissipation by 15%.
Visual Representation of a Permanent Magnet Synchronous Drive
Position the three-phase stator windings 120 electrical degrees apart to ensure balanced torque production and minimize cogging effects. Connect the windings in either a star (Y) or delta (Δ) configuration–star reduces back EMF harmonics but requires higher current, while delta offers lower voltage drops at the cost of increased circulating currents. Use an insulated-gate bipolar transistor (IGBT) or MOSFET bridge with dead-time insertion (typically 1–3 μs) to prevent shoot-through faults. Select switching components based on voltage ratings: 600V for 310V DC bus, 1200V for 600V systems.

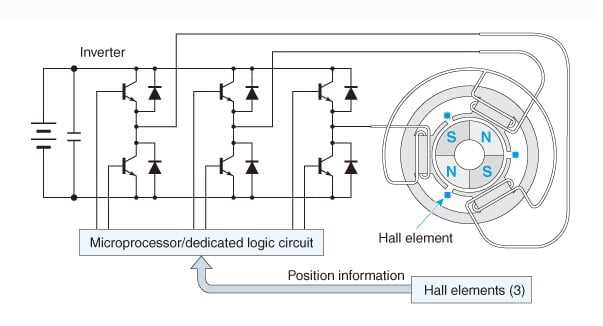

Integrate a rotor position sensor–Hall effect devices (digital or analog), an encoder (incremental or absolute), or sensorless methods like back-EMF zero-crossing detection. For Hall sensors, align them 30° (electrical) from the winding phase centers to match standard commutation tables; analog variants (e.g., Allegro A1330) reduce noise but require calibration via lookup tables. Sensorless drives demand filtering to reject PWM-induced harmonics–apply a bandpass filter centered at 0.3×fundamental frequency with 20dB attenuation at switching frequency.
Apply pulse-width modulation (PWM) with a carrier frequency between 8 kHz and 20 kHz–lower values increase audible noise but improve efficiency by reducing switching losses. For trapezoidal control, maintain 120° conduction per phase; for sinusoidal, use space vector PWM (SVPWM) with third-harmonic injection to extend linear modulation range by 15%. Adjust modulation index dynamically: 0.8 for steady state, 0.95 during acceleration to avoid saturation. Monitor DC bus voltage ripple–capacitors should limit it to ±2% of nominal; electrolytic types (470–1000 μF) supplemented by film (10 μF) for high-frequency stability.
Commutation Logic and Failure Mitigation
| Rotor Position (Electrical Degrees) | Active Phases | Gate Signals (High/Low) | Failure Mode | Corrective Action |
|---|---|---|---|---|
| 0–60 | A+, B– | Q1=H, Q4=L | Phase A open | Disable Q1/Q4, shift to B+/C– |
| 60–120 | A+, C– | Q1=H, Q6=L | Q1 shorted | Instant shutdown, fault flag |
| 120–180 | B+, C– | Q3=H, Q6=L | Current > Imax | Reduce PWM duty cycle 20% |
Distribute current paths to avoid localized heating–trace widths for 30A continuous should exceed 3 mm, with 2 oz copper thickness. Ground planes must isolate power and signal layers; separate analog and digital returns to prevent noise coupling. For regenerative braking, include a braking resistor sized for 1.5×peak motor power–calculate as Presistor = 0.5 × L × I2 × fswitch, where L is winding inductance. Protect against overvoltage by clamping bus voltage to 1.2×DC link nominal via transient voltage suppressors (TVS) or zener diodes rated for 10A surge.
Select magnet material based on torque density and thermal stability: neodymium-iron-boron (NdFeB) for high torque (Br=1.2T) but limited to 120°C; samarium-cobalt (SmCo) resists demagnetization up to 250°C at lower flux (Br=0.9T). Shape magnets to reduce eddy currents–arc segments with 1–2 mm air gaps outperform solid rings; for high-speed applications, use surface-mounted designs rather than embedded to avoid airgap flux modulation. Apply insulation between magnets and rotor core–0.2 mm Kapton film withstands 4 kV, eliminating arcing at 30 krpm.
Embed thermal sensors–NTC thermistors near stator slots for winding temperature, PT1000 on end shields for ambient monitoring. Set fault thresholds: 130°C for winding (class F insulation), 80°C for drive electronics. Forced-air cooling requires airflow rates of 2–5 CFM per 100W; liquid cooling drops junction temperatures by 25°C but mandates hermetic seals for dielectric fluids. Validate commutation timing via oscilloscope: phase voltage should lead current by 10–15 electrical degrees; misalignment >3° indicates controller delay or sensor skew.
Drive Circuit Topology Recommendations
For 48V systems, use a three-phase inverter with bootstrap capacitors for high-side gate drive–each capacitor (e.g., 1 μF) must recharge during low-side conduction (minimum 5 μs). In 400V applications, implement a neutral-point-clamped (NPC) topology to halve switch voltage stress, reducing IGBT requirements from 600V to 300V. Add snubber capacitors (470 pF) across each switch to suppress dv/dt transients (>20 kV/μs in 400V drives), preventing false triggering of gate drivers. For sensorless startup, inject 600 Hz AC signal during alignment, rotating the rotor 180° to synchronize magnetic poles before ramping to target speed.
Size DC link capacitors for ripple current (Iripple(rms) = 0.3 × Imotor(rms))–low-ESR types (e.g., polymer electrolytic) reduce losses by 30% compared to traditional aluminum. Integrate a precharge circuit (50 Ω resistor, 2 A fuse) to limit inrush current to 2×nominal during power-up. For positional accuracy at low speeds, combine Hall sensors with incremental encoder (1024 pulses/rev) using a resolver-to-digital converter (e.g., AD2S1210); interpolate to 0.1° resolution via software lookup or ASIC-based phase-locked loop (PLL).
Core Elements in a Permanent Magnet Drive Circuit
Begin by identifying the stator windings on the controlled drive layout–distribute them in a three-phase Y-configuration to optimize torque consistency. Each phase must terminate at a dedicated MOSFET or IGBT switch within the inverter stage, ensuring switching sequences align with Hall sensor feedback. Avoid star-point grounding unless fault tolerance is critical; floating neutral designs reduce parasitic losses by up to 12% in high-speed applications.
- Position rotor magnets with alternating polarity (e.g., NdFeB N42) spaced 120 electrical degrees apart; edge chamfering reduces cogging torque by 28%.
- Integrate low-ESR capacitors (X7R dielectric, 0.1μF–1μF) directly across inverter legs to suppress voltage spikes below 50V/μs.
- Route power traces with 2oz copper thickness for currents exceeding 15A; vias should be staggered to prevent thermal bottlenecks.
Hall effect sensors require precise angular placement–calibrate them 30° ahead of the stator phase centers for 6-step commutation. Misalignment beyond ±2° introduces torque ripple exceeding 7% at 3000 RPM. For sensorless designs, embed back-EMF comparators with hysteresis set to 5% of bus voltage to reject false zero-crossings during PWM transitions.
Gate drivers must include isolated supplies (e.g., bootstrap circuits with 1N4148 diodes) to prevent shoot-through. Use gate resistors (Rg=10Ω–47Ω) to dampen oscillations, adjusting values based on MOSFET switching speed: higher Rg for slower turn-off (100ns+) to limit dv/dt below 10kV/μs. Test inverter dead-time at 1–2μs to extinguish current tail effects in fast-switching SiC devices.
Step-by-Step Guide to Drafting a Permanent Magnet Synchronous Drive Layout
Begin by sketching three stator coils spaced 120 electrical degrees apart in a circular arrangement, ensuring each phase (U, V, W) connects to a distinct winding. Label all terminals clearly with phasing marks–use “U+,” “U-,” “V+,” “V-,” “W+,” and “W-“–to avoid wiring errors. For delta configurations, connect the end of one winding to the start of the next (e.g., U- to V+, V- to W+, W- to U+); for wye, join all negative terminals at a common star point. Keep traces short and symmetrical to minimize parasitic inductance.

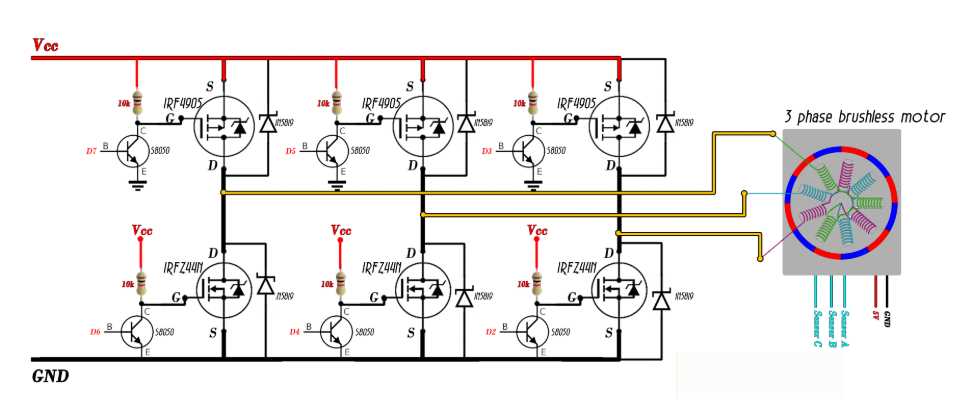

Use a square wave drive template for six-step commutation: split the rotor rotation into six 60° segments, each activating a pair of transistors (e.g., Q1/Q4, Q3/Q6) in the inverter bridge. Draw the power stage as three half-bridges–high-side and low-side switches per phase–with freewheeling diodes antiparallel to each device. Specify IGBTs or MOSFETs based on voltage rating: 200 V for 48 V systems, 600 V for 380 V applications. Include gate drivers with 10–15 V logic-level inputs and opto-isolation for noise immunity.
Finalizing Hall Sensor Placement
Position three Hall effect sensors 120 mechanical degrees apart inside the stator, aligning their active edges with the rotor magnets’ edges for precise commutation timing. Offset sensors by 30° for trapezoidal back-EMF drives to ensure seamless phase switching. Route sensor outputs to a microcontroller’s interrupt pins configured for rising/falling edge detection, and implement debounce filters (40 μs typical) to reject false triggers. Add pull-up resistors (1–10 kΩ) per line if open-drain outputs are used.
