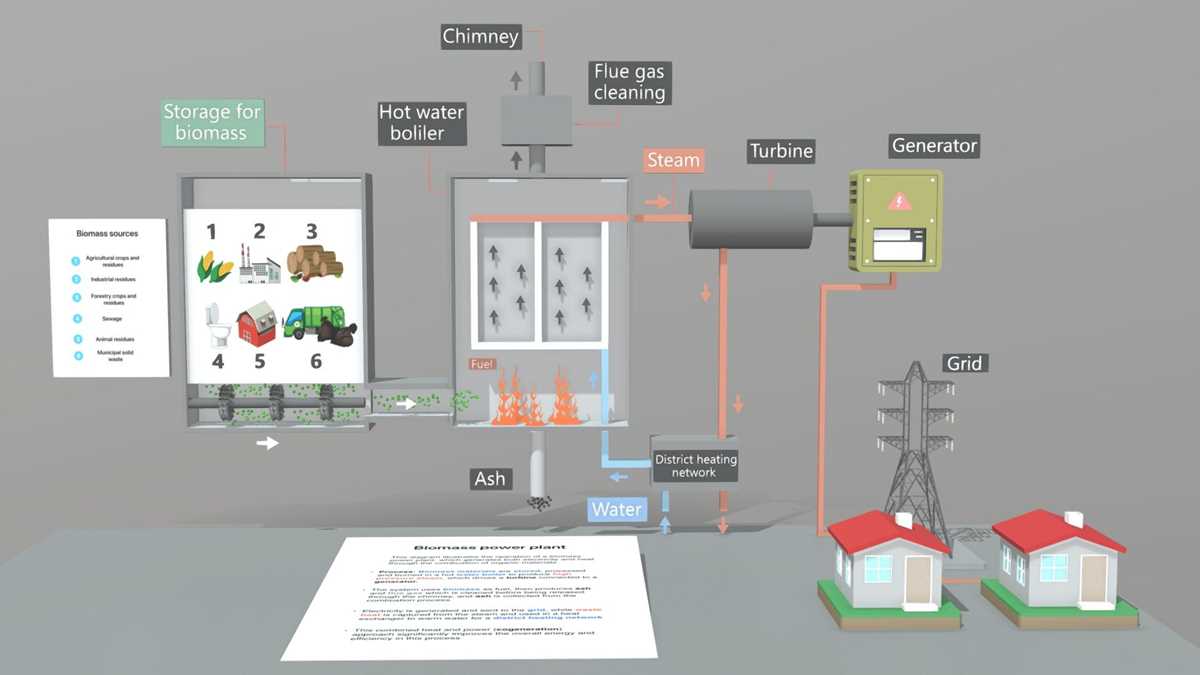

schematic diagram of biomass power plant

Start by mapping the fuel reception zone–typically a bunker or silo with a capacity of 5,000–20,000 tons, designed for wood chips, agricultural residues, or municipal waste. Size the storage to match the facility’s thermal input (e.g., 5–50 MW) and ensure moisture control below 20% to maintain combustion efficiency. Upstream of the furnace, integrate a conveyor system with magnetic separators to remove ferrous contaminants that disrupt grate integrity.

Position the combustion chamber with a stepped or vibrating grate to handle irregular feedstock. For wood-based fuels, target a primary chamber temperature of 850–950°C with excess air ratios between 1.4–1.6; for waste-derived fuels, increase to 1,000–1,100°C to fully oxidize volatile gases. Install secondary air nozzles above the grate to inject overfire air at 60–80 m/s–this reduces NOx emissions by up to 30% and ensures complete carbon burnout.

Downstream of the boiler, route flue gases through a multi-stage cleaning train: first, a cyclone separator to remove coarse particulates (>10 µm), then an electrostatic precipitator targeting 99.5% efficiency for fine dust (PM2.5). For sulfur-rich feedstock, add a dry scrubber with calcium hydroxide injection to neutralize SO₂ before discharge. Stack emissions must comply with EU 2015/2193 (Medium Combustion Plant Directive), requiring ≤50 mg/Nm³ for NOx, ≤20 mg/Nm³ for PM, and ≤200 mg/Nm³ for CO.

Design the steam circuit with high-pressure (HP) turbines for feedstock above 10 MW–optimal inlet parameters are 540°C at 120 bar. For smaller units (back-pressure turbines or organic Rankine cycles (ORC) with silicone oils as working fluid. Heat rejection should occur via air-cooled condensers in arid regions or dry cooling towers where water is scarce; wet cooling towers offer 10–15% better efficiency but increase water consumption to 2–3 m³/MWh.

Incorporate a fly ash handling system with pneumatic conveyors to transport residues to a sealed storage silo–volatile ash from waste combustion may require stabilization with cement or phosphoric acid before landfilling. Bottom ash, if low in heavy metals (Cd ≤10 ppm, Pb ≤200 ppm), can be repurposed as construction aggregate. For facilities processing sewage sludge, segregate biochar–its high phosphorus content (3–8%) suits agricultural reuse, but test for pathogens (Salmonella, E. coli) and treat via pasteurization at 70°C for 60 minutes.

Deploy a distributed control system (DCS) with redundant PLCs to monitor critical parameters: furnace oxygen (3–6%), steam temperature (±2°C), and boiler draft (-10 to -20 mbar). Use infrared pyrometers for flame detection and laser-based sensors for feedstock moisture–variations above 5% degrade boiler efficiency by 1–2% per percentage point. For black-start capability, integrate a diesel generator sized to 110% of the largest auxiliary motor (typically the induced draft fan).

Visual Representation of Renewable Energy Facilities Using Organic Fuel

Begin by mapping key components in a logical sequence: fuel storage, combustion chamber, steam generator, turbine, and generator. Label each section with precise technical specifications, including temperature ranges (e.g., 400–600°C for combustion), pressure values (10–20 MPa for steam), and efficiency percentages (20–30% net output). Use distinct colors for different mediums–brown for feedstock lines, red for high-pressure steam, blue for cooling water–to enhance readability.

Core System Layout

  • Feedstock Handling: Position the storage silo adjacent to the feeding mechanism (auger or conveyor) to minimize energy loss during transport. Include a moisture content sensor (target: 10–15% moisture) to optimize combustion efficiency.
  • Combustion Unit: Design a fluidized bed or grate furnace based on feedstock size. For straw or wood chips, a bubbling fluidized bed (BFB) operates at 850–900°C with automated ash removal (target:
  • Heat Exchange: Ensure the boiler (water-tube preferred) has three passes for maximum heat absorption. Specify tube materials–carbon steel for low-temperature zones, stainless steel for superheater sections (>500°C).

Integrate a cyclone separator between the furnace and boiler to remove particulates (>10 µm) with 95% efficiency. This prevents fouling in downstream components and reduces emissions. Include a baghouse filter or electrostatic precipitator (ESP) for finer particles, targeting

Secondary Systems

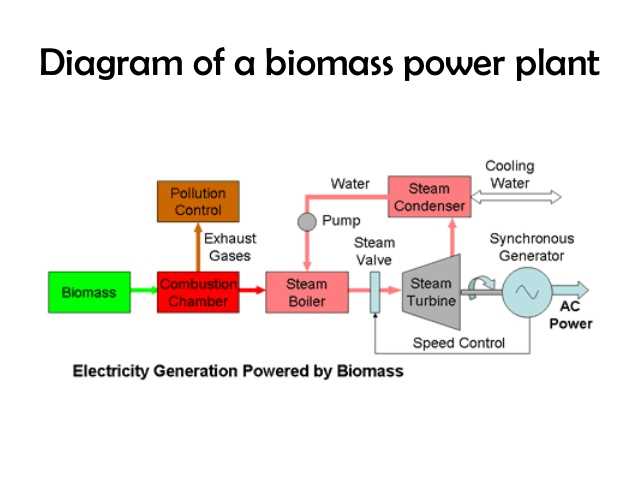

schematic diagram of biomass power plant

  1. Steam Cycle: Connect the turbine to a condensing unit with a vacuum of 0.05–0.1 bar to maximize power output. For condensing turbines, specify a cooling tower or air-cooled condenser; water-cooled systems achieve 5–10% higher efficiency but require 10–15 m³/MWh water.
  2. Flue Gas Treatment: Add a selective non-catalytic reduction (SNCR) system for NOₓ control (target:
  3. Electrical Output: Link the generator (typically synchronous, 6–12 kV) to a transformer with step-up to 33–110 kV for grid connection. Specify a power factor of 0.8–0.9 lagging for stable operation.

Avoid oversimplifying auxiliary systems like ash handling. Design a wet ash removal system with

For feedstock flexibility, add a gasification module (downdraft or updraft) upstream of the combustion chamber. This converts low-energy-density feedstock (e.g., rice husks) to syngas (4–6 MJ/Nm³), increasing overall efficiency by 5–8%. Ensure the gas cleaning unit removes tar (>99% purity) to protect turbine blades.

Indicate safety overrides–independent temperature sensors, pressure relief valves (set at 1.5× operating pressure), and purge cycles for the furnace and boiler. Label emergency shutdown procedures, including nitrogen or CO₂ inerting for the feedstock storage silo to prevent spontaneous combustion. Use dashed lines for emergency pathways (e.g., reserve fuel oil injection) to maintain operations during feedstock shortages.

Critical Machinery and Their Roles in Renewable Fuel Energy Facilities

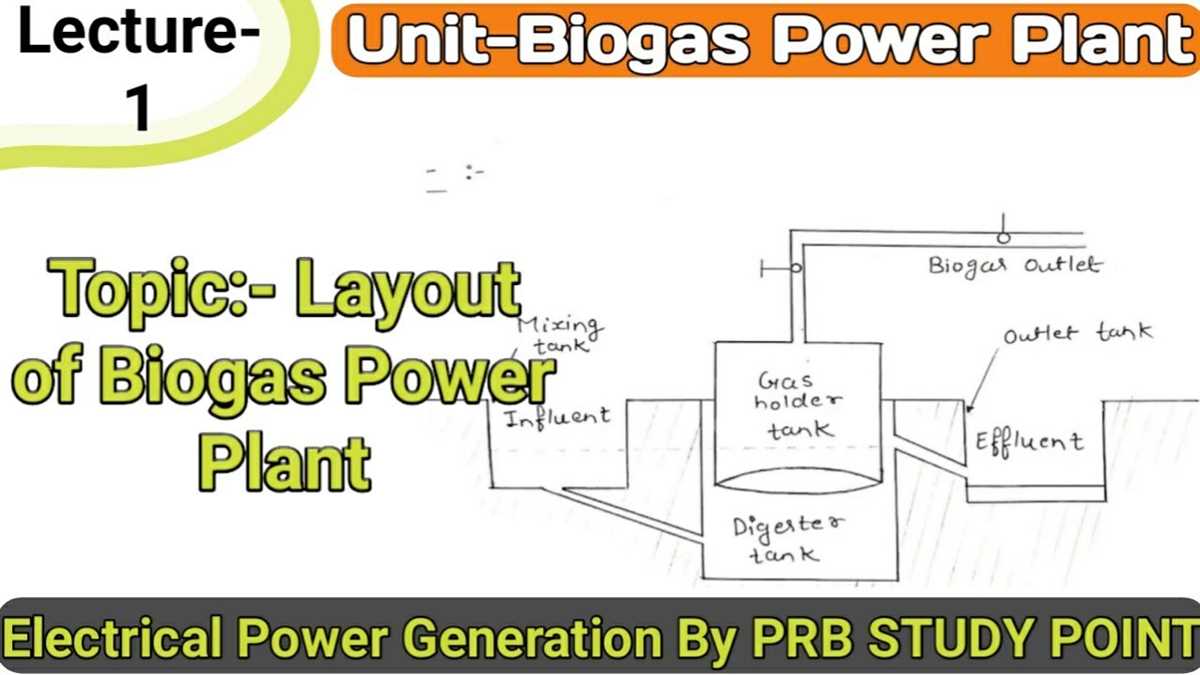

schematic diagram of biomass power plant

Integrate a combustion chamber with a multi-fuel grate system capable of handling varying moisture contents–ideal for agricultural residues (e.g., rice husks, 8–15% moisture) or forestry waste (up to 50%). Specify a water-cooled vibrating grate for high-ash fuels like straw (ash content up to 10%) to prevent slagging, ensuring operational temperatures remain between 850–950°C for optimal volatilization. Pair with a flue gas recirculation loop to reduce thermal NOx emissions by 40–60% while maintaining combustion stability, critical for compliance with EU 2015/2193 emissions thresholds. Avoid fixed-bed systems for heterogeneous feedstocks; instead, select a circulating fluidized bed (CFB) reactor if particle size distribution exceeds 2:1 (e.g., shredded wood chips mixed with sawdust) to prevent channeling and incomplete burnout.

Select turbine blades with a nickel-based superalloy coating (e.g., Inconel 625) for steam parameters above 540°C/100 bar, as raw fuel variability accelerates erosion. For smaller-scale setups (single-stage condensing turbine with a variable nozzle geometry to accommodate fluctuating steam flows without efficiency losses–target isentropic efficiencies above 80% for dry steam conditions. Incorporate a deaerator operating at 105°C and 1.2 bar to eliminate dissolved oxygen in feedwater, reducing corrosion rates in carbon steel pipes to cooling tower uses a hybrid wet-dry design if ambient humidity exceeds 70%, preventing plume recirculation and achieving Approach Temperatures of 5–7°C above wet-bulb readings.

Size electrostatic precipitators (ESPs) for inlet dust loads up to 30 g/Nm³ with specific collection areas (SCA) of 120–150 m² per m³/s gas flow; this captures PM2.5 particles with 99.5% efficiency. For facilities processing chlorine-heavy fuels (e.g., demolition wood, >0.1% Cl), install a dry sorbent injection system (e.g., sodium bicarbonate) upstream of the ESP to neutralize HCl, keeping stack emissions below 10 mg/Nm³. Include online monitoring for opacity, CO, and O₂ at the stack, with alarm thresholds set to trigger feedstock blending adjustments if CO spikes above 200 ppm–indicative of incomplete combustion in the furnace.

Operational Stages in Renewable Organic Fuel Energy Conversion

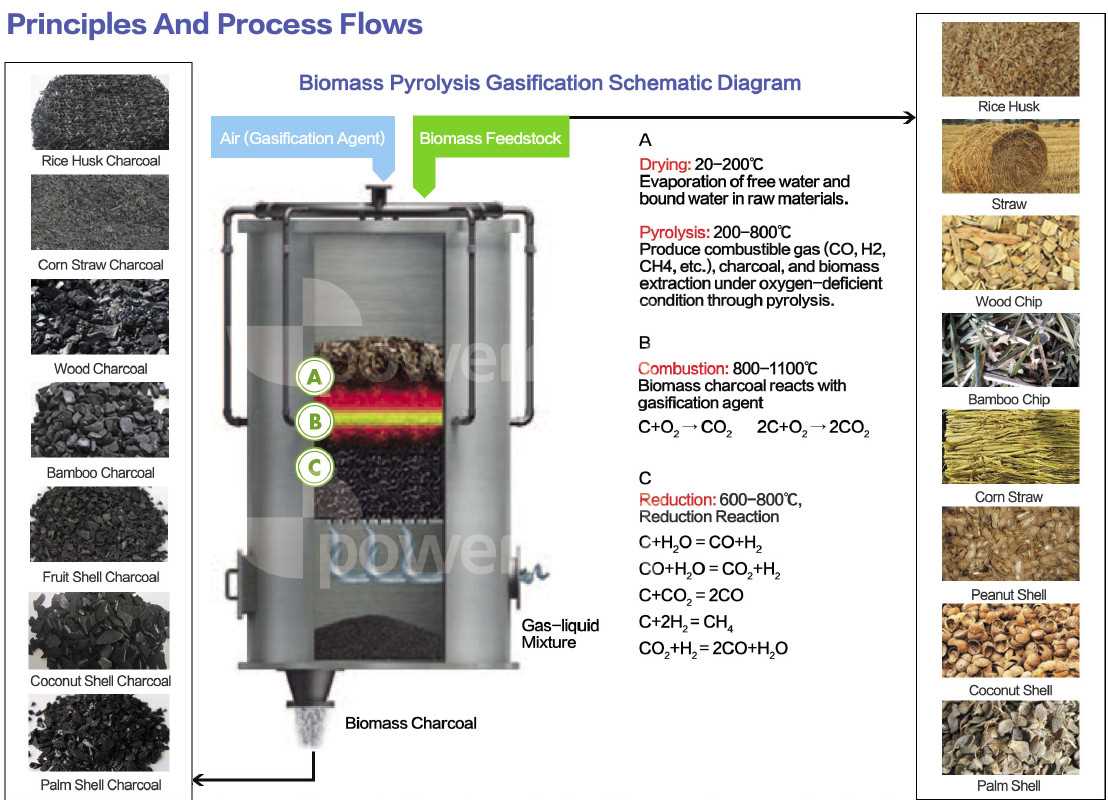

schematic diagram of biomass power plant

Initiate the feedstock handling by ensuring moisture content remains below 15%–excess moisture reduces combustion efficiency by 20-30%. Convey dried material via screw augers or pneumatic systems to the combustion chamber, maintaining a consistent particle size (1-3 cm) to prevent clinker formation and optimize air-fuel mixing. Install vibratory screens upstream to remove contaminants like metals or stones, which accelerate wear in downstream equipment by up to 40%.

Preheat combustion air to 250–300°C using waste heat from flue gases–this step elevates thermal efficiency by 8-12%. Deploy a circulating fluidized bed boiler for fuels with high alkali content (e.g., straw, husks) to minimize slagging and corrosion; alternate grate-fired systems for woody materials with lower ash melting points. Maintain oxygen levels at 3-5% above stoichiometric requirements to ensure complete combustion while preventing excessive NOx formation.

Route high-temperature steam (450–550°C, 6–10 MPa) through a multi-stage turbine; prioritize backpressure turbines for district heating applications to recover 15-20% additional energy. Equip condensing turbines with air-cooled condensers in water-scarce regions–expect a 2-4% efficiency drop compared to water-cooled systems but eliminate cooling tower blowdown losses. Synchronize the generator with the grid at 50 or 60 Hz; oversizing transformers by 10% accommodates voltage fluctuations during load swings.

Install electrostatic precipitators or fabric filters to capture particulate matter below 10 mg/Nm³–compliance with emission standards (e.g., EU 2015/2193) requires secondary scrubbers for sulfur removal if feedstock sulfur exceeds 0.1%. Cool flue gases to 120–150°C before release, recovering latent heat via economizers to preheat boiler feedwater. Monitor carbon monoxide levels in real-time; spikes above 50 ppm indicate incomplete combustion, necessitating immediate air-to-fuel ratio adjustments.

Store bottom ash in sealed silos to prevent leachate contamination; repurpose it as construction aggregate or phosphate fertilizer additive. Channel fly ash to dedicated landfills with liners, or process via acid leaching to extract heavy metals (e.g., cadmium, lead) for recovery. Integrate a supervisory control system with predictive algorithms–machine learning models trained on 6+ months of operational data reduce unplanned downtime by 25% by anticipating component failures (e.g., refractory degradation, feedstock bridging).
