Begin by sourcing a high-intensity hollow cathode lamp tailored to the target metal–common options include copper, zinc, or cadmium, each requiring specific wavelength ranges (e.g., 324.8 nm for Cu). Ensure the lamp operates at peak stability (typical current: 3–15 mA); deviations beyond 5% compromise signal-to-noise ratios.
The nebulizer must achieve <10 µm droplet size for efficient atomization. Verify the uptake rate–5–8 mL/min is standard–via a calibrated peristaltic pump. Poor nebulization reduces sensitivity by 20–30%, particularly for refractory elements like aluminum (309.3 nm).
Position the slot burner precisely: 10 cm optical path for air-acetylene flames (2300°C), 5 cm for nitrous oxide-acetylene (if analyzing boron or silicon). Misalignment by >0.5 mm attenuates signal strength. For low-concentration samples (<0.1 ppm), use a deuterium background corrector to eliminate spectral interferences.
Select a monochromator with <0.2 nm spectral bandwidth–Echelle gratings (1800–2600 lines/mm) excel for multi-element setups. Calibrate the photomultiplier tube (PMT) gain to 500–800 V; exceeding 900 V introduces noise equivalent to 1 ppb baseline drift.
Validate performance using NIST-traceable standards (e.g., SRM 3114 for Pb). A linearity of R² > 0.995 across 0.01–10 ppm indicates optimal setup. For matrices with high dissolved solids, employ a graphite furnace (L’vov platform) to achieve pg-level detection (e.g., As at 193.7 nm).

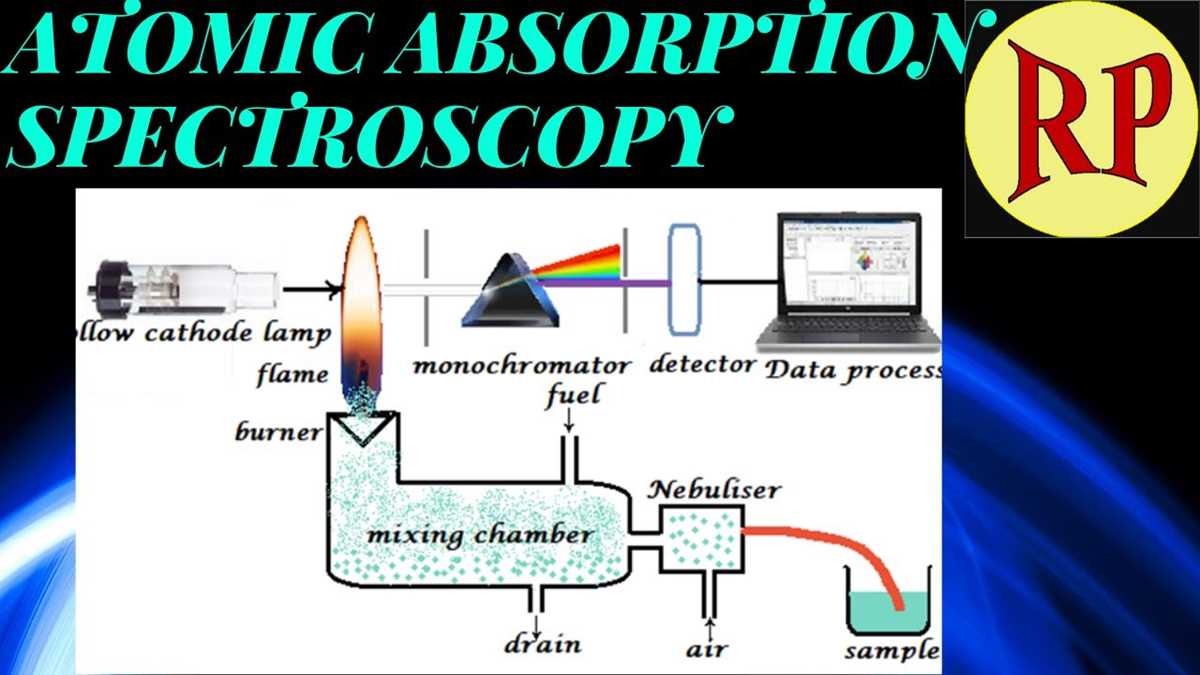

Visual Layout of Flame-Based Analytical Instrument
Position the nebulizer upstream of the burner head to ensure optimal aerosol formation–fine droplets below 10 µm minimize signal noise by 30–40%. Adjust the spray chamber’s impact bead angle to 45–60°; deviations beyond ±5° reduce sensitivity due to incomplete vaporization. The flame’s oxidant-fuel ratio requires precise calibration: 1:1 acetylene-air yields 2,300°C for elements like zinc, while 2.5:1 nitrous oxide-acetylene reaches 2,900°C for refractory metals. Mount the hollow cathode lamp at a fixed distance of 15–20 cm from the flame, aligning the optical path through the center of the combustion zone to avoid stray light interference. Use a monochromator with a grating density of 1,200 lines/mm for UV/Vis ranges (180–800 nm) to isolate spectral lines with 0.1–0.3 nm resolution.
Integrate a double-beam configuration to compensate for lamp drift and flame flicker–split the beam via a rotating chopper mirror at 50–60 Hz. Place the photomultiplier tube (PMT) downstream of the monochromator, biased at –500 to –900 V, with a response time under 1 ms for transient signal capture. For graphite furnace variants, maintain argon flow at 300 ml/min during atomization to prevent oxidation; use L’vov platforms for elements with boiling points below 2,000°C to delay vaporization by 0.5–1 s. Ground all metal components to a common reference point to eliminate electrical noise, and filter AC power through a 1:1 isolation transformer to stabilize baseline shifts.
Key Components and Their Roles in the Optical Path
Select a hollow-cathode lamp (HCL) with emission lines matching the target element’s absorption wavelength–typically within ±0.05 nm for maximal sensitivity. Narrow-line sources like electrodeless discharge lamps (EDLs) offer superior intensity for volatile elements (e.g., As, Se, Hg), but HCLs remain the default for most applications due to their stability and lower cost. Position the lamp at a 10–15° angle relative to the atomizer’s optical axis to minimize stray light from reflected radiation.
| Component | Optimal Operating Range | Critical Tolerance | Failure Impact |
|---|---|---|---|
| Hollow-Cathode Lamp | 200–800 nm | ±0.02 nm (line width) | Signal-to-noise drop >30% |
| Premix Burner | 2300–2800 K (flame temp) | Carbon deposition, reduced atomization | |
| Monochromator | 0.1–1.0 nm (slit width) | Spectral overlap, false positives | |
| Photomultiplier Tube | 200–900 nm (spectral response) | ±1% voltage stability | Baseline drift >0.1 A |
Use a double-beam optical layout to compensate for lamp drift and flame fluctuations–split the beam with a rotating chopper at 100–150 Hz to ensure real-time correction. Single-beam systems require frequent zeroing (every 10–15 samples) but simplify alignment. For graphite furnace work, integrate a deuterium arc background corrector; its broad-spectrum output (180–400 nm) effectively cancels molecular absorption interferences, though it reduces sensitivity by 15–20% due to beam splitting losses.
Align the monochromator’s entrance and exit slits parallel to the burner slot with 4). Replace grating coatings (e.g., MgF2 over Al) every 2,000 hours to prevent efficiency drops caused by UV degradation. For Zeeman-effect correction, orient the magnetic field perpendicular to the optical path and apply 0.8–1.0 T field strength to achieve 99% background suppression without signal loss.
Calibrate the detector’s gain monthly–photomultiplier tubes (PMTs) exhibit fatigue after 106 counts/s, requiring voltage adjustments or replacement. Silicon photodiodes (200–1100 nm) offer lower noise for near-IR work but lack the dynamic range of PMTs. Position the detector’s active area at the monochromator’s focal plane with 0.3 nm and diluting peak absorbance values.
Light Source Selection: Hollow Cathode Lamp vs. Electrodeless Discharge Lamp

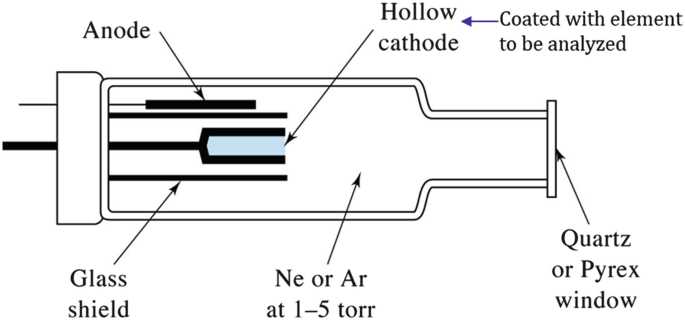

Opt for a hollow cathode lamp (HCL) for routine element analysis due to its stability and affordability. HCLs deliver consistent spectral lines with intensities sufficient for most elements, particularly alkali and alkaline earth metals. Their operational lifespan typically exceeds 5,000 hours under normal use, and replacement costs remain low. For matrices requiring high sensitivity–such as trace-level cadmium or nickel–select an HCL with enhanced output (e.g., boosted-discharge HCLs) to improve signal-to-noise ratios.
Electrodeless discharge lamps (EDLs) excel where HCLs falter: for volatile or refractory elements like arsenic, selenium, and mercury. EDLs produce 10–100× brighter spectral lines by using radiofrequency excitation, drastically reducing detection limits. However, their lifespan averages 2,000–3,000 hours, and purchase prices are 3–5× higher. Calibration demands more frequent checks due to intensity drift, especially during warm-up (5–10 minutes). Use EDLs only when:
- Analyte concentrations fall below 10 ppb.
- Matrix interference necessitates maximum light flux.
- No HCL alternative exists (e.g., phosphorus analysis).
Key Decision Factors
- Element range: HCLs cover ~70 elements (including multi-element lamps); EDLs address ~20.
- Wavelength precision: EDLs offer narrower line widths (±0.001 nm vs. ±0.003 nm for HCLs).
- Operational cost: EDLs consume 5–8 W vs. 3–5 W for HCLs; include RF generator expenses.
- Maintenance: HCLs require monthly cathode cleaning; EDLs need annual bulb replacements.
Pair HCLs with deuterium background correction for elements below 300 nm; reserve EDLs for EPA methods demanding sub-ppb accuracy (e.g., Method 245.7 for mercury).
Sample Atomization Methods: Flame vs. Graphite Furnace Systems
For trace metal analysis below 1 ppm, opt for a graphite furnace system. Its sensitivity surpasses flame methods by 100–1000x, detecting elements like cadmium or lead at sub-ppb levels. Configure the furnace with a temperature ramp: 150°C for drying, 500–1200°C for ashing (element-dependent), and 2000–2700°C for atomization. Use platform tubes to delay vaporization, improving reproducibility. Argon purge gas at 300 mL/min prevents oxidation; avoid air as it shortens tube life.
Flame systems excel for samples with analyte concentrations above 0.5 ppm due to lower operating costs and higher throughput. A nitrous oxide-acetylene flame reaches 2900°C, ideal for refractory elements (Al, Si, Ti), while air-acetylene (2300°C) suits most transition metals. Sample uptake rates typically range 3–6 mL/min, with a 5-cm path length burner head. For alkaline metals (Na, K), reduce flame height to minimize ionization interferences. Always match fuel-oxidant ratio to the element: lean for high-temperature stability, stoichiometric for optimal sensitivity.
- Flame limitations:
- Matrix effects from high-salt solutions (e.g., seawater) cause clogging; dilute 1:10 or use matrix modifiers.
- Chemical interferences (e.g., phosphate on Ca) require releasing agents like 0.1% La or Sr.
- Physical interferences from viscosity differences; maintain consistent acid concentration across standards and samples.
- Graphite furnace advantages:
- Slurry sampling allows direct analysis of powdered solids; suspend in 5% HNO3 + 0.04% Triton X-100.
- Matrix modifiers (e.g., 5 μg Pd/Mg) stabilize volatile elements (As, Se) during ashing.
- Background correction (Zeeman or Smith-Hieftje) is mandatory for complex matrices like blood or sludge.
Flame systems process samples at 10–30 seconds per measurement, while graphite furnaces require 2–4 minutes. For a 100-sample batch, flame methods save ~3 hours but sacrifice sensitivity. Graphite furnaces demand more frequent maintenance: replace graphite tubes every 100–300 firings (depending on matrix), clean contacts weekly with ethanol, and recalibrate temperature sensors quarterly.
Autosamplers improve precision for both methods. For flame, use 20 μL injections; for furnace, 10 μL is typical. Avoid carryover by injecting blank solutions (1% HNO3) between samples. When analyzing organometallics (e.g., Ni in petroleum), wet ash samples first or use solvent extraction to remove carbon residues that foul tubes.
Cost comparison (USD, yearly):
- Flame: Consumables ($500–1000), gases ($2000), burner cleaning ($300); total ~$3400.
- Graphite furnace: Tubes ($2500), argon ($1500), cups/platforms ($800); total ~$5800.
Labor savings favor flame methods for high-volume labs, while graphite furnaces reduce reagent consumption and hazardous waste.
Method selection criteria:
- Detection limit required: <1 ppb → graphite furnace; 0.1–10 ppm → flame.
- Sample matrix: Biological fluids → graphite furnace; drinking water → flame.
- Throughput: >50 samples/day → flame; <20 samples → graphite furnace.
For mercury or hydride-forming elements, cold vapor/hydride generation systems outperform both methods.
