Begin with a series resistor in series with the meter movement to extend its range. Calculate the shunt resistance using Rshunt = (Im × Rm) / (I – Im), where Im is the full-scale deflection current of the meter, Rm its internal resistance, and I the desired maximum current. For a 1 mA movement with 100 Ω resistance targeting 1 A, the shunt resistance should be 0.1 Ω. Use precision resistors rated for at least 1.5 times the expected power dissipation to avoid thermal drift.

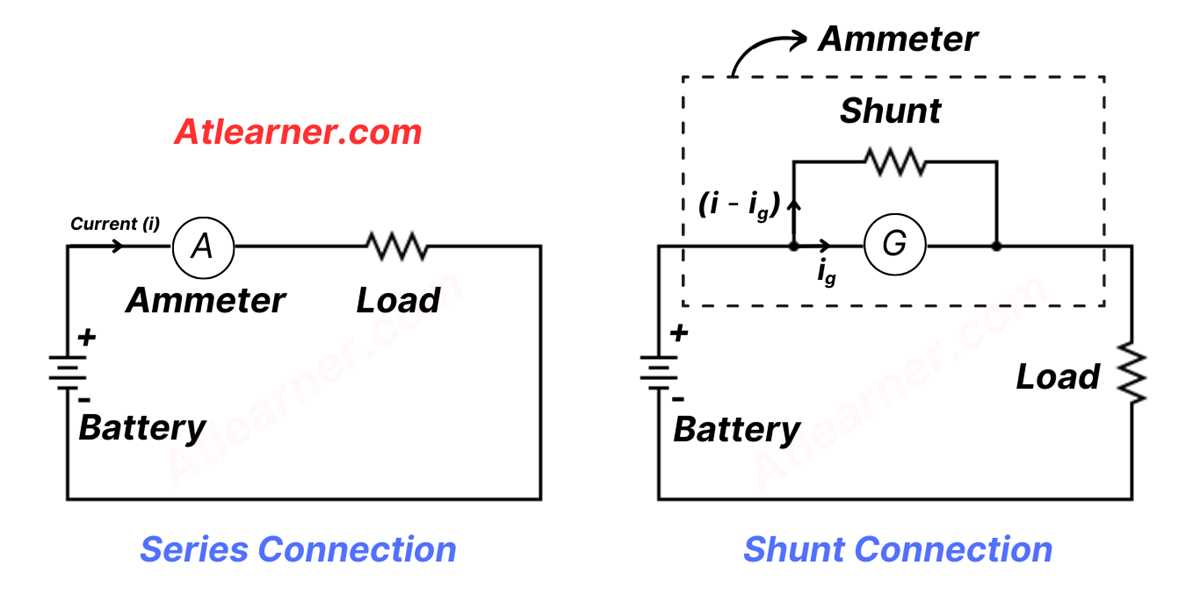

Position the shunt resistor directly across the meter terminals, ensuring minimal lead length to reduce inductive effects. Wire the series resistor in line with the circuit under test, observing polarity to prevent reverse current damage. For multi-range meters, integrate a rotary switch with contacts rated for 2× the maximum current to avoid arcing. Connect each shunt resistor to the switch’s output terminals, labeling ranges clearly to prevent measurement errors.
Verify the assembly by applying a known current source, starting at 10% of full scale and incrementing in 20% steps. Compare readings against a calibrated reference; deviations beyond ±1% indicate incorrect shunt values or parasitic resistances. Use a 4-wire Kelvin connection for currents above 10 A to eliminate lead resistance errors. For AC applications, ensure the meter movement is polarized or uses a bridge rectifier rated for the peak current.
Understanding Current Measurement Circuit Design
Begin by integrating a low-resistance shunt resistor in series with the load path. A 0.1Ω shunt with 5W power rating suits most applications up to 10A, ensuring minimal voltage drop while maintaining accuracy. For precision, use a shunt with a temperature coefficient below 50 ppm/°C–avoid carbon composition types due to drift. Connect the shunt’s voltage taps directly to the measurement front-end, using twisted pair wires no longer than 20 cm to reduce noise pickup.
Select an operational amplifier with high input impedance (≥1 MΩ) and low offset voltage (
| Component | Typical Value | Key Specification |
|---|---|---|
| Shunt Resistor | 0.1Ω, 5W | TCR |
| Op-Amp | OPA333 | Offset |
| Gain Resistors | 1 kΩ, 100 kΩ | 1% tolerance |
| Decoupling Cap | 0.1 µF | X7R dielectric |
Isolate the measurement path from high-current switching circuits using a dedicated ground plane. Connect the shunt’s return path to this plane at a single point, avoiding loops that introduce inductive errors. For AC measurements, add a 10 Hz low-pass filter (RC: 10 kΩ, 1.5 µF) to reject 50/60 Hz interference without attenuating the signal. Verify the cutoff frequency with fc = 1/(2πRC); adjust R or C if phase shift affects transient response.
Calibrate the circuit by injecting a known current (e.g., 1A from a precision source) and trimming the offset with a 10-turn potentiometer. For digital readouts, sample at ≥1 kHz to capture transients, using a 12-bit ADC or better to resolve 0.1% of range. If galvanic isolation is required, use an isolated amplifier (e.g., AMC1301) with 1 kV RMS rating and ≥150 dB CMRR. Avoid optocouplers–latency and linearity degrade performance.
For high-side measurements, add a PNP transistor (e.g., MMBT5401) to level-shift the shunt voltage. The emitter connects to the shunt’s high side, the base to a 5 kΩ resistor tied to the load’s return, and the collector to the op-amp input via a 4.7 kΩ resistor. This topology minimizes errors from supply variations above 5 V. Test for thermal drift by cycling the circuit from –20°C to +85°C–expect less than 0.5% deviation if components meet stated tolerances.
Key Components in a Current Measurement Device Layout
Ensure the shunt resistor is precisely calibrated to match the expected range of the instrument. A typical value for low-current applications is 0.01 ohms, while high-current setups may require 0.001 ohms or lower. Accuracy degrades if the resistance deviates by more than 1% from the specified value, so use precision resistors with a tolerance of 0.1% or better. Avoid carbon-film types–prefer metal-film or wire-wound resistors for thermal stability.
The meter movement must align with the shunt’s voltage drop. A 50 mV drop is standard for most analog gauges, meaning the coil’s internal resistance and magnetic damping must be optimized for this signal. For digital meters, the analog-to-digital converter (ADC) should sample at a rate of at least 10 kHz to capture transient currents without aliasing. If the ADC resolution is less than 16 bits, expect measurable errors in low-range readings.
Integrate a fuse rated at 125% of the maximum measurable current to protect the circuit from overloads. A slow-blow fuse is preferred for inductive loads to prevent nuisance trips. Position it upstream of the shunt to ensure it blows before the resistor overheats. For high-precision setups, add a transient voltage suppressor (TVS) diode across the shunt to clamp voltage spikes that could damage the meter movement or ADC.
Lead wires connecting the shunt to the meter must be as short and thick as possible. A 10 AWG wire introduces less than 0.0005 ohms per foot, but longer runs or thinner gauges (e.g., 18 AWG) can add parasitic resistance, skewing readings. Twisted-pair wiring reduces noise pickup in environments with electromagnetic interference. Shield the twisted pair with a grounded braid if the cable length exceeds 12 inches.
For switching between multiple ranges, use a rotary selector with silver-plated contacts to minimize contact resistance. Each position should bypass unused portions of the shunt network to prevent false readings. A 12-position switch with a detent mechanism ensures repeatable settings. Avoid phenolic or plastic switches–they introduce noise and degrade over time under current loads above 5A.
In DC circuits, reverse the meter leads if the needle deflects backward to prevent damage to the movement. Some gauges include a diode bridge to handle bidirectional current, but this adds 1.4V of forward drop, affecting accuracy at low ranges. For AC measurements, ensure the core material of the magnetic circuit (e.g., silicon steel) has low hysteresis loss to maintain linearity at frequencies above 1 kHz.
Calibration requires a stable reference source, such as a 4-wire Kelvin connection to a precision current source. Adjust the shunt or meter trimmer potentiometer in 0.1% increments while comparing readings against a traceable standard. Temperature drift can be mitigated by placing the shunt and key components in a temperature-controlled enclosure, especially if the ambient range exceeds 10–40°C.
For portable units, power the meter from a regulated 5V supply, drawing no more than 20 mA to avoid self-heating errors. Battery-operated designs should include a low-voltage cutoff (e.g., 3.2V for Li-ion) to prevent inaccurate readings below this threshold. In fixed installations, opt for a 4–20 mA loop-powered design if remote monitoring is required–this eliminates the need for local power and simplifies wiring.
Step-by-Step Wiring of a Shunt Resistor for Current Measurement
Select a shunt resistor with a power rating at least 1.5x the expected load to prevent overheating. For low-current applications (under 10A), use a 0.1Ω resistor with 1% tolerance; for 10–50A, opt for 0.01Ω with 0.5% tolerance. High-current (50A+) shunts require 0.001Ω or lower, preferably with Kelvin (4-wire) connections to minimize lead resistance errors. Calculate the resistor value using V = I × R, where V is the voltage drop across the shunt (typically 50–100mV for instrumentation compatibility).

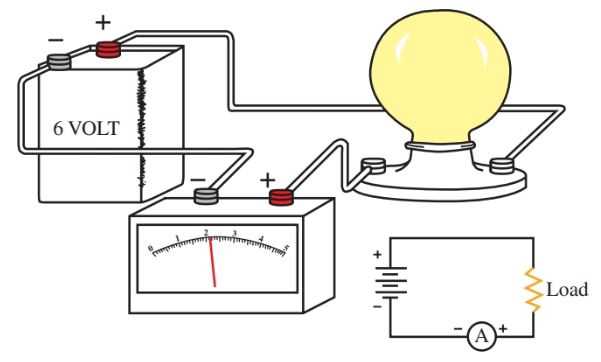

Disconnect the power source before wiring. Identify the current path: the shunt must be placed in series with the load, never in parallel. For DC circuits, connect the high-current terminals to the power source and load, while the measurement terminals (sense wires) attach to a voltmeter or ADC. In AC systems, add a precision rectifier circuit if measuring RMS values. Use twisted-pair wires for sense lines to reduce noise, keeping them as short as possible (under 30cm for sub-1Ω shunts).
Critical Wiring Practices
- Avoid contact resistance: Solder or crimp shunt terminals directly to bus bars for currents above 20A. For threaded shunts, use star washers to maintain pressure.
- Thermal management: Mount shunts on a heatsink if ambient temperatures exceed 40°C or if the power dissipation exceeds 1W. Avoid proximity to heat-generating components.
- Grounding: Tie the sense wire ground to the circuit’s reference ground at a single point to prevent ground loops. For floating measurements, use differential inputs.
- Fusing: Place a fuse rated at 1.2x the maximum current upstream of the shunt to protect against overloads.
After wiring, apply power and verify the voltage drop with a calibrated voltmeter. Compare the measured value to the calculated drop–discrepancies over 2% indicate incorrect resistor value, loose connections, or thermal drift. For dynamic loads, use an oscilloscope to check for transient voltage spikes, which may require snubber circuits or additional filtering. Calibrate the measurement system by adjusting the ADC’s reference voltage or applying a correction factor in software if the shunt’s tolerance deviates from nominal.
For long-term stability, enclose the shunt in a metal housing if operating in harsh environments (humidity >60% RH or corrosive atmospheres). Periodically recheck connections, especially after thermal cycles, as oxidation can increase contact resistance. Replace shunts showing discoloration, warping, or drift beyond 3% of specification.
