Begin with selecting a three-shaft axial compressor rated for 30–50% pressure ratio at ISO conditions. Match its airflow output (typically 200–600 kg/s) to a single-stage combustor operating at 1 200–1 500°C turbine inlet temperature. Verify fuel injectors (annular or can-annular) achieve ≥99.5% combustion efficiency to minimize residual NOx. Position the compressor and turbine on a common shaft with tilt-pad journal bearings rated for 12 000–15 000 rpm; ensure bearing housing is equipped with continuous oil flow of ≥20 l/min to avert overheating.
Install a radial inflow expander downstream of the combustor, optimized for 10–15 expansion ratios. Configure exhaust diffusers to recover ≥70% of kinetic energy before discharge. Integrate a waste heat recovery unit if ambient temperatures exceed 35°C; target ΔT ≥ 20°C across the gas-to-air heat exchanger to boost station output by 8–12%. Confirm blade cooling passages (film or transpiration) maintain at design speed.
Mount the shaft assembly on a reinforced concrete foundation with ≥0.5 m thickness, isolated from neighboring structures via vibration-damping pads. Install triple-redundant speed sensors at both compressor inlet and turbine outlet; synchronize readings to a PLC control module with ≤10 ms latency. Equip the air intake with self-cleaning filters rated for ≥99.9% particle removal at 5 μm; replace filters when pressure drop exceeds 150 Pa. Verify all flange connections with pressure-tested gaskets (rated ANSI Class 600) before hot commissioning.

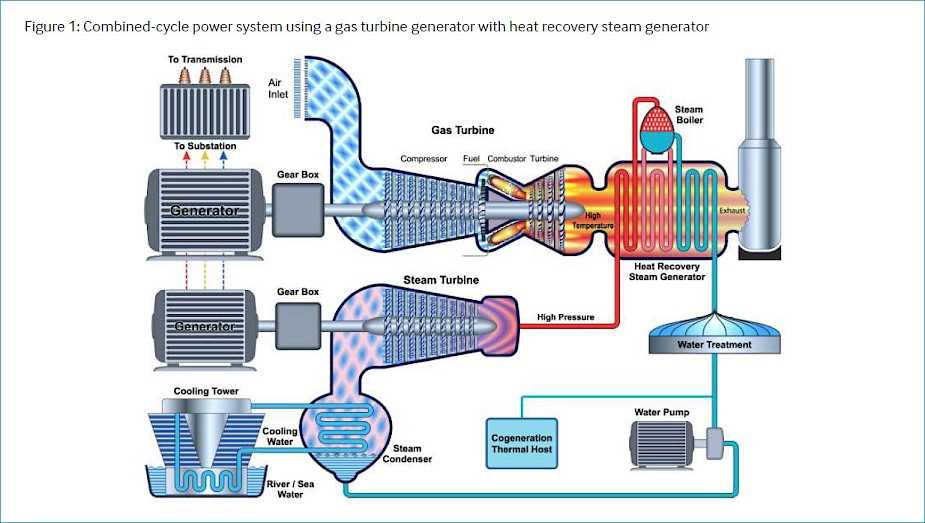

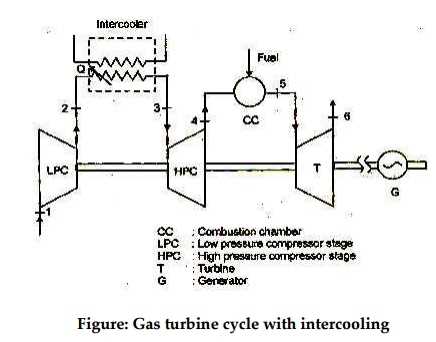

Visual Representation of a Basic Thermal Engine Facility
Begin by drawing the air intake at the leftmost point, ensuring a minimum cross-sectional area of 1.5 m² for a 50 MW unit to prevent pressure loss. Position the compressor section immediately downstream, spacing rotor blades at 3–5 mm intervals for optimal airflow acceleration. Use a 3D CAD model to verify blade angles align with the manufacturer’s specifications–typically 30–45° for axial compressors.
Install a combustion chamber with a refractory lining of at least 15 cm thickness, using materials like nickel-based alloys or ceramic coatings rated for 1200°C. Inject fuel nozzles at intervals matching the chamber’s diameter–no more than 20 cm apart for uniform ignition. Incorporate igniters with a 5-second duty cycle, testing spark intensity at 15–20 kV before final assembly to confirm sustained flame stability.
Place the expansion turbine downstream of the combustor, selecting blade materials capable of withstanding 100,000 rpm stresses, such as Inconel 718 or Ti-6Al-4V. Maintain a 0.2–0.5 mm clearance between rotor and stator blades to balance efficiency and thermal expansion. Label shaft bearings clearly in the layout, specifying lubrication requirements: synthetic oil with a minimum viscosity of 32 cSt at 100°C.
Connect the turbine’s output shaft to a generator with a 1:30 gear ratio for a 50 Hz grid, ensuring the coupling dampens torsional vibrations below 0.01°. Indicate cooling channels around the generator’s stator, using deionized water or hydrogen for units above 30 MW to prevent overheating. Mark the exhaust outlet with a cross-sectional area 1.2 times the intake to reduce backpressure, directing flow through a diffuser at a 7° angle for maximum thrust recovery.
Integrate a control panel adjacent to the generator, displaying real-time metrics for inlet pressure (target: 1.01 bar absolute), exhaust temperature (maximum: 650°C), and fuel flow rate (reference: 0.3 kg/s per MW). Use a PLC with PID loops to regulate these parameters, setting alarm thresholds at ±5% of nominal values. Include a bypass valve in the fuel line, sized for 120% of maximum flow, to enable rapid load shedding during emergencies.
Annotate the heat recovery system if present, specifying a steam generation module with a minimum effectiveness of 85% for co-generation setups. Position sensors at critical junctures: thermocouples within 5 cm of turbine blades, pressure transducers at compressor inlet/outlet, and vibration probes on bearing housings. Calibrate all instruments to ISO 5167 standards, verifying accuracy against a deadweight tester before commissioning.
Color-code the layout: red for high-temperature zones (>800°C), blue for cooling circuits, yellow for electrical pathways, and green for fuel lines. Apply ANSI/ASME Y14.5-2018 tolerances to all components, noting thread classes (e.g., 2A for external, 2B for internal) on fasteners. Include a legend detailing material grades, surface finishes (Ra ≤ 1.6 μm for mating surfaces), and heat treatment requirements (e.g., solution annealing for stainless steels).
Validate the entire configuration using finite element analysis (FEA) software, simulating thermal gradients under full load. Export stress reports, flagging any zones where deformation exceeds 0.1% or Von Mises stress surpasses 60% of yield strength. Archive final drawings in DXF and STEP formats, appending a bill of materials with lead times for spare parts–prioritizing long-lead items like turbine blades (manufacture: 12–18 weeks).
Core Elements of a Combustion-Driven Energy Conversion Facility
Prioritize the air intake system as the foundational stage–ensure filtration units remove particulates ≥5 microns to prevent compressor blade erosion. Centrifugal or inertial separators reduce intake losses by 12-15% compared to static filters, while silencer sections must attenuate noise below 85 dB at 1 meter to comply with OSHA standards. Position ducts away from exhaust outlets to avoid hot gas recirculation, which can degrade thermal efficiency by 2-4%.
The compressor assembly demands precise blade material selection: Ti-6Al-4V alloys resist corrosion at temperatures up to 800°C, though nickel-based superalloys (e.g., Inconel 718) extend service life by 30% under cyclic loading. Maintain a pressure ratio between 15:1 and 25:1–exceeding this range increases axial flow distortion, reducing isentropic efficiency by 5%. Incorporate variable stator vanes for part-load operation to limit surge margins to ≤10% during transient states.
Combustion chambers require stoichiometric balancing within ±1% to minimize NOₓ emissions; lean-premix designs cut thermal NOₓ by 90% but introduce instability risks. Use ceramic matrix composites (CMCs) for liner walls–SiC/SiC composites withstand 1,300°C with 0.3% creep strain over 10,000 hours, outperforming metallic liners by 40%. Inject fuel through dual-orifice nozzles to prevent coking; diesel or kerosene requires preheating to 120°C to atomize droplets to ≤20 microns, improving flame propagation velocity by 22%.
Turbine section design hinges on blade cooling strategies: impingement cooling achieves heat transfer coefficients of 3,000 W/m²K, while film cooling reduces metal temperatures by 200-300°C but consumes 2-3% of compressor discharge air. For single-shaft configurations, couple the turbine to a two-pole 3,600 rpm generator via a flexible diaphragm coupling to damp torsional vibrations–misalignment beyond 0.05° accelerates bearing wear. Blade profiles should adhere to NASA’s Advanced Turbine Systems airfoil standards to limit secondary flow losses to ≤3%.
Exhaust and Auxiliary Systems
Exhaust diffusers must expand gases at Mach 0.3-0.4 to recover 50-60% of dynamic pressure; incorporate turning vanes to reduce total pressure loss to ≤2%. Add a recuperator if thermal efficiency >40% is required–plate-fin designs offer 85% effectiveness but increase backpressure by 0.5 psi, cutting net output by 1%. For combined-cycle applications, steam injection into the exhaust can boost output by 10%, though water treatment must remove silica to
Lubrication demands synthetic PAO or ester-based oils with kinematic viscosities of 32-46 cSt at 40°C–exceeding this range causes oil whirl in journal bearings. Filter particle sizes to 3 microns to prevent scoring of tilting-pad thrust bearings, which tolerate axial loads ≤2,000 psi. Implement online vibration monitoring with FFT analysis to detect bearing misalignment (≥0.2 mil displacement) or blade rubs (≥0.01 mils), triggering shutdown sequences within 200 ms to avert cascade failure.
Control architectures should integrate a FADEC (Full Authority Digital Engine Control) with ≤10 ms response latency; redundancy via dual-channel architectures prevents single-point failures during frequency swings. For grid synchronization, PWM inverters must match phase angles within 0.1° to avoid current surges. Include black-start capability with a battery bank sustaining 30 minutes of operation–lead-acid systems fail at 20% depth of discharge, while LiFePO₄ retains 80% capacity after 5,000 cycles.
Operational Sequence in a Rotary Combustion Engine Facility
Begin by ensuring ambient air enters the compressor section at 1.013 bar and 15°C–pressure and temperature conditions directly influence thermal efficiency, with deviations exceeding ±2°C reducing performance by up to 3%. The axial-flow compressor, typically featuring 12–22 stages, ramps air pressure to 15–30 bar while increasing temperature to 350–450°C. Monitor inter-stage bleed valves, as improper airflow distribution can induce surge events, damaging rotor blades within milliseconds. Stage efficiency must remain above 88% to avoid parasitic losses that cascade into downstream inefficiencies.
The compressed airflow feeds into the combustion chamber where liquid or gaseous fuel injectors atomize feedstock at 40–70 bar, optimizing flame stability. Combustion occurs stoichiometrically at 1,200–1,500°C, with excess oxygen ratios kept between 3–5% to prevent nitrogen oxide spikes. Ignition delay must not exceed 15 milliseconds; persistent delays indicate fouled injectors or fuel quality degradation. Ceramic thermal barrier coatings on combustor liners extend lifespan by 20–30% under cyclic thermal stress, but micro-cracking remains inevitable–schedule borescope inspections every 8,000 operating hours.
| Component | Inlet Conditions (Temp/Bar) | Outlet Conditions (Temp/Bar) | Thermal Efficiency Drop if Deviated (%) |
|---|---|---|---|
| Compressor | 15°C / 1.013 | 350–450°C / 15–30 | 2.1 |
| Combustor | 350–450°C / 15–30 | 1,200–1,500°C / 12–28 | 4.7 |
| Expansion Unit | 1,200–1,500°C / 12–28 | 550–650°C / 1.02–1.08 | 3.3 |
Post-combustion, heated exhaust expands through the turbine section–generally 3–5 stages–where pressure drops to near-ambient while temperature decreases to 550–650°C. Blade cooling employs compressor bleed air at 4–8% of total airflow; insufficient cooling leads to creep rupture below 50,000 operating hours. Optimize nozzle angles to maintain blade incidence at ±0.5°–misalignment reduces energy extraction by 1.8% per degree deviation. Exhaust gases then exit through a diverging nozzle, recovering residual kinetic energy before release–stack temperatures above 180°C indicate incomplete heat recovery, suggesting fouled heat exchangers or recuperator bypass issues.
Mechanical energy extracted from the turbine shaft drives both the compressor and an attached generator. Coupling alignment tolerances must stay below 0.05 mm to prevent vibration-induced bearing wear–misalignment multiplies maintenance intervals by 4×. Single-shaft configurations deliver 70% mechanical-to-electrical conversion efficiency, while split-shaft designs offer precise load matching at the cost of an additional 2% parasitic loss. Grid synchronization requires frequency alignment within ±0.2 Hz; transient mismatches risk rotor torsional fatigue, detectable via shaft vibration monitors set to alarm at 11 mm/s RMS.
Waste heat recovery systems, if installed, capture exhaust enthalpy to preheat combustion intake or drive auxiliary steam cycles. Heat exchanger effectiveness must exceed 85% to justify capital costs–fouling reduces effectiveness by 0.7% per month. Cooling tower water consumption averages 0.5 liters per kWh generated; closed-loop systems reduce evaporative loss by 30% compared to once-through designs. Condensate return lines require corrosion-resistant materials (e.g., 904L stainless steel) when handling aggressive environments–chloride concentrations above 50 ppm accelerate pitting corrosion exponentially.
