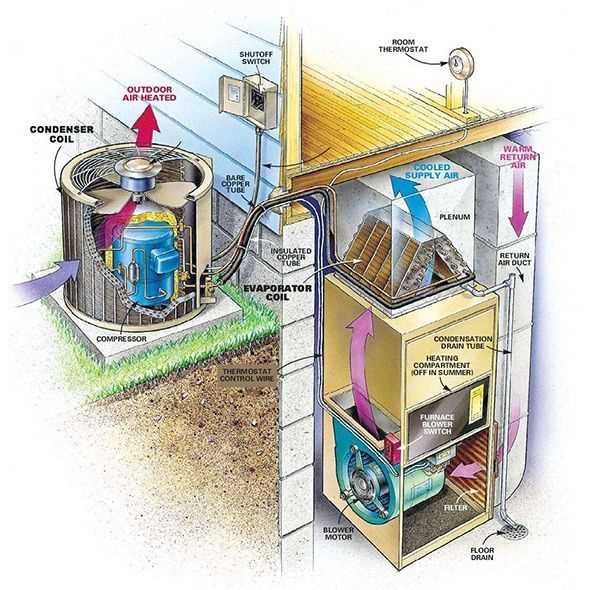

Start by connecting the refrigerant compressor directly to the evaporator coil via copper piping with a minimum diameter of 12mm to prevent pressure drops. Use a thermal expansion valve with a built-in sensor bulb placed on the suction line exiting the evaporator–a misplacement of even 5cm can reduce cooling efficiency by up to 20%. The condenser unit should be positioned downwind of prevailing breezes, with clearance of at least 60cm on all sides to maintain optimal heat dissipation.
Ensure the air handler operates with a multi-speed ECM motor–this reduces energy consumption by 30% compared to single-speed alternatives. Ducted systems require static pressure calculations: aim for 0.5 inches of water column (WC) per 100 feet of ductwork to avoid airflow imbalance. Filter placement matters: install MERV 8-12 filters upstream of the blower to prevent debris buildup on the coil, which can decrease heat transfer efficiency by 15% within six months.
For split configurations, the line set should not exceed 50 feet in length without a line-set riser–without it, oil return issues may cause compressor failure in under two years. Refrigerant charge must be precise: use a digital scale and weigh within ±1% of the manufacturer’s specified amount. Electrical wiring demands attention: run dedicated circuits for each major component, using 12 AWG wire for 20-amp circuits to prevent voltage drop in units exceeding 3 tons capacity.
Install a float switch in the condensate drain pan to shut down the system if water levels exceed 1 inch–clogged drains account for 40% of HVAC failures. Zone control requires damper actuators with a torque rating of at least 15 lb-in to handle air pressure in ducts over 12 inches in diameter. Regular maintenance includes monthly coil cleaning–neglect leads to a 7% efficiency loss per year due to fouling.
Key Components of a Climate Control Network Layout
Begin by positioning the chiller unit in a shaded, well-ventilated outdoor area to prevent efficiency loss from direct sunlight. Ensure a minimum clearance of 1 meter on all sides for optimal airflow and maintenance access. Connect the chiller to the primary refrigerant lines using copper piping with a diameter matching the manufacturer’s specifications–typically 1/2″ to 3/4″ for residential setups. Seal all joints with nitrogen-purged brazing to eliminate moisture and contaminants that degrade performance.
Route insulated supply and return ducts from the air handler to each conditioned space, keeping runs as straight as possible to minimize pressure drops. Use R-8 or higher rated insulation on ducts passing through unconditioned zones (attics, crawl spaces) to prevent thermal loss. For rooms with high heat loads (e.g., kitchens, server rooms), install variable-speed supply diffusers calibrated to deliver 20-30% more airflow than standard zones.
Refrigerant Flow and Control Strategies
Integrate a thermal expansion valve (TXV) at each evaporator coil to regulate refrigerant flow based on real-time cooling demand. Set the superheat value between 8-12°F for standard applications, adjusting upward for high-humidity environments to prevent coil icing. Place the liquid line sight glass downstream of the condenser to monitor refrigerant quality–bubbles indicate undercharging or contaminants requiring filtration.
Size the condenser fan to handle 1.2 times the cooling load’s heat rejection capacity, with variable-speed motors reducing energy consumption by 30-40% compared to single-speed models. Install a high-pressure cutoff switch set to trip at 450 psi to protect the compressor from overloading during extreme ambient temps. For multi-zone configurations, use electronically commutated motors (ECMs) in terminal units to maintain consistent static pressure across duct branches.
Calibrate the thermostat to the evaporator’s sensible heat ratio (SHR), typically 0.65-0.75 for comfort applications, to balance temperature and humidity removal. Program defrost cycles for heat pump units operating below 40°F outdoor temps, with intervals not exceeding 30 minutes to avoid incomplete ice melt. Finally, verify electrical connections with a megohmmeter, ensuring insulation resistance exceeds 2 megohms to prevent leakage current that accelerates component wear.
Critical Equipment for a Climate Control Network
Select a chiller with a coefficient of performance (COP) above 4.5 for optimal energy conversion, prioritizing models with magnetic levitation compressors to reduce mechanical losses by up to 30%. Water-cooled variants outperform air-cooled in large-scale applications, offering consistent performance even in ambient temperatures exceeding 45°C.
- Evaporator coils must use copper tubing with aluminum fins for corrosion resistance, spaced at 12-14 fins per inch to balance airflow and heat exchange efficiency. Inner-grooved tubing increases surface area by 25% compared to smooth bores.
- Variable-speed blowers should operate between 500-1200 RPM, adjusting airflow based on real-time demand to maintain ±0.5°C temperature stability. Brushless DC motors reduce power consumption by 18% over AC alternatives.
- TXV (thermal expansion valves) with MOP (maximum operating pressure) ratings of 450 psi handle refrigerant phase changes more precisely than capillary tubes, preventing flooding in evaporators.
Refrigerant selection directly impacts performance: R-32 offers 25% lower global warming potential than R-410A while improving cooling capacity by 10%, though system components must accommodate its higher discharge pressure (42 bar vs. 38 bar). Ensure compatibility with synthetic POE lubricants to prevent compressor failure from acid buildup.
Ductwork demands insulated galvanized steel (minimum R-8 rating) with sealed joints, sized via the equal friction method to maintain 0.08-0.10 inches of water column static pressure. Rectangular ducts should maintain a 1:4 aspect ratio maximum to minimize turbulence; circular ducts reduce friction losses by 22% at equivalent cross-sectional areas.
- Air handlers require double-sloped condensate pans with ¾” drains to prevent microbial growth, tilted at 1/4″ per foot toward outlets. Stainless steel pans resist corrosion 3x longer than galvanized steel.
- HEPA filtration (MERV 13-16) captures particulates down to 0.3 microns, though pressure drop increases by 15% compared to MERV 8; compensate with larger fan motors.
- Cooling towers need drift eliminators to limit water loss to 0.002% of circulating flow, with fill media arranged in cross-fluted patterns for 30% more heat transfer surface than traditional splash fill.
Control systems should integrate PID algorithms to maintain ±1% humidity control, interfacing with BACnet or LonWorks protocols for remote monitoring. Sensors must update every 5 seconds for critical parameters (temperature, pressure, airflow), with integrated self-calibration routines to correct drift in RTD and thermistor readings.
Backup power solutions must sustain full load for 15 minutes minimum; rotary UPS systems provide 97% efficiency versus 90% for battery-based units. Mechanical equipment should include vibration isolators with natural frequencies below 4 Hz to prevent resonance in structural components.
Zoning dampers with metal blades (22-gauge minimum) and silicone seals prevent air leakage of more than 3% at 1 inch static pressure. Occupancy sensors tied to VAV controllers reduce airflow by 40% in unoccupied spaces, with CO₂ sensors modulating fresh air intake to maintain levels below 800 ppm.
Step-by-Step Assembly of Ductwork and Ventilation Grid Construction
Select 24-gauge galvanized steel ducting for supply lines in high-pressure zones, such as main trunks, and 26-gauge for return paths–this balances durability with cost while minimizing thermal loss at 0.25W/m·K.
Measure static pressure drop across proposed runs using software like *Ductsize* before cutting; target ≤0.08″ wc/100 ft for supply ducts and ≤0.05″ wc/100 ft for returns to maintain fan efficiency at 85% or higher.
Install rigid duct sections with snap-lock seams every 6 ft on straight runs, staggering joints by at least 12 inches from adjacent connections to prevent air leakage exceeding 3% of total CFM–use UL-181 foil tape, not mastic, for field joints.
Position supply diffusers at least 3 ft from walls and 6 ft apart in occupied spaces; rotate 45° angles for linear slots to create a 1:1.5 throw-to-spread ratio, preventing stratification in rooms taller than 9 ft.
Route return grilles above doorways or near floor-level thermostats, but never within 10 ft of an outdoor air intake–this avoids short-circuiting and ensures CO₂ levels stay below 800 ppm in zones with 20 cfm/person ventilation rates.
Use flexible ducting only for runs under 15 ft and ≤2 bends; insulate with R-8 fiberglass sleeves to prevent condensation when crossing attics where ΔT exceeds 20°F–secure with nylon straps, not wire, to avoid crushing.
Test total external static pressure with a digital manometer after installation; discrepancy >10% from design specs indicates improper sealing or undersized trunk lines–recut and reseal offending sections with approved closure systems.
Calibrate dampers via balancing hoods, beginning with the farthest outlet and adjusting each branch in 5% increments until airflow matches ±5% of target CFM–lock set screws and tag with date, technician initials, and measured values.
