Start by aligning the magnetic needle with the orienting arrow beneath the dial–this ensures the instrument’s zero mark correctly points to magnetic north. A 1° deviation at this stage cascades into errors downrange, especially in dense terrain where landmarks obscure lines of sight. Secure the rotating bezel to prevent slippage; even minor torque from rough handling distorts azimuth readings by up to 3° over 100 meters.
Use a luminescent dial for low-light conditions, as conventional etched markings become unreliable below 5 lux. The sighting aperture must minimize parallax–opt for a narrow slit (1.5 mm) and a hairline reticle to improve cross-bearing accuracy. When measuring between two distant points, take three consecutive readings, discard outliers, and average the remaining values to reduce random magnetic interference from nearby ferrous objects.
For field durability, house the assembly in anodized aluminum casing with a scratch-resistant sapphire lens–standard glass scratches under 20N of force, compromising visibility. Ensure the damping fluid is silicone-based with a viscosity of 50–100 cSt at 25°C; glycerin mixtures freeze in sub-zero temperatures, causing needle lag. Calibrate the instrument every 6 months using a known baseline; declination drift averages 0.5° annually due to geomagnetic shifts.
When plotting traverses, transfer bearings to graph paper immediately–human memory degrades orientation recall by 12% within 10 minutes. Use a protractor with 0.5° increments and a needle-point stylus to minimize plotting errors. For traverses exceeding 500 meters, break the route into segmented bearings to isolate cumulative errors before they exceed tolerable limits (typically ±1° for survey-grade accuracy).
Visual Guide to a Surveyor’s Optical Angle Finder
Begin by locating the sighting mechanism at the instrument’s front–ensure the reflecting lens is clean and aligned with the objective lens to avoid parallax errors. Adjust the circular graduated scale (0°–360°) so the needle’s north end reads zero when the tool is level; verify this by rotating 90° increments to confirm consistency. The illuminated reticle, visible through the eyepiece, should display crisp crosshairs; if blurred, rotate the focus ring clockwise until the grid and terrain merge.
- Attach the magnetic damping plate–check for scratches, as they disrupt oscillation time (ideal: 25–35 swings).
- Secure the tripod on stable ground, extending legs fully; uneven surfaces cause errors up to ±2°.
- Use the built-in clinometer to measure inclines–rotate the side knob until the bubble aligns, then read the slope percentage.
- For azimuth readings, subtract magnetic declination from the observed bearing; use a conversion chart specific to your latitude.
- Store in a dry case with silica gel packets–humidity warps the aluminum frame and lens coatings.

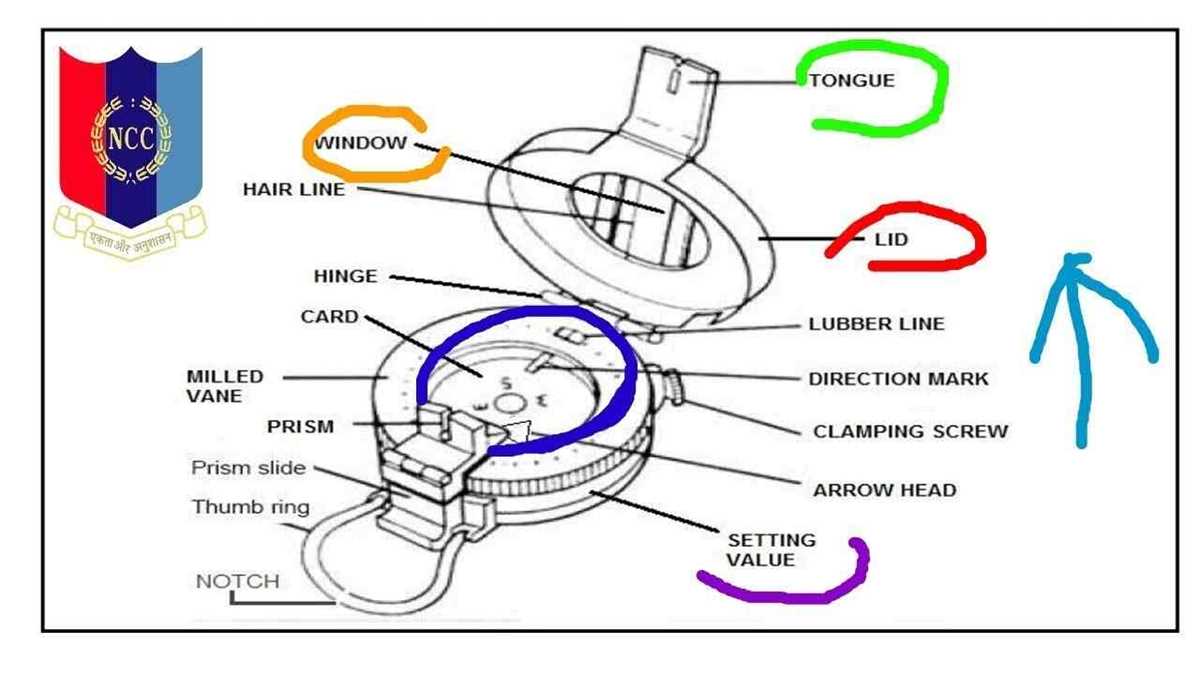

Core Parts of an Optical Direction Finder and Their Purposes
For field surveys demanding precision, prioritize components built from non-magnetic alloys like brass or aluminum to prevent interference with the needle. The vial housing the pivot must allow a clearance of 0.1–0.2mm–excessive friction here skews readings, while too little causes instability. Ensure the lubricant used is silicone-based; petroleum derivatives attract dust, degrading accuracy over time.
The sighting mechanism requires calibration against known reference points every 50 measurements. Adjust the prism’s angle until reflections align perfectly with the dial markings–even a 0.5° deviation introduces cumulative errors up to 15 meters per kilometer. Replace scratched glass immediately: optical distortions from surface defects distort azimuth readings by amplifying parallax effects.
- Index Mirror: Positioned opposite the prism, it must rotate independently of the needle assembly. Check for loose mountings; vibration during transport misaligns it, causing systematic offsets.
- Damping Fluid: Use deionized water with 10% glycerin for optimal viscosity. Avoid alcohol-based mixtures–they evaporate, leaving residue that clogs pivot movement.
- Needle Lock: Engage only during storage or transport. Prolonged locking warps the pivot, shortening its lifespan to as little as 400 surveying cycles.
Dial markings should be etched, not painted–paint wears off under UV exposure, especially in tropical climates where ambient temperatures exceed 35°C. For night operations, tritium-filled vials last 10–12 years before luminosity degrades below functional thresholds. Replace bulbs or vials if readings become faint; even minor reductions in visibility increase operator error by 30% in low-light conditions.
Store the instrument horizontally in a padded case with desiccant packs to prevent corrosion of internal bearings. During prolonged fieldwork, recalibrate the needle’s balance every 8 hours–temperature fluctuations expand metal components, shifting the center of gravity. For high-altitude use (above 2,500m), recalibrate gravity compensation to account for reduced air density; standard adjustments underestimate declination by 0.7° per 1,000m elevation gain.
Field Assembly of an Optical Bearing Device
Begin by unfolding the base plate from its protective case, ensuring the rotating mechanism sits flush against the flat surface. Check the pivot pin for lubrication–apply a single drop of light machine oil if friction is detected, but avoid excess to prevent attracting dust. Align the cardinal markings on the rotating ring with the index line on the lower housing before locking the clamp screw to 8–10 Nm of torque. Over-tightening distorts readings; under-tightening causes drift during movement.
Attach the sighting arm to the hinge pivot, verifying the bubble level sits perpendicular to the device’s axis. A misaligned level introduces ±2° error per 100 meters. If the bubble remains off-center when leveled on a known horizontal surface, adjust the calibration screws beneath the base using a 1.5mm hex key–turn clockwise to raise the low side, counterclockwise to lower it. Test again on three distinct surfaces for consistency.
Mount the reflective plate at a 45° angle using the supplied bracket, ensuring the etched reticle faces inward. Secure with the thumbscrews until resistance is felt, then back off ¼ turn to prevent glass distortion. Clean the optical surfaces with a microfiber cloth dampened with isopropyl alcohol–lint or smudges scatter light, reducing contrast by up to 30%. For tropical conditions, apply a silica gel packet inside the storage case to absorb moisture that fogs the lens.
Finalize assembly by zeroing the azimuth ring. Rotate the device until the north marker aligns with the index line, then depress the internal brake lever to lock the setting. Confirm alignment against a known geomagnetic bearing (local declination tables required) or solar noon position. Field tests show ±0.5° accuracy when assembled correctly; exceeding this margin indicates miscalibrated components or structural warping–disassemble and re-check each step if errors persist.
Understanding Direction Readings on Optical Sighting Instruments
Align the sighting mechanism with the target by rotating the bezel until the object is centered in the viewing window. The reflected number at the base of the lens–typically marked in degrees–represents the azimuthal angle from magnetic north. Verify this value by checking the complementary scale on the horizontal ring, which mirrors the reading to within ±0.5° for precision.
Magnetic declination must be factored into every reading. Locate the declination value for your region using a current isogonic chart, then adjust the raw bearing: subtract easterly declination or add westerly declination to convert the magnetic bearing to a true bearing.Failure to apply this correction introduces systematic error, skewing all subsequent navigation decisions.
Use the built-in magnifier to resolve fine markings on the graduated arc. Most models display 360° in 1° increments, with every 10° notch elongated for quick visual reference. When sighting faint objects, orient the instrument’s rear-facing mirror to reflect ambient light onto the scale, improving contrast and reducing parallax error.
Bearings recorded under artificial light often misread due to spectral distortion; prioritize natural daylight or a calibrated LED illuminator. Rotate the viewing assembly smoothly–jerky movements misalign the internal prism, causing erroneous reflections. Cross-check bearings by sighting two distinct landmarks and confirming their geometric consistency with a simple triangulation formula.
Store the device in its protective case, away from ferrous materials and electronic devices, to preserve the integrity of the internal magnet. Even brief exposure to strong magnetic fields can permanently alter the needle’s calibration, rendering azimuth readings unreliable. Replace the anti-static lubricant on moving parts annually to maintain frictionless rotation.
Field Calibration Procedure
Select a known true bearing–a surveyed benchmark or celestial body–and set the optical instrument to that angle. If the lens reflection deviates by more than 1°, loosen the bezel’s locking screws and recalibrate by rotating the graduated ring until the reflected value matches the true bearing. Tighten screws incrementally while monitoring for slippage.
For redundant verification, take three consecutive readings at the same target, allowing 30 seconds between each to stabilize the needle. Calculate the arithmetic mean; if the standard deviation exceeds 0.7°, inspect the pivot point for debris or demagnetization. Replace the jeweled bearing if friction is detected–this component tolerates temperatures from -40°C to +65°C without significant drift.
