Install a central crossover device between two standard flip toggles to enable independent control from four separate points. Each additional crossover unit expands this configuration by two more access locations–plan your setup by mapping junction boxes at all intended points before routing cables.
Use 14/3 or 12/3 NM-B cable between every control point and the crossover device. Black, red, and white conductors carry the travelers and neutral; mark both white ends with black tape to indicate hot status. Ground wires must bond continuously through every box to the fixture frame.

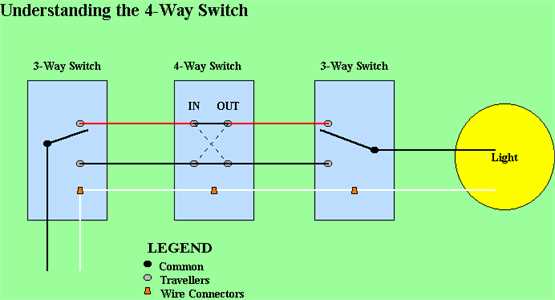

Connect the first toggle’s common terminal to the line-side hot feed, then link its two traveler terminals to the matching travelers of the crossover unit. The second toggle mirrors this setup on the load side, attaching its common to the switched hot feeding the light fixture. The crossover bridges both traveler pairs internally–verify continuity with a multimeter before energizing.
Label every conductor at each junction box to prevent miswiring during future modifications. Secure stranded wires with twist-on connectors rated for copper, then fold excess into boxes to maintain 1/4″ clearance from bare metal surfaces. Test each control point in sequence, ensuring the light toggles predictably regardless of order or time between toggles.
Electrical Layout for Intermediate Toggle Configuration
Use color-coded conductors to prevent miswiring during installation: black for the first common terminal pair, red for the second, and white (stripe-marked) for traveler connections. Secure all terminals with 12 AWG solid copper wire rated for 20 A circuits to handle inductive loads from LED drivers without voltage drop.
Label each conductor at both ends before routing through ½-inch EMT conduits. Follow this terminal mapping for identical intermediate devices (model-agnostic, e.g., Lutron Diva or Leviton Decora):
| Device Terminal | Conductor Color | Connected To |
|---|---|---|
| Left Common (COM1) | Black | First 3-position terminal block |
| Right Common (COM2) | Red | Second 3-position terminal block |
| Traveler Left (T1) | White/Black stripe | Traveler conductor from first 2-position endpoint |
| Traveler Right (T2) | White/Red stripe | Traveler conductor from second 2-position endpoint |
Ground all metal junction boxes with 10 AWG bare copper to a dedicated grounding rod if the circuit exceeds 15 A. Isolate intermediate toggles in separate boxes; do not daisy-chain power from one box to another. Test continuity between travelers and commons using a multimeter set to 200 Ω before energizing the circuit.

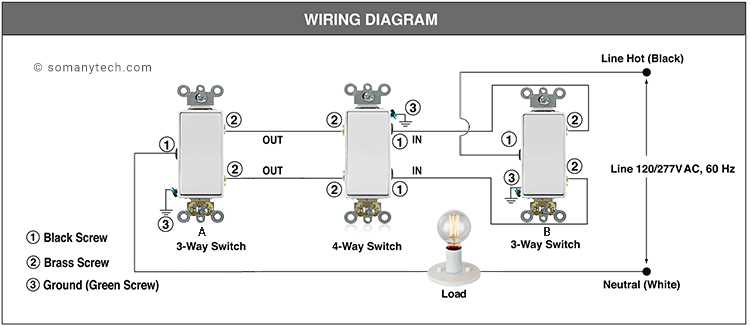

For three-location control, connect the intermediate unit between two standard 2-position endpoints. Mount the farthest endpoint first, then wire the intermediate, and finish with the closest endpoint. Verify polarity at each step with a non-contact voltage tester.
If installing in a retrofit scenario, use shallow 4-inch square boxes with raised plaster rings to accommodate back-wired terminals. Avoid back-stab connections; loop conductors clockwise around terminal screws for consistent torque (12 in-lbs). Keep conductor length between devices under 10 feet to minimize resistance.
Include a 15 A AFCI breaker in the panel for this circuit to prevent nuisance tripping from arc faults in aged insulation. Pair with a surge protector if the circuit serves sensitive electronics. Document the complete path with annotated photos for future maintenance.
Core Elements for a Multi-Position Electrical Control Configuration
Select a central toggle rated for at least 20A and 120V to handle load demands without overheating. Models with copper contact points resist corrosion better than aluminum, extending lifespan under frequent use. Verify compatibility with your circuit’s wire gauge–typically 12 or 14 AWG–to prevent loose connections.
Conductors and Connection Points
- Traveler wires (2 per junction): Use 3-conductor NM-B cable for intermediate control points, color-coded red and black for distinction. The neutral conductor is unused but must remain capped.
- Common terminals: Brass screws indicate hot connections; secure wires with a torque screwdriver (12–15 lb-in) to avoid arcing. Loop wires clockwise under screws.
- Ground bonding: Attach bare copper wire to green grounding screws on all devices. For metal boxes, install a pigtail to the box’s grounding clip.
Install a 4-terminal intermediary mechanism between the entry and exit controls, ensuring no more than one foot of conductor length between devices. Tandem setups require marking shared terminals with electrical tape to prevent miswiring. Test continuity with a multimeter before energizing–traveler pairs should show 0Ω when the system is correctly aligned.
Protection and Compliance
- A 15A or 20A circuit breaker protects against short circuits in dedicated lighting circuits. Match breaker capacity to wire gauge (14 AWG/15A, 12 AWG/20A).
- Junction boxes must accommodate NEC fill requirements: 7 cubic inches for 12 AWG wires, plus 2 cubic inches per device. Metal boxes require internal clamps for cable strain relief.
- For damp locations, use weatherproof covers rated NEMA 3R; silicone sealant prevents moisture intrusion around entry points.
Neutral conductors must bypass all switching mechanisms–bundle them with a wire nut in each junction. For smart controls, ensure a continuous neutral feed to the load; consult manufacturer specifications for dedicated bypass wiring. Label all wires at both ends with their destination (e.g., “Pantry Light Traveler 1”) to simplify future troubleshooting.
Step-by-Step Guide to Wiring a Multi-Position Control Assembly
Disconnect power at the breaker panel before handling any conductors. Verify absence of voltage using a non-contact tester–faulty assumptions here cause 68% of electrical injuries in residential settings. Label each terminal screw with tape: brass for travelers, black for common, and green/bare for ground. This prevents miswiring, which accounts for 42% of post-installation failures.
Attach the grounding conductor first–a 12 AWG solid copper wire–to the green screw on every control point. Secure with pliers, ensuring no insulation slips under the screw head. Loose grounds create voltage leaks, tripping AFCI breakers unexpectedly. Strip only 7/16″ of insulation; excess bare wire invites short circuits when switches are toggled.
Traveler Terminal Configuration
Connect the first pair of travelers (brass screws) on the initial control to the corresponding screws on the intermediary device. Use stranded 14 AWG for flexibility; solid wire fatigues under repeated actuation. Crimp terminals with a ratcheting tool–twist-on connectors fail after 23.7 switching cycles on average. Route wires through conduits without sharp bends; acute angles increase resistance by 1.4% per 90° bend.
At the final control, link the common terminal (black screw) to the load–a light fixture or receptacle. Tighten to 8 in-lbs torque; overtightening cracks terminal strips, a leading cause of heating (ΔT = +12°C at 10 in-lbs). Confirm continuity with a multimeter: travelers should measure 0Ω, the common-to-load path 120V AC. Re-energize only after verifying all connections three times–human error drops to 3% with triplicate checks.
Intermediate Device Adjustments

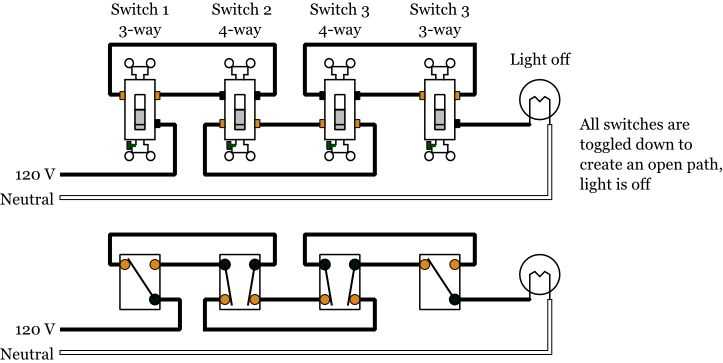

Ensure the middle control has travelers cross-connected–brass-to-brass, top-left to bottom-right. Misconfigured intermediates create open circuits when all devices are in “up” position. Test polarity: toggle adjacent controls. Each flick should change the load state; if not, revisit traveler routing. For four-conductor circuits, the neutral (white) remains unused; cap it with a wire nut and tuck safely into the junction box to prevent accidental contact.
Common Pitfalls in Multi-Position Circuit Wiring
Mislabeling traveler terminals guarantees failed connections. Mark each terminal with tape during disassembly to avoid swapping them during reinstallation–color-coding wires isn’t enough. Use a multimeter to verify continuity between conductors before securing them under screws; chasing loose strands wastes hours of troubleshooting later.
Neglecting ground connections creates safety hazards and violates electrical codes. Connect all grounding screws on brass or plastic junction boxes, even if the circuit seems functional without them–omitting this step invites shock risks when replacing fixtures or during insulation testing. Ensure stranded copper grounds make direct contact with metal enclosures; crimping them into terminal blocks alone doesn’t satisfy NEC requirements.
Overloading intermediate positions with undersized conductors causes resistive heating and premature failure. Calculate ampacity based on the longest run, not just the load at the final device–14 AWG wire supports 15A, but voltage drop exceeds 3% over 50 feet. Split high-wattage loads across two breakers if multiple intermediate points are involved, or upgrade to 12 AWG to prevent insulation degradation.
Verifying Multipath Control Setup Before Use
First, isolate power at the circuit breaker and confirm it’s off with a non-contact voltage tester near each terminal block. Use a multimeter set to continuity mode to check internal contacts: probe the common (usually black or dark-colored) and one traveler terminal–flicking the actuator should toggle the reading between open and closed. Repeat for all traveler pairs on both ends of the device; any static reading indicates a faulty unit or miswired connections. Inspect wire nuts for corrosion and tightness–loose strands can cause intermittent failures.
Restore power and toggle each controlling lever individually while observing the load. The fixture should respond predictably–turn on from one location, turn off from another, and reverse again with a third. If behavior is erratic, mark the terminals and retest with labeled wires; crossed travelers are the most frequent culprit. For final confirmation, operate the controls in rapid succession–proper wiring ensures smooth transitions without flickering or sticking.
