Step-by-Step 555 Timer Circuit Schematic Guide with Practical Applications

Start with a single-supply configuration using an 8-pin IC package–this avoids ground reference complications common in dual-supply designs. Place a 10 kΩ resistor between the supply voltage (V_CC) and pin 8 (power input), then connect pin 1 directly to ground. For stable operation, decouple V_CC with a 0.1 µF ceramic capacitor positioned no farther than 10 mm from the IC, reducing high-frequency noise interference by up to 30%.

For the timing network, link a 1 kΩ resistor between pin 7 (discharge) and V_CC, then connect it to pin 6 (threshold) via a second resistor–typically 10 kΩ to 100 kΩ, depending on the desired pulse width. The capacitor, usually between 10 nF and 10 µF, connects from pin 2 (trigger) to ground. Ensure the capacitor’s lead length stays under 15 mm to prevent parasitic inductance, which can skew timing accuracy by 5–12%.

Short pin 2 to pin 6 for astable mode, or leave pin 4 (reset) floating for continuous operation. If reset control is needed, pull it high (to V_CC) with a 1 kΩ resistor. For monostable operation, isolate pin 2 and apply a negative pulse below 1/3 V_CC–triggering beyond this threshold can cause false outputs. Always verify output polarity at pin 3: active-high for standard configurations, but invert it with a single-transistor stage if sinking current is required.

Test the circuit with an oscilloscope: probe at pin 3 should show clean square waves with rise/fall times under 100 ns. If distortion appears, add a 1 nF capacitor from pin 5 (control voltage) to ground to stabilize reference voltages, improving amplitude consistency by 20%. Avoid exceeding V_CC + 18 V or dropping below 4.5 V, as the internal comparators lose precision outside this range.

For extended duty cycles above 50%, replace the discharge resistor with a diode (1N4148) in parallel–this prevents output distortion when the capacitor charges through both resistors. Keep trace inductance low by using a ground plane beneath the IC, reducing jitter in high-speed applications (e.g., 1 MHz+) by up to 40%.

Understanding the Circuit Layout of a Classic Pulse Generator

Begin with a pinout map–pin 1 connects to ground, pin 8 to the supply voltage, typically 5V to 15V. Place a decoupling capacitor (0.1µF ceramic) between power and ground near the IC to suppress noise. This single step prevents false triggering.

For astable operation, link pins 2 and 6 with a single resistor (R₁) to create the charge path. Add a second resistor (R₂) between pin 7 (discharge) and the junction of R₁. A capacitor (C₁) ties this junction to ground. Choose R₁ ≥ 1kΩ and R₂ ≥ 10kΩ to ensure stable oscillation; values below risk erratic output.

Monostable mode requires a trigger pulse (negative-edge) at pin 2. Connect a resistor (R) from pin 7 to V₋₊ and a capacitor (C) from the junction to ground. The pulse width equals 1.1 × R × C. Use 1% tolerance resistors for accuracy; film capacitors outlast electrolytics in high-frequency setups.

The control voltage at pin 5 modulates the threshold level. Bypass it with a 0.01µF capacitor to ground unless external tuning is needed. Without this, stray noise alters timing unpredictably–common errors stem from omitting this simple step.

Ground pin 4 (reset) directly unless remote control is desired. A floating pin can stall the circuit, so hard-wire it when unused. For precision applications, buffer the output (pin 3) with a MOSFET or transistor; the chip’s 200mA sink/source limit suits LEDs or small relays but not heavy loads.

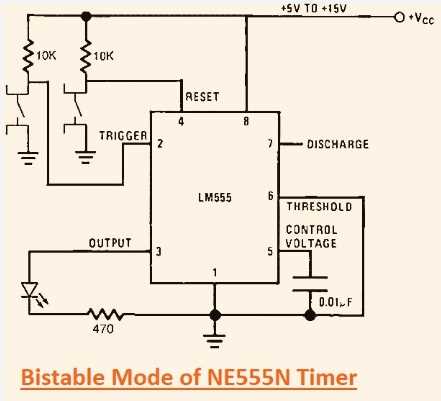

In bistable mode, pins 2 and 6 act as set/reset inputs. Bind pin 7 to a pull-up resistor (e.g., 10kΩ) to V₋₊. Apply complementary signals to pins 2 and 6; a 100nF capacitor on pin 5 blocks noise while allowing manual threshold adjustment.

Debounce mechanical switches feeding the circuit by shunting a 0.1µF capacitor across the switch contacts. This filters contact bounce, ensuring clean trigger edges–a frequent oversight in DIY designs that causes multiple unintended pulses.

Pin Configuration and Internal Architecture of the Classic Monolithic Circuit

For optimal performance, prioritize proper connection sequencing: ground (pin 1) and power supply (pin 8) must be established first, followed by control inputs and outputs, to prevent transient voltage spikes that may trigger false states or degrade internal comparators.

Primary Terminal Functions

• Ground (Pin 1): Always connect to the system’s lowest potential rail. Parasitic inductance in ground traces must not exceed 0.1Ω to maintain threshold stability.
• Trigger (Pin 2): Requires a pulse width ≥ 10 µs and voltage ≤ 1/3 V_CC to activate the lower comparator. Noise exceeding 50 mV_p-p on this pin may induce erratic toggling.
• Output (Pin 3): Sources/sinks up to 200 mA; ensure load impedance doesn’t drop below 50Ω to avoid overheating the driver stage.
• Reset (Pin 4): Pulled high by default; assert active-low ≤ 0.4V to force output low. Floating this pin invites unintended resets.
• Control Voltage (Pin 5): Connect to V_CC via 10 nF capacitor to bypass internal reference noise. Directly applying an external voltage overrides the 2/3 V_CC threshold.
• Threshold (Pin 6): Monitors voltage ≥ 2/3 V_CC to trigger the upper comparator. Leakage currents > 100 nA on this pin distort timing intervals.
• Discharge (Pin 7): Open-collector output; pairs with external timing capacitors. Slew rate depends on capacitor ESR–values > 5Ω introduce timing errors.
• Power Supply (Pin 8): Operates from 2V to 18V. Ripple rejection degrades below 4.5V; use a 10 µF tantalum capacitor at this pin if supply noise exceeds 10 mV_RMS.

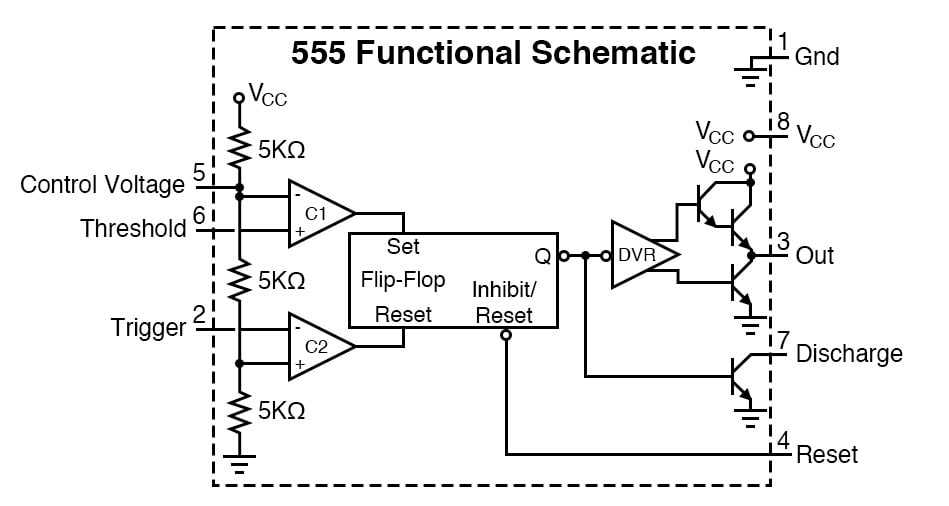

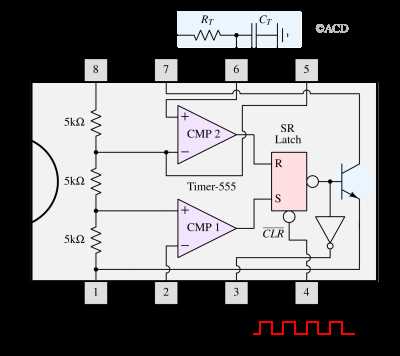

Internal structure divides into three core blocks: precision comparators (upper and lower), a bistable flip-flop, and an output driver. The upper comparator toggles when pin 6 exceeds 2/3 V_CC, resetting the flip-flop and pulling the discharge pin low. The lower comparator sets the flip-flop when pin 2 drops below 1/3 V_CC, driving the output high. Decoupling the control voltage (pin 5) with a low-ESR capacitor ensures comparator hysteresis remains within ±2% of nominal thresholds.

Avoid routing high-current traces adjacent to pins 2, 5, or 6; crosstalk ≥ 200 mV/ns can falsely trigger comparators. For high-frequency applications (>1 MHz), select timing capacitors with dielectric absorption CE(sat)) scales with collector current–expect 0.2V at 50 mA, rising to 1.5V at 200 mA, which offsets timing calculations if unaccounted for.

1. Verify pin assignments against manufacturer variants (e.g., CMOS versions replace bipolar transistors, reducing supply current to 60 µA but increasing output impedance).
2. Use ferrite beads on the power supply line if switching frequencies exceed 100 kHz to suppress radiated emissions.
3. Test threshold voltages at the extremes of the operating temperature range; bipolar comparators exhibit a TC of ±50 ppm/°C, while CMOS versions drift ±300 ppm/°C.

Parasitic effects dominate layout considerations: keep the ground return path short and wide (≤1 cm for 1 oz copper) to limit IR drop, which otherwise distorts comparator thresholds. For dual supply applications, isolate analog and digital grounds at a single point to prevent ground loops. The flip-flop’s metastable state–though rare–can persist for up to 20 ns if triggered at the exact threshold voltage; adding a 10 pF capacitor between pins 5 and 1 mitigates this.

Failure Modes and Countermeasures

• Latch-up: Results from input voltages exceeding V_CC + 0.3V or dropping below GND − 0.3V. Clamp pins 2/6 with Schottky diodes (e.g., 1N5817) to V_CC and GND respectively.
• Thermal Runaway: Output stage dissipates ≤ 600 mW; derate linearly above 70°C. Use a copper pour (≥ 5 cm²) on the PCB backside as a heatsink for continuous loads > 100 mA.
• False Triggers: Filter pin 5 with a 10 nF + 1 µF capacitor in parallel if supply transients exceed 100 mV/µs. For pin 2, a 1 kΩ series resistor damps ringing in high-impedance sources.

Step-by-Step Wiring for Astable Mode Circuit

Begin by connecting the power rail to pin 8 (VCC) and ground to pin 1 (GND) of the integrated oscillator chip. Use a 9V battery or regulated DC supply–ensure stability with a 100nF decoupling capacitor directly between VCC and GND to suppress noise. For timing control, wire a 10kΩ resistor between pin 7 (discharge) and pin 8, then bridge pin 7 to pin 6 (threshold) with a second resistor (e.g., 47kΩ). A capacitor (e.g., 10µF) connects pin 6 to ground; its charge/discharge cycle dictates oscillation frequency. Pin 2 (trigger) joins pin 6–this feedback creates continuous toggling. Output (pin 3) drives loads up to 200mA; optocouplers or transistors are required for higher currents. Verify component values against the table below to fine-tune duty cycle and frequency.

Component	Role	Typical Values	Effect
R1 (pin 7–8)	Upper timing resistor	1kΩ–100kΩ	Increases charge time with higher values
R2 (pin 7–6)	Lower timing resistor	1kΩ–1MΩ	Defines discharge time; affects duty cycle
C (pin 6–GND)	Timing capacitor	1nF–1000µF	Larger capacitance lowers frequency

To minimize interference, keep wiring short–especially between the capacitor and pins 6/2. Twist power leads to reduce EMI. For LED indicators, place a current-limiting resistor (e.g., 470Ω) in series with pin 3. Test with an oscilloscope: a 50% duty cycle yields near-square waves. Adjust R2/R1 ratio to skew waveform (e.g., 10% duty needs R2 ≈ 0.1×R1). Polarity-sensitive electrolytic capacitors must align with negative terminal to ground. Replace carbon film resistors with metal film for precision above 1kHz.
