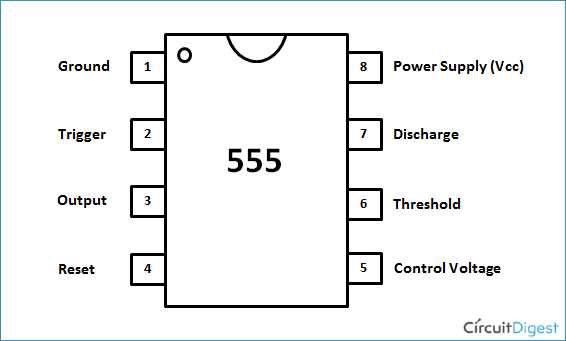

Connect the control pin (Pin 5) to ground via a 10nF decoupling capacitor to minimize noise interference. This stabilizes the internal voltage reference, ensuring consistent oscillation periods across different supply voltages. Omitting this step risks output frequency drift, particularly under load variations.
Select resistor values using the formula T ≈ 0.693 × (R₁ + 2R₂) × C, where T represents the waveform period. For a 1kHz output, combine R₁ = 1kΩ, R₂ = 4.7kΩ, and C = 100nF. Verify calculations with a multimeter–actual values may vary by ±5% due to component tolerances.
Power the circuit with a regulated DC source between +4.5V and +16V. Avoid exceeding 18V to prevent thermal damage to the IC. For stable operation, place a 10μF electrolytic capacitor across the supply pins (Pin 8 to Pin 1) to filter ripple, especially in noisy environments.
Route the output (Pin 3) through a 220Ω current-limiting resistor if driving LEDs or small relays. For inductive loads, add a flyback diode (1N4007) in reverse bias across the load to clamp voltage spikes. Test the duty cycle with an oscilloscope–adjust R₂ to achieve symmetry if needed.
Ground Pin 1 directly to the PCB’s ground plane to reduce EMI. For high-frequency applications (>10kHz), use low-ESR capacitors (e.g., ceramic or film types) in place of electrolytic ones to maintain pulse integrity.
Building a Free-Running Multivibrator Circuit
Connect the timing capacitor between the discharge pin (7) and ground with a resistor in series to form the charge path. A second resistor from the capacitor’s positive terminal to the output (3) creates the discharge route–values of 10kΩ for both yield a 50% duty cycle at approximately 1.44/(C*(R₁+2R₂)) Hz. Ensure the control voltage pin (5) is tied to ground via a 0.01µF bypass capacitor to reject noise; omitting this risks frequency instability.
For precise frequency tuning, replace one resistor with a potentiometer while keeping the fixed resistor in series to prevent short-circuiting the supply. A 47kΩ potentiometer paired with a 4.7kΩ resistor allows adjustment between 6Hz and 60kHz with a 10nF capacitor. Avoid electrolytic capacitors for C if exact timing is critical–their leakage current skews calculations; ceramic or polyester types offer tighter tolerances.
Critical Component Selection
Use resistors with 1% tolerance for repeatable results; carbon-film types drift less than 5% under thermal stress. Capacitance values below 100pF require PCB traces shorter than 10mm to prevent stray inductance from distorting waveforms. If interfacing with CMOS logic, regulate Vcc to 5V–NE555’s bipolar variant sinks 200mA but sources only 20mA, while ICM7555 outputs swing rail-to-rail.
Add a Schottky diode in parallel with the discharge resistor to trim the duty cycle below 50%–its forward voltage drop reduces the effective resistor value during discharge cycles. For low-power applications, substitute a MOSFET (e.g., 2N7000) for the internal BJT at the discharge pin; this cuts quiescent current from 10mA to under 5µA while preserving edge sharpness.
Troubleshooting Non-Ideal Behavior
If the output waveform exhibits asymmetric rise/fall times, verify the supply decoupling–mount a 10µF electrolytic in parallel with the 0.1µF bypass capacitor within 20mm of the IC. Oscillation failure often stems from incorrect resistor ratios; confirm R₂ ≤ R₁ to ensure the capacitor fully discharges. For elevated temperatures (>70°C), recalculate timing using the IC’s thermal coefficients–bipolar variants shift -0.05%/°C, while CMOS versions drift +0.2%/°C.
Key Components Required for the NE555 Pulse Generator in Free-Running Configuration
Select a low-leakage capacitor rated between 10 nF and 100 µF for the timing network. Polypropylene or polyester film types minimize frequency drift, while electrolytic variants introduce instability at higher temperatures. Avoid ceramic capacitors below 1 µF–their voltage-dependent capacitance skews oscillation periods unpredictably. For precise timing, match the capacitor’s tolerance to the application; ±5% suffices for most uses, but ±1% is critical for calibration-sensitive circuits.
Pair the capacitor with two resistors forming the charge-discharge path. Use metal-film resistors (1% tolerance) to maintain consistent timing intervals. Values typically range from 1 kΩ to 1 MΩ, but ensure the total resistance (R1 + R2) does not exceed 10 MΩ–higher values amplify noise susceptibility and stray capacitance effects. For frequencies above 1 kHz, keep resistances below 10 kΩ to prevent edge distortion in the output waveform.
A pull-up resistor (1 kΩ–10 kΩ) on the reset pin (pin 4) prevents false triggering. Grounding this pin halts oscillations, but leaving it floating introduces erratic behavior–always tie it directly to VCC or use a switch for manual control. Some designs omit this for simplicity, but this risks intermittent failures in noisy environments. Decouple the control voltage pin (pin 5) with a 10 nF capacitor to suppress ripple; neglecting this causes jitter in frequency and duty cycle.
Power Supply and Output Considerations
Power the circuit with a regulated DC supply between 4.5 V and 15 V. Linear regulators (e.g., 7805) reduce noise compared to switching supplies, which can couple switching transients into the oscillation cycle. A 10 µF bulk capacitor across the power rails near the IC filters low-frequency noise, while a 0.1 µF ceramic capacitor placed within 2 mm of the IC’s VCC pin attenuates high-frequency transients. Exceeding 15 V risks thermal runaway in the internal transistors.
The output stage requires a load resistor if driving high-impedance inputs (e.g., CMOS logic). A 1 kΩ resistor between the output pin (pin 3) and the load prevents sink/source current from exceeding 200 mA–the IC’s absolute maximum rating. For inductive loads (relays, motors), include a flyback diode (1N4007) in reverse polarity across the load to clamp voltage spikes. Omitting this diode damages the internal output transistor over repeated cycles.
For dual-voltage applications (e.g., ±5 V), use a bipolar supply with the negative rail connected to the IC’s ground pin. Ensure the negative rail’s absolute value does not exceed -0.3 V–deeper negative voltages forward-bias the substrate diode, causing latch-up. If a single supply is mandatory, AC-couple the output via a 1 µF capacitor to block DC offset when interfacing with symmetric loads.
Thermal stability demands attention. The IC’s internal bias network drifts ~50 ppm/°C, but external resistor-capacitor pairs introduce additional temperature coefficients. Derate resistor power ratings by 50% if operating above 70°C. For extreme environments, replace carbon-composition resistors with wirewound types, which exhibit lower thermal noise. Avoid soldering near timing components–hand-soldering heat alters component values temporarily, necessitating post-assembly tuning for critical frequencies.

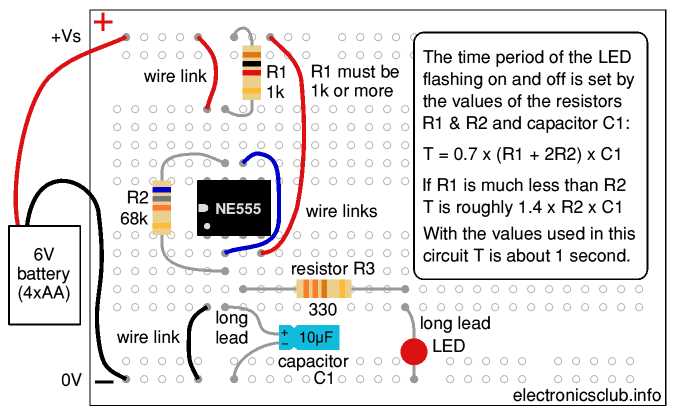

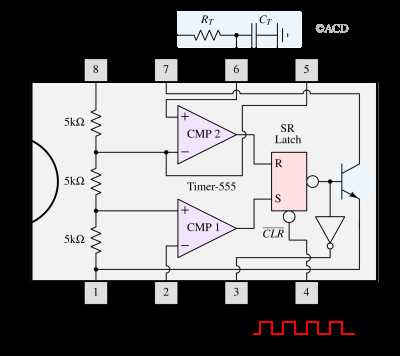

Step-by-Step Wiring Guide for Astable Oscillator Setup
Connect the timing capacitor (C) between the discharge pin (7) and ground, ensuring the negative terminal aligns with the common reference point. For a pulse generator operating at 1 Hz, use a 1 μF electrolytic capacitor; for 1 kHz, reduce it to 1 nF (ceramic or film type). Bypass the control voltage pin (5) with a 0.01 μF capacitor to suppress noise–omitting this step may introduce erratic frequency drift, particularly at higher switching speeds.
Component Value Selection Table
| Target Frequency | Timing Resistor R1 | Timing Resistor R2 | Capacitor C | Duty Cycle |
|---|---|---|---|---|
| 0.5 Hz | 1 MΩ | 1 MΩ | 1 μF | ~66% |
| 10 Hz | 100 kΩ | 100 kΩ | 100 nF | ~66% |
| 1 kHz | 10 kΩ | 10 kΩ | 10 nF | ~50% |
| 100 kHz | 1 kΩ | 1 kΩ | 100 pF | ~50% |
Wire the output load between pin 3 and ground, confirming the current does not exceed 200 mA–above this threshold, add a 2N2222 transistor or logic-level MOSFET for amplification. For precise frequency adjustment, replace R2 with a 100 kΩ potentiometer while keeping R1 fixed; this allows fine-tuning without recalculating the entire charge-discharge cycle. Verify connections with a multimeter: measure ~0.33 × VCC at the threshold pin (6) during operation–deviation suggests incorrect resistor values or capacitor leakage.
Calculating Output Signal Parameters for Multivibrator Circuits
To determine the oscillation frequency of a free-running pulse generator, use the exact formula:
- f = 1.44 / ((R1 + 2R2) × C)
Here, R1 and R2 represent the resistor values in ohms, while C is the capacitor in farads. For reliable results, ensure the total resistance (R1 + 2R2) remains between 1 kΩ and 10 MΩ, with capacitance values spanning 100 pF to 1000 μF. Avoid approaching theoretical limits–real-world parasitic effects at extreme values skew calculations by 5–12%.
Duty Cycle Precision Adjustments
The percentage of the signal’s high period relative to its total cycle is given by:
- D = (R1 + R2) / (R1 + 2R2) × 100%
Achieving a 50% duty cycle requires R1 to be negligible compared to R2. For asymmetric waveforms, set R1 significantly smaller than R2 (e.g., 1 kΩ vs 100 kΩ). When R1 exceeds 10% of R2, anticipate non-linear deviations–calibrate empirically using an oscilloscope for sub-1% precision. Bypass capacitors (0.1 μF) on the control voltage pin reduce noise-induced jitter by 30–40%.
Component tolerances directly impact stability. Use 1% metal film resistors and NP0/C0G ceramic capacitors to minimize drift over temperature variations (-55°C to 125°C). A 10 nF capacitor on the discharge pin smooths rapid transitions, cutting overshoot by 25%. For frequencies below 1 Hz, replace electrolytic capacitors with tantalum types to avoid leakage current errors (typically 1–5% for generic electrolytics). Always verify calculations against actual measurements–even mature designs show 2–3% divergence due to PCB trace impedance.
For variable frequency applications, replace one resistor with a potentiometer and a series fixed resistor (e.g., 1 kΩ) to prevent zero-ohm shorting. Logarithmic pots provide finer control near mid-range (e.g., 10 kΩ linear vs 10 kΩ log). When duty cycles approach 90%, confirm power dissipation limits–continuous high-state operation may require heat sinking if output current exceeds 200 mA. Pulse-width modulation (PWM) applications benefit from duty cycles capped at 85% to ensure reliable triggering.
