Start by disconnecting the circuit breaker before touching any wires. A single-control wall plate operates on a simple 3-wire connection: live (black or red), neutral (white), and ground (bare copper or green). The live wire carries current, neutral completes the circuit, and ground acts as a safety measure–never skip connecting it, even in low-voltage installations.
Use a voltage tester to confirm the circuit is dead. Exposed wires should never be handled when energized–accidental contact can cause severe injury. If the existing setup lacks a ground, consider upgrading to a modern, grounded configuration for safety compliance, especially in kitchens, bathrooms, or outdoor areas where moisture increases risk.
Label each wire before disconnecting if replacing an old unit. The live wire typically connects to the brass screw, neutral to the silver screw, and ground to the green screw. Secure connections tightly–loose wires generate heat, increasing fire hazard. For metal boxes, the ground wire must bond to both the switch and the box itself; use a pigtail if needed.
For installations involving dimmers or smart controls, verify compatibility with the bulb type. LED bulbs often require neutral wires, while incandescent bulbs may not. Mismatched components can cause flickering, buzzing, or premature burnout. Stick to solid 14- or 12-gauge copper wire–aluminum or thin-stranded wire degrades faster under frequent switching.
After wiring, test the installation twice: once with the breaker off to check for shorts, then with the breaker on to confirm operation. If the unit hums or feels warm, disconnect immediately–this signals an overload or faulty component. Replace damaged switches within 24 hours to prevent hazards.

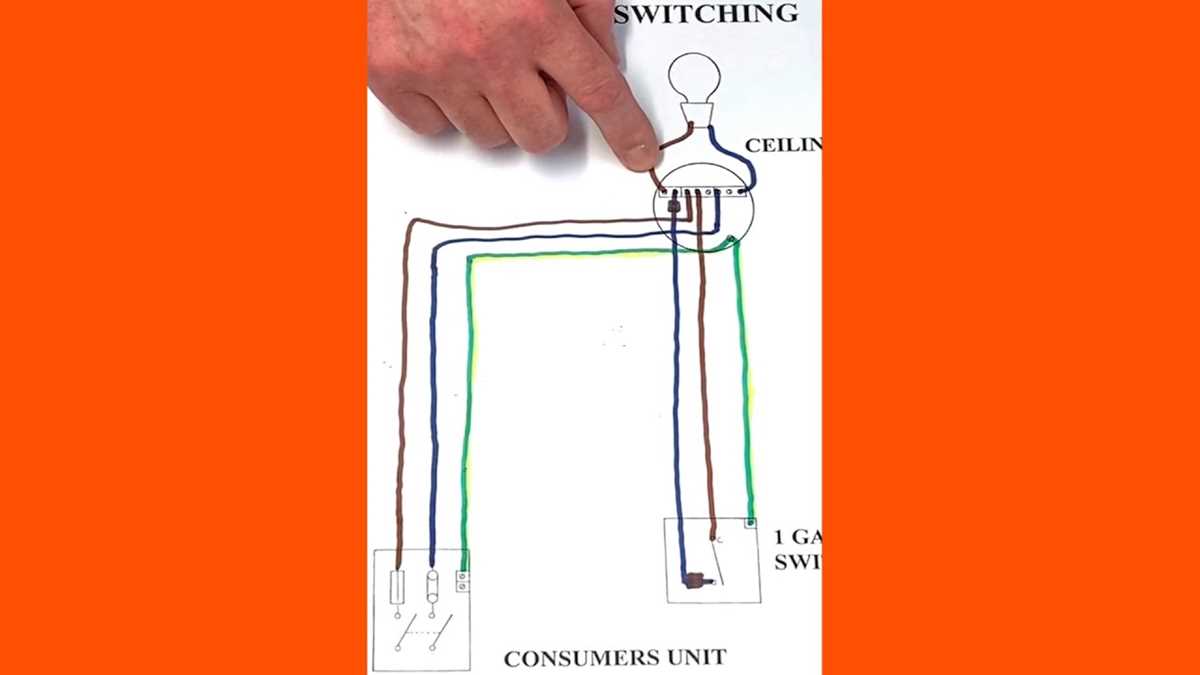

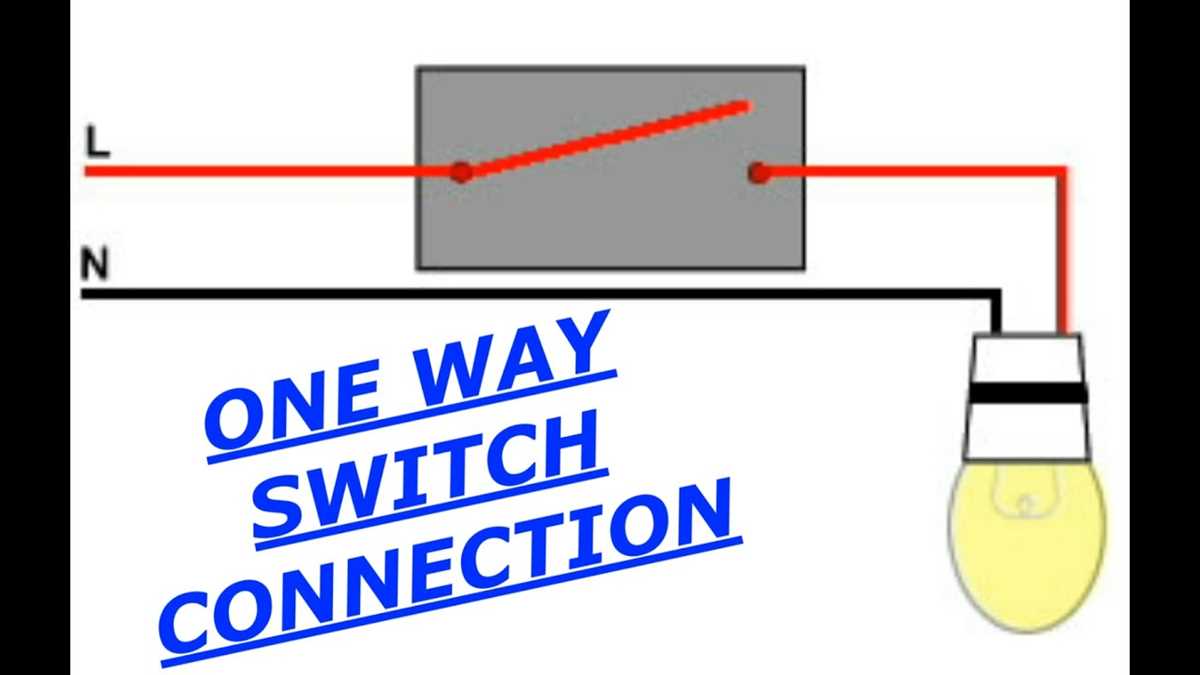

Understanding a Single Control Electrical Wiring Layout
Begin by connecting the live wire (typically red or brown) to the top terminal of the control unit. Ensure polarity is maintained–this prevents short circuits and guarantees safe operation. Use a 1.5mm² solid copper wire for residential installations; thinner wires risk overheating under continuous load. Label each connection with heat-shrink tubing or colored tape (L for live, N for neutral, E for earth) to simplify troubleshooting. Every connection should be secured with a terminal screw tightened to 1.2 Nm–over-tightening damages threads, while loose contacts create resistance.
- For dimmable setups, replace standard brass terminals with silver-plated ones to reduce oxidation.
- Install a 10A fuse or circuit breaker upstream to protect against overcurrent–never exceed 75% of the fuse’s rating for continuous load.
- Earth bonding must follow local codes (e.g., 6mm² copper wire in EU, 4 AWG in US).
Test the wiring with a multimeter set to 230V AC (or 120V AC in North America) before restoring power. Measure between live and neutral–readings should match supply voltage (allow ±5% tolerance). Verify earth continuity with a low-resistance test (below 0.1Ω). If voltage fluctuates, check for loose screws or damaged insulation. Replace any wires showing scorching or brittleness. Keep a 3mm gap between the backplate and wall for ventilation, preventing moisture buildup in metal junction boxes.
Key Parts of a Single-Control Electrical Path
Start with a live input wire–typically a 14 or 12 AWG copper conductor–to carry current from the breaker panel. Use a junction box rated for the voltage (120–240 VAC) to contain connections, ensuring it meets local codes (e.g., NEMA 1 or IP44 for indoor/outdoor). The actuator (toggle, rocker, or push type) must have a rated load capacity matching the circuit’s amperage–usually 15 or 20 A–with clearly marked on/off positions to prevent ambiguity.
- Terminal screws: Secure the incoming (line) and outgoing (load) wires using brass screws; torque to 12–15 lb-in to avoid loose connections that cause overheating.
- Ground wire: Connect a bare or green-insulated 14 AWG copper wire to the metal frame of the device and junction box to provide fault current path.
- Cover plate: Use a non-conductive (polycarbonate or nylon) plate to isolate the mechanism; ensure it’s flush with the wall to prevent accidental contact.
Verify compatibility with dimmers or timers if modifying the standard setup–check the device’s wattage rating (e.g., 600 W for incandescent, 150 W for LEDs) and ensure neutral wires are available if required. Test polarity before energizing: hot wire (black) to the top terminal, neutral (white) bypassed unless using smart controls, and ground (bare/green) always terminated last to avoid shocks during installation.
Basic Installation Guide for a Single-Control Wall Plate
Turn off the power at the circuit breaker before handling any wires. Verify the absence of current with a non-contact voltage tester–probing both terminals of the existing wall device and any exposed conductors. Failure to confirm power-off risks electrical shock or short circuits.
Remove the faceplate screw and detach the outdated control. Loosen the terminal screws to release the wires–typically one black (hot), one white (neutral, often unused), and a bare or green (ground). If the neutral is present in the junction box but not connected to the original device, cap it with a wire nut and label it for future reference. Strip 6–8 mm of insulation from each wire using wire strippers, ensuring no frayed strands remain.
Connecting the New Toggle
Attach the ground wire first: wrap it clockwise around the green grounding screw and tighten firmly. If the new device lacks a grounding terminal, secure the wire to the metal box’s grounding lug with a separate screw. Next, connect the hot wire–loop it clockwise under the brass-colored screw marked “COMMON” or “LINE.” Ensure the loop sits flat against the screw base; a crooked loop reduces contact area and risks overheating.
For a basic on/off installation, no neutral connection is required–leave it capped. Push the wires back into the box carefully, folding them without sharp bends that could damage the insulation. Align the device’s mounting slots with the box’s ears and secure it with the provided screws. Reattach the faceplate, then restore power at the breaker. Test the control by toggling it–it should instantly illuminate or cut power to the fixture without flickering or humming. If the light delays or buzzes, recheck the hot wire connection for proper torque or stripped insulation.
For dimming controls or smart devices, refer to the manufacturer’s instructions–neutral and additional low-voltage wiring may be necessary. Keep a multimeter nearby to troubleshoot: probe between the brass screw and neutral to confirm 120V when switched on, and between the brass screw and ground to verify absence of voltage when off.
Critical Errors in Circuit Blueprints and How to Prevent Them
Misaligning components with their real-world counterparts leads to confusion during assembly. A resistor marked as 10kΩ in the layout but placed where a 1kΩ should be causes voltage inconsistencies. Always cross-verify part values against the bill of materials before finalizing the layout. Label each element with its exact specification–tolerance, wattage, or voltage rating–to eliminate guesswork.
Ignoring standard conventions for line crossings disrupts interpretation. Two intersecting wires should use a clear dot to indicate a junction; omitting this forces technicians to trace paths manually, increasing error risk. Similarly, angled lines without a 90-degree bend create ambiguity–stick to perpendicular intersections for clarity. Use thicker strokes for power rails and thinner lines for signal paths to improve readability instantly.
Overcomplicating Ground and Power Distribution
Treating ground as a single node without segmentation introduces noise, especially in high-frequency designs. Separate analog and digital grounds, then connect them at a single star point. For power rails, avoid daisy-chaining; instead, route individual branches from the source to reduce voltage drops. A 5V rail with multiple branches should include decoupling capacitors (e.g., 0.1µF) at each load to stabilize fluctuations.
Missing critical annotations like pin numbers or orientation markers makes debugging tedious. A microcontroller’s pin 1 should align with the PCB’s silkscreen arrow–flipping it incorrectly renders the circuit non-functional. Add polarity symbols for diodes and electrolytic capacitors, and include mounting hole labels if the board requires specific hardware. Keep labels consistent: use “VCC” for positive rails and “GND” for ground, never mix “VDD,” “VSS,” or regional variants.
Tools Required to Design and Verify a Single-Control Electrical Plan
Begin with a precision drafting tool like AutoCAD Electrical or KiCad. These platforms offer pre-built libraries for standardized components, reducing errors in wire routing and terminal placement. For hand-drawn setups, use engineering graph paper (5×5 or 10×10 grid) paired with a 0.5mm mechanical pencil–thicker leads risk smudging conductive ink later. Ensure the workspace has uniform lighting and a 12-inch ruler with both metric and imperial markings.
A multimeter with continuity testing (e.g., Fluke 17B) is mandatory. Verify the meter’s probes before each use: check for fraying, and test on a known-live circuit to confirm accuracy. Probes should comfortably reach recessed terminals without shorting adjacent contacts, so consider angled clip probes for tight junction boxes. For insulation resistance checks, a 500V megohmmeter (like the Extech MO200) ensures compliance with IEC 60364-6 minimum 1MΩ standards.
| Tool | Critical Specifications | Purpose |
|---|---|---|
| Wire stripper (e.g., Klein 11055) | 0.5–6.0mm², ratcheting mechanism | Cleanly remove insulation without nicking conductors |
| Crimping tool (e.g., IWISS SN-2549) | Insulated/non-insulated terminals, 22–10 AWG | Secure gas-tight connections for spade/ring lugs |
| Non-contact voltage tester (e.g., Fluke 1AC II) | 50–1000V AC, audible/visual confirmation | Verify de-energized circuits before physical contact |
For assembly, stock UL-rated terminal blocks (e.g., Phoenix Contact UK 5-HESI) and heat-shrink tubing (polyolefin, 3:1 ratio) in 1.5mm and 2.5mm diameters. Use goose-neck work lamps with 6500K LED bulbs–flickering incandescent lights disrupt depth perception during fine soldering. A magnifying visor (5x magnification) helps inspect solder joints for cold cracks; pair it with ESD-safe tweezers to handle micro-components.
Before final validation, employ a loop impedance tester (e.g., Megger MFT1730) to measure earth fault loop paths. Record values in a logbook with timestamp, ambient temperature, and humidity–deviations >±5% from expected resistance may indicate corroded ground rods or aluminium conductor oxidation. For load testing, a adjustable power supply (0–30V DC, 3A minimum) lets you simulate operational currents without risking panel overload. Include a thermal imaging camera (e.g., Seek Thermal CompactPRO) to detect hotspots in connections under load.
Label every conductor with heat-shrink wire markers (compliant with ANSI/TIA-606-C). Use a label printer with resin-based tape for outdoor durability–laminate handwritten labels if necessary. Store spare fuses (e.g., Bussmann ABC series, matching circuit breaker ratings) and arc-fault circuit interrupters (AFCIs) in a moisture-proof case. For field adjustments, carry a compact tool roll with 4mm hex keys, Torx drivers (T10–T25), and a foldable reamer for deburring rigid conduit.
