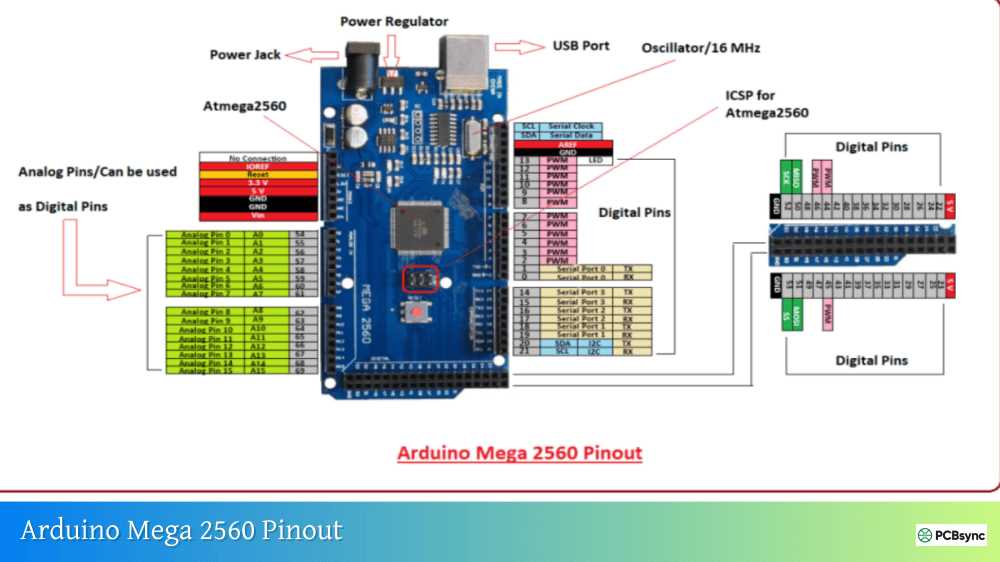

Select an ESP8266 module for wireless connectivity–ESP-01 or ESP-12E integrates seamlessly with ATmega-based boards. Connect the ESP’s TX/RX pins to the microcontroller’s hardware UART (pins 14/15) for reliable serial communication. Use level shifting (3.3V to 5V) if necessary to prevent signal degradation.
Power the wireless module from a dedicated 3.3V regulator–AMS1117 or equivalent–due to its higher current demands (up to 300mA). Avoid relying on the on-board regulator to prevent brownouts. Add decoupling capacitors (10µF/0.1µF) near the module’s power pins to filter noise.
Include pull-up resistors (10kΩ) on the ESP’s reset and GPIO0 lines if using deep sleep modes. Flash mode requires GPIO0 grounded during boot–implement a push-button or transistor switching circuit for manual intervention.
Route the ATmega’s SPI bus (pins 50-53) to the ESP for firmware updates or extended peripheral access. Use a 1kΩ series resistor on each line to isolate potential conflicts. Assign a dedicated interrupt pin (e.g., pin 2) for event-driven Wi-Fi callbacks to optimize performance.
Add a status LED on the ESP’s GPIO2 to confirm operational states (blinking=operational, solid=error). For long-range stability, position the Wi-Fi antenna away from high-current traces and ground plane cuts beneath it. Test signal strength with AT commands (`AT+CWLAP`) before final assembly.
Secure the wireless module’s IPEX connector firmly–vibration or loose connections degrade connectivity. Use a 3D-printed bracket if mounting externally. Validate all solder joints with a multimeter for continuity, especially on power pins prone to cold joints.
Program the microcontroller first, then upload ESP firmware via UART pass-through. Use PlatformIO or Arduino IDE with proper board configurations (`Generic ESP8266 Module` for ESP-01, `NodeMCU 1.0` for ESP-12E). Disable ATmega’s auto-reset (`DTR capacitor removal`) to avoid unintended reboots during flashing.

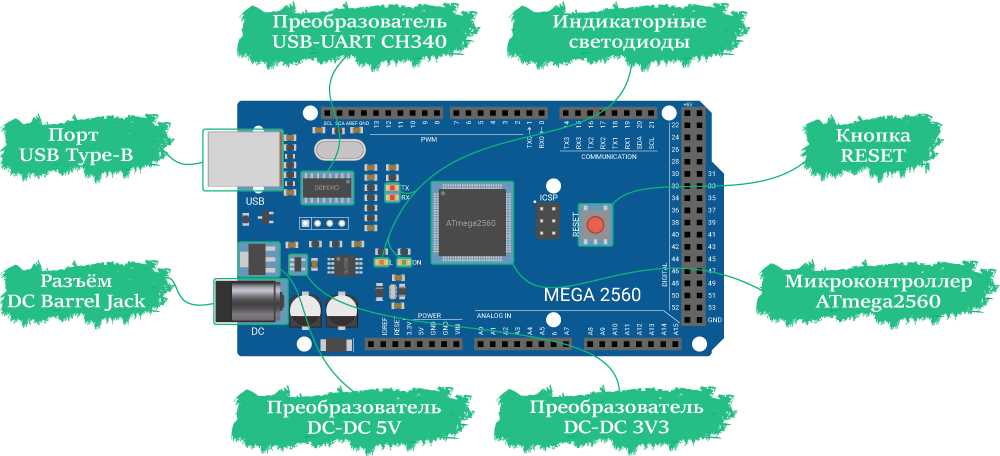

Building a Connected Arduino-Compatible Board: Key Circuit Insights
Begin by selecting an ESP8266 module (ESP-01 or ESP-12E) for wireless connectivity–its UART interface simplifies integration. Place a 10kΩ pull-up resistor on the ESP8266’s EN pin to ensure stable booting; disregard this step risks erratic behavior during voltage fluctuations. Route the ATmega2560’s UART pins (TX0/RX0) directly to the ESP8266’s TX/RX, but insert a logic-level shifter (e.g., TXB0104) if the ESP operates at 3.3V and the microcontroller at 5V–skipping this may damage the wireless module.
Power distribution demands attention: the ESP8266 requires a dedicated 3.3V regulator (AMS1117-3.3) with a minimum 500mA capacity. Avoid powering it from the ATmega’s on-board regulator–shared power rails cause voltage drops under Wi-Fi transmission loads, leading to resets. Capacitors matter: add 10µF tantalum and 0.1µF ceramic capacitors near both the ATmega and ESP8266 power pins to filter noise; omitting them invites unstable wireless connections.
Signal integrity hinges on proper grounding. Use a star topology to connect all ground points to a single reference node near the power input. Separate analog and digital grounds where possible, especially if the board includes sensors–mixing them corrupts ADC readings. For GPIO expansion, retain the ATmega’s default SPI/I2C pins but avoid PA0-PA7 for critical signals; their proximity to the reset circuit makes them prone to interference.
Critical Connections and Pitfalls
Assign the ESP8266’s CH_PD pin to 3.3V via a 10kΩ resistor–floating this pin places the module in indeterminate states. Connect GPIO0 to a pushbutton for firmware flashing; failing to pull it high during normal operation bricks the ESP until manually reset. For automatic reset control, wire the ESP’s RST pin to an ATmega GPIO–this enables software reboots without physical interaction, critical for OTA updates.
Antennas need space: position the ESP8266’s PCB trace antenna at least 2cm from metal components or conductive traces to avoid signal attenuation. If using an external antenna, route the ESP’s RF switch pin (GPIO15 on ESP-12E) through a 0Ω resistor to select the correct output–misconfiguration here mutes wireless transmissions entirely. Test antenna performance with `AT+CWJAP` commands before finalizing the PCB layout; post-assembly tweaks are costly.
Debugging interfaces save hours: expose the ATmega’s UART1 (TX1/RX1) and the ESP8266’s serial pins to unpopulated headers. Use these for logging firmware interactions or monitoring Wi-Fi traffic–blind troubleshooting wastes prototyping iterations. For direct USB connectivity, retain the ATmega’s native USB interface (D+/D-) but add a 500mA PTC fuse on the VUSB line; cheap USB hubs often lack overcurrent protection.
Firmware and Validation
Program the ATmega and ESP8266 separately using SPI flash headers. Overlay the default Arduino bootloader with Optiboot for faster uploads, but preserve fuse bits (e.g., BODLEVEL at 2.7V) to prevent corruption during brownouts. For the ESP, compile firmware with conservative stack sizes–Wi-Fi libraries consume 40KB+ RAM, and oversights trigger watchdog resets. Validate power-on sequences: the ATmega should boot within 500ms of the ESP initializing to prevent UART desync.
Final checks: measure current draw in idle (≤80mA) and Wi-Fi transmit modes (≤300mA). Exceeding these thresholds indicates inefficient power regulation or oscillating circuits. Probe noise margins on the UART lines with an oscilloscope–voltage levels below 2.5Vpp at 115200 baud signal inadequate pull-ups or excessive trace capacitance. Once validated, encapsulate sensitive traces in a ground pour to reduce EMI, but avoid covering the ESP’s antenna area–this degrades signal strength by 3dB or more.
Choosing Optimal Wireless Adapters for ATmega-Based Boards
The ESP-01 remains the most straightforward option for embedding wireless functionality in ATmega controllers. Its 8-pin design eliminates external components beyond a level shifter, while firmware updates via AT commands support MQTT and TCP protocols. Power requirements stay under 80mA during transmission, critical for battery-powered setups. Remember to flash the module with updated firmware (version 1.7.0 or later) to avoid sluggish responses typical in earlier releases.
For projects demanding native TCP/IP handling without intermediate firmware layers, consider the W5500 Ethernet shield with ESP-01 gateway configuration. This pairing leverages the board’s SRAM for packet buffering while offloading Wi-Fi handling to the ESP-01. Key specifications include:
- 8 independent sockets for concurrent connections
- 3.3V/5V-compatible logic levels
- 2KB transmit/receive buffers per socket
- Hardware TCP/IP stack reducing CPU overhead by 60%
Physical connections require only 6 pins: MOSI, MISO, SCK, SS, INT, and RST.
Advanced Modules with Embedded Security
The ESP32-C3-MINI-1 introduces hardware-accelerated cryptography into wireless integrations. Its RISC-V architecture includes a dedicated security core supporting RSA, AES-256-XTS, and SHA acceleration. Development headers break out the following useful interfaces:
- USB-OTG (native programming/debugging)
- SPI bus (40MHz max)
- I²C (100/400kHz)
- 2× UART (flow control capable)
- 12-bit ADC (6 channels)
Power sequencing requires strict adherence to datasheet timing (EN pin ≈200ms delay) to prevent brownout conditions.
Industrial applications benefit from the RAK4270’s LoRaWAN compatibility alongside Wi-Fi provisioning capabilities. Its STM32WL sub-GHz radio handles LoRa modulation while an integrated ESP32-C3 manages Wi-Fi/Bluetooth LE. Certification includes:
- FCC Part 15.247 (North America)
- ETSI EN 300 220 (Europe)
- TELEC (Japan)
Development requires soldering the module’s 1.27mm pitch castellated headers – use flux and a fine-tip iron for reliable joints.
Low-latency applications should evaluate the Seeed Studio Wio-E5. Its integrated STM32WLE5JC combines a 48MHz Cortex-M4 core with a Semtech SX126x LoRa transceiver, while supporting Wi-Fi provisioning via BLE. Certification covers:
- IEC 62368-1 for mains-powered devices
- EN 301 489-1 for electromagnetic compatibility
- AS/NZS 4268 for Australia
Note the module’s current consumption peaks at 140mA during Tx (14dBm), necessitating either a buck converter (LT8618 recommended) or direct LiPo connection with proper cell balancing.
Cost-Effective Yet Reliable Alternatives
The CC3000 module from Texas Instruments offers 802.11b/g with on-board TCP/IP stack, though availability remains limited to older stock. Key advantages include:
- Single 3.3V supply operation
- UART interface requiring only 4 pins (TX, RX, VCC, GND)
- Internal antenna or U.FL connector option
Firmware version 1.34 or higher resolves the “0x1000” connection dropout issue prevalent in earlier revisions. For users constrained to 2.4GHz-only environments, this implements collision avoidance better than competitors through proprietary ClearChannel Assessment algorithms.
Connecting ESP8266 or ESP32 to an ATmega-Based Board for Wireless Integration
Use hardware serial for reliable communication between the ESP module and the ATmega microcontroller. Connect the ESP’s TX pin to RX1 (pin 19) and RX to TX1 (pin 18) on the Arduino-compatible board, ensuring a common ground. Avoid SoftwareSerial for high-speed data transfer, as baud rate mismatches cause instability. For ESP8266, 115200 baud works, while ESP32 tolerates 230400. Add a 1KΩ resistor between the ESP’s TX and the microcontroller’s RX to prevent voltage spikes.
Power Supply and Signal Integrity
Power the ESP separately with a 3.3V regulator–shared power rails risk brownouts during Wi-Fi operations. The AMS1117 regulator suffices for ESP8266; ESP32 requires an AP2112 or similar. Decouple the power rail near the ESP module with a 10µF ceramic capacitor and a 0.1µF capacitor per pin to filter noise. Level shifting isn’t mandatory for 3.3V to 5V logic but prevents long-term degradation. Use a bidirectional logic level converter (e.g., TXB0104) for fast UART streams.
| Pin (ESP8266/ESP32) | Microcontroller Pin | Note |
|---|---|---|
| TX | RX1 (19) | 1KΩ series resistor |
| RX | TX1 (18) | Direct connection |
| EN/CH_PD | 3.3V | Pull-up required |
| GPIO0 | GND (for flashing) | Floating during operation |
Assign the ESP as a transparent bridge using AT commands or custom firmware like ESP-Link. For Wi-Fi client mode, initialize with AT+CWMODE=1 and connect to an access point with AT+CWJAP. Server mode requires AT+CIPMUX=1 followed by AT+CIPSERVER=1,80. Debug with serial passthrough: bridge the ESP’s UART to the microcontroller’s debug serial (pin 0/1) temporarily.
Optimize payloads to avoid buffer overflows. ESP8266’s UART buffer holds 256 bytes; fragment larger packets. For ESP32, use its dual-core advantage: dedicate Core 0 to Wi-Fi tasks and Core 1 for microcontroller interfacing via a queue. Disable deep sleep unless battery-powered. Flash memory partitioning affects OTA updates–reserve at least 1MB for firmware. Test stability with ping latency tests; response times above 200ms indicate congestion.
