Begin repairs or modifications by isolating the front strut assembly–commonly misdiagnosed when noise or uneven ride height persists. Ford’s twin-tube design (found in 2005-2015 F-150 models) uses a gas-charged monotube, distinct from earlier coil-over setups. Check the upper mount bearing for corrosion or binding; failure here mimics bad shocks. Always replace bushings in pairs–even if only one side shows wear–to maintain alignment.
For rear multi-link setups (e.g., Expedition, 2011+), focus on the trailing arm bushings. These degrade silently until handling feels “loose.” Use a torque wrench for reinstallation: tighten bushings to 80-90 lb-ft while the suspension is at curb height. Avoid overtightening–it accelerates bushing failure. On air-adaptive systems, verify the compressor’s pressure switch operates within 180-200 psi; exceeding this range damages seals.
Track bar adjustment on solid-axle variants (Super Duty) requires precise centering. Aftermarket alignment kits often omit this step, causing wandering at highway speeds. Secure the bar with grade-8 bolts–hardware store substitutes shear under load. For coil-spring suspensions, measure spring rate pre-load: FR3Z-5310-A springs (2017-2020 Mustang) should compress 1.5-1.75 inches under 1,000 lb load. Deviations indicate fatigue or incorrect installation.
Cold-weather climates demand attention to sway bar end links. Factory poly bushings seize after 40,000 miles in freezing conditions; aftermarket urethane lasts longer but requires annual lubrication. On 4×4 models, inspect the track bar bracket for cracks–stress fractures propagate near the welds. Weld repairs fail quickly; replace the bracket if damage exceeds 10% of the mounting surface.
Understanding Key Components in Automotive Chassis Blueprints
Begin by isolating the control arm assembly in the technical drawing–locate the bushings at both pivot points and verify torque specifications: 120 Nm for the frame-side mount and 90 Nm for the wheel hub attachment. Failure to adhere to these values risks premature wear on the rear trailing arm or uneven tire contact, particularly in models with adaptive damping systems. Cross-reference with the vehicle’s service manual to confirm bushing material (polyurethane vs. rubber), as replacement intervals differ–80,000 km for rubber, 130,000 km for polyurethane.
Study the shock absorber layout: twin-tube designs in most mid-range variants require a vertical mount angle within 2° of perpendicular to avoid cavitation under load. For air-sprung variants, trace the compressed-air lines from the compressor to the struts, ensuring no kinks or sharp bends–restricted airflow triggers dashboard error codes E2518 or E2520. Use a digital inclinometer when installing replacement units; even a 1° deviation alters ride height calibration by ±3.5 mm, impacting adaptive cruise control sensors.
Inspect the sway bar linkage at the rear axle–ball joints must articulate freely under 15 kg of force; stiffness indicates corrosion or seized internals. Replace links in pairs if lateral force deflection exceeds 2.5 mm at 1,000 Nm. Document preload settings for coil springs if swapping to aftermarket units; incorrect free length (target: 230 mm ±2 mm) voids electronic stability control tuning.
Pinpointing Critical Elements in Automaker Chassis Blueprints

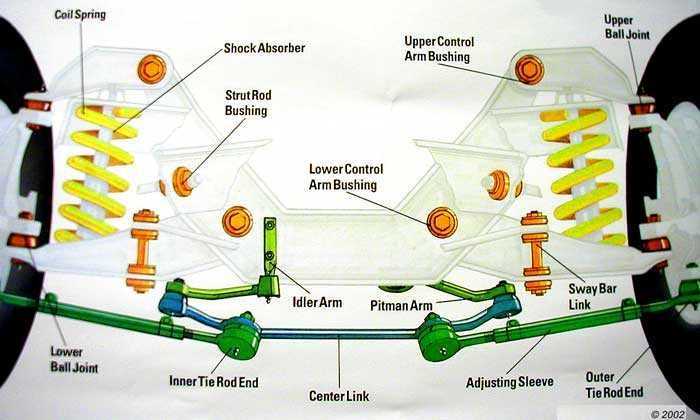

Begin by locating the coil spring assembly, typically depicted as helical lines adjacent to the wheel hub in technical illustrations. These components are often paired with shock absorbers–represented as elongated cylindrical shapes–forming the core load-bearing structure. Verify their connection points to the lower control arm (LCA), shown as a triangular or wishbone-shaped element, and the steering knuckle, a more complex node where multiple parts converge.
Trace the anti-roll bar (sway bar) in the vehicle’s undercarriage layout–illustrated as a transversely mounted rod with bent ends linking to suspension towers via bushings. Its purpose is stabilizing body roll during cornering, so ensure its ends correctly attach to either the LCA or strut mounts, depending on the model variant. On strut-based designs, note the MacPherson strut’s distinctive tower reinforcement plate and bearing assembly, often marked near the wheel well’s upper region.
Check the differential housing if working with rear-wheel or all-wheel-drive layouts–it appears as a bulged casing near the axle shafts, distributing torque between wheels. For electronic damping systems, identify wiring harnesses leading to solenoids integrated into the struts or shock bodies, signaled by dotted lines or connector symbols.
How to Decode Vehicle Chassis Electrical and Fluid Flow Charts: A Practical Guide
Locate the legend or key in the upper left corner of the technical blueprint. This section explains symbol meanings, color codes, and line types–critical for differentiating between power circuits, ground paths, sensor wires, and pressurized hoses. Label each symbol in your notes before tracing any pathways.
Identify the battery or power source first. Follow thick red lines–these represent continuous voltage supply under ignition-on conditions. Cross-reference wire gauge with manufacturer specs to confirm current capacity matches expected load. If lines split, note junction points and connector IDs.
Trace ground paths next. These are typically black or brown lines terminating at chassis bolts, engine blocks, or dedicated grounding straps. Verify continuity with a multimeter; corroded or loose grounds cause intermittent failures that mimic sensor or valve malfunctions.
- Use a highlighter to mark each circuit segment on a printed copy.
- Check fuse ratings against highlighted circuits–blown fuses often indicate shorted solenoids or damaged wiring.
- Document connector pinouts; mismatched terminals during reassembly lead to non-functional damping adjustments.
Follow hydraulic flow paths. Solid arrows indicate pressurized fluid direction; dashed arrows show return lines. Trace from the pump output through control valves to actuators. Measure port sizes against specifications–undersized ports restrict flow, causing slow response times.
Cross-reference fluid symbols with component labels. Circles usually denote valves; rectangles represent accumulators or reservoirs. Note operating pressures–most systems require 1,500–3,000 psi for proper damping. Low pressure triggers fault codes even if mechanical components function correctly.
- Disconnect battery before probing wiring.
- Inspect hoses for abrasions–replace any with visible cracks.
- Flush hydraulic circuits with manufacturer-approved fluid–contaminants damage spool valves.
Compare real-world connections with chart annotations. Pinch points, T-junctions, and inline filters often have specific torque or sealing requirements. Use dielectric grease on electrical connectors and O-ring lubricant on hydraulic fittings during reassembly to prevent leaks or corrosion.
Key Differences in Blueprints of Automotive Chassis Setups by Vehicle Line and Production Cycle
Review control arm configurations in the 2015–2020 F-150 versus the 2021–2023 lineup. Earlier models use stamped steel lower arms with a single pivot bushing; newer designs replace this with forged aluminum arms paired with dual bushings for improved camber adjustability. If servicing the front end, replace both bushings simultaneously to prevent premature wear–mixing old and new creates uneven load distribution.
Spring Rate and Shock Valving Shifts
Mustang GTs from 2011–2014 utilised linear-rate coil springs (350 lb/in) and monotube shocks; 2015 onward switched to progressive-rate springs (275–450 lb/in) and twin-tube dampers. Before replacing springs on post-2015 models, verify the installed rate decal on the spring perch–aftermarket options often replicate linear rates, causing harsh ride characteristics unless matched to original progressive specifications. Always torque the lower shock mount to 65 lb-ft in a cross-pattern sequence.
Explorers built between 2011–2019 feature a transverse leaf spring setup on the rear axle, whereas 2020+ models adopt independent multilink geometry. The leaf spring housing integrates a rubber isolator bonded to the axle tube; if the isolator tears, replace the entire assembly–repairs using generic mounts invariably fail within 12,000 miles. Multilink variants use forged steel knuckles with integrated brake shields; never reuse crushed washers on the hanger bolts–valtite washers (PN XL5Z-5K458-A) are mandatory to maintain torque stability.
Focus RS (2016–2018) employs MacPherson strut towers with solid steel mounts; later models introduced aluminum towers reducing unsprung mass by 2.3 kg per corner. When replacing strut mounts on an RS, install the correct rebound stop (PN FR3Z-18A312-A) to prevent strut tower strike–aftermarket alternatives omit the internal rebound bumper, causing catastrophic failure under track conditions.
Essential Instruments and Applications for Decoding Vehicle Chassis Blueprints
Begin with a high-resolution vector-based viewer like AutoCAD Electrical or SolidWorks Electrical to handle OEM technical drawings. These platforms preserve layer fidelity, allowing selective toggling of hydraulic lines, sensor placements, and structural reinforcements without distortion. For legacy systems, Adobe Illustrator with custom plugins can parse embedded metadata in older PDF-based schematics, though it lacks native mechanical annotation tools.
| Tool | Primary Use | Critical Limitation |
|---|---|---|
| ETAS INCA | Live ECU parameter mapping | Requires proprietary Ford DTC database |
| Vector CANoe | CAN bus signal validation | Steep learning curve for LIN clusters |
| Mitchell1 ProDemand | OEM-specific repair manuals | Subscription-based; offline mode limited |
Use Vector’s CANdb++ to cross-reference electrical layouts with bus communication matrices. This identifies cascading failures where a single pin fault in a height sensor correlates with multiple error codes across nodes. For mechanical assemblies, Siemens NX provides finite element analysis overlays, simulating load distribution on wishbone mounts when modifying aftermarket components.
