Locating precise technical layouts for Visio television models requires accessing manufacturer-provided service manuals or authorized repair documentation. These blueprints include power distribution networks, signal paths, and component interconnections critical for diagnosing faults. Without official schematics, rely on board-level traces and testing individual modules with a multimeter. Common failure points–backlight drivers, T-CON boards, and voltage regulators–can often be identified through visual inspection and continuity checks.

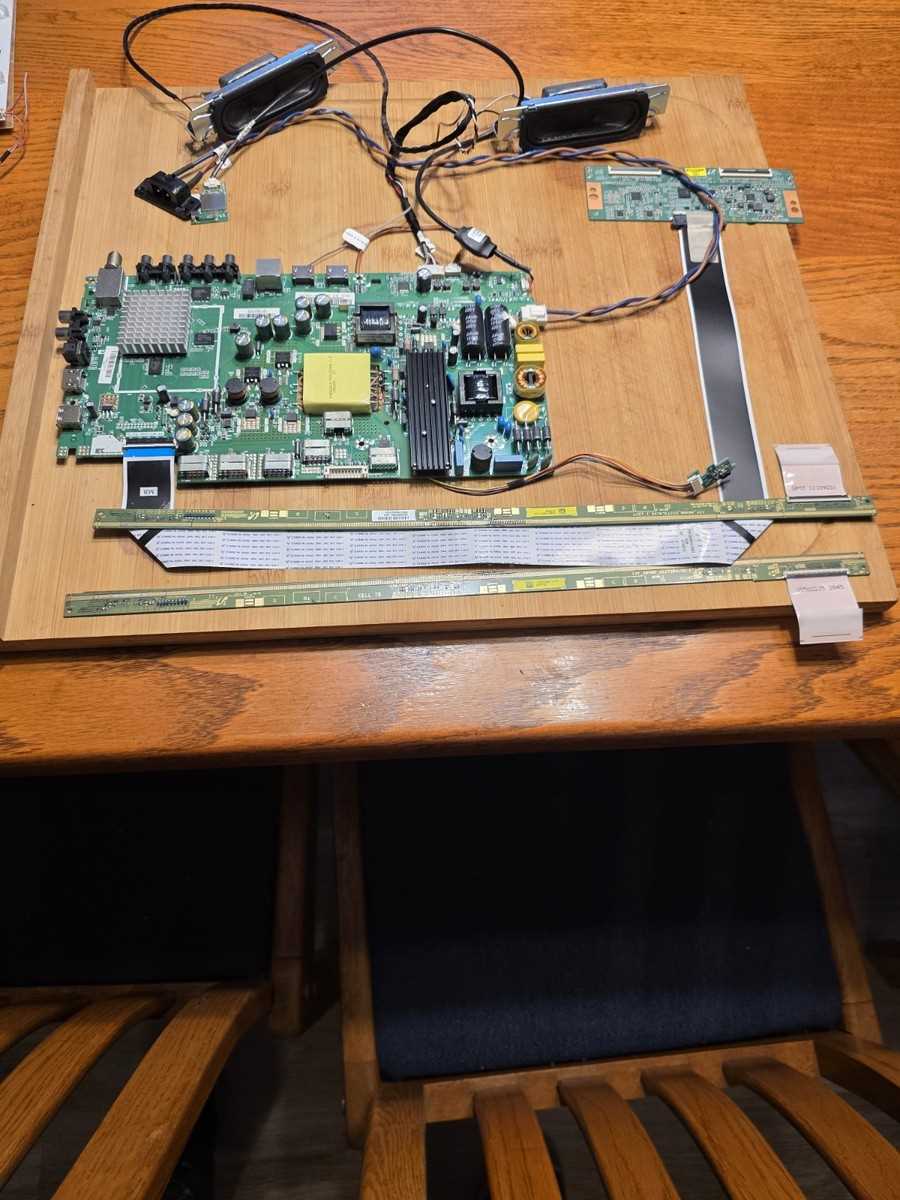

Start by disassembling the rear panel carefully, noting screw placements and ribbon cable connections. The mainboard, typically positioned near the center, contains the processor, flash memory, and input/output controllers. Use a magnifying tool to follow etched pathways from the power supply to each subsystem. Mark high-voltage areas with caution tape to avoid accidental shorts. For Visio’s 2022-2023 models, HDMI and USB ports frequently suffer from cold solder joints; reheating suspect connections with a precision soldering iron may restore functionality.
For older Visio units (pre-2020), power supply failures often stem from swollen capacitors. Measure each capacitor’s voltage output against the labeled rating–anything below 80% indicates degradation. Replace failed components with exact matches, ensuring polarity alignment. If the display remains dark, check the LVDS cables connecting the mainboard to the panel; reseating them can resolve intermittent signal issues. For advanced troubleshooting, reference online repair communities where technicians share annotated photos of verified Visio layouts.
When repairing Visio’s smart TV variants, focus on the Wi-Fi/Bluetooth module and eMMC storage. Corrupted firmware frequently causes boot loops–accessing the service menu (usually via remote key combinations) allows reflashing the software. Use a USB drive formatted to FAT32 with the correct update file downloaded from Visio’s support portal. Avoid third-party firmware to prevent bricking the device. For hardware acceleration failures, trace the GPU’s power rails and memory chips for overheating or physical damage.
Technical Blueprint for Vizio Television Repair
Locate the power supply reference design on the main board by identifying the PWM controller IC–typically an OB2269 or similar. Trace its output pins (VOUT) to the MOSFET switch and verify continuity to the primary transformer windings. If voltages drop below 12V at the standby 5V rail, replace the 47µF/25V bulk capacitor adjacent to the bridge rectifier; failure here causes intermittent shutdowns.
For backlight issues, examine the LED driver circuit marked “DS9388” or “MP3397”. Test each string individually with a 24V DC source–if one fails, desolder the faulty array and measure forward voltage across each diode. Replace strings showing >3.6V drop at 20mA. Avoid universal strips; use exact replacements from Vizio’s EEPROM-stored calibration values (accessible via I²C bus at addresses 0x38–0x3E).
Signal path troubleshooting starts at the T-con board. Probe the LVDS inputs (J1–J4) for 1.2V differential pairs–missing pulses indicate corrupted EDID data. Reflash the SPI flash (Winbond 25Q32) using Vizio’s firmware tool (vzupdate.exe) with a CH341A programmer. Disable HDCP via service menu (hold MENU + VOL- at power-on) to isolate encryption faults. For HDMI handshake errors, replace the HDMI retimer IC (PS8640) and ensure trace impedance matches 50Ω±10%.
Pinpointing Critical Parts in Vizio TV Circuit Layouts
Locate the power supply board first–typically marked with identifiers like PSU, SMPS, or PWB-MAIN. Check for electrolytic capacitors (e.g., 470μF/25V) near the AC input, as these fail most often in backlight flickering or no-power scenarios. Trace the standby 5V and main 12V/24V rails using a multimeter; deviations above ±5% indicate regulator IC issues (commonly NCP1271 or OB2268).
Examine the T-Con panel–labeled LVDS or eDP–for corrosion on fine-pitch connectors. Use a magnifier to spot cracked solder joints on timing controller chips (MST6M58, RTD2556); reheat suspect pads with a hot-air station set to 300°C. Disconnect the panel flex cables before probing to avoid shorting data lines, which risks permanent damage to the scaler.
Test the main processor (usually Mstar or MediaTek SoCs) by measuring resistance between ground and I/O pins–values below 10Ω suggest internal shorts. Flash memory chips (W25Q128JV) correlate with firmware corruption if the TV boots to a black screen; reprogramming via UART pads bypasses some recovery obstacles.
How to Decode Vizio TV Power Circuit Blueprints
Start by locating the main switch-mode transformer at the center of the board. Identify its primary and secondary windings–primary sides often connect to the AC input and high-voltage capacitors, while secondary outputs feed low-voltage rails to the logic board and backlight drivers. Trace the fuse near the AC inlet; if blown, check for shorts in the bridge rectifier or bulk capacitor.
Examine the PWM controller IC–typically a 16-pin SOIC package–marked with labels like “OB2269” or “LD7535.” Pin 1 usually handles feedback from the secondary side via an optocoupler, while pins 7-8 manage gate signals for the MOSFET. Measure voltage at these pins against the datasheet; deviations above 0.5V suggest faulty sensing resistors or a compromised IC.
Critical Component Checks
- Bridge rectifier: Test each diode with a multimeter in diode mode–forward voltage should read ~0.5V, reverse should show infinite resistance. Replace if readings match or exceed 0.8V.
- Bulk capacitor: Measure ESR with an in-circuit tester. Values above 3Ω indicate degradation; verify ripple voltage (~100mV peak-to-peak) at full load.
- MOSFET: Check drain-source resistance–open or shorted paths confirm failure. Common fault: overheating due to inadequate heatsinking or cracked solder joints.
Follow the standby power path: the auxiliary winding on the transformer typically delivers 5V to the microcontroller. Probes the 3.3V LDO output–absence of voltage suggests a dead standby regulator or shorted zener diode. Look for a small SOT-23 transistor nearby; its base will show ~0.7V if active.
Inspect the PFC circuit if present–usually a boost converter with a coil and diode. The PFC IC (e.g., “NCP1606”) should toggle at ~100kHz. Use an oscilloscope at the feedback pin; a flatline indicates failed input sensing, often caused by an open resistor divider or compromised EMI filter.
- AVL (adaptive voltage linking): Locate the 4-pin header near the logic board connector. Pins 1-2 carry 12V, pins 3-4 return feedback. Probe these lines–PWM pulses should vary smoothly from 0% to 100% duty cycle under changing brightness settings.
- Backlight driver: Identify the dimming IC (e.g., “OZ9986”) with 2x 20-pin connectors. Check enable pin (usually ~3V) and fault pin–voltage below 1V signals overvoltage or open load conditions.
Solder joints under power transistors and transformers often crack due to thermal cycling. Reflow these connections with a hot air station at 350°C, holding for 10 seconds. Apply fresh flux to prevent bridging. Verify repair by monitoring ripple on the 24V rail–excessive noise indicates poor grounding or a failed filter capacitor.
Troubleshooting Flow
Isolate faults systematically:
- No power: Test AC inlet → fuse → bridge rectifier → bulk capacitor → MOSFET gate pulse.
- Intermittent power: Probe standby circuit → 5V rail → main PWM enable pin.
- Backlight failure: Check AVL header → dimming IC → LED strings → transformer secondary windings.
Replace components only after validating surrounding circuitry–upstream failures can cascade, e.g., a shorted MOSFET may destroy the gate driver IC.
Signal Path Analysis in Vizio Motherboard Circuit Configurations
Start by identifying the power delivery nodes on the mainboard, marked by large electrolytic capacitors and inductor coils near the DC input jack. Use a multimeter in continuity mode to trace primary rails–typically labeled as 12V, 5V, and 3.3V–from the power supply connector to their first regulation stages. Look for dual-layer vias near these components, indicating high-current paths that feed critical subsystems.
Locate the main processing cluster, often centered around a quad-flat or ball-grid array chip. The signal flow splits here into three key branches: memory interface (DDR lanes), video decoders (HDMI/DP inputs), and peripheral controllers (USB/Wi-Fi). Pinpoint the crystal oscillator adjacent to the processor; its output divides into clock distribution networks, visible as serpentine traces fanning out to memory chips and HDMI receivers.
Key Test Points for Signal Verification
- Power rails: Measure ripple at output capacitors (expect <50mVpp for stable operation).
- Clock signals: Probe the crystal output with an oscilloscope; confirm 24MHz or 27MHz sine waves with <10% distortion.
- Memory lanes: Check for 1.2V/1.8V swings on DDR traces using a high-impedance probe.
- HDMI inputs: Validate 3.3V I2C lines (SCL/SDA) at the connector; look for pulsed activity during handshake.
Follow the LVDS traces from the graphics processor to the panel connector–these appear as tightly coupled differential pairs, often shielded by ground pours. Between the processor and LVDS transmitter (commonly a Realtek or Parade chip), verify impedance-controlled routing: trace spacing should equal the dielectric thickness (typically 0.1mm) to maintain 100Ω differential impedance. Use a network analyzer to confirm no reflections above -20dB at 500MHz.
Examine the eDP (Embedded DisplayPort) section if present–these lanes run at 2.7Gbps and terminate at capacitors near the panel connector. Missing termination resistors (49.9Ω) cause intermittent display issues; replace any marked “NR” (No Resistor) with precision SMD parts. For older models using TTL panels, look for 3.3V parallel RGB traces grouped in triplets; phase shifts here create color bleeding, detectable via a 4-channel scope.
Trace the standby power circuit separately from the main rails–usually managed by a low-power supervisor IC (e.g., Weltrend WT6xxx). This chip controls soft power-on sequences via a transistor array (DTC114), triggering the main PWM controller (e.g., ON Semiconductor NCP1587). Failure here leaves the TV unresponsive; check for 3.3V at the supervisor’s output pin before proceeding to primary power diagnostics.
Critical Failure Signatures
- No power: Test the supervisor IC’s reset pin for active-low pulses; shorted caps near the AC input often leak into standby rails.
- Backlight only: Verify LVDS clock signals reach the panel; corrupted timing from the GPU causes this symptom.
- Audio dropout: Probe the I2S lines (SD/WS/SCLK) between audio codec and amplifier; expect 2Vpp digital waveforms.
- No video input: Check HDMI port detect pins (pin 19) for 3.3V pull-ups; cold solder joints here mimic EDID failures.
Isolate ground loops by measuring voltage differentials between chassis ground and signal grounds–values above 30mV indicate corroded shields or defective EMI filters (common in coastal areas). For intermittent issues, use freeze spray to target suspect components: rapid cooling often reveals marginal joints or overheated regulators (e.g., AMS1117 variants) that fail under thermal stress.
