Start by identifying the power switch bypass wires on your vintage brewer’s control board. These models–typically pre-2015–use a momentary relay circuit to trigger brewing cycles for sequential servings. Locate the yellow and black wires connected to the micro-switch near the water tank. Short these contacts with a 10A rated jumper to enable uninterrupted flow during back-to-back brews. Avoid exceeding 12V DC when testing, or risk damaging the thermal fuse.
For machines with a single-pod system but dual-reservoir capability, reconfigure the water inlet solenoid. Trace the blue wire from the pump to the solenoid valve–this controls water release. Splice in a dual-throw switch to toggle between the default 8-ounce setting and a 12-ounce override. Calibrate the pump pressure to 15-17 PSI to prevent leaks when scaling up volume. Overpressure causes the needle valve to misfire, leading to incomplete extraction.
If the brewer pauses between servings, replace the capacitor on the logic board. Older units use a 470µF 25V electrolytic, prone to voltage drops during repeated cycles. Upgrade to a 680µF 35V capacitor with a low ESR rating for stable performance. Check the solder joints on the PCB–corrosion here disrupts signal continuity to the heating element, causing erratic operation.
To handle larger batches, modify the thermal cutoff. The stock bimetallic strip trips at 195°F, limiting throughput. Install a resettable thermal fuse rated for 210°F instead. Use silver solder to secure the connection, ensuring heat dissipation doesn’t trigger false resets. Test brew times: aim for 30-35 seconds per 6 ounces to prevent overheating.
Understanding the Internal Layout of Classic Single-Serve Brewers
Begin by locating the water reservoir’s intake valve–typically a small, ridged connector near the back of the unit, often marked with a blue or white cap. This component feeds directly into the heating chamber, where liquid reaches optimal temperature before brewing. Ensure the valve isn’t clogged with mineral deposits; soak it in vinegar for 15 minutes if flow is restricted.

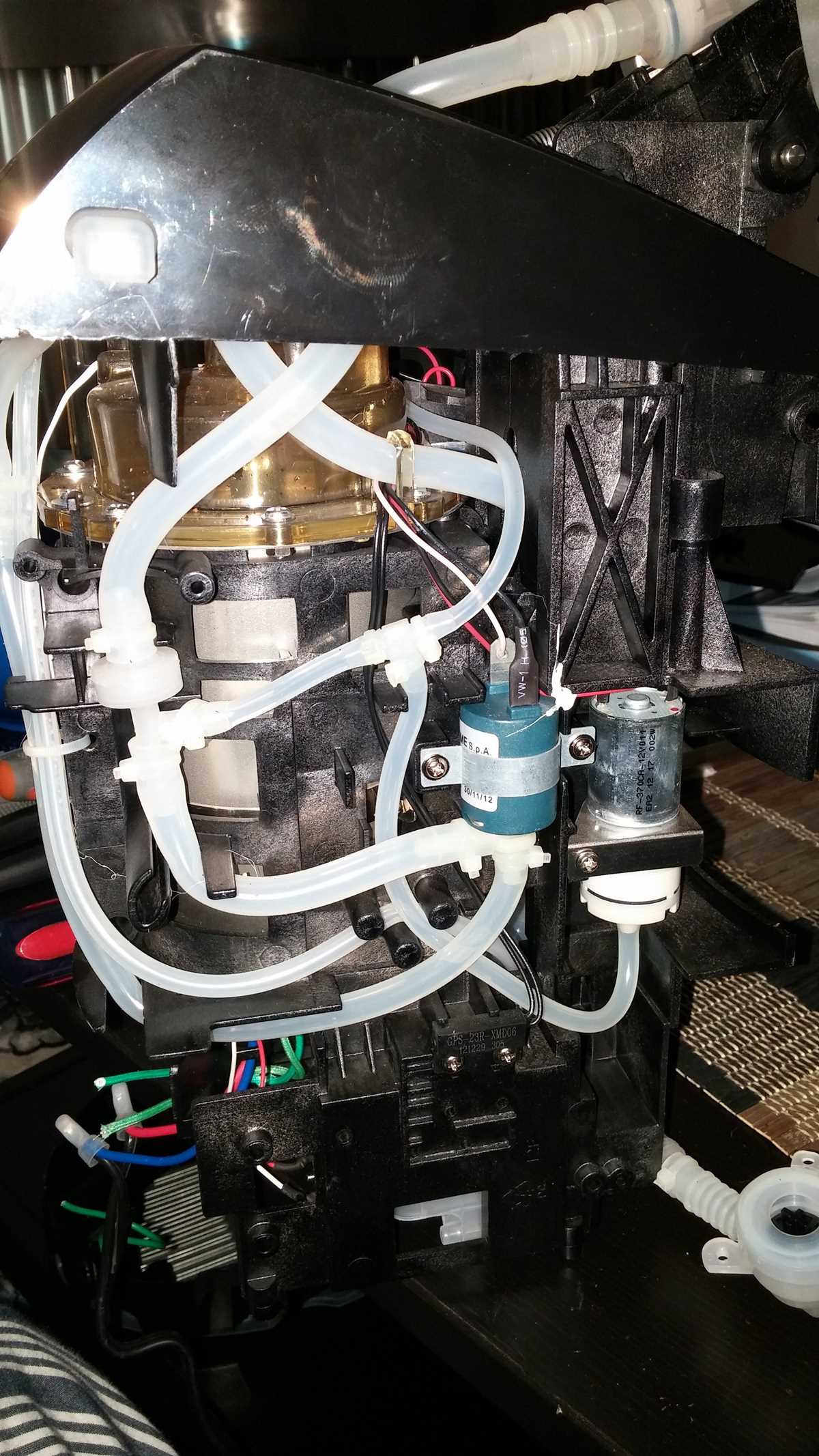

Trace the tubing from the intake to the pump module, identifiable by its compact, cylindrical shape and two electrical leads. Older models use a diaphragm pump, which may require replacement if inconsistent pressure causes weak brewing. Disassemble the pump carefully, noting the orientation of the rubber gasket–incorrect reassembly leads to airlocks. Lubricate the gasket with food-grade silicone grease before reinstalling.
The heating element consists of a coiled metal tube encased in aluminum fins, positioned beneath the water pathways. Check for corrosion at the solder joints where wires attach–loose connections disrupt thermal regulation. Use a multimeter to test continuity; resistance should read between 20-30 ohms. Replace the element if readings deviate significantly.
Above the heating chamber sits the brew head, a plastic or metal assembly that houses the needle and exit port. Remove the external drip tray and slide out the brew head–older variants often accumulate coffee grounds in crevices, leading to leaks. Soak the disassembled unit in hot water mixed with baking soda to dissolve residue, then rinse thoroughly. Reattach only after ensuring the needle moves freely.
Control boards in these devices usually feature a row of tactile switches behind the front panel. If brewing cycles stall or emit error tones, clean the contacts with isopropyl alcohol using a cotton swab. Trace the wiring harness from the board to the pump–frayed wires cause intermittent failures. Solder any exposed sections and secure with heat-shrink tubing to prevent shorts.
Power supply components cluster near the base, including a step-down transformer and capacitor rated for 24V DC. Verify input voltage with a multimeter before testing–surges often damage the capacitor first. Replace the capacitor if bulging or leaking, matching the microfarad rating exactly. Avoid substituting lower-voltage models, as premature failure results.
Drainage pathways require periodic maintenance: the exit tube leading from the brew head to the drip tray often clogs with coffee oils. Disconnect the tube and flush it with boiling water. If blockages persist, use a pipe cleaner coated in dish soap. Ensure the tube slopes downward continuously–any upward bends create pooling, leading to overflow during large-volume brewing.
For continuous operation, swap the standard water filter every 60 brews or when the indicator light changes color. Calcium deposits within the tubing reduce efficiency–run a vinegar cycle monthly, followed by three water-only cycles to eliminate residue. When reassembling, align all gaskets precisely; misaligned seals cause slow leaks that damage internal electronics over time.
Key Elements of a Single-Serve Coffee Maker Brewing Mechanism
Begin troubleshooting or maintenance by locating the water reservoir–the clear tank on the left or rear of classic models (e.g., B40/B60 series). Capacities range from 48 oz (1.4 L) in entry-level units to 80 oz (2.4 L) in premium variants. Verify the float valve moves freely; a stuck valve triggers “Add Water” errors even when full. Use a cotton swab to clean debris from the valve’s guide channel–annual maintenance prevents calcification that reduces flow rate by 30% in untreated systems.
| Component | Location | Failure Symptoms | Diagnostic Check |
|---|---|---|---|
| Heating Element | Base, beneath water inlet | Slow heating, “Prime” loop | Test resistance (22–28Ω for 120V models) |
| Thermal Cutoff Fuse | Adjacent to heating coil | No power, intermittent shutdown | Continuity test (replaced at 240°C threshold) |
| Pump Assembly | Right side, near rear casing | Weak brew, airlock noise | Inspect intake filter (replace every 500 cycles) |
| Exit Needle | Underside of brewer head | Coffee grounds in mug | Examine needle orifice (clean with paperclip) |
Disassemble the brewer head by releasing the side clips–older units use a 5-prong Torx T10 screw while 2012+ models require a T8. The entrance needle (top of the K-cup holder) must align perfectly with the pod’s foil; misalignment causes overflow. Check the silicone gasket for cracks–degraded gaskets reduce pressure build-up by 15–20%, leading to under-extracted brews. Lubricate the gasket annually with food-grade silicone grease to maintain a 1.8–2.2 bar brewing pressure.
Wiring Guide for Two-Beverage Brewer Modification
Locate the primary power input line on the main control board–typically a 120V AC feed marked with a white neutral and black hot wire. Splice a 14-gauge stranded copper wire into this circuit, ensuring the connection is secured with a waterproof butt splice and heat-shrink tubing. Route this extension to a new double-pole, double-throw (DPDT) relay rated for 10A at 250V AC. Mount the relay on the interior chassis using a non-conductive bracket to prevent short circuits.
Identify the heating element’s thermostat leads–usually a pair of thin, braided wires terminating at a bimetallic switch. Tap into these wires with a secondary 22-gauge wire set, connecting them to the relay’s coil terminals. This configuration ensures the relay engages only when the heating cycle activates, preventing simultaneous operation of both brewing units. Verify coil voltage with a multimeter; most models use 12V DC derived from an internal step-down transformer.
- Leverage the existing pump wiring by splitting the signal to a second solenoid valve. Use a Y-connector (male/female quick-disconnect terminals) to branch the pump’s output without altering the original pipe routing. Label each branch with heat-resistant tape to avoid cross-wiring during reassembly.
- Install a momentary push-button switch on the front panel to toggle between beverage chambers. Wire the switch in series with the relay’s coil circuit, using a 10kΩ resistor to debounce the signal and prevent relay chatter.
- Ground all new components to the chassis via a 16-gauge green grounding wire. Scrape paint from the mounting surface to ensure a low-resistance path; use a star washer to pierce oxidation.
Test the modified circuit in stages. First, power the machine without water to confirm the relay clicks during the heating phase. Introduce water to one chamber, observing the pump’s flow rate–it should remain consistent (30-40 mL/sec). Activate the secondary chamber; both pumps should deliver equal pressure, but the flow may split slightly due to viscosity differences in the brewing liquid. Adjust the solenoid valves’ tension screws if imbalance exceeds 10%.
Calibration for Dual-Chamber Precision
Measure the resistance of each heating element with an ohmmeter. A variance exceeding 5Ω indicates uneven power distribution, which risks tripping the thermal fuse. If detected, add a 5W wirewound resistor in series with the higher-resistance element, matching the values within 2Ω. Verify the adjustment by running both chambers simultaneously for 120 seconds; the internal temperature delta should not exceed 2°C.
- Mount a 10-segment LED bar graph on the front panel to display chamber selection. Wire each segment to a 74HC4017 decade counter IC, powered by the 5V rail from the main board’s voltage regulator. Connect the IC’s clock input to the push-button switch via a Schmitt trigger (e.g., 74HC14) to eliminate switch bounce.
- Fuse the relay’s coil circuit with a 250mA fast-blow fuse to protect against overcurrent. Locate the fuse holder adjacent to the relay to minimize voltage drop across connections.
- Apply dielectric grease to all exposed wire connections, especially those near the pump motor, to prevent corrosion from steam exposure.
Final validation requires brewing two identical beverages (e.g., 8 oz black coffee) consecutively. The extraction time for each should differ by no more than 3 seconds. If delays occur, inspect the solenoid valves for debris–flush the lines with a 5% vinegar solution followed by distilled water. Reassemble the housing only after confirming all safety interlocks (lid switch, thermal cutoff) remain functional.
Troubleshooting Wiring Conflicts
If the machine powers off during dual operation, check the thermal fuse’s continuity; a 220°C fuse is standard, but replace it with a 240°C model if tripping persists. Avoid bridging the fuse with copper wire–this bypasses critical overheating protection. Instead, trace the heating element’s return path for loose crimps or oxidized terminals, particularly where the wire exits the brewing chamber.
