Use a 3/8-inch outer diameter (OD) fuel hose rated for ethanol-blended gasoline–SAE J30R9 or USCG Type A1 marine-grade–to link the portable reservoir to the engine’s primer bulb. Position the bulb no more than 12 inches above the tank’s top plane to prevent vapor lock under prolonged idling in 80°F+ ambient conditions.

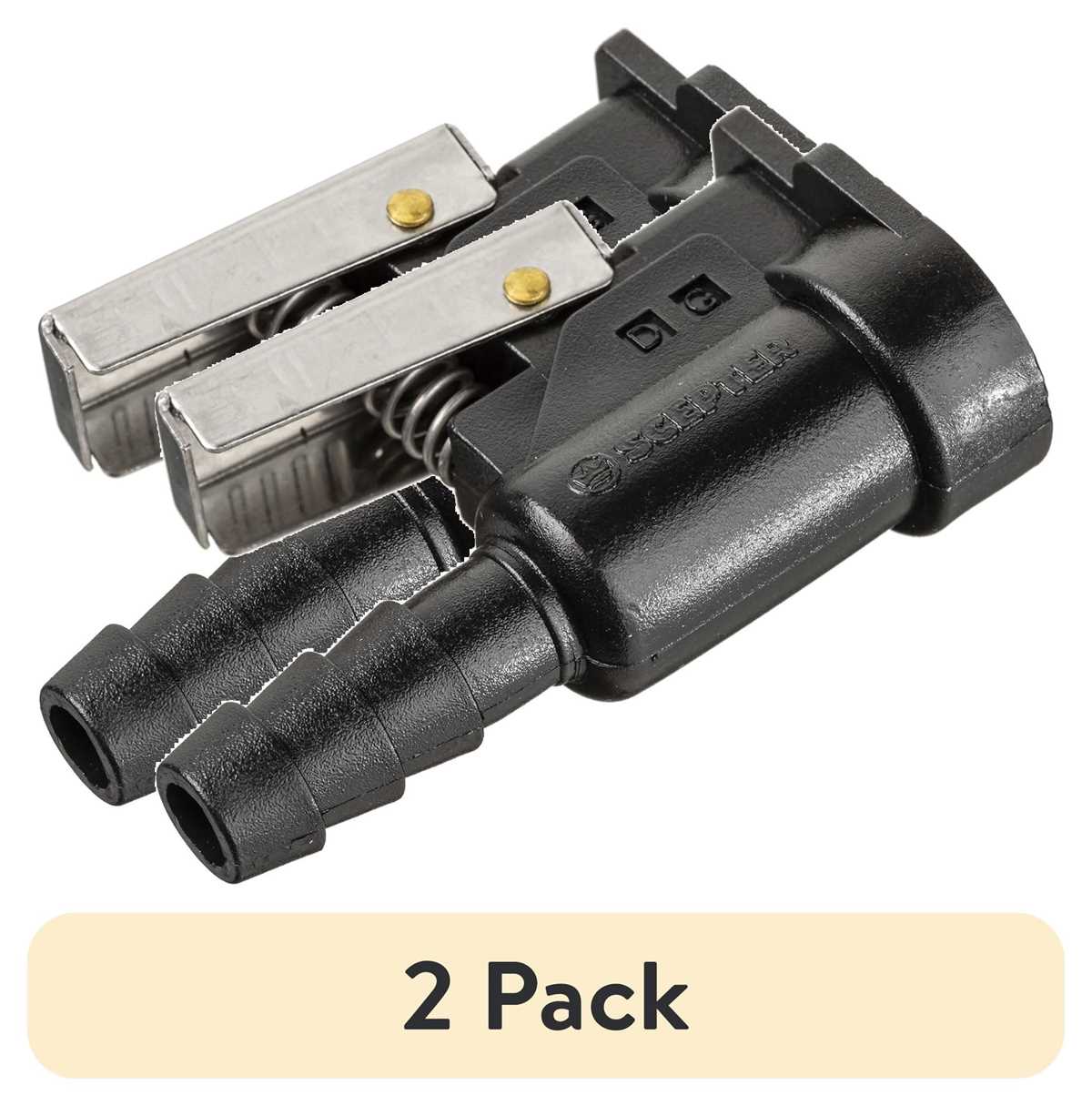

Secure the female quick-disconnect fittings–OEM part #506767 or equivalent–to the male fittings on the engine’s fuel pump inlet with a clockwise twist until an audible click confirms full engagement. Verify the gasket (Viton PN 0335350) sits flush inside each connector; misalignment causes fuel starvation at 4,500 RPM.
Attach a 10-micron water-separating filter (Racor PN 30-0350) between the tank outlet and the primer bulb if operating in brackish water. Bypass filters with mesh finer than 25 microns reduce flow rate below 0.8 GPM, risking lean fuel cutoff at WOT.
Route the hose away from exhaust manifolds and steering cables, maintaining a minimum 6-inch clearance. Use Adel clamps (AN100-4) spaced every 18 inches to prevent chafing; nylon tie-wraps fail within 40 hours under constant vibration at 3,000 RPM.
Fill the reserve canister to 80% capacity to account for thermal expansion–Evinrude’s venting system vents excess vapor at 1.5 psi, but overfilled tanks seep through the vent line at 2.0 psi. Test run for 30 seconds at idle, then ramp to 2,000 RPM for 2 minutes; any fuel spray indicates a faulty O-ring in the disconnect fitting–replace with PN 506768 before subsequent operation.
Connecting Portable Energy Storage to Marine Engines: A Visual Guide

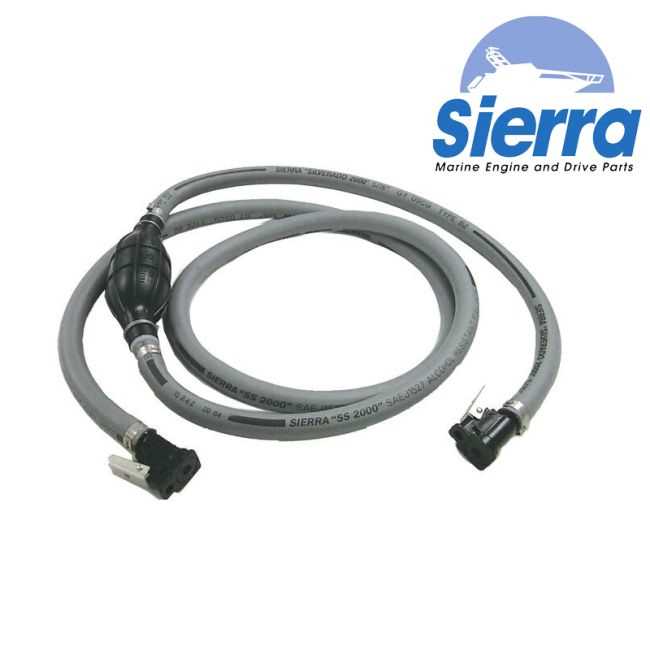

Ensure the primer bulb is fully depressed 3–5 times before ignition to purge air from the hose–failure risks inconsistent flow or stalling. Route the supply line from the portable reservoir to the motor’s intake at a continuous downhill angle, avoiding sharp bends that create vapor locks. Standard ⅜” internal diameter hose handles most mid-range two-stroke models (check manual for exact bore tolerances). Secure connections with marine-grade clamps every 12 inches to prevent vibration-induced leaks, using stainless steel bands rated for ethanol-blend compatibility.
- Use a transparent inline filter between the reservoir and motor–traps debris as small as 40 microns without restricting pressure.
- Tighten tensioners to 25–30 inch-pounds torque; overtightening cracks fittings.
- Label hose ends to align with engine-side ports–the wrong orientation floods the carburetor bowl.
- Store the reservoir upright on a vented bracket, never on the transom; sloshing fuel erodes seals.
Ground the system properly: attach the reservoir’s grounding wire to the engine block with a dedicated bolt, not painted surfaces. Paint acts as an insulator, increasing static buildup risk. Test continuity with a multimeter–target resistance under 0.5 ohms. For ethanol-heavy mixtures, insert a water-separating filter upstream of the primer bulb to prevent phase separation, which corrodes aluminum fuel rails within 50 operating hours.
- After refilling, purge the hose by running the motor at idle for 60 seconds to clear air pockets.
- Inspect clamps and seals every 20 hours–saltwater accelerates deterioration.
- Replace filters preemptively at 100-hour intervals, regardless of appearance.
Pinpointing Critical Elements in Portable Marine Engine Fuel Delivery Systems
Begin by locating the priming bulb on the flexible feed line–this translucent rubber component sits between the vessel’s storage container and the engine’s inlet manifold. Squeeze it firmly to verify elasticity; any cracks or permanent flattening indicate a need for immediate replacement. Ensure the bulb’s arrow points toward the powerhead, as reversed installation disrupts fluid transfer and starves the motor of consistent flow.
Trace the feed hose from the storage vessel to the powerhead, noting two inline shutoff valves. The first valve, typically brass, resides near the container’s outlet and must remain fully open during operation–partial closure creates vapor lock. The second valve, positioned closer to the engine, serves as an emergency cutoff; test monthly by engaging it briefly while the system idle, listening for a sharp cessation of injector noise. Corrosion or stiff movement in either valve mandates cleaning with marine-grade solvent or complete replacement if threads show pitting.
| Component | Material | Pressure Rating | Failure Signs |
|---|---|---|---|
| Feed hose | Reinforced nitrile rubber | 45 psi | Brittleness, blistering |
| Inlet filter screen | Anodized aluminum mesh (120 micron) | N/A | Discoloration, debris buildup |
| Pressure regulator diaphragm | Fluorosilicone | 6 psi | Hardening, surface cracks |
Inspect the quick-connect fittings at both ends of the feed hose–look for O-ring grooves devoid of lubrication or filled with salt deposits. Replace any O-rings showing compression set (flattened sides) or swelling, using only manufacturer-specified sizes: 1/4″ ID for vessel-side connectors, 5/16″ ID for engine-side. After reconnecting, pressurize the system by squeezing the priming bulb until resistance increases sharply–abnormal softness suggests a compromised fitting or deteriorated hose.
The low-pressure sender unit mounted beneath the cowling requires annual resistance verification. Disconnect the electrical connector and measure between the sender’s center pin and housing using a multimeter: values should shift smoothly from 20-200 ohms as fluid levels decrease. Readings outside this range or sudden jumps signal a faulty unit, necessitating replacement to prevent erroneous gauge readings that can lead to fuel exhaustion during operation.
Check the return hose’s condition–this less-noticed component often suffers identical wear to the feed line. Bend 6″ sections every 12″ along its length; cracking sounds or visible copper wire reinforcement (in older models) confirm imminent failure. Route the hose away from exhaust manifolds and sharp edges, securing with nylon tie-wraps every 18″ to prevent vibration-induced chafing that breaches containment and spills volatile compounds overboard.
Connecting Wiring for Portable Marine Reservoir Integration
Begin by locating the engine’s powerhead electrical harness near the cowling. Identify the fuel pump relay connector–typically a four-pin socket with color-coded wires: red (12V+), black (ground), green/yellow (signal), and blue (sensor return). Verify wire gauge matches the manufacturer’s specs (minimum 18 AWG for 10A circuits) to prevent voltage drop under load. Crimp soldered butt connectors to each terminal, ensuring heat-shrink tubing covers exposed metal to resist corrosion from saltwater exposure.
Route the new wiring loom away from moving parts and exhaust manifolds. Secure the harness every 15 cm using UV-resistant nylon ties, leaving slack at pivot points like the tilt tube to avoid strain. The primer bulb line should run parallel but separate–crossing wires risk chafing. For engines above 75 HP, install an inline fuse rated at 125% of the fuel pump’s maximum draw (check manual for exact amperage) directly at the battery terminal to prevent overload.
Grounding and Signal Validation
Attach the ground wire to a bare metal surface on the mounting bracket, scraping away paint or oxidation first. Avoid common grounding points shared with ignition coils or alternators to prevent electrical noise. Test continuity with a multimeter–resistance should read below 0.5 ohms. Connect the signal wire to the engine control module’s designated port (refer to service manual pinout). If the boat lacks an ECM, splice into the tachometer sender wire, ensuring polarity matches the sensor’s expected input.
For dual-reservoir systems, add a three-way valve with a micro-switch wired to the fuel gauge sender. Use marine-grade connectors (IP67 rated) and dielectric grease on all junctions. After connection, cycle the ignition on/off five times without starting the engine–listen for the pump’s brief activation to confirm proper relay function. If no sound is heard, check for blown fuses or reversed polarity on the signal wire.
Seal all connectors with self-fusing silicone tape, wrapping in a spiral pattern to repel moisture. Label each wire at both ends with waterproof markers, noting function and source. Perform a final resistance test between the tank sender and dashboard gauge–values should match the sender’s sweep resistance range (usually 33–240 ohms). If readings fluctuate, inspect for loose terminals or water intrusion in the harness.
Key Checkpoints for Diagnosing Fuel Line Issues
Inspect all quick-connect fittings for cracks or deformation. A single compromised O-ring or split seal can introduce unfiltered air, causing lean mixtures or vapor lock. Replace fittings showing discoloration–even minor heat stress weakens nylon components.
Trace the primer bulb path from the reservoir to the motor. Squeeze it repeatedly while observing the transparent section; bubbles persisting beyond 10 pumps indicate leaks at hose barbs or deteriorated clamps. Use a vacuum gauge to confirm–readings below 20 inHg mean intake-side failures.
Examine the anti-siphon valve for clogging. Blow through it gently; resistance suggests debris or ethanol residue buildup. Flush with pressurized carb cleaner, not compressed air–high PSI ruptures internal diaphragms.
Check routing clearance against sharp engine components. Chafed lines near exhaust manifolds often fail suddenly. Reinforce vulnerable sections with split-loom tubing; standard zip ties melt at 180°F. Label each segment for future reference.
Test fuel flow rates at the engine inlet. Disconnect the line and measure output–anything under 0.5 GPM at full throttle signals filter blockages or collapsed lines. Replace in-line filters annually, regardless of visual condition.
Verify ground connections at the tank and motor. Corroded terminals increase resistance, skewing fuel pump voltages. Clean mating surfaces with a wire brush and apply dielectric grease; voltage drops above 0.3V disrupt injector timing.
Listen for irregular pump whine during operation. A distorted pitch–too high or low–hints at cavitation or restricted return lines. Back-flush the return circuit with low-pressure solvent to dislodge varnish buildup near the pressure regulator.
Document all findings. Record clamp torques, fitting types (barb vs. compression), and hose grades. Replace SAE J1527-rated lines every 5 years–WHO-approved ethanol-resistant alternatives degrade faster in saltwater environments.
