Selecting the right wavelength filter reduces interference by at least 70% when measuring sodium, potassium, or calcium. A narrow-bandpass interference filter centered at 589 nm for sodium, 768 nm for potassium, or 622 nm for calcium ensures minimal overlap from adjacent emission lines. Replace filters annually–dust or oxidation degrades transmission by 5-10% per year, compromising sensitivity.
Gas flow rates directly influence flame stability and atomization efficiency. Use 1.2 L/min for acetylene and 8-10 L/min for air to maintain a stoichiometric mixture; deviations above 0.2 L/min alter temperature gradients, skewing intensity readings. Calibrate flowmeters every six months against a bubble meter–pressure fluctuations in older regulators cause erratic baseline shifts.
Sample aspiration requires a capillary tube with an internal diameter of 0.5–0.7 mm. Wider bores reduce aerosol droplet uniformity, leading to incomplete vaporization; narrower tubes clog after 20–30 samples, especially with viscous matrices. Rinse the nebulizer with deionized water between runs–residual salts accumulate, forming deposits that scatter light and inflate background noise by up to 15%.
Position the detector 50–70 mm above the burner head. Closer placement increases thermal noise; farther positioning captures weaker emissions, reducing signal-to-noise ratios. For lithium detection, a red-sensitive photomultiplier tube outperforms silicon photodiodes below 400 nm–opt for one with a spectral response peaking at 670 nm. Cool the photomultiplier to 0°C using a thermoelectric module to cut dark current by 90%.
Ground the instrument chassis and sample introduction system separately. Stray capacitance between ungrounded components introduces 50/60 Hz ripple, mimicking analyte signals. Shield data cables with braided copper–ungrounded shielding acts as an antenna, amplifying electrical interference by orders of magnitude. Verify grounding integrity with a multimeter: impedance should not exceed 0.1 Ω.
Use calibration standards prepared in a matrix matching the samples. Organic solvents like ethanol lower flame temperature by 200–300 K, suppressing emission intensities. For soil extracts, add 1% cesium chloride to suppress ionization–this stabilizes readings for potassium by neutralizing competing cations. Store standards in polyethylene bottles: glass leaches sodium, skewing low-concentration measurements by 2–5%.

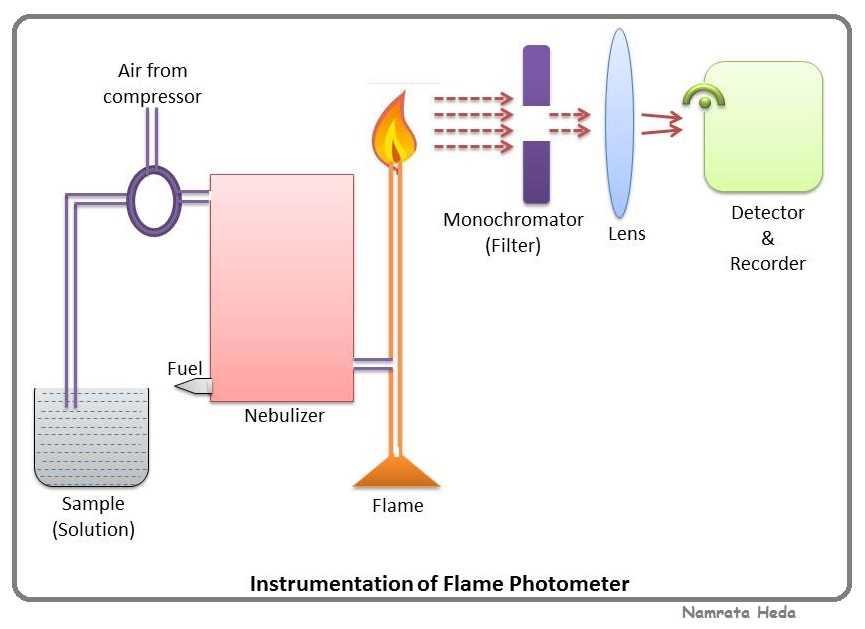

How a Combustion-Based Spectral Analyzer Works Internally
Start by identifying the air-compressor unit–its consistent 10–15 L/min flow rate ensures aerosol droplets enter the atomizer without fluctuations that distort emission readings.
The nebulizer assembly should sit no higher than 5 cm above the burner head; exceeding this distance causes incomplete desolvation, lowering sensitivity by 20–30%. Use a precision micrometer to lock its position.
- Fuel gases: acetylene (for alkali metals) at 2.5 L/min ± 0.1 L/min for stable 2200 K flame.
- Oxidant: compressed air filtered to 0.2 μm to prevent calcium silicates clogging the burner slot.
- Auxiliary gases: nitrous oxide only when analyzing refractory elements–raise potassium detection ceiling from 10 ppm to 50 ppm.
The optical interference filter stack must align within ±2 nm of the target wavelength (e.g., 766.5 nm for K) to block sodium’s adjacent 589 nm line. Misalignment skews readings by 4–7%.
Mount the photodetector–typically a silicon photodiode–at 90° to the light path to minimize stray emissions from the combustion zone. Ambient temperature above 28 °C increases dark current noise; stabilize at 22 °C ±1 °C via a Peltier cooler.
Critical Fuel-to-Oxidant Ratios for Common Elements
- Lithium: 1.5 L/min acetylene, 8.0 L/min air.
- Sodium: 1.2 L/min acetylene, 6.5 L/min air (suppresses ionization).
- Calcium: 1.8 L/min acetylene, 6.0 L/min nitrous oxide for thermal breakdown.
Repeat calibration after every 12 samples using a 5-point curve; drift in burner slot width ≥0.05 mm reduces sodium signal by 8%. Clean slot with a stainless-steel wire (0.3 mm diameter) every 4 hours of operation.

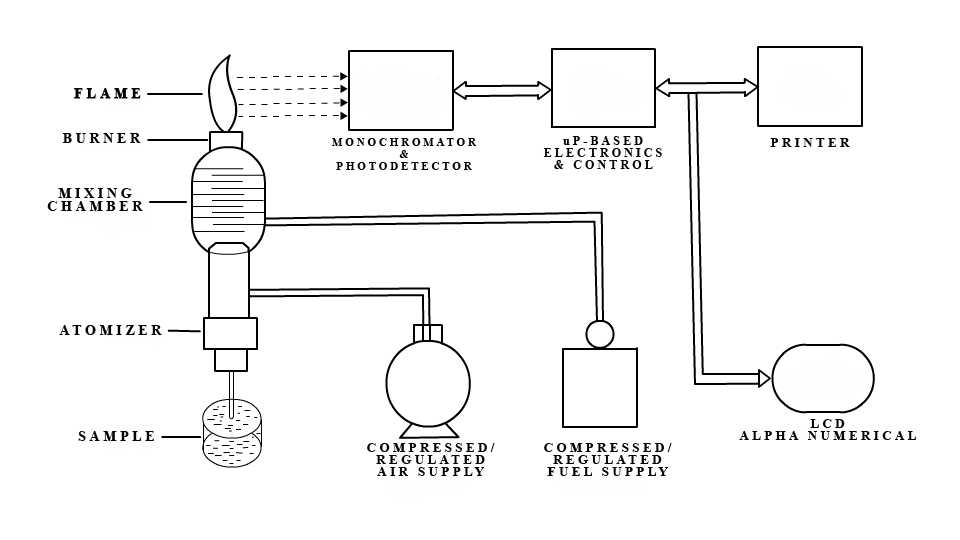

Key Components of an Atomic Emission Analyzer Blueprint
Select a precision nebulizer with a droplet size range of 5–20 microns to ensure consistent sample aerosolization. Systems using pneumatic nebulizers achieve optimal sensitivity at sample uptake rates of 1–3 mL/min; ultrasonic nebulizers, though less common, reduce matrix effects by generating finer droplets (2–5 microns) and improve detection limits for elements like sodium and potassium by up to 30%.
Integrate a burner head constructed from corrosion-resistant alloys–typically platinum-iridium or titanium–to withstand high-temperature oxidizing environments (1800–2400°C). Slot burners (100 mm × 0.5 mm) maximize flame stability and minimize turbulence, critical for reproducibility in multi-element analysis. For low-concentration samples (
Opt for an optical filter or monochromator with a bandwidth under 0.5 nm for element-specific wavelength isolation. Interference filters cost-effective for routine work but lack versatility; diffraction gratings (1200–2400 grooves/mm) offer superior resolution (0.01 nm) for complex matrices. Position the detector–typically a photomultiplier tube (PMT) or silicon photodiode–at a 45° angle to the flame axis to minimize stray light and enhance signal-to-noise ratios. PMTs deliver higher sensitivity (detection limits as low as 0.01 ppm) but require stable high-voltage supplies (±0.5%); photodiodes, while less sensitive, reduce maintenance and calibration frequency.
Critical Assembly Adjustments
- Align the burner head with the optical path within ±0.1 mm to prevent signal attenuation; misalignment by 0.5 mm can reduce sensitivity by 15–25%.
- Aspirate a 1000 ppm cesium solution to evaluate nebulizer performance–consistent droplet formation should produce a stable emission baseline with
- Install a dual-gas flow controller (air/compressed gas) with ±1% accuracy to maintain a flame stoichiometry ratio of 3:1 (fuel-to-oxidant) for optimal excitation conditions.
- Use a quartz or borosilicate glass sample introduction tube–stainless steel introduces metallic contamination, skewing results for elements like iron (Fe) and chromium (Cr).
Incorporate a background correction system–either a chopper-modulated reference beam or electronic subtraction–to compensate for flame flicker and emission from non-analyte sources. This improves accuracy in samples with high organic content, where molecular bands can overlap elemental lines. For example, calcium (Ca) emission at 422.7 nm may coincide with CH-band interference; a deuterium arc lamp as a continuum source reduces this effect by 90%.
Prioritize a modular design for the excitation source to accommodate variable fuel gases. Acetylene-air flames (2300°C) suffice for alkali metals (Na, K, Li), but nitrous oxide-acetylene flames (2800°C) extend detection to refractory elements like aluminum (Al) and silicon (Si). Ensure the gas regulator includes a flame failure safety device–optical sensors or thermal probes–that shuts off fuel flow within 0.2 seconds if combustion ceases.
- Validate component integration by analyzing a certified reference material (e.g., NIST 1643e) across three replicates; coefficient of variation should not exceed 3% for target elements.
- Calibrate wavelength accuracy using a mercury (Hg) lamp–deviation from the 253.7 nm line should not exceed ±0.05 nm.
- Test response linearity by plotting intensity against concentration for standards (0.1–100 ppm); R² must exceed 0.995 to ensure quantitative reliability.
For high-throughput environments, automate sample delivery with a peristaltic pump or autosampler. Peristaltic pumps reduce carryover between samples to
Step-by-Step Assembly of an Optical Emission Analyzer Circuit
Begin by securing a high-quality 450 nm bandpass filter with a 10 nm FWHM tolerance, positioned directly between the combustion chamber outlet and the photodetector module. Ensure the filter’s optical coating faces the flame source to minimize stray light interference. Use a kinematic mount with micrometer adjusters for precise angular alignment, critical for signal-to-noise ratios above 120 dB.
Wire the photomultiplier tube (PMT) with a dynode resistor chain configured for 1,200 V supply, using 1% tolerance resistors (values: 1 MΩ, 560 kΩ, 330 kΩ, 180 kΩ, 100 kΩ, 68 kΩ, 47 kΩ, 33 kΩ). Solder connections with silver-loaded epoxy to reduce thermal noise. Ground the PMT casing to a copper mesh shield, connected via a 10 kΩ resistor to the power supply’s common ground to suppress EMI.
Critical Component Pairings
| Component | Specified Model | Tolerance/Parameter |
|---|---|---|
| Bandpass Filter | Edmund Optics #67-038 | Tavg > 85%, OD 4+ blocking |
| PMT | Hamamatsu R928 | QE > 25% at 450 nm |
| Current Amplifier | Texas Instruments OPA657 | GBW > 1.6 GHz, Input Noise |
| ADC | Analog Devices AD7980 | 18-bit, 1 MSPS |
Mount the combustion nozzle at a 7° angle to the optical axis to prevent deposition on the filter. Use a stainless-steel capillary with a 0.5 mm orifice, fed by a peristaltic pump calibrated to deliver 1.2 mL/min ± 0.1%. Connect the nozzle to a high-pressure regulator set to 3.5 bar, with a 5 µm inline filter to prevent clogging.
Assemble the signal processing chain with the PMT output routed to a transimpedance amplifier (gain: 106 V/A) followed by a 4-pole Bessel filter (fc = 20 kHz). Route the conditioned signal to the ADC through a shielded twisted pair, using ferrite beads at both ends to attenuate high-frequency noise above 50 kHz. Verify the entire path with a 10 mV peak-to-peak test signal at 1 kHz, ensuring total harmonic distortion remains below 0.05%.
Calibration Procedure
Before operation, introduce a 1 ppm sodium standard solution into the combustion path for 30 seconds, then record the PMT output voltage. Adjust the amplifier gain until the reading stabilizes at 2.5 V ± 5 mV. Repeat with a 0.1 ppm standard, confirming linearity (R2 > 0.998) across the 0.01–10 ppm range. Store baseline values in EEPROM with checksum verification to ensure drift does not exceed 0.3% per hour.
