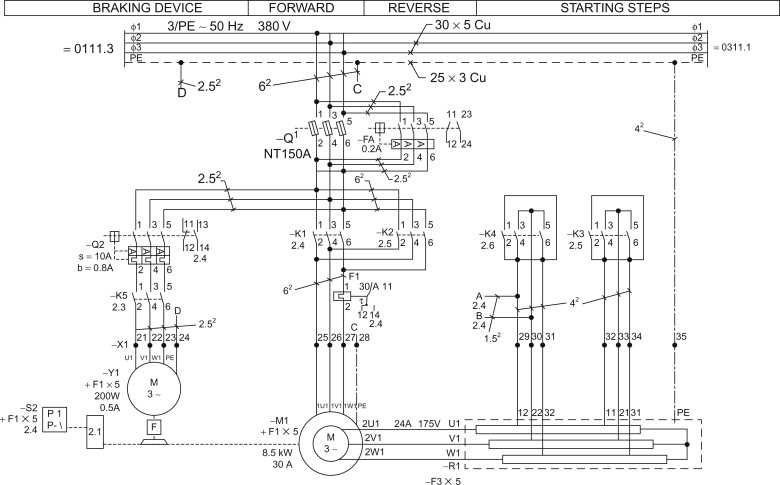

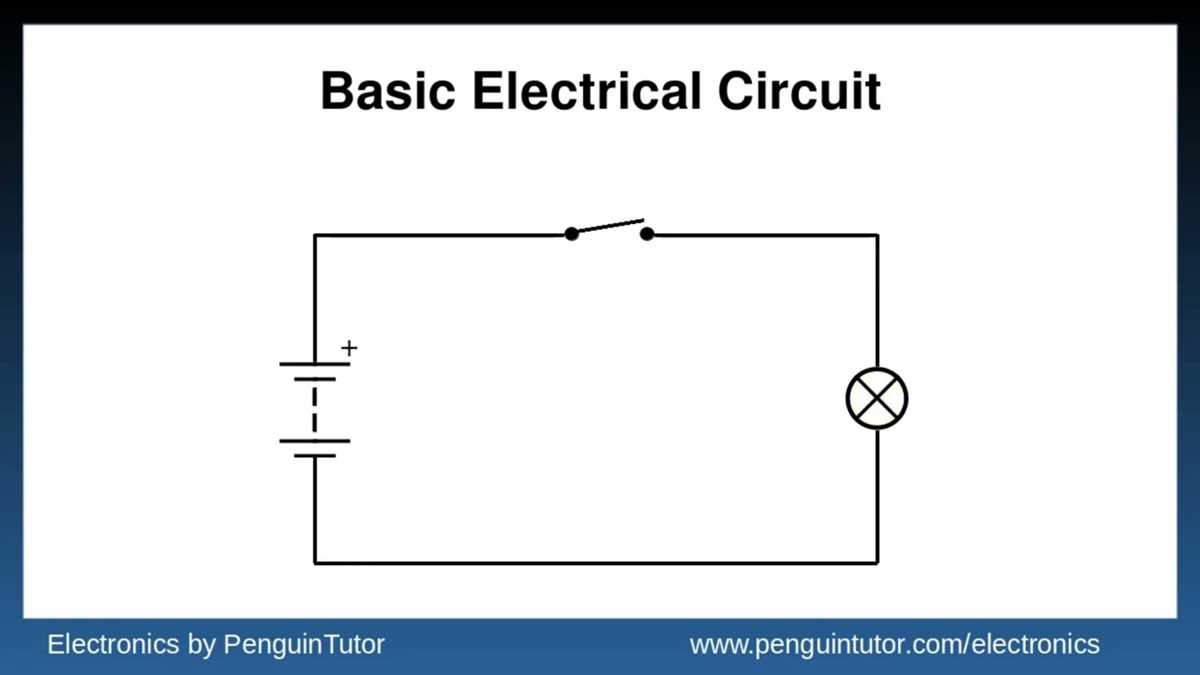

Start by visualizing a circuit layout as a series of standardized symbols connected by straight lines. Each symbol represents a distinct component–resistors, capacitors, transistors, or power sources–while lines indicate electrical pathways. This approach eliminates ambiguity: a zigzag line is universally recognized as a resistor, a straight horizontal line with shorter perpendicular lines denotes a battery, and intersecting lines with a dot indicate a connection.
Prioritize clarity by grouping related components and arranging them logically. For example, place power sources at the top, ground references at the bottom, and signal flow from left to right. Use consistent spacing between elements to avoid visual clutter; 5–10 millimeters between symbols ensures readability without wasting space. Label each part with concise identifiers–R1, Q2, Vcc–using a legible font size (minimum 3mm in height for printed diagrams).
Avoid crossing lines where possible; if unavoidable, use a small arc or bridge symbol to denote no connection. Include a legend for non-standard symbols or custom components. Test the layout by tracing key signal paths: if you can follow a current from input to output without confusion, the design is functional. Tools like KiCad or Fritzing provide pre-drawn symbols and auto-routing but manually adjust placements to reflect circuit logic.
For complex designs, split the layout into modular blocks–power regulation, amplification, and output stages–using dotted or shaded boundaries. Add brief annotations explaining critical interactions, but limit text to three lines per block. Color-code sections for rapid identification, though ensure the palette is accessible for color-blind users (e.g., red-green conventions are problematic). Print a sample on A4 paper at 100% scale to verify proportions; errors in magnification distort component relationships.
Store the master copy in a vector format (SVG, PDF) to retain scalability without pixelation. Export a simplified version as PNG for digital sharing, with a resolution of 300 DPI to preserve fine details. Backup raw files in a version-controlled system; even minor revisions (e.g., swapping a resistor value) should be tracked to avoid reintroducing errors.
Visual Blueprint Basics
Begin by representing components as standardized shapes: resistors as zigzag lines, capacitors as parallel plates, and ICs as rectangles with labeled pins. Use IEEE 315 symbols for consistency–avoid custom drawings that confuse downstream engineers. Label every element with unique identifiers (e.g., R1, C5) and specify values (ohms, farads) directly on the layout. For power rails, mark voltage levels (VCC, GND) clearly, and separate high-voltage paths from low-signal traces with spacing or color coding.
- Adopt hierarchical nesting for complex systems: group related subcircuits (e.g., power supply, signal amplification) into modules with labeled connectors. Use net labels to link distant components instead of drawing long lines.
- Limit crossing wires: route paths orthogonally, or use dots to indicate intentional junctions–never rely on intersection alone.
- Include a bill of materials as an attached table: list each part number, supplier, and alternate sources to prevent supply-chain delays.
- Add test points (TP1, TP2) for critical nodes, specifying expected voltage ranges or signal frequencies.
- For microcontrollers, detail pin functions (e.g., UART_TX, SPI_CLK) and any required pull-up/down resistors. Reference the datasheet link in the notes.
Electrical Blueprints: Core Insights for Circuit Builders
Always start by labeling every component symbol with its exact part number–resistors (e.g., 1kΩ 5% carbon film), capacitors (100nF X7R), and ICs (LM358). This eliminates ambiguity during prototyping and ensures suppliers provide compatible replacements if the original part is unavailable. Include voltage and current ratings for critical paths, like MOSFET gates (VGS max 20V) or LEDs (20mA forward current), to prevent overloading traces during layout.
Group related functions into modular blocks: power regulation (LDO + decoupling caps), signal amplification (op-amp configurations), and I/O interfaces (pull-up/down resistors, transient voltage suppressors). Use horizontal signal flow from left to right for logic chains, and vertical power rails (VCC, GND) to minimize crossovers. For mixed-signal designs, separate analog and digital grounds at the star point near the power source to reduce noise coupling.
Tracing Connections: Layout-Ready Precision
Draw nets with intentional hierarchy: bold lines for high-current paths (e.g., battery to switching regulator), thin lines for control signals, and dashed lines for optional or test connections. Label net names at both ends (e.g., “SDA,” “PWM_OUT”) to assist PCB design tools in auto-routing. For differential pairs (USB, Ethernet), maintain equal line lengths and mark impedance requirements (e.g., 90Ω ±10%).
Add test points (TP1, TP2) at critical nodes–voltage rails, MCU reset pins, or high-impedance outputs–to simplify debugging. Use cross-reference indicators (e.g., “R3 → U2.5”) for components spanning multiple pages. For microcontroller-based circuits, include a table listing pin assignments, signal directions (input/output), and voltage levels (3.3V CMOS, 5V TTL) to standardize firmware development.
Validation Checks Before Prototyping
Verify polarities: electrolytic capacitors (cathode marked), diodes (band = cathode), and ICs (notch/dot orientation). Check power integrity by calculating total current draw and matching it to trace widths (e.g., 1mm width ≈ 1A for 1oz copper). Simulate complex sections (PLLs, SMPS feedback loops) using SPICE models before committing to layout, focusing on stability margins and transient response. Document every assumption–assumed coefficients, thermal derating factors–to facilitate future revisions.
Key Components to Include in a Basic Circuit Blueprint
Start by labeling all power rails with clear voltage values–common ones like +5V, +12V, GND, and 3.3V. Use standardized symbols for ground (⏚ or ↓) and power (⎓ for DC, ⏚ for chassis ground) to avoid ambiguity. For multi-voltage designs, add a legend in the bottom-right corner with a concise note: “All rails referenced to primary GND unless noted.”
Group related components in functional blocks–power regulation, signal processing, and I/O–separated by sufficient whitespace. Each block should have a bounding box with a descriptor, e.g., “PWM Driver (Q1-Q4)”. For ICs, include pin numbers outside the symbol; for discrete parts, place designators (R1, C3) adjacent to pads. Below is a reference for mandatory annotations:
| Component Type | Required Annotation | Recommended Format |
|---|---|---|
| Resistor | Value ± Tolerance | 10kΩ ±5% |
| Capacitor | Value + Voltage Rating | 10µF, 25V |
| Inductor | Value + Saturation Current | 10µH, 2A |
| MOSFET | Part Number + Pinout | IRFZ44N (GDS) |
Critical Signal Paths and Feedback Loops
Highlight high-frequency or sensitive traces with thicker lines (0.35mm) and bolder colors–red for power, blue for signals, black for grounds. For feedback loops in switching regulators, draw the path as a dashed line with an arrow indicating direction. Include test points (TP1, TP2) at key nodes like output capacitors and control IC pins, labeled with expected voltage/ripple (“TP4: 1.2V ±20mV, 50kHz ripple”).
Add a revision block in the lower-left corner with: date, designer initials, version number, and a changelog. Example: “v1.2: 2024-05-15 – Swapped R5/R6 for ESR compensation. J.D.”. For off-board connections, use standardized connectors (e.g., JST-XH for power, SMA for RF) and specify pin assignments in a table adjacent to the connector symbol.
How to Read and Interpret Symbols in Electrical Blueprints
Begin by identifying the legend or key–most circuit representations include a standardized set of glyphs. Resistors are shown as zigzag lines, while capacitors appear as two parallel lines, one of which may be curved. Each glyph corresponds to a specific component type, so cross-reference unfamiliar symbols with the legend if provided.
Track the flow: power sources like batteries or AC inputs are typically drawn at the top or left, with current moving toward ground symbols at the bottom or right. Lines connecting components represent wires, but intersecting lines do not imply a connection unless marked with a dot–never assume a junction without this indicator.
Switches appear as breaks in a line with a lever or gap, indicating an open or closed path. Transistors are often three-terminal devices with arrows indicating emitter direction, while logic gates use distinct shapes–AND gates as a flat-sided oval, OR gates with curved sides, and NOT gates with a triangle and small circle.
Integrated circuits are usually rectangles with numbered pins, each serving a unique function–refer to the pinout documentation for the exact purpose of each terminal. Polarized components like diodes and electrolytic capacitors include polarity markers; diodes have a band at the cathode, while capacitors display a minus sign next to the negative terminal.
Ground symbols vary: chassis ground is a downward triangle, earth ground is a triangle with a line, and signal ground may be a single horizontal bar. Multiple ground symbols in a single circuit do not necessarily connect unless explicitly shown. Use a multimeter to verify connections if the drawing lacks clarity.
Annotate unfamiliar symbols with notes, but avoid altering the original drawing. Manufacturers’ datasheets and IEEE standard references provide authoritative symbol guides–bookmark these for quick access. Mastering symbol recognition eliminates guesswork and accelerates troubleshooting.
