The fundamental cooling process relies on four key components: a compressor, condenser, expansion device, and evaporator. Each element must operate within precise pressure and temperature ranges to maintain efficiency. Begin by ensuring the compressor’s discharge pressure aligns with the refrigerant’s optimal condensing temperature–typically 30–40°C above ambient for air-cooled systems. Deviations risk excessive energy consumption or insufficient heat rejection.
Position the condenser downstream of the compressor to maximize heat dissipation. In air-conditioning applications, a subcooling margin of 3–5°C prevents flash gas formation before the expansion valve, improving system stability. For low-ambient conditions, implement condenser fan cycling or head pressure control to avoid liquid refrigerant flooding the compressor during off-cycles.
Select the expansion device based on load variability. Thermostatic valves excel in dynamic conditions, responding to superheat changes within 5–10 seconds, while fixed orifices suit steady-state applications. Avoid oversizing–the valve’s capacity should match the evaporator’s load within ±10% to prevent hunting or starved coil conditions.
The evaporator must maintain consistent heat absorption. Target a superheat of 5–7°C at the compressor inlet to ensure vapor-only entry while preventing liquid slugging. In freezers, glycol-cooled evaporators require lower superheat (2–4°C) to maximize latent heat transfer without compromising defrost cycles.
Refrigerant selection impacts performance benchmarks. R-134a systems demand higher compression ratios than R-410A, increasing wear on components. For ultra-low temperature applications, cascade systems pair CO₂ (evaporating at -40°C) with a secondary loop, reducing compressor work by 20–30% compared to single-stage setups.
Verify system charge accuracy through pressure readings and sight glasses. Undercharge (10–15% below nominal) degrades efficiency by 5% per 1°C increase in evaporator temperature, while overcharge risks compressor damage from liquid return. Use electronic scales during installation–manual charging introduces ±5% error.
Understanding the Visual Layout of Cooling System Operations

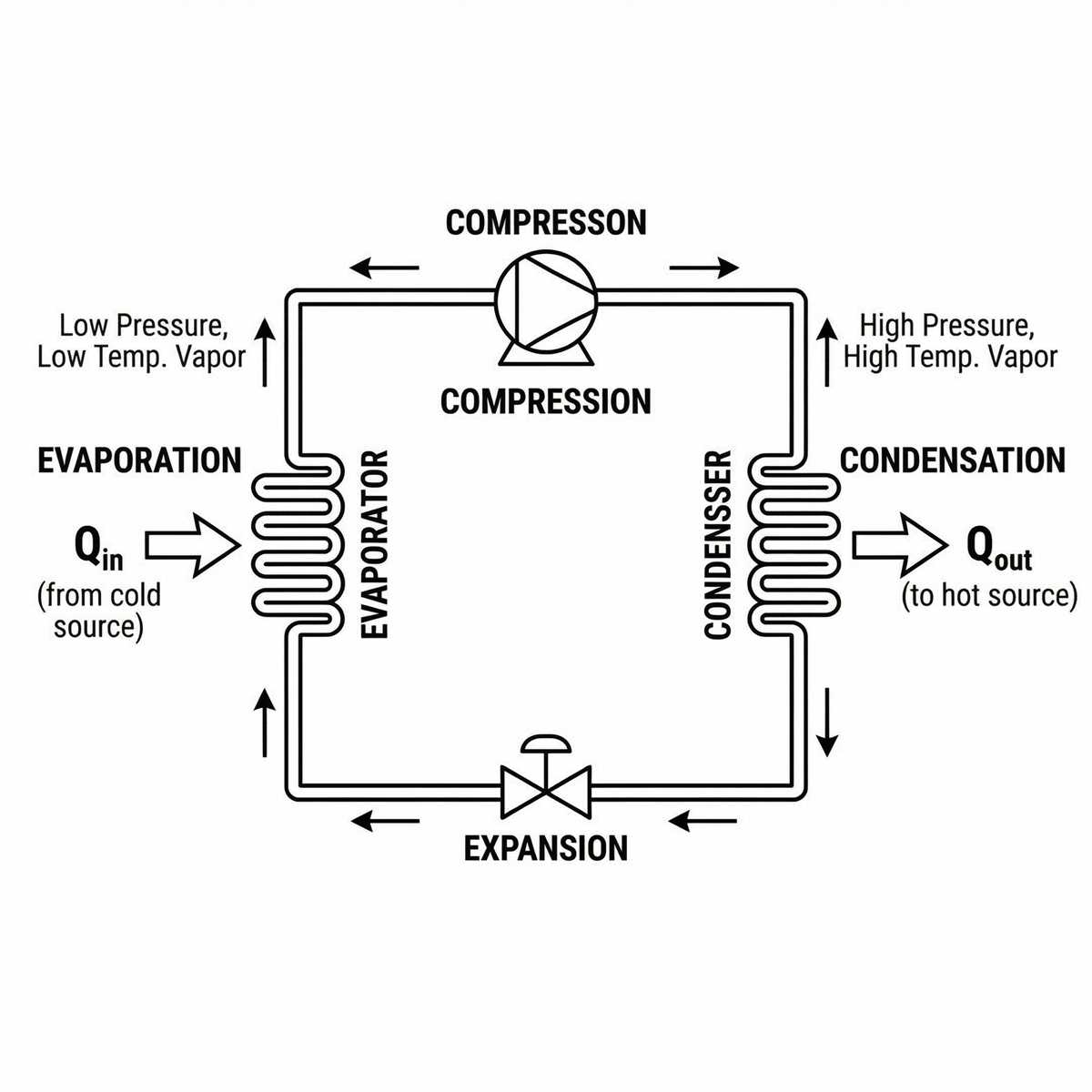

Start by identifying the four core components in any heat transfer illustration: compressor, condenser, expansion valve, and evaporator. Position the compressor at the top-left of your layout–this is where low-pressure vapor transforms into high-pressure gas. Connect it directly to the condenser coil (top-right), ensuring clear arrows to show refrigerant flow direction. The condenser should occupy twice the width of other elements, as it must visually represent heat dissipation through multiple loops.
Label pressure zones immediately: high-pressure paths (compressor outlet to expansion valve inlet) in red, low-pressure paths (evaporator outlet back to compressor) in blue. Use dashed lines for control wiring and solid lines for refrigerant tubing. For accuracy, add a pressure-temperature table alongside the illustration–critical points: 30°F (-1°C) at evaporator outlet and 120°F (49°C) at condenser inlet for R-134a systems.

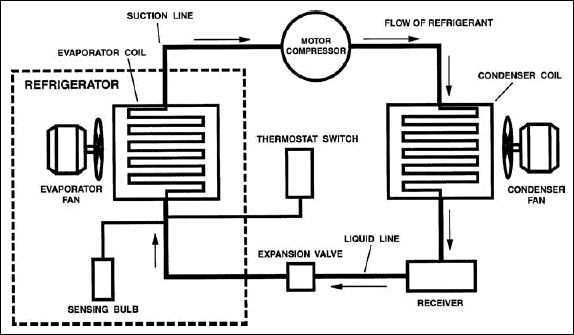

Include safety devices: a thermal expansion valve (TEV) between condenser outlet and evaporator inlet, and a dryer-filter before the TEV. The TEV’s sensing bulb placement is critical–attach it to the suction line 6 inches from the evaporator coil. Verify all elbows in tubing paths have a minimum bend radius of 3x pipe diameter to prevent flow restrictions.
Add dual-pressure switches to the suction side (cut-off at 10 PSIG) and discharge side (cut-off at 300 PSIG). Overlay electrical connections in yellow, showing the compressor’s start capacitor and thermal overload protector. For troubleshooting clarity, embed QR codes linking to component specification sheets in the layout margins.
Critical Elements in a Cooling System Flowchart
Prioritize compressor placement–locate it at the system’s discharge side, ensuring it handles only vapor-state coolant. Models like scroll or rotary compressors tolerate liquid slugging poorly; verify superheat values (10–12°F for R-134a) at the suction line to prevent damage. Noise and vibration assessments matter: anchor compressors on isolation mounts and use flexible suction/discharge lines to mitigate structural transmission.
Evaporators demand precise tubing selection. Copper tubing with finned coils optimizes heat absorption for air-to-refrigerant applications, while stainless steel suits corrosive environments (e.g., marine units). Defrost cycles must trigger when coil temperatures dip below 32°F; install demand-defrost controls instead of time-based systems to reduce energy waste. For low-temperature applications, hot-gas bypass lines prevent frost accumulation during partial loads.
Metering Devices and Their Impact
Thermal expansion valves (TXVs) outperform capillary tubes in systems requiring load variability–they maintain superheat within ±2°F, improving efficiency by 15–20%. Select TXVs with external equalization ports for evaporators with >3 psi pressure drop. For fixed-orifice devices, calculate tube length based on refrigerant type: 0.040″ ID for R-410A, 0.052″ for R-22. Always install filter-driers upstream of metering devices to trap moisture and contaminants (target
Condensers require subcooling verification: measure liquid line temperature 3–6°F below saturation to confirm efficient phase change. Microchannel condensers offer superior heat rejection in compact spaces but necessitate 5-micron filtration to prevent clogging. For air-cooled units, fan blade pitch (typically 30–35°) balances airflow and noise–test static pressure drops across the coil (target 0.1–0.3″ WC). In water-cooled systems, ensure condenser water flows antagonist to refrigerant (counterflow principle) for maximum ΔT.
Advanced Integration: Piping and Sensors
Suction lines demand insulation (R-4 to R-6 value) to prevent condensation and capacity loss–neglect causes up to 12% efficiency drops. Use double-riser configurations in variable-load systems to maintain oil return at low velocities (Liquid lines must slope downward (1/4″ per 10 ft) toward the evaporator to avoid flash gas. Install sight glasses downstream of filter-driers to confirm moisture-free operation (clear sight = acceptable, bubbles = charge issues). Pressure transducers at suction/discharge sides enable real-time monitoring–set alarms at 10% above/below design pressures to catch leaks or blockages early.

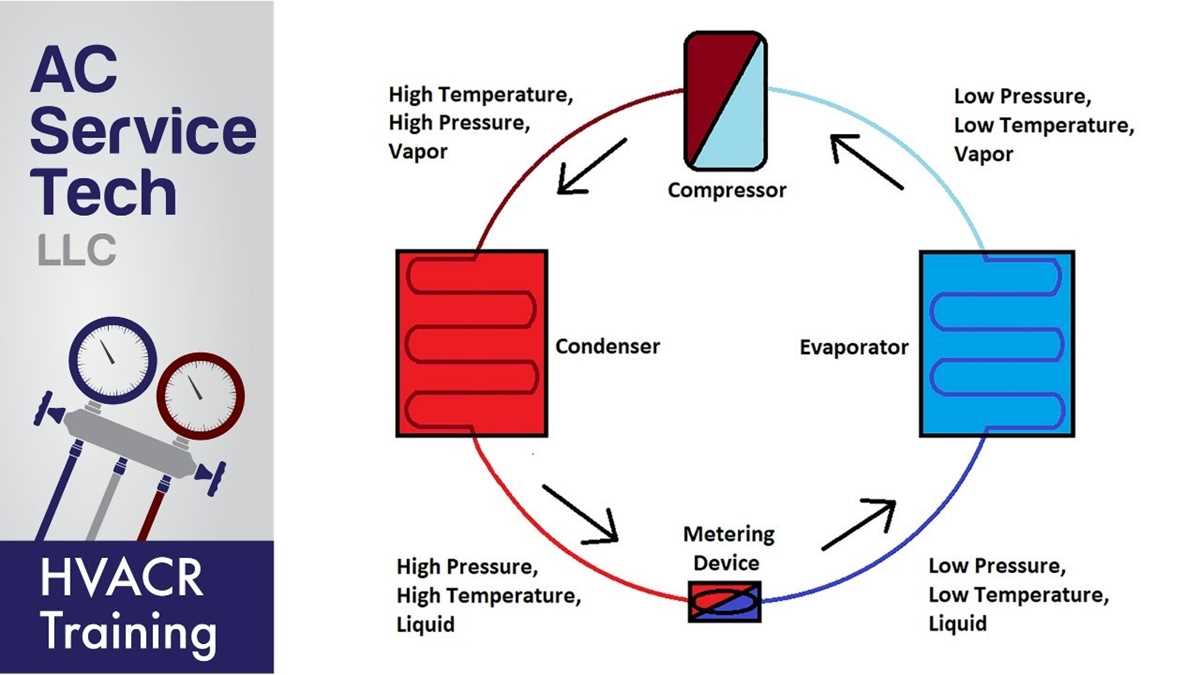

Step-by-Step Flow of Coolant in a Sealed Thermal Transfer System
Begin by identifying the compressor as the primary driving force. It compresses low-pressure vaporous coolant, raising its temperature to roughly 15–25°C above ambient while increasing pressure to 1.2–2.0 MPa. Ensure the intake valve filters debris to prevent piston damage–particulates larger than 50 microns must be blocked. The compressed gas exits at high velocity; verify discharge lines lack sharp bends to avoid turbulence-induced efficiency losses.
Direct the superheated vapor into the condenser coil, where forced or natural airflow extracts heat. For optimal phase transition, maintain coil surface temperatures 5–10°C above the surrounding air. Use aluminum or copper fins spaced 2–4 mm apart for residential units; industrial systems may require 5–8 mm spacing to handle higher thermal loads. Monitor refrigerant pressure here–it should drop to near 1.0–1.5 MPa as it condenses into a high-pressure liquid.
Pass the subcooled liquid through a filter-drier to remove moisture and contaminants. Replace the drier core if pressure differential exceeds 20 kPa or after 2,000 operating hours. Install a sight glass downstream to confirm liquid clarity–bubbles indicate incomplete condensation or air ingress. Regulate flow into the expansion valve, where the orifice size must match the evaporator’s load; mismatches cause incomplete vaporization or compressor flooding.
Allow the coolant to absorb heat in the evaporator, transitioning from liquid to vapor at 0.3–0.6 MPa. Maintain suction line temperatures 5–15°C above the target cooling temperature to prevent liquid slugging. Use finned tubing with 12–16 FPI (fins per inch) for standard applications; high-humidity environments demand 8–10 FPI to reduce frost buildup. Route the low-pressure vapor back to the compressor, completing the loop–ensure suction lines slope upward to prevent oil traps that starve the compressor of lubrication.
How to Read Pressure-Enthalpy (P-H) Charts for Thermal System Analysis
Locate the saturated liquid and vapor lines first–these define the boundaries of the working fluid’s phase change region. The area between them represents the two-phase mixture where evaporation or condensation occurs. Each refrigerant has distinct curves, so verify the chart matches your fluid’s properties.
Identify isobars–horizontal lines showing constant pressure levels. On a P-H chart, these run left to right, allowing you to track pressure drops across components like compressors, condensers, and evaporators. High-pressure zones appear at the chart’s upper section, low-pressure at the bottom.
Key States to Mark
- Compressor inlet: Low pressure, superheated vapor (right of saturated vapor line).
- Compressor outlet: Elevated pressure, higher enthalpy (shifted upward and right).
- Condenser exit: Saturated or subcooled liquid (near or left of saturated liquid line).
- Evaporator inlet: Low-quality liquid-vapor mix (between saturation lines).
Use enthalpy values (x-axis) to calculate work and heat transfer. Subtract inlet enthalpy from outlet enthalpy for compressors to estimate power consumption. For heat exchangers, the horizontal distance between states equals heat rejection or absorption.
Track temperature markers if present–these often intersect isobars as diagonal lines. Superheat and subcooling amounts can be read directly from the chart by measuring distances from the saturated lines to your plotted points.
Common Pitfalls
- Avoid confusing enthalpy (kJ/kg) with entropy (kJ/kg·K)–different charts exist for each.
- Ensure consistent units: bar, kPa, or psia for pressure; kJ/kg for enthalpy.
- Not all charts include all refrigerants–cross-reference ASHRAE or manufacturer data if curves seem off.
For cycle efficiency analysis, overlay multiple states and compare enthalpy changes. A smaller horizontal gap at the condenser indicates less heat rejection, while a larger gap at the evaporator suggests higher cooling capacity. Plot real-world measurements against ideal curves to identify inefficiencies like non-isentropic compression or excessive pressure drops.
