Start by examining the power supply section of this microcontroller platform. The 5V linear regulator (typically an AMS1117 or equivalent) steps down input voltage from a 7-12V DC source to a stable 5V rail. Verify the 100nF decoupling capacitors at the regulator’s input and output–omitting these will cause voltage fluctuations. The 3.3V rail, if present, is often derived from a secondary regulator (MIC5205 or similar), requiring an additional 1µF tantalum capacitor for stability.
Next, focus on the ATmega328P’s clock circuit. The default 16MHz crystal oscillates with two 22pF loading capacitors–any deviation in capacitance values (e.g., 18-27pF) alters frequency stability. For low-power applications, replace the crystal with a 32.768kHz watch crystal on TOSC pins, but ensure the fuse bits are reconfigured to use the internal RC oscillator. Bypass the VCC and AVCC pins with 0.1µF capacitors directly adjacent to the IC to suppress noise.
Trace the USB-to-serial converter (commonly CH340G or FT232RL). The TXD/RXD lines connect to the ATmega328P’s UART pins (D0/D1) via 1kΩ resistors. Missing these resistors risks damaging the MCU during firmware uploads. For reliable serial communication, include a 100nF capacitor between DTR and RESET–this ensures proper auto-reset triggering. Verify the LED indicators: the power LED (3mm, 1kΩ resistor) and the built-in pin 13 LED (470Ω resistor) serve as diagnostic tools.
The analog input section demands attention. The ATmega328P’s ADC shares a reference voltage (AREF) with the analog inputs. Decouple AREF with a 0.1µF capacitor to ground; skip this, and readings become erratic. For higher precision, route analog signals away from digital lines (especially PWM outputs) to reduce crosstalk. Ground planes beneath analog traces further improve signal integrity.
Examine reset circuitry last. The 10kΩ pull-up resistor on RESET prevents spurious resets, while a pushbutton with 0.1µF capacitor debounces manual resets. Omitting the capacitor results in unreliable bootloader execution. For ISP programming, locate the 6-pin header–MISO, MOSI, SCK, RESET, VCC, and GND must be correctly mapped to the MCU pins.

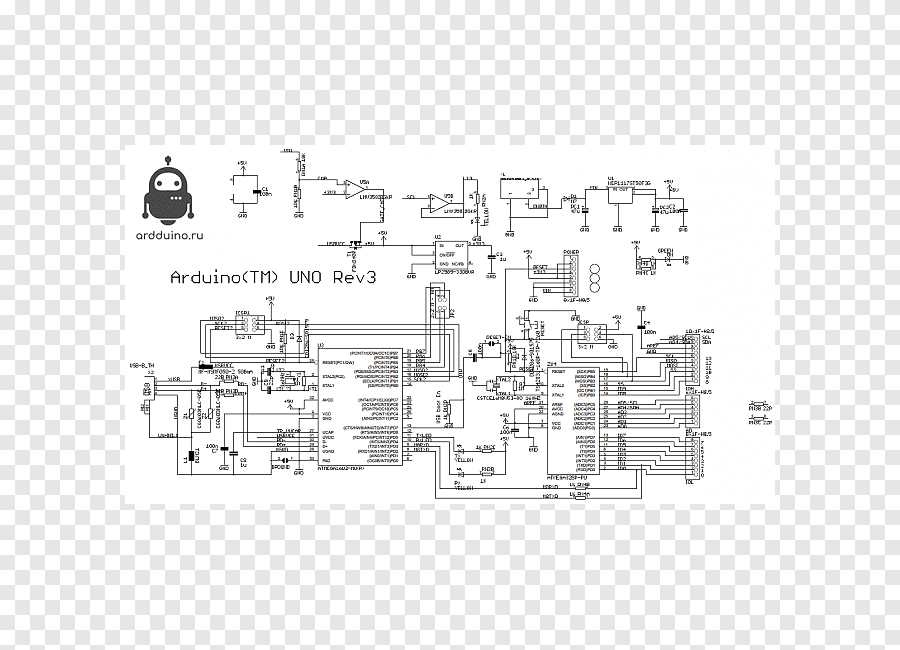

Understanding the Electronics Blueprint of AVR-Based Microcontroller Boards
Obtain the official PDF reference design from the manufacturer’s repository to verify component placement before modifying any circuit paths. The ATmega328P microcontroller typically operates at 16 MHz with an external crystal oscillator, but always cross-check capacitor values–22 pF is standard for stability, though some clones incorrectly use 15 pF, leading to unreliable clock signals.
Pay attention to the power regulation network: the NCP1117 5V linear regulator requires a minimum 7V input to sustain stable operation, while the LP2985-3.3 handles the low-voltage rail with 150mA capacity–exceeding this limit risks thermal shutdown. The reset circuit, comprising a 10kΩ pull-up resistor and a 0.1µF decoupling capacitor, ensures smooth startup; bypassing these components can cause intermittent brownouts during serial uploads.
- Check the USB-to-serial converter (usually Atmega16U2 or CH340G) for proper DTR pin routing–this signal triggers the auto-reset mechanism.
- Verify the P-channel MOSFET (AO3401) in the power selection circuit; incorrect orientation will disable battery input.
- Inspect the silk-screen markings for pin labels–SBx jumpers often connect VIN to the 5V rail, but bridging them improperly fries downstream peripherals.

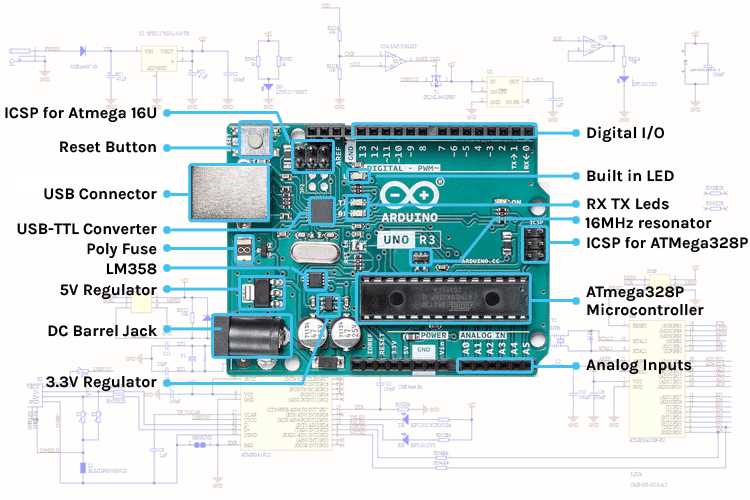

Key Components of the Microcontroller Board Circuitry
Begin debugging power issues by verifying the input voltage regulator outputs 5V (±0.2V) under load. The MIC5219-3.3BM5 passes 3.3V directly to the MCU and peripheral chips; measure across C5 (10μF) with a multimeter set to DC 20V range while the board operates. A deviation exceeding 5% warrants replacing the MIC5219 or checking for shorts on the USB power lines.
The ATmega328P microcontroller core requires precise clocking for stable serial communication. Ensure the 16 MHz ceramic resonator (Y1) maintains frequency within ±0.5% tolerance by probing pins 9 and 10 of the MCU with an oscilloscope–any visible distortion suggests a damaged or improperly seated component. For low-power projects, disable the power LED by removing R1 (1 kΩ) to reduce current draw by ~3 mA.
| Component | Designation | Key Specification | Failure Symptom |
|---|---|---|---|
| Voltage Regulator | MIC5219-3.3BM5 | 3.3V ±2%, 500 mA | MCU resets under load |
| Reset IC | MC34064 | 4.6V threshold | Boot loop during sketch upload |
| USB Interface | ATmega16U2 | 12 Mbps (USB 2.0 Full-Speed) | Device not recognized in Device Manager |
Isolate I2C bus conflicts by pulling SDA/SCL lines high via 4.7 kΩ resistors to 3.3V–common pull-up values of 10 kΩ may cause erratic sensor readings with long bus cables. For analog inputs, bypass capacitors (C3, C7: 0.1μF) must sit within 3 mm of the ATmega328P pins to suppress noise when measuring signals above 1 kHz. Replace blown GPIO pins by cutting traces to damaged pads and soldering jumper wires to alternative pins with identical port configurations.
Update the firmware on the bridge controller chip only if USB enumeration fails–use DFU mode by shorting the pads labeled “DFU” near the ATmega16U2 while connecting to a PC running Atmel FLIP. For projects requiring isolated inputs, insert optocouplers (e.g., PC817) between the MCU and external circuits, driving them with 5V via a 220 Ω series resistor to prevent latch-up. Replace the main MCU if brown-out resets persist despite stable power–program a new ATmega328P with the same fuse settings (low: 0xFF, high: 0xDE, extended: 0x05) using an ISP programmer configured for 5V target voltage.
Interpreting Power Rail Links in Circuit Blueprints
Locate the input voltage markers first–typically labeled VIN, 5V, or 3V3 near edge connectors or regulator outputs. These points indicate where external power enters the board.
Trace lines from these markers to their corresponding components. Solid bold lines usually represent main power rails, while thinner lines may denote control signals or secondary feeds.
Key Components to Examine
Check for linear regulators or switching converters–these appear as small rectangular blocks with three terminals (IN, GND, OUT). Follow the OUT pin to see how output voltage reaches microcontrollers or sensors.
Identify decoupling capacitors near ICs–small cylindrical symbols placed between power and ground. These stabilize voltage and filter noise; verify their correct placement on both 5V and 3V3 rails.
Look for power selection circuits near the board edge–usually a pair of diodes or MOSFETs. These switch between USB and external power automatically, preventing backfeeding into connected peripherals.
Common Pitfalls
Avoid mistaking analog reference voltage (AREF) for a power source–it’s typically a low-current input for ADC precision and lacks robust current capacity.
Verify ground connections before testing–ensure all ground symbols merge at one physical point, typically marked GND near mounting holes or edge connectors.
If examining a layered PCB layout, cross-reference silk-screen labels with copper layers; some power lines may be hidden beneath components or routed internally.
Use a multimeter to confirm continuity between labeled power points and actual pads–silkscreen may occasionally misalign with copper traces on production boards.

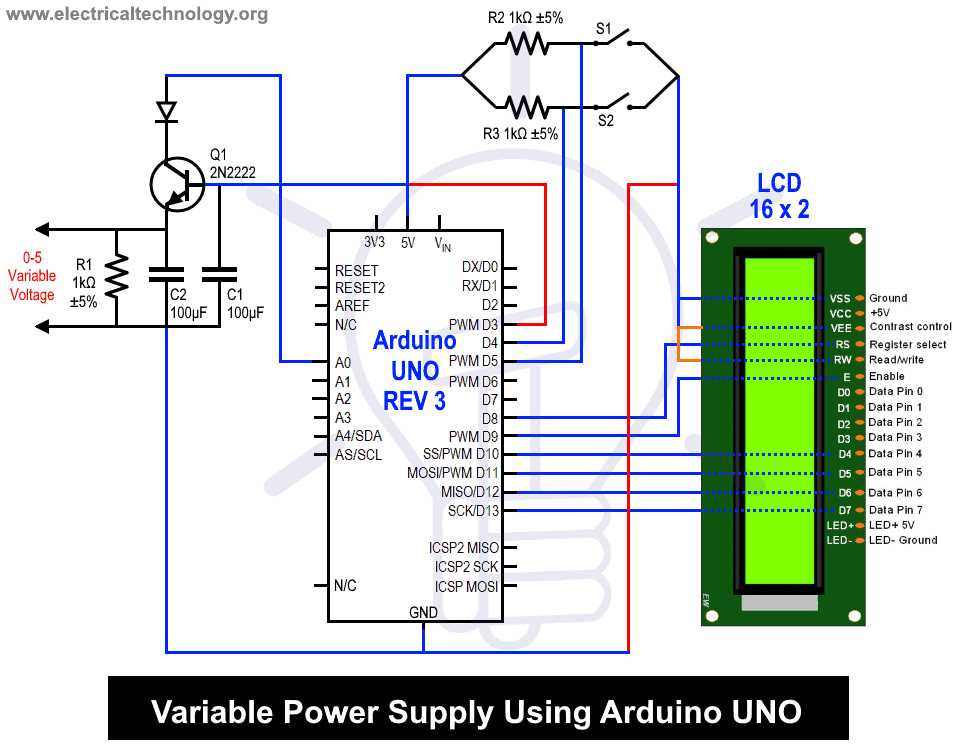

Pin Configuration and Signal Flow in Microcontroller Board Layouts
Focus first on power pins to avoid unstable behavior. The ATmega328P requires a stable 5V supply from the voltage regulator (LP2985-50), which converts 7-12V input to regulated output. Bypass capacitors (C3: 1μF and C6: 100nF) must be placed within millimeters of VCC and AVCC pins to filter high-frequency noise. Ground connections should follow a star topology with a single point near the regulator to prevent ground loops.
Digital I/O Pin Mapping
- Pins D0-D13: Directly routed to ATmega328P ports PD0-PD7 (D0-D7) and PB0-PB5 (D8-D13). Avoid using D0/D1 as UART interferes with USB communication.
- PWM-capable pins: D3, D5, D6, D9, D10, D11 connect to Timer0/1/2 outputs–ensure correct prescaler settings for timing-sensitive applications.
- External interrupts: D2 (INT0) and D3 (INT1) reserved–trigger on RISING/FALLING edges with
attachInterrupt().
Analog input pins (A0-A5) tie to PORTC (PC0-PC5) and share ADC multiplexer. Reference voltage (AREF) defaults to VCC but can be switched to internal 1.1V for precise readings–add a 100nF decoupling capacitor here. Analog pins tolerate 0-5V input, but exceeding VCC+0.5V risks permanent damage. Use a voltage divider for signals above 5V.
Signal flow for the USB interface deserves attention. The ATmega16U2 handles USB-to-serial conversion via TX/RX lines (D0/D1). Firmware flashing occurs through this path–ensure DTR signal connects to ATmega328P reset via a 100nF capacitor to enable auto-reset during uploads. Disable serial mode if using these pins for other purposes.

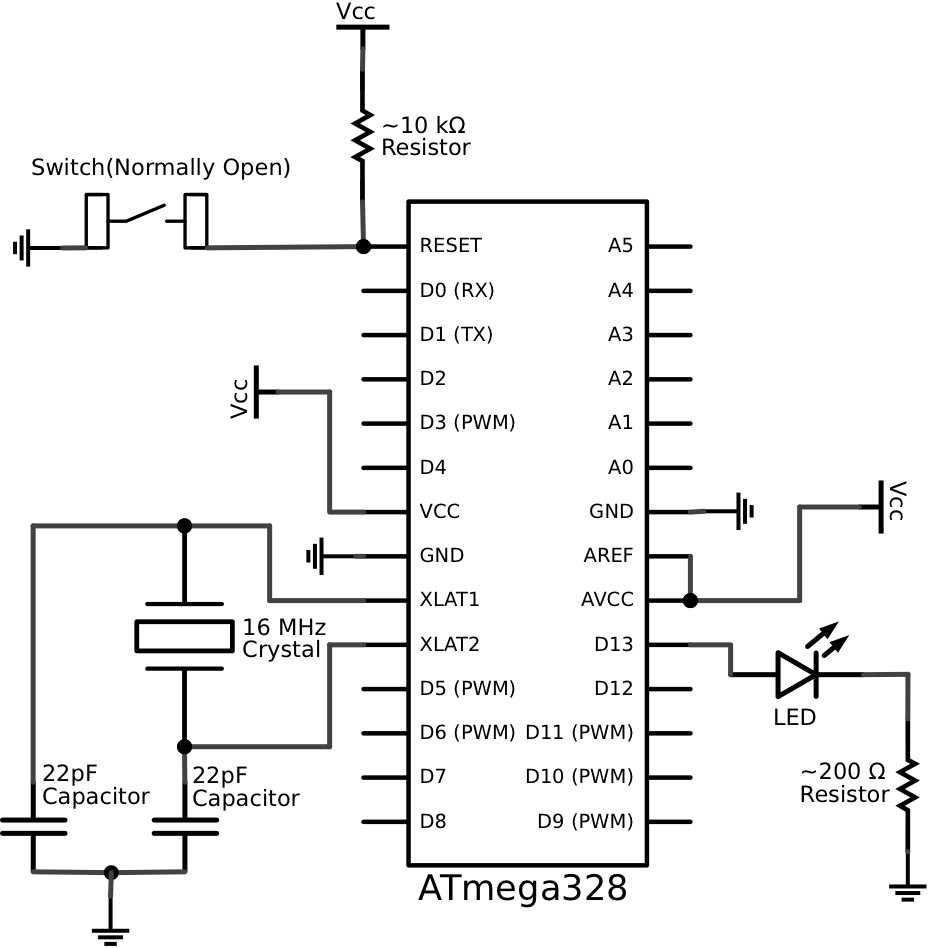

Crystal oscillator circuit requires precise component selection. The 16MHz crystal (Y1) connects between XTAL1/XTAL2 with two 22pF loading capacitors (C1, C2) to ground. Keep traces short and unidirectional–avoid routing signals under these lines. For minimalist designs, replace with a ceramic resonator but expect ±0.5% frequency tolerance.
- Test power integrity first: Verify 5V rail ripple stays below 50mV peak-to-peak with an oscilloscope.
- Check reset functionality: Momentary button (S1) pulls RESET low through a 10kΩ pull-up resistor–debris in the switch can cause intermittent failures.

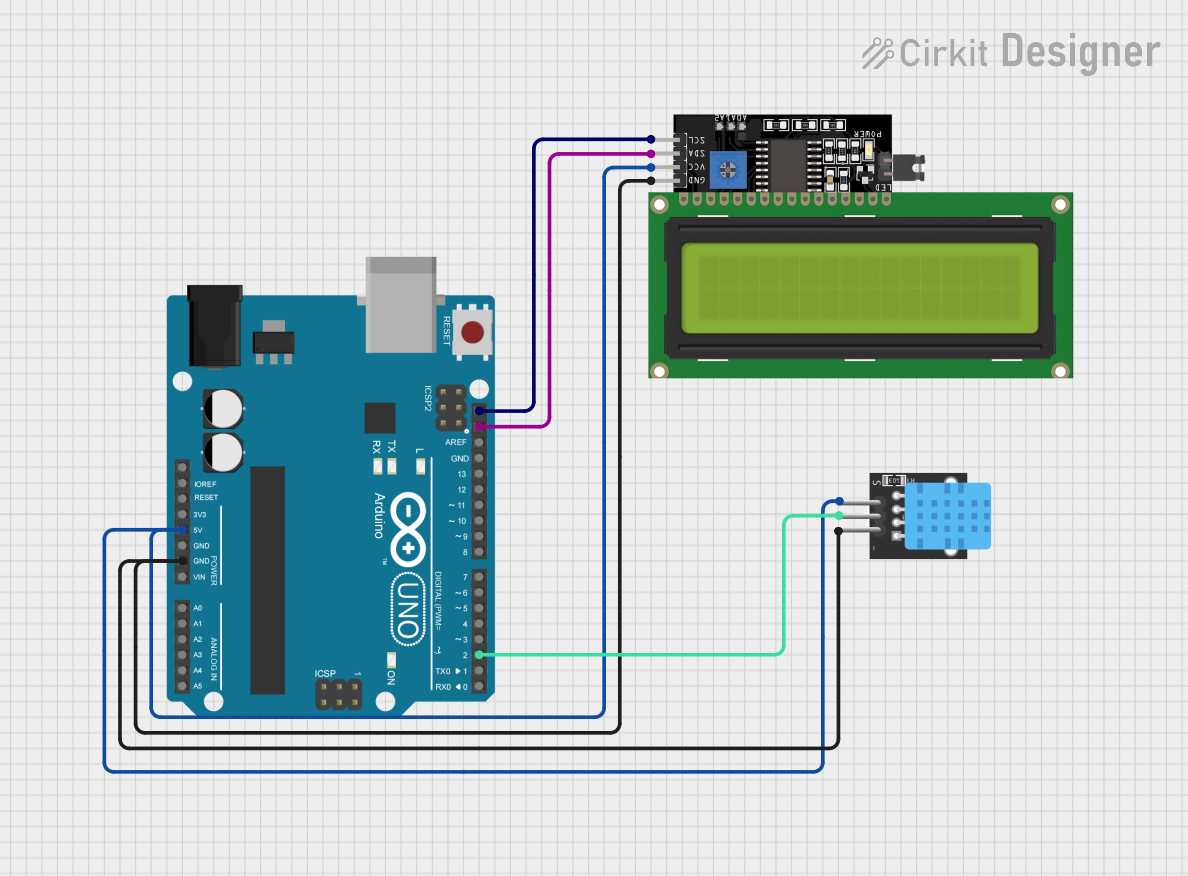

- Validate I²C/TWI: SDA/SCL (A4/A5) need 4.7kΩ pull-ups to VCC; omit resistors if the peripheral already includes them.
- Monitor avrisp header: 6-pin connector provides ICSP (MISO/MOSI/SCK), critical for bootloader recovery.
Thermal considerations affect long-term stability. The LP2985 regulator dissipates heat proportional to input voltage–operating at 12V may require a heatsink for high-current loads (>500mA). Copper pours under the MCU improve heat distribution but can introduce parasitic capacitance. For low-power applications, replace the regulator with a buck converter (e.g., AP2112) for 80%+ efficiency.
