Begin with the power management unit (PMU) section–locate U101 or equivalent on the PCB, marked as the primary voltage regulator. Verify input voltages at pins 5V_IN and VBAT, where tolerances should not exceed ±3% under load. If readings deviate, trace the path to the battery connector and inspect for cold solder joints or corroded terminals. Replace the PMU if output remains unstable; common failure codes include overheating or sudden shutdowns during charging cycles.
Examine the baseband processor next–identify IC301, typically a Qualcomm Snapdragon or Mediatek MTK chipset. Cross-reference pinouts with the manufacturer’s datasheet (e.g., MSM8996 for Snapdragon 820) to confirm digital signals like RXD, TXD, and CLK. Signal degradation often stems from cracked traces near EMI shielding; use a multimeter in continuity mode to test connections. Reflow solder joints if intermittent connectivity is detected.
For RF circuits, focus on the antenna switch module (Q502) and power amplifier (PA). Measure output power at the antenna port using a spectrum analyzer–expected values range between 23-27 dBm for GSM bands. If signal strength is weak, isolate the issue: check the PA’s enable pin (usually EN_PA) for 3.3V logic high. Clean flux residue near the RF section, as it can cause detuning.
Memory ICs (U401, flash and LPDDR) require precise voltage levels at VCC and VCCQ–typically 1.8V and 1.2V, respectively. Fluctuations here corrupt firmware, leading to boot loops. If the device fails to initialize, probe the data lines (D0-D15) with an oscilloscope; missing clock pulses indicate a faulty LPDDR chip. Replace the entire module if reflashing fails.
Debug charging circuits by verifying the USB controller (IC202) and battery fuel gauge (IC203). The fuel gauge should report accurate charge levels via I2C (SDA/SCL lines). If the device charges erratically, measure resistance across the thermistor (TH_PIN) to rule out faulty battery detection. Short circuits on the USB data lines (D+ and D-) often cause fast-charging failures–replace the USB port if corrosion is visible.
Display interfaces demand attention to the CPU-to-LCM flex cable. Inspect the connector (J801) for bent pins; liquid damage commonly corrodes the LABC and HSYNC lines. If the screen flickers, check the backlight driver (Q901) for proper PWM signal generation–dim lighting suggests a failed boost converter. Recalibrate the touch controller (U802) if unresponsive; factory resets often resolve software-related touch lag.
Blueprint Variations Across Handheld Electronics
Begin by identifying power circuits first–locate charging ICs, PMICs, and battery interface chips on any device layout. Apple’s A-series and Qualcomm’s Snapdragon platforms consistently use distinct clusters: PMICs sit adjacent to the USB-C or Lightning port, delivering 3.8V–4.4V regulated output, while buck converters step down power for RF, memory, and logic blocks independently. Samsung’s Exynos integrates power management into a single package, reducing PCB footprint but increasing fault isolation complexity–measure input/output capacitors at each stage to spot degradation before full failure.
- Advanced devices (e.g., iPhone 15, Galaxy S24) employ multi-layer PSUs with UFS 4.0 storage requiring 1.8V/3.3V lines–trace back to 12-layer boards where middle layers carry DDR5 signals; check vias for micro-fractures causing intermittent crashes.
- RF front-end modules differ per carrier band–sub-6GHz 5G chips (MediaTek Dimensity) demand separate PA/LNA pathways from mmWave antennas (Qualcomm X65); isolate signal chains using frequency-specific S-parameter testing.
- Camera subsystems rely on MIPI lanes: 4-lane CSI for primary sensors, 2-lane CSI for ToF/infrared–verify lane alignment with oscilloscope at 2.5Gbps speeds, eye diagram should show
Core Elements Depicted in Handheld Device Blueprints
Locate the power management IC first–it governs energy distribution across circuits. Verify its connections to the battery terminals, charging port, and voltage regulators. Mismatched traces here lead to sudden shutdowns, overheating, or failed charging cycles. Cross-reference the pinout with the manufacturer datasheet; counterfeit modules often swap pin functions.
Examine the RF transceiver section for antenna switches and impedance-matching networks. Trace the paths between the modem and antennas (main, diversity, and MIMO). A single mismatched resistor here drops signal strength by 20% or triggers desense. Use a spectrum analyzer to confirm signal purity–harmonics above -70 dBm indicate flawed filtering.
Inspect the baseband processor’s memory interfaces next. LPDDR channels must have symmetrical trace lengths within 50 μm tolerance; vias or stubs disrupt data integrity. Clock signals require clean termination–series resistors near the processor prevent overshoot. Skipped ground stitching near high-speed lanes increases EMI susceptibility.
Check the touch controller’s flex cable routing. Folded traces or sharp angles create parasitic capacitance, causing false touches. Shielding layers must overlap the sensor traces without gaps–unshielded segments pick up LCD noise. Calibrate the firmware thresholds after assembly; default values often misalign with physical sensor spacing.
Secondary Circuitry with Critical Impact
Trace the audio codec pathways–ground loops here produce buzzing. Separate analog and digital grounds; tie them at a single star point near the codec. Capacitors on the microphone input must match the codec’s recommended values; undersized ones distort voice clarity.
Review the camera module connections. MIPI lanes demand controlled impedance (85–110 Ω); taper traces if cross-sectional changes occur. Power sequencing matters–enable the primary rail before IO rails to prevent lock-ups. Decoupling capacitors closer than 2 mm to the image sensor suppress high-frequency noise.
Validate the GPS module’s LNA circuit. An active antenna requires 3.3 V bias through an RF choke; missing this disables satellite reception. Trace the coax from the antenna socket to the module–improper grounding here adds 10 dB noise floor. Verify the SAW filter’s insertion loss; degraded filters increase time-to-first-fix.
Confirm the SIM card interface’s pull-up resistors. Undervalued resistors (
Step-by-Step Guide to Interpreting Power Circuit Layouts
Locate the battery icon first–it marks the entry point for voltage. Trace the thickest lines from this symbol; these represent high-current paths, typically >2A, and handle charging, processor power, or display backlighting. Identify inductors (coiled symbols) next; they pair with capacitors (parallel lines) in buck or boost converters to regulate output. Check labels like “VBAT,” “VREG,” or “LDO” for exact voltage values–battery rails often run at 3.7V (nominal), while regulated rails drop to 1.8V, 1.2V, or 0.9V for sensitive components. If a line splits into three or four branches, prioritize the path leading to the PMIC (power management IC), usually a rectangular block with 20+ pins; this handles distribution.
Handling Short-Circuit Indicators
Scan for thermal fuses (rectangular outline with zigzag) or polyfuses (resistor symbol with “PTC”)–these interrupt current during overheating. Measure resistance across test points labeled “TP_VBAT” or “TP_GND” with a multimeter set to 200Ω; readings

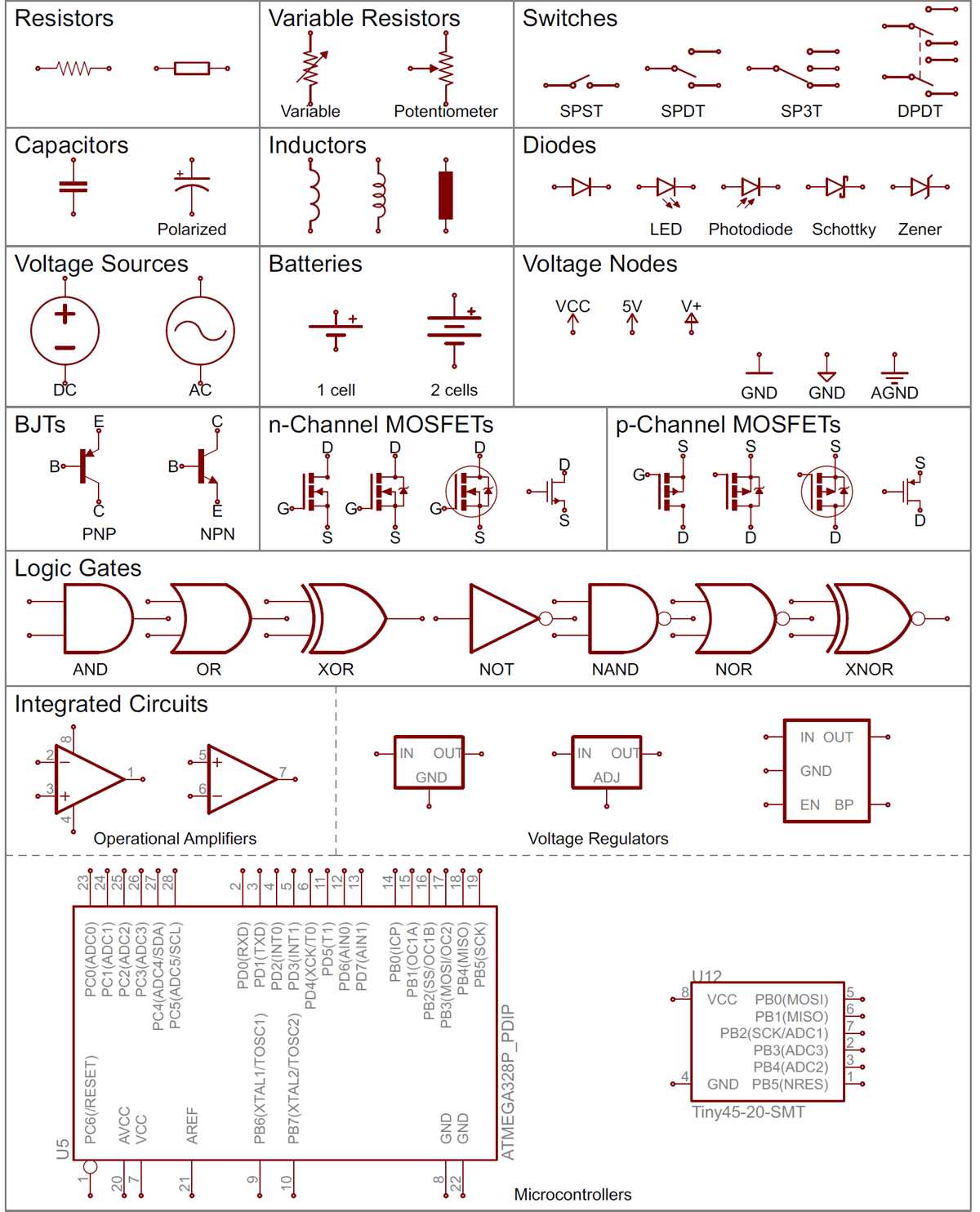

Key Graphical Elements and Their Roles in Handheld Device Circuit Blueprints
Always begin by identifying power rails–VCC (3.3V, 5V, or battery-specific), GND, and VBAT markers. These are universally depicted as horizontal thick lines or filled rectangles with consistent labeling conventions: VCC_MAIN for primary supply, VCC_IO for I/O interfaces, and VCC_CORE for processor logic. Check for fuse symbols (rectangle with an “F” or jagged line) adjacent to input power ports–these indicate ESD protection or overcurrent safeguards critical for lithium-ion battery paths. For quick verification, cross-reference resistor-capacitor pairs (rectangle with “R” + value and parallel curved line) near charging ICs; mismatched values here often signal faulty charging circuits in debugging.
Critical Component Icon Reference
| Symbol | Component | Functional Role | Debug Tip |
|---|---|---|---|
| ▭ (Rectangle with “U”) | PMIC/Processor | Power management, signal regulation, core processing | Trace adjacent decoupling capacitors (1μF–10μF) for noise filtering |
| ⚡ | MOSFET | Switching regulator, load switching | Check gate voltage thresholds (typically 1.8V–5V) |
| ↻ (Circular arrow) | Inductor | DC-DC conversion, RF filtering | Verify saturation current ratings (μH values often printed) |
| –▯– | Transmission line | RF/antenna paths | Ensure impedance matching (usually 50Ω) for NFC/WiFi traces |
| ┬ (T-junction) | Test point | Debug access | Prioritize continuity checks on TP_GND first |
Pay special attention to connectors–USB-C ports (16-pin endpoints) show distinctive pin clusters for CC, SBU, and VBUS. Label discrepancies (e.g., CC1/CC2 swapped) cause rapid battery drain or failed PD negotiations. For BGA packages, note thermal vias (small circles under ICs) linked to inner layers; missing vias lead to overheating in SoCs. Always correlate physical board measurements with diagram nets using a multimeter’s continuity mode–floating nets often indicate broken traces or cold solder joints.

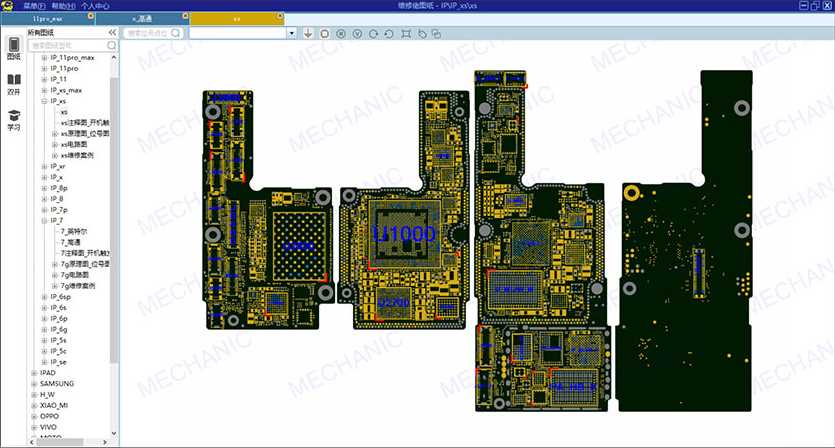

Tracing Signal Routes on Handheld Device Circuit Boards
Begin by identifying key components: the application processor (AP), power management IC (PMIC), flash memory, and RF modules. Locate their reference designators–typically labeled with prefixes like U (IC), C (capacitor), or L (inductor)–then follow the net labels connecting them. Most manufacturers use consistent naming conventions for power rails (VBAT, VCC, LDO_OUT) and data buses (MIPI_D0, I2C_SDA). Print the reference layout in layers or highlight sections electronically to avoid missing hidden traces beneath shielding.
Trace power delivery first. Starting from the battery connector, follow VBAT lines through input capacitors (C_in) to the PMIC’s buck converters (BUCK1, BUCK2). Each output (BUCKx_OUT) feeds a secondary filter (LC network) before reaching its destination IC. Check for pull-up resistors on enable pins (EN)–these often connect to GPIO lines from the AP. If a line disappears under a component, cross-reference the component’s pinout to confirm connectivity.
Debugging Discontinuities
Use a multimeter in continuity mode to verify physical connections when net labels diverge unexpectedly. Probe directly on via edges or test pads, avoiding solder mask. For differential pairs (USB_DP/DM, MIPI_CLK/DATA), confirm matched impedance (usually 90Ω ±10%) using a TDR or time-domain reflectometer. If traces split between the main logic board and daughterboards (camera flex, SIM tray), locate the flex connector symbol (J701 etc.) and confirm pin assignments against the mechanical drawing.
Isolate interference sources by identifying high-speed signals crossing near power planes or under noisy components (switching regulators, RF transceivers). Look for stitching vias around sensitive nets–they reduce EMI by tying ground planes together. For serial interfaces (I2C, SPI), verify pull-up/down resistors on data/clock lines; typical values are 4.7kΩ–10kΩ. If a signal vanishes, search the netlist for series resistors, ferrite beads, or ESD diodes that might introduce unexpected drops.
