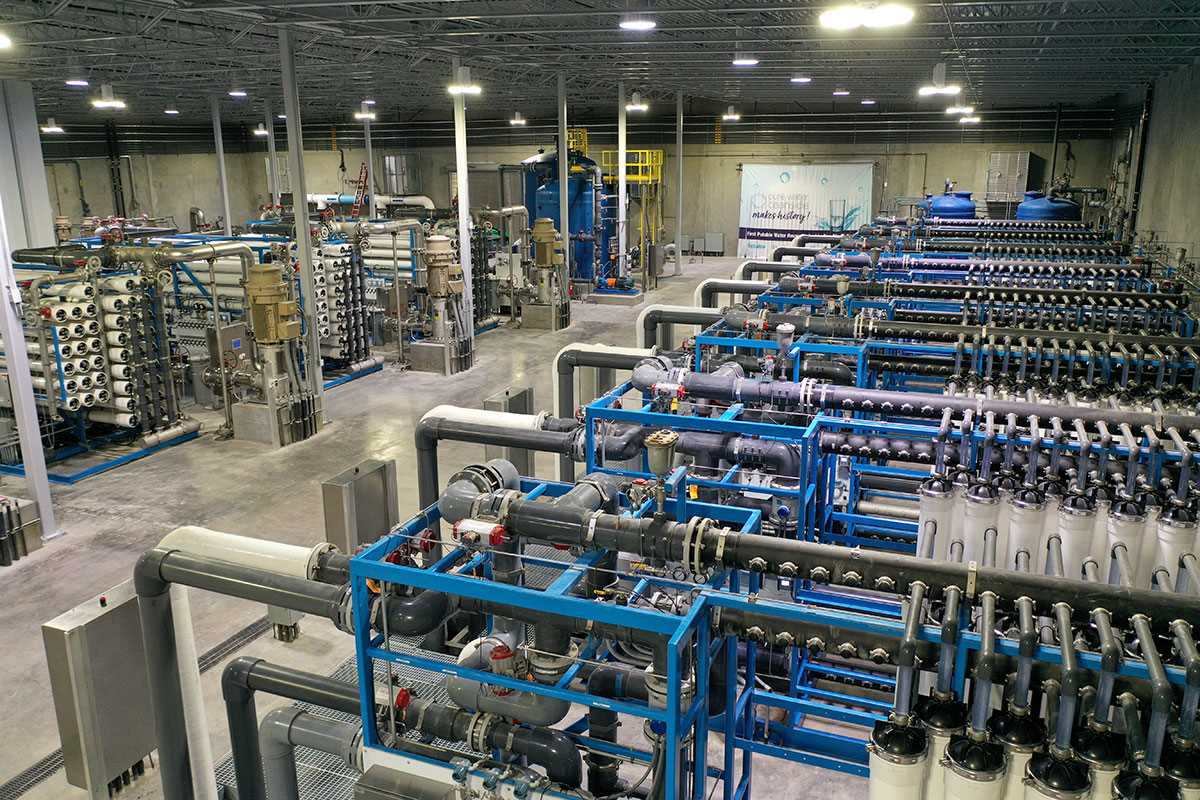

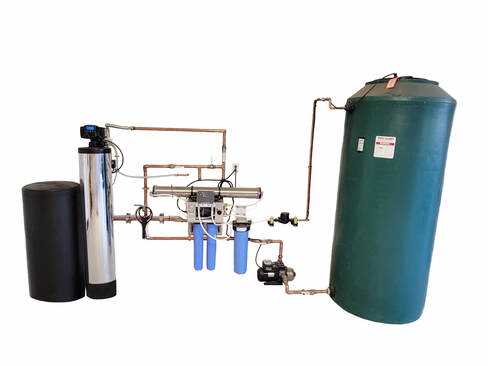

For large-scale municipal purification plants in arid climates, integrate multi-stage reverse osmosis units rated for 50–100 gallons per minute (GPM) with dual-media pressure filters. This setup ensures 99.9% removal of total dissolved solids (TDS) below 500 parts per million (ppm), critical for regions with brackish groundwater or variable salinity from ocean proximity. Pre-treat with 20–50 micron disc filters to prevent membrane fouling–clogs from sand or organic debris increase operational costs by up to 30% annually.
Select 316 stainless steel piping for high-pressure sections; schedule 80 thickness withstands 150 psi bursts without corrosion, even in chloride-rich environments. Include variable frequency drives (VFDs) on feed pumps–adjusting flow rates based on real-time conductivity sensors cuts energy consumption by 18–22%, directly measurable in kilowatt-hour (kWh) reductions on utility reports.
Incorporate ultraviolet (UV) reactors post-membrane as a secondary disinfection barrier. Units rated at 40 mJ/cm² eliminate resistant pathogens like *Cryptosporidium* without chemical residuals. Cross-reference lamp intensity with flow rate–every 1 GPM above 20 requires an additional 30 W of UV output to maintain efficacy. Avoid mercury-based lamps; low-pressure amalgam alternatives last 12,000 hours with 95% output consistency.
Locate centralized monitoring panels adjacent to high-load components–real-time alerts for pressure drops >15% or pH fluctuations beyond 6.5–8.5 prevent irreversible fouling. Use PLC-controlled backwash cycles (backwash every 48 hours for 3 minutes at 1.5x forward flow) to extend carbon filter life to 3–5 years. Document all calibration records; deviations in turbidity meters (±0.02 NTU) correlate directly with regulatory violations under California Title 22.
Flowchart of Purification Infrastructure in Southern California
Begin by identifying raw intake sources: the Colorado River Aqueduct delivers 50% of municipal supplies, while local reservoirs contribute another 30%. Allocate preprocessing zones–coarse screening at 1-mm mesh size–to eliminate debris exceeding standard sediment thresholds. Integrate automated backwash filters with 10-micron absolute ratings downstream to handle seasonal turbidity spikes up to 20 NTU. Position flow meters at each stage to maintain 3.2 MGD throughput per treatment train, preventing bottlenecks during peak demand periods.

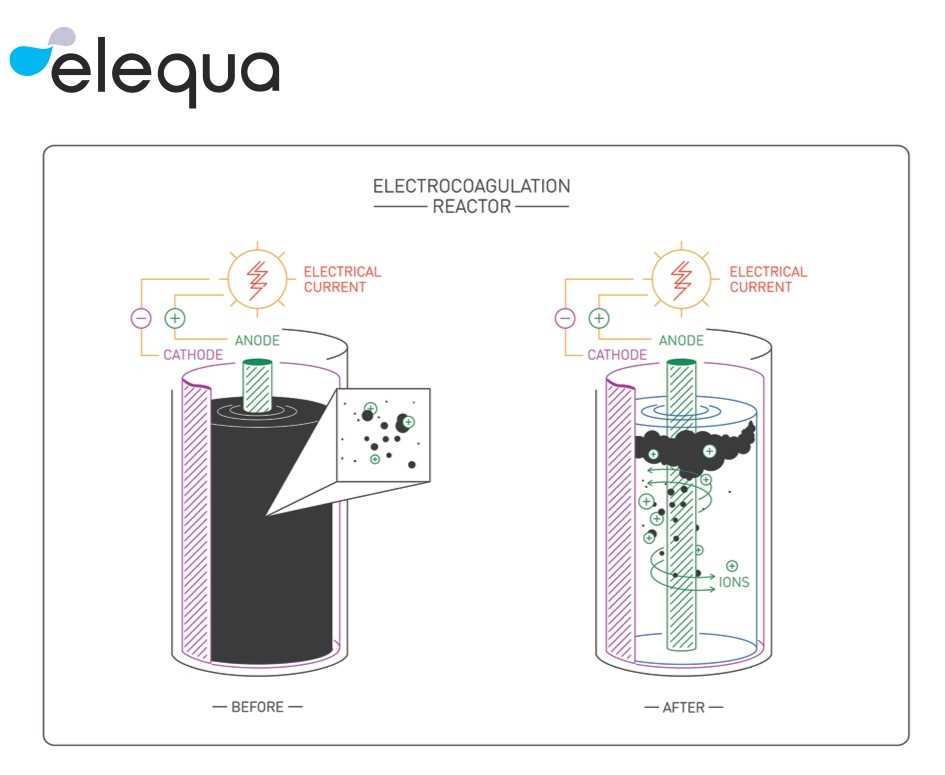

Implement a three-stage coagulation-flocculation sequence using ferric chloride dosed at 15–22 mg/L, calibrated via jar tests for local hardness levels around 160 mg/L CaCO₃. Settling basins must incorporate plate settlers tilted at 55 degrees to achieve 95% solids removal within 2.5-hour retention windows. Secondary disinfection requires UV reactors with medium-pressure lamps operating at 70 mJ/cm², supplemented by chloramine residual targets of 1.8–2.2 ppm post-filter to ensure distribution network compliance.
Critical Filtration and Disinfection Metrics
| Component | Parameter | Target Value | Tolerance |
|---|---|---|---|
| Rapid sand filters | Bed depth | 1.2 m | ±5% |
| Activated carbon | Empty bed contact | 10 min | ±1 min |
| Reverse osmosis | Salt rejection | ≥99% | -0.5% |
| Ultrafiltration | Flux rate | 75 L/m²·h | -10 L/m²·h |
Integrate real-time TOC analyzers at post-carbon filtration to trigger anion exchange bypass when organic loads exceed 2 mg/L. Equip all high-pressure pumps (180 psi) with VFD controllers programmed for ±8% flow modulation to accommodate overnight demand drops without pressure surges. Reserve 15% of facility capacity for emergency bypass scenarios during source contamination events, ensuring uninterrupted supply compliance with SDWA Stage 2 DBP regulations.

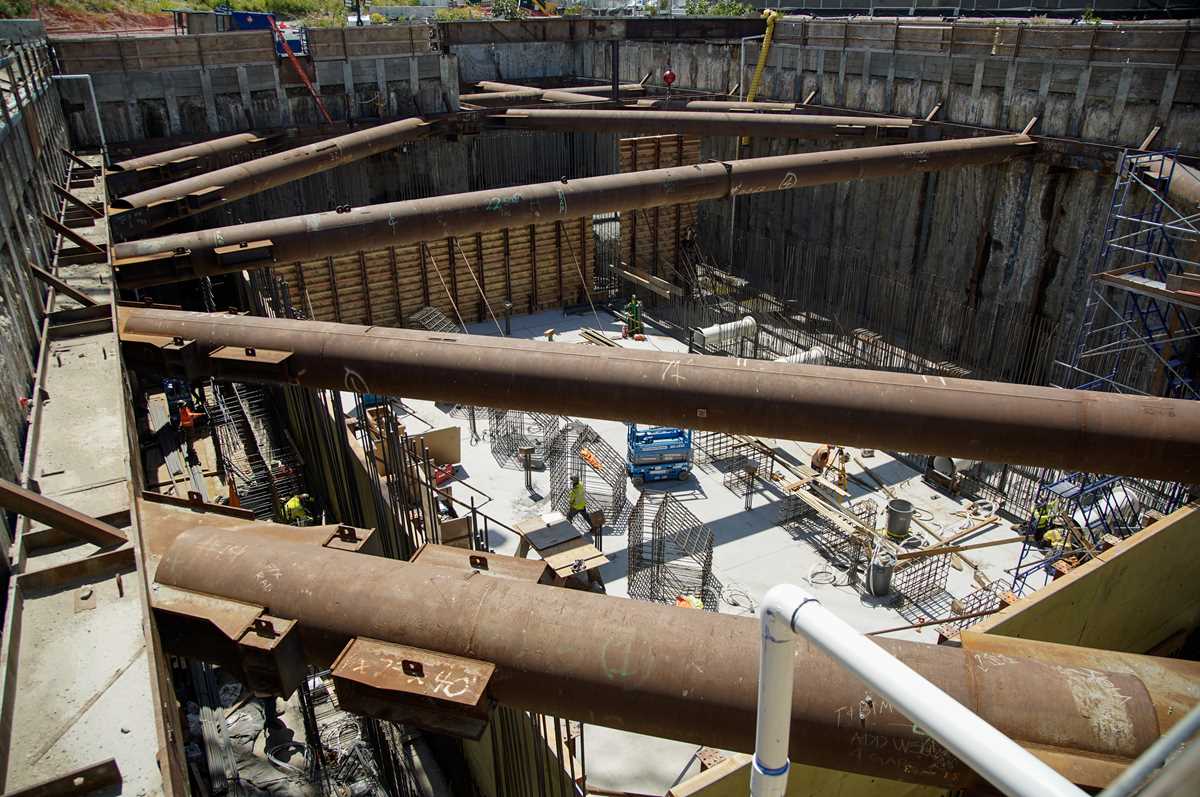

Core Elements of the Regional Purification Infrastructure
Prioritize intake structures with dual-barrier screening at Otay and Miramar reservoirs, removing debris ≥5mm via 316-grade stainless steel mesh. Pair this with pre-chlorination at 1.5–2.0 mg/L to neutralize 99% of coliform bacteria before coagulation, reducing downstream chemical demand by 12–15%.
Flocculation tanks must incorporate tapered energy input–gradual G-values decreasing from 80 s⁻¹ to 20 s⁻¹ over 30 minutes–to optimize particle agglomeration without shearing delicate flocs. Use polyaluminum chloride (PACl) with a basicity ratio of 50–70% for stable performance across seasonal temperature swings (12–28°C).
Gravity sedimentation basins require a surface loading rate of 0.8–1.2 m³/m²·h to capture 95% of settleable solids while minimizing short-circuiting. Install lamella plates at 60° angles for a 4x increase in effective settling area; ensure sludge withdrawal every 4–6 hours to prevent anaerobic decay and hydrogen sulfide formation. Secondary disinfection should rely on ozone at 0.4–0.6 mg/L residual for Cryptosporidium inactivation (CT value ≥10 mg·min/L), supplemented by UV reactors with medium-pressure lamps (254 nm) at 40 mJ/cm² for adenovirus log-4 removal.
Post-treatment stabilization demands a calcite contactor (bed depth ≥1.5 m) to raise pH from 6.8–7.2 to 8.0–8.5, preventing lead and copper leaching in distribution networks. Integrate real-time monitoring at critical nodes–turbidity ≤0.1 NTU, chlorine residuals ≥0.2 mg/L–with automated feedback loops to adjust coagulant dosages within 30 seconds of raw supply fluctuations.
Interpreting Process Flow Indicators and Conduit Paths in Facility Blueprints
Begin by locating the legend–often in the bottom corner–where symbols for valves, pumps, and flow indicators are defined. The arrows on the layout follow a strict convention: a solid arrowhead denotes the actual direction of liquid movement, while an open arrowhead may mark a controlled vent or bypass. If the line changes thickness, the wider segments typically represent main supply lines, while thinner ones show secondary feeds or sampling points.
Trace each conduit path backward from the endpoint tanks or discharge zones. A sudden jog in the pipeline–especially a 90-degree turn without a fitting label–usually conceals an inline piece of equipment, such as a filter or pressure regulator. Look for a small square or circle adjacent to the jog; these often signify measurement instruments like flow meters or pressure gauges.
Color-coding varies by firm but commonly uses blue for raw input, green for treated output, and red for chemical dosing lines. Shading differences sometimes indicate pipe material: solid gray for steel, cross-hatched yellow for PVC, diagonal stripes for copper. Verify these meanings against the legend, as some plants reverse the scheme for high-temperature or corrosive streams.
When two arrows collide at a tee or cross junction, priority follows the arrow with the tighter arrowhead angle–this line maintains continuous flow while the intersecting path yields or merges. A double-headed arrow at a valve cluster signals a manifold that toggles between multiple destinations. Always check for nearby instrument tags, as they often specify the selector mode or setpoint required for proper routing.
Isolate each branch by mentally omitting adjacent run segments. This exercise reveals hidden components–for example, a short segment terminating in a circle frequently denotes a sampling port or quick-disconnect coupling. If an arrow abruptly stops without an endpoint symbol, suspect an oversight in the rendering; compare against neighboring branches to infer whether the conduit loops back or dead-ends into a drain.
Decoding Instrumentation and Control Annotations
Numbers inside hexagons or diamonds indicate process parameters: the upper figure is typically the target value, the lower the alarm threshold. For instance, “25 / 18” beside a pump curve means the unit is designed for 25 units of flow but alarms below 18. Rounded rectangles framing arrows usually point to manual override switches; rectangles with cut corners signal automatic controllers that adjust based on sensor feedback.
Shorthand abbreviations next to actuators reveal function without requiring additional drawings: “MOV” for motor-operated valve, “AOV” for air-operated valve, “PSV” for pressure safety valve. Look for “A/M” toggles–these toggle between automatic and manual modes–and note whether the default position arrow points left (auto) or right (manual). In multi-page layouts, a boxed number above the arrow references the continuation page where that particular stream resumes.
Vertical arrows labeled “CHK” or bearing a one-way arrow symbol indicate check valves that prevent backflow. Where these intersect horizontal mains, a small T-bar perpendicular to both arrows confirms a swing-check style. Absent such a bar, expect a spring-loaded inline disk that clicks when pressure reverses, offering tangible feedback during startup walkthroughs.
Heat exchangers appear as pairs of parallel arrows facing opposite directions. The inward-facing arrow marks the process side receiving treatment; the outward marks the utility side–chilled, steam, or ambient fluid returning to its source. Dashed circles around inlet/outlet flags warn of potential thermal stresses; plan flange torquing sequences accordingly to avoid warping during thermal cycling.
Step-by-Step Purification Cycle for Filtration Modules in Urban Infrastructure
Initiate coarse screening at intake points using 500-micron stainless steel mesh panels to intercept debris, sediment, and aquatic vegetation before entry into primary chambers. Install automated brush-cleaning mechanisms operating at 15-minute intervals to prevent clogging; verify mesh integrity monthly via ultrasonic thickness gauges calibrated to ±2 microns. Failure to maintain this stage reduces downstream efficiency by up to 40%, increasing backwash frequency.
Proceed to multimedia beds containing sequentially layered anthracite (1.4-1.6mm), sand (0.45-0.55mm), and garnet (0.2-0.3mm) at depths of 18″, 12″, and 4″ respectively. Apply a filtration rate of 2.5 gallons per minute per square foot (gpm/ft²) with turbidity targets below 0.1 NTU; exceedance triggers alarms and diverts flow to standby modules within 90 seconds. Monitor differential pressure across beds hourly–readings above 8 psi indicate immediate backwash need using air scour (3-5 scfm/ft²) followed by water rinse (15-20 gpm/ft²) for 12-15 minutes.
Activate granular activated carbon (GAC) contactors with empty bed contact time (EBCT) of 7-10 minutes to adsorb organic contaminants, pesticides, and taste/odor compounds. Replace GAC every 12-18 months based on breakthrough curves for total organic carbon (TOC), targeting >90% removal efficiency; alternative coconut-shell based carbon extends lifecycle by 25% but requires pre-wetting to avoid channeling. Install online TOC analyzers with dual-channel redundancy to detect failures within 30 seconds.
Critical Post-Filtration Stages
- Inject sodium hypochlorite (12.5% solution) at 1.5-2.0 mg/L post-GAC to ensure 0.2 mg/L free chlorine residual at point-of-use; verify via DPD colorimetric tests every 4 hours. Overdosing risks DBP formation–limit bromate to
- Deploy 0.2-micron hollow-fiber ultrafiltration membranes with 95% recovery rate; operate at
- Finalize with UV reactors (40 mJ/cm² dose) at 254 nm wavelength to inactivate protozoa (3-log Cryptosporidium reduction). Install redundant lamps with automatic switchover; replace annually or at 80% output degradation, whichever occurs first.
Route reject streams from backwash and membrane cleaning to equalization tanks with 6-hour retention time. Neutralize pH to 6-9 using sulfuric acid or sodium carbonate, then pass through sludge blanket clarifiers (loading rate 0.5 gpm/ft²) before dewatering via centrifuge (35-40% cake solids). Classify residuals based on EPA Part 503 regulations–landfill if metals exceed Table 1 limits, incinerate if pathogens persist.
Integrate SCADA controls with PID loops to modulate pump speeds (VFD-driven) based on influent conductivity (±20 µS/cm target) and flow rates (≤2% deviation from setpoint). Trigger shutdown sequences if:
- Chlorine residual drops below 0.1 mg/L for >1 minute,
- TMP increases >10 psi over baseline, or
- TOC removal falls below 85% for 3 consecutive readings.
Configure historian database to retain 24 months of data with 1-second resolution for forensic analysis.
