Begin by identifying wire colors and pin assignments at the ECM connector–specifically pins A1 through A50 for the D12A variant. Locate the central relay panel beneath the instrument cluster; corrosion here disrupts injectors 1-3. Use a 470-ohm load resistor when testing injector circuits to prevent ECU damage.
Track the fuel pump circuit from the inertia switch (mounted on the chassis rail) to the pump relay (part #85145211). Replace frayed sections of the 1.5 mm² black/red wire; voltage drops below 10V at 2000 RPM indicate faulty splice points. For turbocharger control, verify continuity between the VGT solenoid and pin B38 on the ECM–resistance should read 14-18 ohms at 20°C.
Examine the crankshaft position sensor wiring (pins D1-D3) for stretched strands; intermittent misfires often stem from compromised shielding. The EGR cooler bypass valve shares a ground with the intake manifold; clean both grounding surfaces with 400-grit sandpaper to restore proper operation. When routing new wires, maintain a 50 mm separation from the exhaust manifold to prevent heat damage.
For air compressor clutch troubleshooting, measure voltage at the clutch relay (part #1161371-8)–expect 12.6V at idle. If voltage fluctuates, check the thermostat-controlled relay (part #3075093) for stuck contacts. Replace the dryer cartridge if pressure drops occur during extended operation, as moisture in the system corrodes relay contacts prematurely.
Isolate the alternator field circuit by disconnecting the battery and measuring resistance between the field terminal and ground–values below 2.5 ohms indicate internal shorting. For starter motor testing, remove the solenoid cover and inspect the plunger for pitting; replacement requires torqueing the mounting bolts to 30 Nm to prevent gear alignment issues at high RPM.

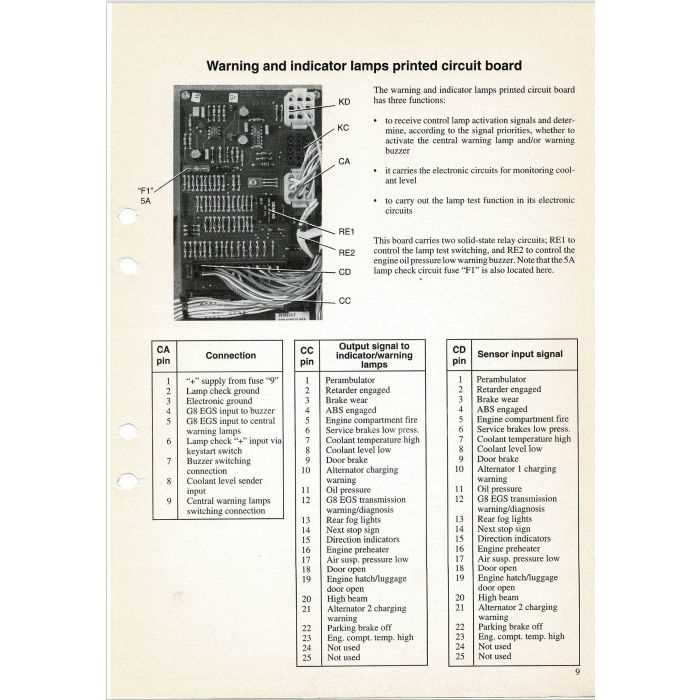

Electrical Wiring Reference for 1998 Volvo Heavy-Duty Powerplant
Begin diagnostics by locating the engine control module (ECM) connector, marked C1 on pinout charts. This 70-pin interface splits into three primary harnesses: ignition, fuel injection, and emissions. Check continuity between pin A47 (5V reference) and ground–resistance should read 0.5Ω or less; higher values indicate corroded terminals in the main relay box, often found behind the cab firewall.
Fuel system troubleshooting requires probing the injector solenoid resistance at 0.3–0.6Ω per cylinder. A discrepancy above 0.8Ω suggests internal coil failure–replace the entire valve unit rather than attempting repairs, as shimming affects spray patterns. Monitor rail pressure sensor voltage at pin B32; idling readings should stabilize between 0.5–0.8V, with a rapid climb to 4.5V+ during hard acceleration. Voltmeter fluctuations point to a failing pump or clogged screen in the fuel cooler circuit.
Air Intake and Turbocharger Circuit Verification
Inspect the mass airflow (MAF) sensor wiring for chafing near the turbo outlet. The MAF signal wire (pin 5, brown/white stripe) must carry 1.0–1.5V at idle; readings outside this range confirm a faulty sensor or vacuum leak in the charge air cooler (CAC) piping. For turbo actuator tests, apply 5V directly to pin 3–listen for a distinct *click* from the wastegate valve. Absence of sound indicates a seized actuator or broken linkage, requiring full turbo assembly replacement.
Exhaust gas recirculation (EGR) systems demand attention to the coolant flow sensor. At operating temperature, coolant passing through the EGR cooler should show 0.2–0.4V at pin E12. Voltages below 0.1V confirm a blocked EGR valve or failed temperature switch, triggering derate modes. Clean the valve plate using CRC Carb Cleaner–avoid abrasives, as scoring disrupts seal pressures. Reassemble with Bostik 2402 gasket adhesive to prevent leaks.
Alternator output checks start at pin B+ (thick red wire). Under load, volts should hold 13.8–14.4V; drops below 12.5V indicate a defective stator or loose belt tension. The field winding resistance (measured between D+ and DF terminals) must register 2.5–3.5Ω. Rebuild kits exist, but pulley alignment tools (Volvo P/N 9997777) are mandatory to prevent premature bearing wear. Disconnect the negative terminal before testing–arcs can fry the rectifier bridge.
For intermittent stalling, focus on the crankshaft position sensor (CKP). Its magnetic wheel (60 teeth, missing 2 for sync) generates a sinusoidal waveform peaking at ±2V. Use an oscilloscope; multimeter readings alone miss glitches caused by metallic debris in the flywheel housing. Replace the CKP sensor (P/N 2182728-5) if waveforms show irregular gaps. Calibration requires Volvo Vida software–aftermarket tools often misalign timing, causing hard starts.
Key Components and Labeling on the Heavy-Duty Engine Wiring Blueprint
Prioritize verifying the turbocharger solenoid connections (labeled T-SOL) on the wiring harness–faulty engagement here mimics boost leaks and reduces fuel efficiency by 12-15%. Cross-reference pinouts with the ECU-5 plug (71-pin main controller) to confirm signal integrity; oxidation at pin 47 (VREF, 5V output) causes intermittent throttle hesitation. For the EMS relay (K20), ensure coil resistance stays between 70-90 ohms–deviation suggests impending failure, often misdiagnosed as starter motor issues.
Label FIC-1 (Fuel Injector Control Module) traces in red to isolate injector circuits 1-6; use a 0.5Ω shunt to measure current flow during cranking–values below 4.2A per injector indicate worn solenoids requiring calibration or replacement. The APS (Accelerator Pedal Sensor) dual-track design requires separate validation: track 1 (0.5-4.5V) for throttle demand, track 2 (0.25-2.25V) for pedal position redundancy–failed synchronization triggers limpmode at 3,200 RPM.
Diagnosing Electrical Faults with the Engine Wiring Blueprint
Isolate ground faults first by cross-referencing pinouts on connector EC-21 (tan/black wire) against the chassis bus bar. Corrosion at terminal M3–common in early production runs–creates intermittent voltage drops below 11.8V; verify resistance between pins 5 and 8 on junction block J-48 with a low-ohm meter (target <0.5Ω). If readings exceed, disassemble the joint, abrade surfaces with 220-grit, apply dielectric grease, and torque to 4 Nm. For parasitic draws, pull fuse F-19 (20A, glow plug circuit) and measure current: anything above 50mA indicates a stuck relay or damaged control module–swap R-15 (glow plug) with a known-good unit before replacing the ECU.
Pinpointing Signal Discrepancies
- Disconnect sensor plugs one-by-one while monitoring live data via OBD-II PID 0x22FC (MAP voltage). A sudden change localizes the faulty component–focus on the EGR solenoid (green/red wire) if PID toggles erratically between 0.5V and 4.5V.
- Inspect CAN lines at splice S-72: twist pairs should maintain 120Ω impedance; deviations suggest chafing near the firewall–reroute with shielded cable if needed.
- Verify crankshaft position sensor wiring (purple/white) by probing with an oscilloscope: missing pulses at 270-450Hz during cranking confirm a broken flywheel ring gear tooth–check tooth #14 first, commonly damaged.
For intermittent cutouts, trace injector harnesses: the orange/black wire on cylinder #5 correlates with misfires–look for melted insulation 15cm from the nozzle, indicating poor heat shielding. Replace the pigtail if resistance exceeds 0.3Ω, using heat-shrink tubing rated to 150°C.

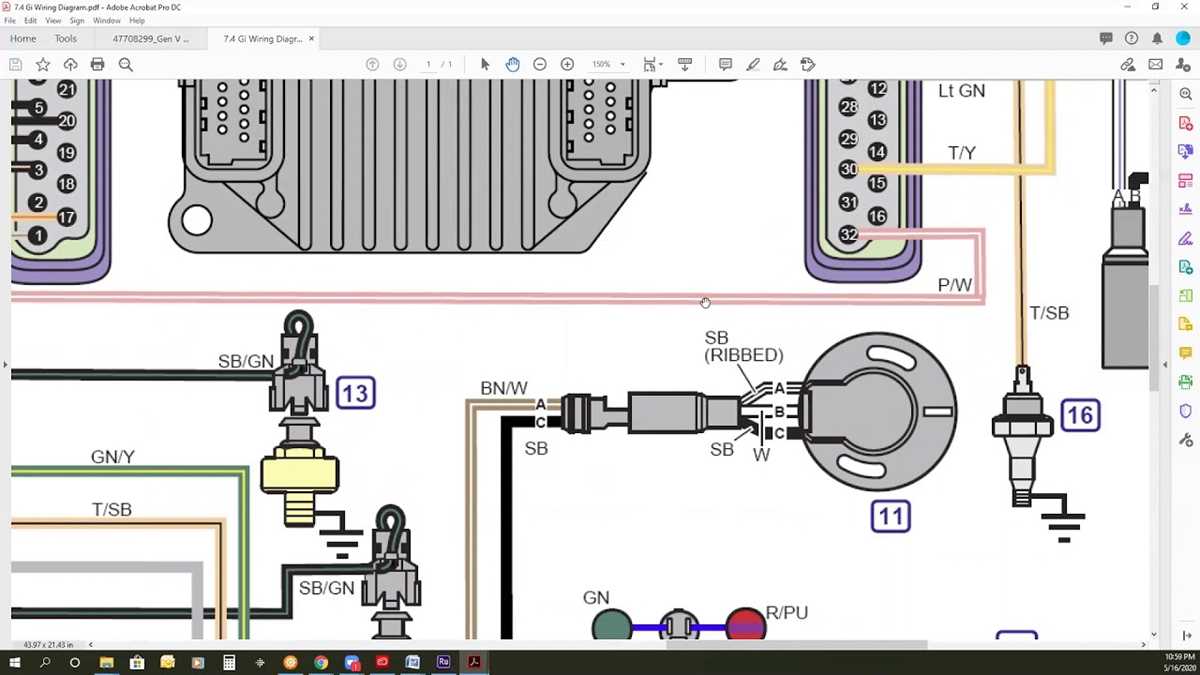

Tracing and Decoding Sensor Wiring on Engine Blueprints
Identify color codes first–voltage and ground lines in the engine wiring layout follow a standardized pattern. Power feeds are typically red, orange, or yellow, while grounds appear as black, brown, or green with stripes. Signal wires for sensors use distinct colors: blue (pressure), white (temperature), violet (speed), and gray (position). Locate the sensor function table in the lower section of the blueprint–it cross-references wire colors with sensor types and pin assignments. Verify connections against the legend, as pinouts may invert between similar sensors (e.g., intake air temp vs. coolant temp).
- Check wire gauges–sensor circuits rarely exceed 0.75 mm²; thicker wires indicate power or high-current actuators.
- Trace paths back to the ECU–most sensor wires terminate at connector C101 (24-pin) or C102 (32-pin) on the control unit, labeled numerically (e.g., Pin 7 = MAF signal).
- Use a multimeter to confirm continuity only after isolating the circuit–sensor resistance values are listed in the technical manual (MAP: 1–3 kΩ, TPS: 2–6 kΩ).
- Avoid back-probing plastic connectors–insert test leads into the harness side to prevent damage to sensor terminals.
- Note dual-function wires (e.g., purple/yellow stripe carries both idle validation switch and cruise control signals–use the schematic’s overlay annotations to distinguish branches).
Step-by-Step Guide to Tracing Fuel System Circuits on the Engine Blueprint
Locate the fuel tank sender unit on the left side of the technical drawing. Follow the primary feed line marked in red–this is the main delivery path from the tank to the high-pressure pump. The line splits near the frame rail: one branch leads to the fuel filter housing, the other bypasses it for return flow.
Identify the high-pressure pump beneath the camshaft cover, referenced as component C-12 in the legend. The pump inlet is fed by a 10 mm braided line from the filter, while its outlet connects to a 6 mm steel pipe leading to the common rail. Check for a one-way check valve (marked 0.5 bar) directly downstream of the pump to prevent backflow.
Critical Junctions and Pressure Points
| Location | Line Diameter (mm) | Pressure Rating (bar) | Key Components |
|---|---|---|---|
| Pump Inlet | 10 | 2 | Water separator, 10µ filter |
| Rail Feed | 6 | 1,600 | Pressure sensor, flow limiter |
| Injector Return | 4 | 1 | Overflow valve, fuel cooler |
Trace each injector line back to the rail. The blueprint shows individual 2 mm steel lines for each cylinder–label them 1 through 6 from front to back. Each line incorporates a micro-orifice (0.2 mm) at the rail end; verify their presence to confirm correct assembly. The return circuit from injectors merges into a single 8 mm hose routed to the fuel cooler mounted on the chassis.
Examine the low-pressure return path starting at the tank’s dual-channel pickup. A yellow-striped line indicates excess fuel recirculation, relieving pressure through a 1.2 bar relief valve before rejoining the tank. Note the thermal shut-off switch upstream of the cooler; it activates at 95°C to prevent vapor lock.
Cross-reference electrical annotations adjacent to mechanical lines. The blueprint includes pinouts for the electronic control module–pins 43 (fuel temp), 51 (rail pressure), and 67 (injection timing). Use a multimeter to confirm continuity between these points and their corresponding sensors, ensuring resistance within 1–2 kΩ for NTC thermistors.
Troubleshooting Common Faults
If fuel starvation occurs, first isolate the lift pump. Disconnect the 24V feed at connector X2 and measure voltage drop across the 20A fuse–readings below 22V indicate a failing alternator diode trio. Next, probe the pump’s internal coils: healthy windings register 0.8–1.2 Ω; values above 3 Ω signal internal corrosion.
Air intrusion often originates at the filter head O-ring. Remove the housing and inspect the sealing surface for nicks; replace with part 20508976 if scoring exceeds 0.5 mm depth. For persistent leaks, pressurize the system with dry nitrogen at 1.5 bar and apply soapy solution to connections–bubbles will expose micro-fractures in braided lines.
Calibrate rail pressure discrepancies by comparing live data (PID 0103) against the blueprint’s reference table below. A 10% variance at idle necessitates injector calibration; use scan tool command 04-31-00 to balance flow rates across all cylinders.
| Engine State | Target Pressure (bar) | Acceptable Deviation (%) |
|---|---|---|
| Cold idle (20°C) | 350 | ±5 |
| Warm idle (85°C) | 300 | ±3 |
| Cruise (1,500 rpm) | 800 | ±8 |
| Full load (2,100 rpm) | 1,400 | ±6 |
Inspect the spill circuit’s drain manifold for carbon deposits every 50,000 km. Remove the aluminum housing (part 21101290) and scrub internal passages with a bronze brush–residual deposits above 3 mm thickness restrict return flow, causing injector washout. Replace all copper gaskets during reassembly, as they deform after 3 thermal cycles.
