Identify the correct pin layout for your head unit installation by referencing the OEM documentation specific to your vehicle model. Most manufacturers provide standardized connectors, but variations exist–particularly in aftermarket upgrades. Use a multimeter to verify wire functions (constant power, switched ignition, ground) before making permanent connections. Mismatched configurations can damage components or lead to intermittent failures.
For precision, isolate the 12V constant power source (typically a yellow wire) and confirm it maintains voltage with the key off. Switched ignition wires (red) should activate only when the engine starts. Ground connections (black) must terminate directly to the chassis–avoid splicing into existing bundles, as corrosion or resistance can disrupt signal clarity. Aftermarket adapters often simplify integration, but review the harness diagram to ensure compatibility with amplified speaker systems.
Signal interference remains a common issue in audio installations. Route power cables away from RCA or fiber-optic lines to prevent noise induction. Use twisted-pair wiring for speaker outputs to reduce electromagnetic cross-talk. If distortion persists, verify the amplifier’s gain settings and check for damaged insulation on vulnerable wires near heat sources or moving parts. Solder joints are superior to crimped connectors for long-term reliability.
Test each channel individually before final assembly. A systematic approach eliminates guesswork–start with the front left speaker, then progress to volume controls, antenna triggers, and mute circuits. Store original pins if removing factory harnesses, as reverse-engineering may be necessary for future diagnostics. Always disconnect the battery before handling bare wires to avoid short circuits.
Understanding Aftermarket Head Unit Connection Layouts

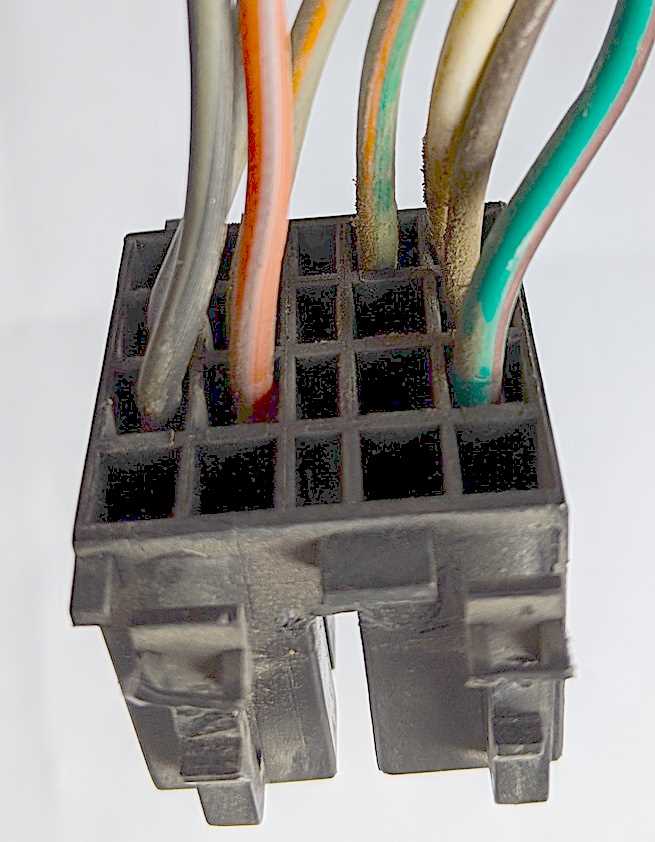

Begin by identifying the vehicle-specific pinout guide for your car’s harness adapter. Most 2000–2015 models require a 16-pin ISO connector, with terminal assignments varying by manufacturer–Ford typically places constant 12V on pin 4, while VW uses pin 7. Use a multimeter set to DC 20V to verify power sources; expected readings should match the table below:
| Pin | Function | Expected Voltage | Wire Color (Common) |
|---|---|---|---|
| 3 | Illumination | 0–12V (varies with dimmer) | Orange/white |
| 4 | Battery (+) | 12V continuous | Yellow |
| 7 | Ignition (+) | 12V when key is on | Red |
| 8 | Ground (–) | 0V | Black |
| 10–16 | Speaker outputs (±) | 4–8Ω impedance | Varies (pair colors) |
For vehicles with CAN bus systems, retrieve the bus speed and termination resistance values before connecting–common values are 500 kbit/s with 120Ω resistors. If interfacing with steering wheel controls, locate the resistive ladder network output on the existing stereo harness; typical values range from 0Ω (volume down) to 5kΩ (seek up). Always solder and heat-shrink joints to prevent corrosion; crimped connectors may fail under vibration. Store the original harness documentation in the glove compartment for future diagnostics.
Understanding Vehicle Audio Harness Color Standards and Connector Layouts
Start by matching the ground (black) and constant 12V power (yellow) leads first–they’re universal across most aftermarket and OEM systems. Verify voltage with a multimeter; yellow should read 12V+ regardless of ignition state, while red (switched power) must drop to 0V when the key is off. Blue/white stripe typically triggers amplifier turn-on, but check your model’s service manual–some variants use solid blue for illumination dimming or purple for antenna control. Double-check pinouts against the main 14-pin ISO connector: pins 1-4 handle speaker outputs (front left/right, rear left/right), with white/white-black for front left (+/-) and grey/grey-black for front right (+/-).
Critical Pin Assignments and Troubleshooting Shortcuts
If audio cuts out intermittently, probe the orange (illumination) wire–voltage fluctuations here can cause erratic display behavior. For steering wheel control integration, pin 10 (ISO) usually carries the data signal (green/violet or green/white), but confirm with a resistor test (typically 680Ω–5kΩ between signal and ground). Pink or pink-black wires often handle safety features like reverse signal or brake detect–never splice these without verifying their role in the vehicle’s network. When splicing, use heat-shrink butt connectors or solder joints; crimp connectors fail under vibration. For Ford/Chrysler adaptations, purple/violet (+) and purple/orange (-) often replace standard speaker outputs–cross-reference with the vehicle’s harness diagram to avoid damaging the amplifier stage.
Step-by-Step Guide to Identifying Audio System Harness Connectors
Locate the main power plug first–typically a 12-pin or 16-pin rectangular connector with a distinct keyway to prevent incorrect insertion. Check for color-coded wires: red (constant +12V), yellow (switched +12V), black (ground), and orange (illumination dimmer). Use a multimeter to verify voltage on the red and yellow leads–red should register power even when the ignition is off, while yellow only activates with the key in the “ON” or “ACC” position.
Identify the speaker outputs by examining the smaller connectors, often grouped in pairs (front/rear) with 2 to 4 pins each. These wires usually follow a standardized color scheme:
- Front-left: white (+), white-black (-)
- Front-right: gray (+), gray-black (-)
- Rear-left: green (+), green-black (-)
- Rear-right: violet (+), violet-black (-)
Trace each wire to its termination point behind the dash–look for labels or tape markings indicating “FL,” “FR,” “RL,” or “RR.” If labels are missing, probe the wires with the multimeter in continuity mode while a 1kHz test tone plays through the system to confirm function.

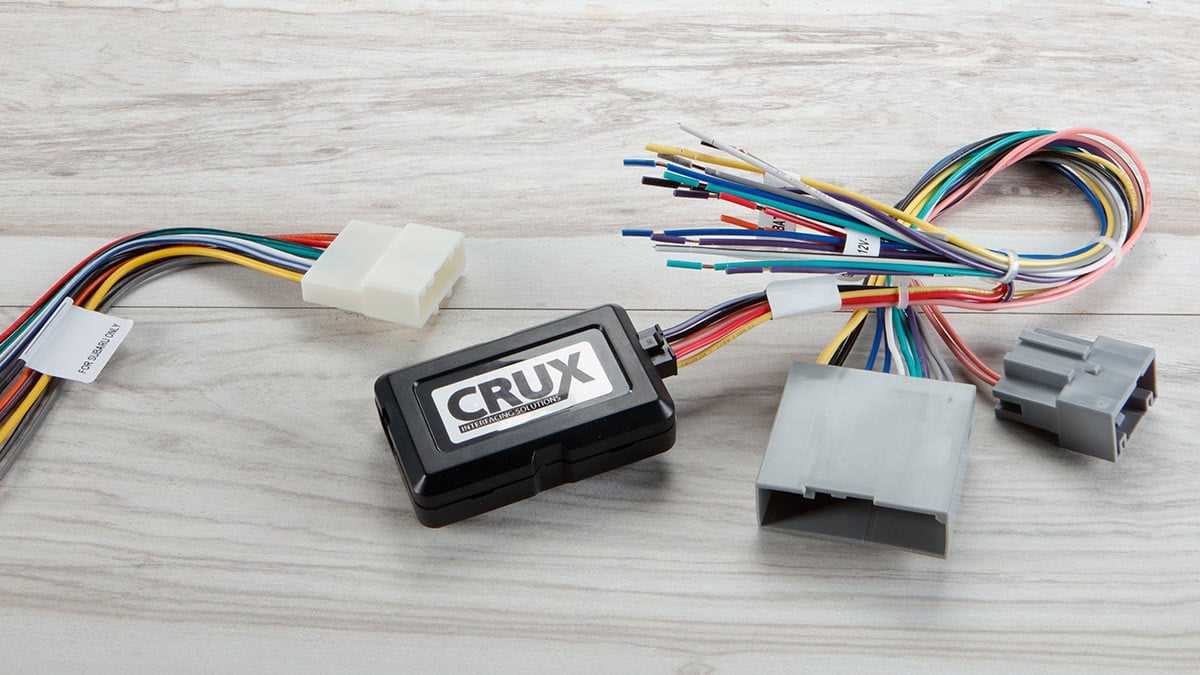

Handling Proprietary Adapters
For vehicles with factory-integrated amplifiers, locate the data bus connector–a 4 to 8-pin plug featuring purple (speed signal), pink (antenna trigger), and blue-white (amplifier remote turn-on). If the harness includes a fiber-optic port (small square connector with red or orange light), mark it immediately to avoid damaging the delicate optical cable. When splicing into existing circuits, use crimp connectors rated for 20–22 AWG and solder joints for waterproofing, then seal with adhesive-lined heat shrink tubing.
Frequent Audio Head Unit Connection Problems and Solutions
Check the fuse first if the infotainment system fails to power on. Locate the fuse box using the owner’s manual–usually under the dash or in the engine bay–and inspect the designated fuse for the stereo. Replace blown fuses with the exact amperage rating (typically 10 or 15A) to prevent damage to the unit’s internals. If the new fuse blows immediately, a short circuit in the harness or faulty ground connection is likely.
Dimming or flickering display often stems from poor ground connections. Attach a multimeter to the negative terminal of the battery and the chassis ground point, then measure resistance. Readings above 0.2 ohms indicate corrosion, loose terminals, or insufficient wire gauge. Clean contact surfaces with a wire brush, apply dielectric grease, and secure connections with star washers for reliable conductivity.
No sound from speakers despite power suggests an impedance mismatch or severed signal wires. Verify speaker impedance (4-8 ohms) matches the head unit’s specifications. Probe each speaker wire with a 9V battery–audible clicks confirm continuity. If absent, trace the harness for cuts or burns, particularly near sharp edges or heat sources. Replace damaged sections with oxygen-free copper wire of identical gauge (usually 18-22 AWG).
Static or distortion at high volumes points to interference or deteriorating insulation. Route RCA cables away from power wires, alternator leads, and ignition coils to minimize electromagnetic noise. Shielded twisted-pair cables reduce cross-talk; use ferrite chokes near the amplifier if retrofit. For OEM harnesses, splice in noise filters at the signal input stage (cutoff frequency ~20-50 kHz) to block high-frequency interference.
Bluetooth pairing failures occur when antenna cables disconnect or firmware glitches. Re-seat the antenna plug firmly into the FM module (usually a thin coaxial connector near the rear of the unit). Update firmware via USB using the manufacturer’s official files–third-party updates risk bricking the system. Reset to factory settings by holding the power button for 10 seconds if persistent issues arise.
Touchscreen unresponsiveness or erratic inputs demand calibration or ribbon cable checks. Remove the bezel and inspect the digitizer’s flat flex cable for creases or oxidation. Reconnect it by pressing firmly into the ZIF socket. If calibration fails, enter service mode (common key combination: volume + seek up + power) and follow on-screen prompts. For persistent issues, replace the digitizer layer with a precision-cut OEM equivalent.
How to Verify Audio System Connections Using a Digital Tester
Set your meter to DC voltage (20V range) and connect the black probe to a known ground–either the chassis or a dedicated earth terminal. Touch the red probe to each pin of the harness adapter while the ignition is on (accessory mode). Expected readings: 12V on the constant power line, 12V switched for accessories, and 0–5V on illumination control. If values deviate by ±0.5V or show open circuit, inspect the harness for frayed strands, oxidized terminals, or incorrect pin assignments.
Switch the meter to continuity mode and verify ground integrity by probing between the head unit’s ground wire and the vehicle’s body–resistance should be below 0.5Ω. Check speaker outputs by setting the meter to ohms (200Ω range) and measuring across each pair of wires; impedance must match the system’s specs (typically 2–8Ω). No reading indicates a broken wire or disconnected speaker; readings above 20Ω suggest corrosion in connectors.
