Start with a master plan showing every conductor path from the main panel to endpoints. Use standardized symbols: rectangles for switches, crossed lines for outlets, and zigzag lines for resistors or loads. Label each branch circuit–lighting, power outlets, dedicated appliances–with gauge thickness: 14 AWG for 15A circuits, 12 AWG for 20A.
Position the distribution box near the service entry to minimize voltage drop. Plan separate lines for high-load devices: refrigerator, oven, HVAC. Distance between outlets should not exceed 12 feet on any wall segment per NEC 210.52(A)(1). Include ground wires–bare copper or green-insulated–connecting every outlet, switch, and metal junction box back to the panel.

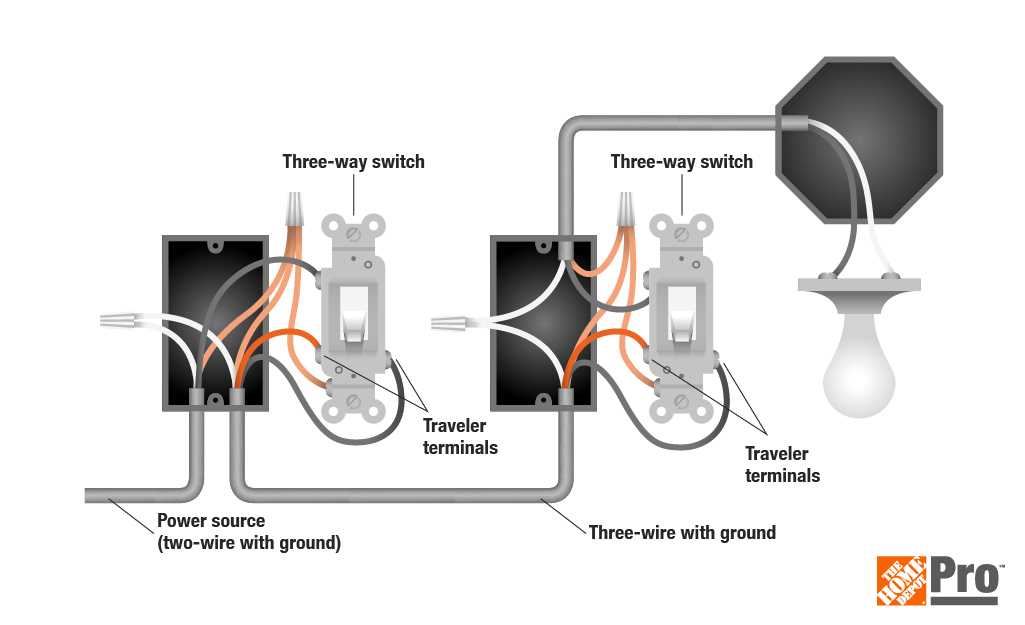

Trace neutral wires directly to the neutral bus bar; never combine neutrals from different circuits. For three-way switches, draw the travelers between switch locations and mark the common terminal on each device. Split receptacles should have the tab removed on the hot side; indicate this on the plan with a dashed line.
Annotate cable runs with conduit type: EMT for exposed work, NM-B for concealed. Note burial depths: 18 inches for direct burial cable, 6 inches for PVC conduit. Verify local codes for AFCI/GFCI requirements–bedrooms, kitchens, bathrooms, garages demand protection. Calculate total load and size the main breaker: 100A minimum for most homes, 200A for larger loads.
Test continuity and insulation resistance after installation. Use a multimeter to confirm <1 ohm across closed switches and >1 megaohm from conductors to ground. Document deviations from the blueprint; update the plan to reflect as-built conditions.
Blueprint for Residential Electrical Layouts
Begin by dividing the premises into zones–critical for balancing loads and preventing overloads. Assign each area (living spaces, kitchen, utility areas) a dedicated breaker rated at 15–20 amps, depending on anticipated demand. Avoid exceeding 80% of the breaker’s capacity under continuous use.
Use 12-gauge copper conductors for standard outlets and lighting, ensuring compatibility with 20-amp circuits. Reserve 10-gauge wiring for high-draw appliances like ovens, water heaters, or central AC units. Label all cables at both ends with indelible tags (e.g., “LR Outlets,” “BR3 Lighting”) to streamline troubleshooting.
Implement a three-phase approach for multi-story structures: isolate ground floors on one phase, mid-levels on another, and upper floors on the third. This minimizes voltage drop over long runs and distributes fault risks. For single-phase setups, stagger loads across dual hot buses to prevent uneven wear on conductors.
Key Components to Sketch Before Installation
- Service Panel: Position near the meter point and ingress path for utilities. Leave 36″ clearance in front for maintenance. Include a 100-amp main breaker for apartments; upscale to 200 amps for detached garages or workshops.
- Branch Circuits: Limit each to 12 outlets or fixtures, following NEC guidelines. Use arc-fault circuit interrupters (AFCIs) in bedrooms and living areas; ground-fault circuit interrupters (GFCIs) within 6′ of sinks or outdoor outlets.
- Junction Boxes: Mount every 8′ along horizontal runs to simplify future modifications. Seal unused boxes with blank covers to prevent dust accumulation.
Route high-voltage lines (dryer, range) vertically along walls, leaving 1.5″ standoff from framing to reduce heat buildup. Keep low-voltage networks (thermostats, doorbells) at least 12″ separated to avoid interference. Use EMT conduit for exposed runs in basements or garages; flexible metal tubing suffices for retrofits behind drywall.
Advanced Strategies for Efficiency
- Integrate smart breakers with energy-monitoring capabilities to track per-circuit consumption. Label breakers with QR codes linking to a digital ledger detailing wire gauge, purpose, and last inspection date.
- Install surge protectors at the main panel for whole-premises coverage. Add secondary protectors for sensitive electronics (computers, AV equipment).
- Plan a future-proofing conduit from the basement to the attic, pre-run with pull strings, to accommodate later upgrades (solar, EV chargers).
Conduct a point-to-point verification after rough-in but before drywall installation. Use a multimeter to confirm polarity (hot-neutral reverse triggers safety hazards). Photograph every stud penetration, junction box, and panel connection for compliance documentation.
Color-code all documentation: red for hot conductors, blue for neutral, green for grounds, and yellow for switched legs. Include a legend on the final blueprint. For commercial conversions, adhere to ADA requirements–outlets at 15–48″ above finished floor, with clear space below for mobility devices.
Essential Elements for Residential Electrical Blueprint Design
Start with a main distribution board (MDB) rated for 100–200 amps, depending on square footage and load demands–exceeding 5,000 sq. ft. warrants 200+ amps. Include residual current circuit breakers (RCCBs) for each branch, ensuring 30mA trip sensitivity to comply with IEC 60364 standards. Dedicate separate paths for lighting, outlets, and high-draw appliances (e.g., ovens, HVAC), using 2.5mm² copper for general circuits and 6mm² for appliance feeds. Grounding rods must be driven at least 2.4m deep with a resistance below 25Ω; use 16mm² bare copper conductors bonded to the MDB.
Critical Subsystems and Compliance Markers
Install arc fault circuit interrupters (AFCIs) on all bedroom and living area circuits–mandatory under NEC Article 210.12. For kitchens, run two 20-amp small-appliance branch circuits (SABCs) with ground-fault circuit interrupters (GFCIs) at outlets within 1.8m of sinks. Label every breaker with load type and wattage (e.g., “Living Room Lights – 600W”), using adhesive-backed polyester tags for durability. Verify voltage drop doesn’t exceed 3% for feeders and 5% for branch circuits by sizing conductors according to BS 7671 Table 4D1B; for 15m runs, upsize from 2.5mm² to 4mm² if voltage at endpoint dips below 220V.
How to Create a Single-Phase Electrical Layout from Scratch
Begin by marking the main service panel location on a blank sheet. Use standard symbols for breakers, outlets, and switches–ANSI or IEC notation ensures clarity. Label the panel with its ampacity (e.g., 100A or 200A) to match the supply capacity. Draw a horizontal line extending from the panel to represent the primary feed; this splits into branch circuits.
Allocate each branch to specific rooms or zones. For lighting, use a 15A circuit; for general outlets, a 20A circuit suffices. Dedicate a separate 20A line for kitchen and bathroom receptacles, adhering to NEC 210.11(C). Where appliances demand higher current (electric oven, water heater), run a dedicated 30A or 50A circuit directly from the panel, bypassing shared lines.

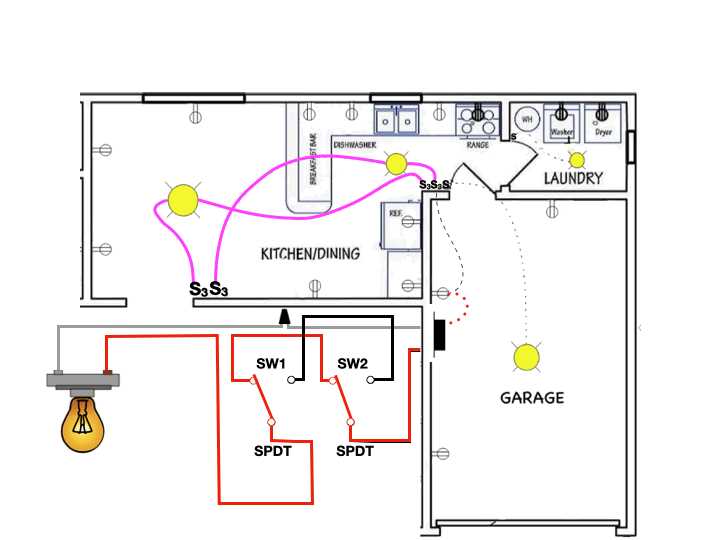

Trace each conductor path. Solid lines indicate hot wires (red or black), dashed lines denote neutral (white), and dotted green lines mark ground. Where wires cross without connecting, use a small semicircle to bridge one over the other. Indicate wire gauge for each run: 14 AWG for 15A, 12 AWG for 20A, and 10 AWG for 30A circuits.
Position switches upstream of fixtures. A single-pole switch interrupts the hot conductor, while three-way switches control a light from two locations; mark travelers distinctly. Label each device with its function and voltage rating (e.g., “Ceiling Fan: 120V”). Include GFCI protection symbols near wet areas, using a triangle enclosing “G”.
Verify continuity by following every path from the panel to its endpoint. Ensure no branch exceeds 80% of its breaker rating under continuous load. Add notes for conduit type (EMT, NM-B) or cable routing (in-wall, attic). Conclude by cross-checking against a load calculation sheet to confirm compatibility with the panel’s rated capacity.
Digitize the layout using CAD software or vector tools if required. Export in PDF or DXF format for contractor reference. Maintain consistent scale (1/4″ = 1′ typical) and include a legend for symbols. Store both digital and printed copies for field use and inspections.
How to Illustrate Power Points, Controls, and Illumination in Electrical Plans

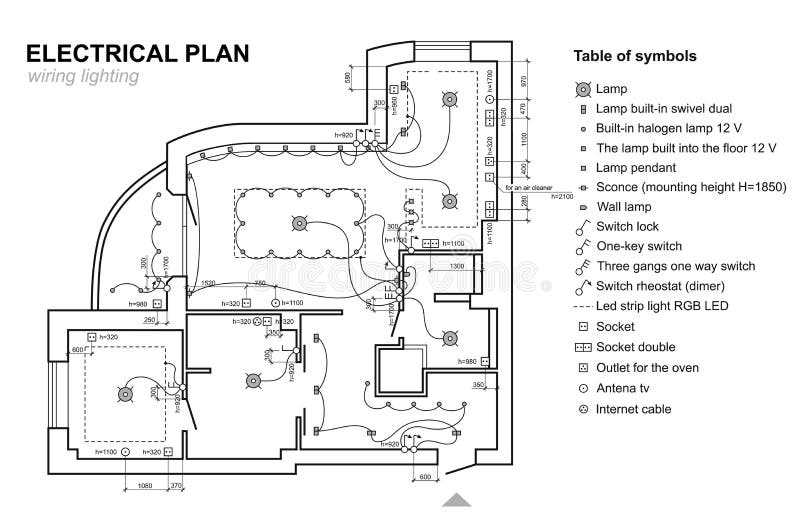

Use standardized symbols for outlets, switches, and fixtures to ensure clarity across all layouts. For example, a single-pole switch is depicted as a small circle with a line extending from its side, while duplex receptacles appear as two parallel vertical lines with a grounding symbol if applicable. Fluorescent lamps should be drawn as a long rectangle with a zigzag line inside, and incandescent bulbs as a circle with a crosshair or “X” pattern. Always label each symbol with its function (e.g., “GFCI,” “3-way,” “dimmer”) and include voltage ratings (120V, 240V) near the graphic for quick reference.
Key Symbol Variations
- Receptacles: Differentiate between standard outlets (simple parallel lines), GFCI-protected (add a “G” inside a box), and USB-equipped (label with “USB”). Mark dedicated circuits (e.g., refrigerator) with a dashed outline.
- Switches: Single-pole (single line), 3-way (label “3”), 4-way (label “4”), and dimmers (add a curved line). Indicate smart switches with a small “S” in a corner.
- Lighting: ceiling fixtures (filled circle), wall sconces (half-circle), track lighting (rectangle with arrows), and emergency exit signs (rectangle with “EXIT”).
Group related components logically–place all switches controlling a room’s lights in a vertical column, with outlets aligned horizontally below. Connect lines between devices using straight, orthogonal paths; avoid diagonal runs unless absolutely necessary. For multi-wire cables, use a single line with slashes to denote conductor count (e.g., “/3” for three conductors). Cross wires without connecting with a semicircular jump, and mark splice points with a solid dot. Annotate each line with wire gauge (e.g., “12 AWG”) and color codes (e.g., “BLK=HOT, WHT=NEU, GRN=GND”) near the run’s midpoint.
