Begin with a battery isolation switch near the power source to disrupt all circuits during maintenance or emergencies. Connect it directly to a distribution panel rated for marine environments–corrosion-resistant terminals and waterproof enclosures are non-negotiable. Avoid daisy-chaining circuits; each appliance should draw current from the panel via a dedicated breaker.
Use tinned copper wiring in gauges appropriate for the load: 12 AWG for lights and small instruments, 10 AWG for pumps, and 8 AWG or thicker for high-demand systems like winches or thrusters. Secure cables every 18 inches with non-metallic clamps to prevent chafing, and route them away from hot surfaces, moving parts, and sharp edges. Apply heat-shrink tubing at all terminals and splice connections with marine-grade crimp connectors, followed by adhesive-lined shrink tubing for waterproofing.
Label every wire at both ends with heat-resistant tags–include the circuit name, voltage, and destination. Install a ground bus bar separate from the negative bus to bond all metallic components (engine block, fuel tanks, railings) and prevent galvanic corrosion. For bilge pumps, use float switches wired in parallel with manual switches to ensure automatic operation even if the panel is off. Test circuits with a multimeter before sealing panels: resistance should read near zero ohms, and voltage drop under load should not exceed 3%.
Add a battery monitor to track state of charge and prevent deep discharges, which degrade lead-acid batteries in under 50 cycles. For lithium installations, integrate a battery management system (BMS) with short-circuit and over-temperature protection. Isolate sensitive electronics (GPS, radio) with a dedicated power conditioner or surge protector to filter voltage spikes. Document the entire layout in a single-line drawing, noting wire lengths, breaker ratings, and connection points for future troubleshooting.

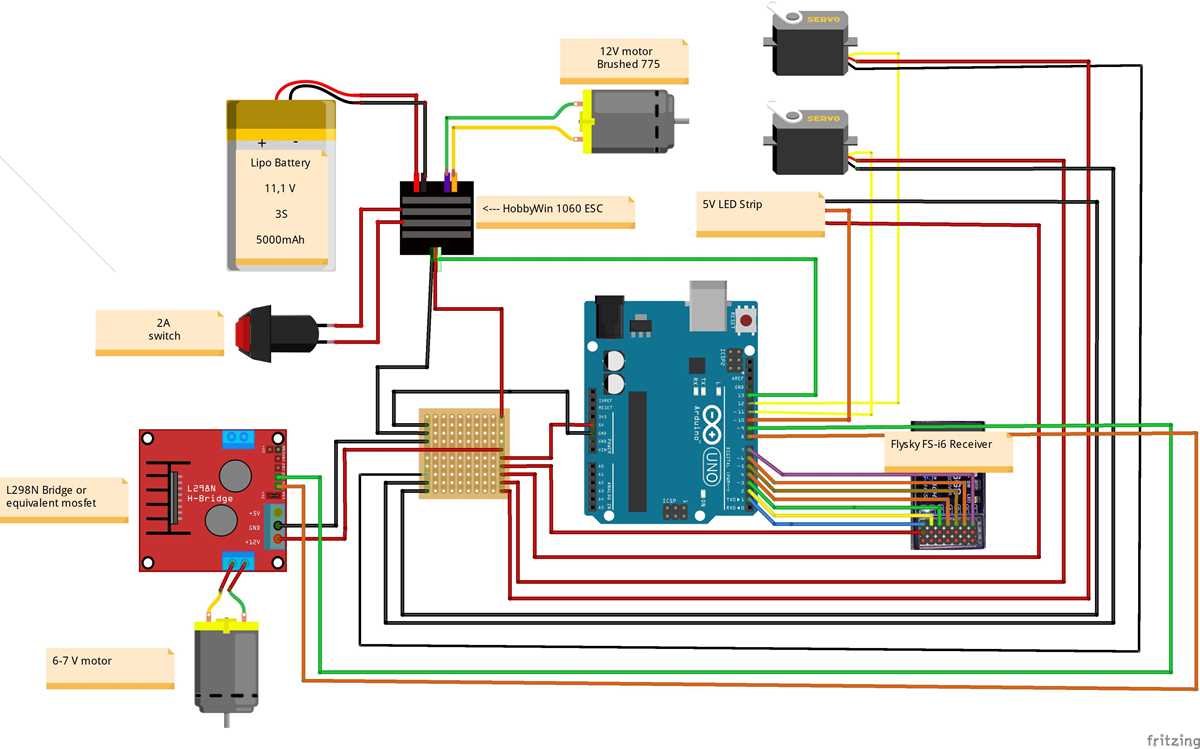

Building a Marine Electrical Blueprint: Step-by-Step Instructions
Start with a detailed list of all powered components–navigation lights, bilge pumps, radios, and batteries–assigning each a unique identifier (e.g., “Pump-1,” “Radio-2”). Use 14 AWG cable for circuits under 15A, 12 AWG for 15–20A, and 10 AWG for critical systems like starter motors. Mark every connection point on your layout with waterproof heat-shrink labels, noting wire gauge and function to simplify future troubleshooting.
- Separate power sources: Dedicate a 12V deep-cycle battery for house loads and a second for engine ignition to prevent voltage drops.
- Install a 150A marine-grade fuse block near the battery, breaking it into dedicated circuits for lighting (10A), pumps (20A), and electronics (15A).
- Route all cables through a central bus bar, using tinned copper wire to resist corrosion; avoid daisy-chaining to minimize voltage loss.
- Ground all negative leads to a single common point on the engine block or a dedicated grounding plate, ensuring resistance below 0.1 ohms.
- Add a battery isolator or automatic charging relay to safely combine outputs from alternator and solar panels without backfeeding.
Test each circuit with a multimeter before sealing connections: confirm 13.8–14.4V at the battery under load, no more than 0.3V drop over 10 feet of cable, and continuity in all switches. Document the final layout with a legend showing wire colors (red for positive, yellow for ignition, black for negative), connector types (ANL fuses, waterproof splices), and breaker amperages. Store this reference in a waterproof sleeve near the electrical panel for on-the-spot diagnostics.
How to Decode Marine Electrical Blueprints
Locate the power source first–typically a battery symbol with “+” and “–” terminals. Trace the thickest lines outward; these represent high-current circuits like starter motors or inverter feeds. Thin lines indicate control or signal paths, often linked to switches, sensors, or indicator lights. Confirm polarity markings: dashed lines usually denote negative returns, while solid lines carry positive voltage.
Label abbreviations follow standard marine codes. A “BAT” tag identifies direct battery connections, while “ALT” marks alternator outputs. “IGN” signifies ignition-switched circuits, isolating devices like bilge pumps that activate only when the key is turned. Verify wire gauge with a legend–most builders use AWG sizing, where lower numbers mean thicker cables capable of higher amperage.
Component symbols vary but adhere to IEC conventions. A rectangle with zigzag lines inside signals a fuse, while a circle with “M” denotes a motor. Resistors appear as jagged bands, capacitors as parallel lines. Cross-reference symbols with a reference table if unfamiliar:
| Symbol | Component | Typical Rating |
|---|---|---|
| Rectangular box (W) | Breaker | 10–30A |
| Circle (L) | Lamp | 12V/21W |
| Triangle (D) | Diode | 1N4007 |
| Parallel bars | Connector | Terminal block |
Identify loop circuits–closed paths where current flows from source through devices and returns. Open loops (missing return lines) suggest errors or omitted neutral bus bars. Check for color codes: red typically carries hot 12V, black is ground, yellow may be ignition-switched, and blue often denotes navigation lights.
Test continuity by mentally tracing circuits. Disconnect power, then use a multimeter on ohms mode to measure across connectors. Infinite resistance indicates broken wires; zero ohms confirms intact paths. Isolate each branch–if a bilge pump and radio share a fuse, tripping should disable both, pinpointing shared upstream faults without dissection.
Document modifications directly on the print. Add notes like “20A fuse upgraded from 15A” or “relocated ground bus to starboard locker.” Store the annotated copy onboard; discrepancies between planned and actual paths cause 60% of troubleshooting delays. Cross-check installed components against the blueprint–mistakes like reversed polarity on a VHF radio can fry circuits in seconds.
Creating a Tailored Electrical Layout for Marine Vessels
Begin with an accurate inventory of all onboard equipment. List power sources–batteries, alternators, shore connections–and match them to devices like navigation lights, bilge pumps, radios, and instruments. Group components by voltage (12V, 24V, 110V) and function (essential vs. non-essential). Sketch a rough flow on paper, placing critical items (e.g., battery switches, fuses) upstream. Label each wire with gauge (AWG) based on current draw: 14AWG for 15A circuits, 10AWG for 30A, using ABYC E-11 standards for guidance. Include spare capacity–add 20% extra current allowance for future upgrades. Mark grounding points (engine block, common bus bar) to prevent corrosion loops.
Transfer the draft to vector-based software. Use distinct colors for circuits (red=positive, black=negative, yellow=switched). Draw straight lines with 90° bends every 2–3 inches to simplify tracing. Add annotations for fuse ratings, wire lengths (measure actual runs), and terminal types (ring, spade, butt). Verify polarity–confirm all switches break the positive side, not negative. Export as PDF with hyperlinked jumpers between pages for large systems. Test continuity digitally before physical installation.
Critical Oversights to Avoid
Omitting voltage drop calculations: A 3% drop in a 12V system over 20 feet requires 6AWG wire, not 10AWG. Skipping waterproof connectors: Use heat-shrink terminals with adhesive lining near bilges. Centralizing power distribution: Isolate panels near high-current devices (winches, thrusters) to reduce cable runs. Label every wire end–“Bilge Pump Starboard 12V #4”–with heat-shrink tubing. Store the final plan in waterproof sleeves, and update it after each modification.
Common Mistakes to Avoid When Planning Marine Electrical Layouts
Skipping voltage drop calculations for circuits exceeding 10 feet results in undersized conductors, causing overheating and premature equipment failure. Use the 3% rule for critical systems (navigation lights, radios) and 5% for non-essential loads, applying the formula: VD = (2 × L × I × K) / CM, where L is length in feet, I is current in amps, K is 12.9 for copper, and CM is conductor cross-sectional area in circular mils. Neglecting this leads to motors that struggle to start, dim lights at cruise speeds, and batteries that fail to charge fully.
Critical Oversights in System Design
- Mixing battery chemistries (AGM with flooded lead-acid) without isolation devices creates imbalanced charging currents, reducing pack lifespan by up to 40%. Install a battery combiner with voltage sensing relays or a dedicated multi-bank charger rated for dual chemistries.
- Ignoring electromagnetic interference (EMI) from variable-speed pumps or VHF radios disrupts electronics. Route power cables at 90° angles to signal wires, maintain a minimum 6-inch separation, and use shielded twisted-pair cable for NMEA 2000 networks. Ground shields only at a single point near the backbone.
- Overloading circuit breakers or fuses by sizing them for continuous load instead of potential short-circuit currents. Use Type A circuit breakers for DC systems (marine-rated, 5 kAIC) and verify interrupt rating exceeds the battery’s instantaneous discharge capability (
I_sc = V / R_int). - Failing to waterproof connections in bilge areas leads to corrosion within weeks. Apply marine-grade heat shrink tubing with adhesive lining or use sealed junction boxes with IP67-rated glands. Avoid twist-on wire nuts–crimped and soldered joints (with heat shrink) last 5× longer in saltwater environments.
Incorrectly sizing alternators for lithium battery banks causes overheating and reduced output. Lithium batteries accept charge at higher rates (0.5C–1C vs. 0.2C–0.3C for lead-acid), requiring alternators with temperature-compensated voltage regulators and external cooling. Check manufacturer specs: a 100-amp alternator may only deliver 30 amps at 20°C above ambient, so add a serpentine belt with a spring-loaded tensioner and oversize the pulley by 20% to prevent slippage.
