Begin by isolating the central processing core–this is the primary computation engine, typically operating at 8 to 32 MHz for low-power designs, or up to 80 MHz for performance-oriented variants. Verify its clock source: most modern designs integrate an internal oscillator (with ±1–2% accuracy) but allow external crystal input (e.g., 8–25 MHz) for precision timing. Ensure the layout accounts for decoupling capacitors (0.1 µF) within 5 mm of the power pins to suppress transient voltage spikes.
Next, trace the memory hierarchy. Flash storage (16 KB to 2 MB) retains firmware and must support at least 10,000 write/erase cycles. Static RAM (2 KB to 256 KB) handles runtime variables–place it adjacent to the core to minimize latency. Include a power-on reset circuit (e.g., RC network with 10 kΩ resistor and 1 µF capacitor) to ensure clean initialization. Bypass noise at the reset pin with a 0.1 µF capacitor to ground.
Map the peripheral integration paths. GPIO pins (up to 100+ in high-pin-count packages) should route through current-limiting resistors (220–470 Ω) if driving LEDs or external loads. For analog interfaces (ADC/DAC), use a dedicated analog power rail filtered with ferrite beads and 10 µF tantalum capacitors. Separate analog and digital ground planes, connecting them at a single point near the power supply to prevent ground loops.
For communication modules (UART, SPI, I2C), allocate 4–6 dedicated pins per interface. UART baud rates (up to 115,200 bps) require precision timing; calibrate internal oscillators against a reference signal if possible. SPI (1–50 MHz) demands short traces (under 5 cm) for clock integrity–match lengths for data and clock lines. I2C (100–400 kHz) needs pull-up resistors (4.7 kΩ) on SDA/SCL lines to ensure proper logic levels.
Prioritize power distribution. Linear regulators (LDO) drop battery voltages (3–5 V) to core levels (1.8–3.3 V) with 30–60% efficiency. Switching regulators (buck/boost) achieve 80–95% efficiency but require inductors (4.7–10 µH) and capacitors (22–100 µF). Add reverse-polarity protection (Schottky diode or P-channel MOSFET) and overcurrent sensing (0.01 Ω shunt resistor) to safeguard the circuit.

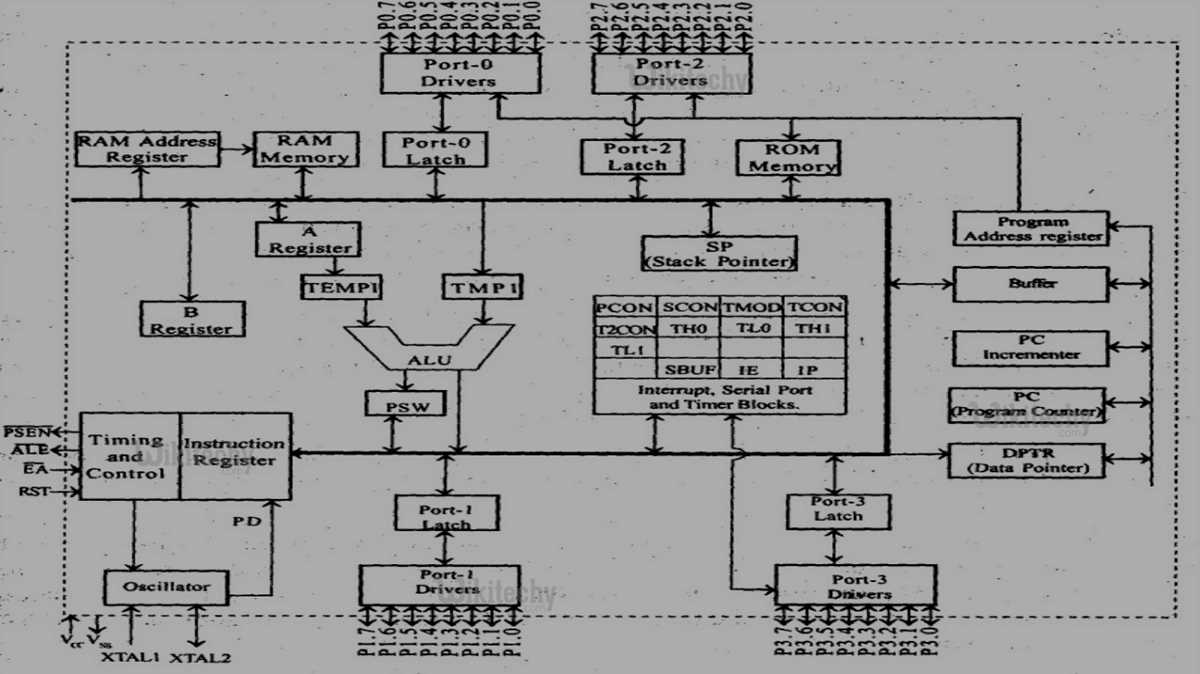

Key Functional Units in a Modern Integrated Core Layout
Begin by segmenting the core components into distinct functional zones: processing, memory interfacing, and peripheral connectivity. Allocate at least 30% of the total silicon area to the central processing unit (CPU) core, ensuring instruction pipelining with a minimum of three stages–fetch, decode, and execute–to maintain throughput efficiency above 1.2 instructions per cycle in typical workloads. Include separate instruction and data caches, each sized between 4KB and 16KB, with a direct-mapped or 2-way associative configuration depending on power constraints and target application stack depth.
Integrate a system bus architecture with a minimum 32-bit wide data path, supporting burst transfers at clock speeds up to 100 MHz for mid-range implementations. Use a hierarchical bus matrix with distinct paths for high-speed peripherals (e.g., DMA controllers) and low-latency memory access, preventing contention between flash memory reads and peripheral I/O operations. Implement bus arbitration with fixed or round-robin priority schemes, ensuring worst-case latency for critical interrupts remains under 5 clock cycles.
Power and Clock Distribution Strategies
| Domain | Voltage Range (V) | Dynamic Power (mW/MHz) | Clock Gating Efficiency (%) |
|---|---|---|---|
| Core | 1.2–1.8 | 0.12–0.25 | 85–92 |
| SRAM | 1.0–1.5 | 0.08–0.15 | 70–80 |
| Peripherals | 3.3 | 0.30–0.60 | 60–75 |
Divide the chip into independent power domains, isolating the CPU, volatile memory, and analog peripherals to enable selective shutdown during idle states. Employ multiple clock domains–core, bus, and peripheral–each derived from a primary PLL with spread-spectrum modulation to reduce EMI emissions by up to 20 dB. For ultra-low-power variants, incorporate an asynchronous wake-up mechanism using GPIO interrupts, allowing the main oscillator to remain dormant while retaining fast recovery times under 10 µs.
Interconnect and Control Signal Design
Route control signals like reset, interrupt requests, and debug interfaces on dedicated metal layers with matched lengths to prevent skew, maintaining timing margins within ±5% of the clock period. Use a star topology for interrupt lines, connecting each peripheral to a programmable interrupt controller (PIC) via individual vectors; avoid daisy-chaining to eliminate cascading latency. Include embedded trace buffers for debugging, sampling key registers at the core clock rate with a 128-entry FIFO to log real-time execution without halting operation.
Ensure memory-mapped peripherals adhere to a consistent addressing scheme, reserving the upper 16MB of the 4GB address space for core-specific registers and reserving predefined offsets for DMA, timers, and communication interfaces (e.g., UART, SPI). Validate address decoding logic with formal verification tools to eliminate unintended overlaps, particularly in safety-critical applications where corruption of control registers could lead to system failures.
Key Functional Components in Embedded Processor Design
Start by identifying the core processing unit–typically an 8-bit, 16-bit, or 32-bit CPU–as the primary computational engine. Choose processors with architectures like ARM Cortex-M or AVR for real-time constraints, ensuring clock speeds of 20–200 MHz align with power budgets and application demands. Prioritize cores with hardware multiply-accumulate (MAC) units for signal processing tasks to reduce software overhead.
Integrate non-volatile memory (Flash) ranging from 4 KB to 2 MB based on program size, paired with 128 B–64 KB of SRAM for runtime data. For high-reliability systems, select devices offering error-correcting code (ECC) for on-chip memory to mitigate bit-flip errors in noisy environments. Allocate memory banks strategically: reserve dedicated sections for interrupt service routines (ISRs) to minimize latency during context switches.
Select peripherals that match specific use cases: UART for serial communication at 9600–115200 baud, I2C for low-speed inter-chip links (100–400 kHz), and SPI for high-speed data exchange (1–50 MHz). For analog interfacing, deploy ADCs with 10–16-bit resolution and sampling rates up to 1 MSPS; pair with precision voltage references (±0.1% tolerance) to maintain accuracy. Include timer/counter modules with input capture and PWM outputs for motor control or pulse-width modulation.
Implement power-management circuits with multiple low-power modes: sleep (leakage currents
Clock and Reset Distribution Networks
Design clock trees with on-chip oscillators (internal RC or crystal-based) and phase-locked loops (PLLs) to multiply reference frequencies up to 100 MHz. Include clock gating to reduce power consumption; disable unused peripherals dynamically via software registers. Reset circuits must support power-on reset (POR), external reset pins, and watchdog timers (WDT) to recover from software hangs; configure WDT timeout periods between 10 ms–2 s based on fault recovery requirements.
Security and Debugging Interfaces
Enable flash read/write protection via hardware locks or serial number-based encryption (AES-128/256) to prevent unauthorized firmware access. Incorporate TrustZone-M for ARM-based chips to isolate secure and non-secure code regions. For debugging, include JTAG or Serial Wire Debug (SWD) interfaces with breakpoints, trace buffers, and real-time watchpoints to streamline troubleshooting. Limit debug access in production using authentication mechanisms to deter tampering.
Validate bus architectures: AHB for high-performance cores and APB for slower peripherals. Use bridge modules to segment traffic; isolate DMA controllers (up to 32 channels) from CPU operations to avoid bottlenecks during bulk transfers. For multi-master systems, implement arbitration strategies–fixed priority or round-robin–to resolve conflicts between USB, Ethernet, and DMA requests without deadlocks.
How to Read and Interpret Pin Configuration on an IC Layout
Locate the pin numbering pattern first–most integrated circuits use either a counterclockwise sequence starting from the top-left marker or a staggered arrangement with odd numbers on one side and even on the opposite. Verify this by identifying the notch, dot, or angled corner denoting pin 1; failure to align this correctly risks incorrect connections. Check datasheets for exceptions, particularly on quad flat packs or ball grid arrays where numbering may follow a serpentine path.
Examine functional groupings: power pins (VCC, VDD, GND) usually occupy corner positions for optimal thermal dissipation, while analog inputs (ADC, DAC) cluster near dedicated reference voltages. Digital I/O and communication lines (SPI, UART, I²C) often share banks, distinguished by labels like PA0–PA7, PB0–PB7. Peripheral-specific pins (PWM, Timer, Interrupt) tend to align with adjacent clocks, reset, or debug signals to minimize trace interference.
Decode multiplexed pins by cross-referencing alternate functions–many modern ICs assign three to five roles per pin, toggled via configuration registers. For example, a single pad might support General-Purpose I/O, I²C SDA, or Timer Capture; datasheets list priority rules under sections titled “Pinout Description” or “Multiplexing Matrix.” Prioritize default states over secondary modes unless explicitly enabled. Use oscilloscopes or logic analyzers to confirm active functions when ambiguity persists.
Validate absolute maximum ratings and electrical characteristics per pin–power rails tolerate tighter tolerances (±5%) than bidirectional data lines (±10%), while analog inputs demand strict voltage ranges (0–3.3V) to prevent saturation or damage. Decoupling capacitors (typically 0.1µF–10µF) placed between VCC and GND pins within millimeters reduce noise, especially near switching regulators or high-speed interfaces (USB, Ethernet).
