Start with the main power terminal–this is where the battery’s positive cable attaches. Use a minimum 4-gauge wire for heavy-duty applications to prevent voltage drop under load. The second terminal, marked for the ignition circuit, should link directly to the ignition switch output. Ensure this connection uses 12-gauge wire or thicker to handle the initial surge when engaged. A common error here is using undersized wiring, which leads to melted insulation and failed activation.
Attach the motor feed terminal to the starter motor’s main input. This line carries the highest current, so always secure it with a crimped lug and heat-shrink tubing to avoid loose connections. Verify the ground path is uninterrupted–corrosion on the mounting bolts or chassis ground can mimic electrical faults. Test resistance with a multimeter: readings above 0.5 ohms indicate a problem needing immediate attention.
The final terminal, often overlooked, is the auxiliary contact for accessories like bypass kits. If unused, cap it with a weatherproof cover to prevent short circuits. For systems with automatic transmissions, wire this terminal to the neutral safety switch to avoid accidental engagement. Double-check all connections with a continuity tester before applying power–skipping this step risks damaging the control module or battery drain.
Label each wire immediately after installation to simplify future troubleshooting. Use color-coded heat-shrink or labels that withstand engine bay temperatures (up to 200°C). Avoid zip ties as the sole method of securing wires; vibration can loosen them over time. Instead, use adhesive-backed mounts or chassis clamps spaced no more than 15 cm apart.
Understanding 4-Contact Relay Circuit Layouts for Motor Engagement
Connect the battery positive terminal directly to the relay’s largest contact (typically labeled “B” or “30”) using 4-gauge cable to handle cranking currents up to 250A. The matching ground path should run from the motor housing to the vehicle chassis via 4-gauge wire, avoiding any intermediate connections that could introduce resistance. A dedicated ground point near the motor ensures consistent engagement under load.
Route the activation signal through a 14-gauge wire from the ignition switch to the relay’s smaller control terminal (“S” or “50”). Include a 5A fuse within 7 inches of the switch to protect against short circuits. For push-button starts, integrate a momentary switch rated for 10A in this circuit–verify compatibility with the vehicle’s existing immobilizer to prevent false triggers during cranking.
- Bypass terminals must remain insulated when not in use; exposed contacts risk arcing if accidentally grounded.
- Test each circuit path with a multimeter before powering: resistance should read below 0.1 ohms across primary contacts.
- For diesel engines, add a pre-heat indicator (LED with 1kΩ resistor) in parallel to the activation line to confirm relay engagement before cranking.
Common Failure Points and Preemptive Checks
Measure voltage drop across the primary contacts while cranking–values exceeding 0.5V indicate corroded terminals or undersized cabling. Clean all ground connections with a wire brush and apply dielectric grease to aluminum surfaces to prevent oxidation. Replace relay contacts if pitting is visible or if engagement requires multiple attempts, as worn components increase resistance and reduce torque delivery.
Isolate the activation circuit with a diode (1N4007) to prevent backfeed from auxiliary systems, which can cause unintended motor rotation during normal operation. For vehicles with automatic transmissions, ensure the neutral safety switch interrupts the activation signal when shifted; bypassing this safety feature risks mechanical damage if cranked while engaged. Document all modifications with labeled wire tags near connection points for future troubleshooting.
- Disconnect the battery negative terminal before servicing.
- Verify relay coil resistance (should measure 50–150Ω; lower values suggest a shorted coil).
- Check for continuity between the motor’s Bendix gear and the relay’s output terminal when deactivated–this path should be open.
- Test activation voltage at the switch: voltage dips below 9V during cranking may necessitate a heavier battery cable or auxiliary power source.

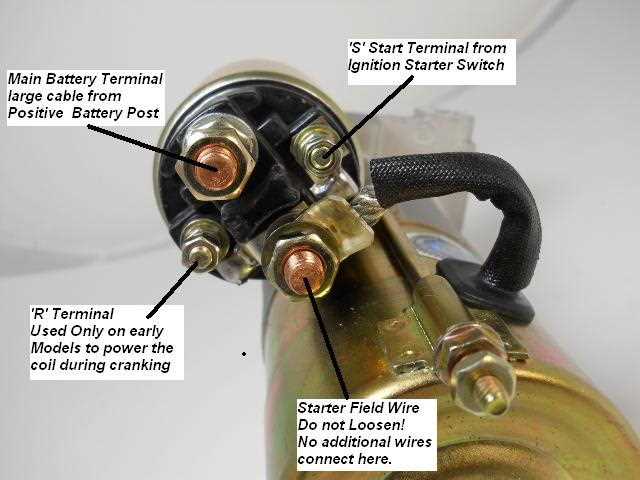

Understanding Connection Points on a Four-Terminal Electromagnetic Switch
Label the main power input post–the thickest stud–as Battery (B). This terminal receives direct current from the power source and handles the highest amperage; misidentification risks frying adjacent circuits. Use a multimeter to confirm 12V+ reading when the ignition is off; no other post should register voltage in this state.
Locate the next thickest stud marked Motor (M); it routes current to the drive assembly when engaged. Verify by turning the key to “start”–voltage should spike briefly, then drop once the engine cranks. If zero volts appear, inspect the control circuit for corrosion or blown fuse before assuming switch failure.
Two smaller posts sit adjacent: Switch (S) and Accessory (A). The S post connects to the ignition key’s cranking signal; expect 12V only during startup. The A post, if present, supplies auxiliary loads like dash lights–test with key in “on” but not cranking for steady voltage. Swapping these risks sending cranking amps to fragile electronics.
Trace the S post wire back to its splice point–usually a colors-coded lead (red/yellow in most GM setups). Probe this splice while cycling the key; inconsistent voltage suggests a faulty relay or corroded connector, not necessarily the switch. Clean terminals with a stainless brush, then apply dielectric grease to prevent oxidation.
On Ford-equipped units, the A post often carries a white/light blue wire; this feeds the alternator field circuit. Disconnect this lead before bench-testing to avoid back-feeding 14V into the dash. Measure resistance across the B-M path–should read 0.3–0.7 ohms when activated; higher values indicate burnt contacts.
Aftermarket relays may omit the A post, relying solely on a single control lead (S), but the M post remains 8-gauge minimum. Always replace ring terminals if insulation appears brittle; crushed crimps cause voltage drops that mimic switch failure. Use heat-shrink tubing over connections to seal moisture–exposed copper corrodes within weeks in humid climates.
Final validation: jump the B and S posts momentarily–healthy units emit a loud click and engage the drive. If silent, tap the housing lightly with a tool; sticky plungers sometimes release. Persistent silence confirms internal failure; source an identical replacement by matching OEM stampings (e.g., Bosch 1 134 906 004) to avoid mismatched coil windings.

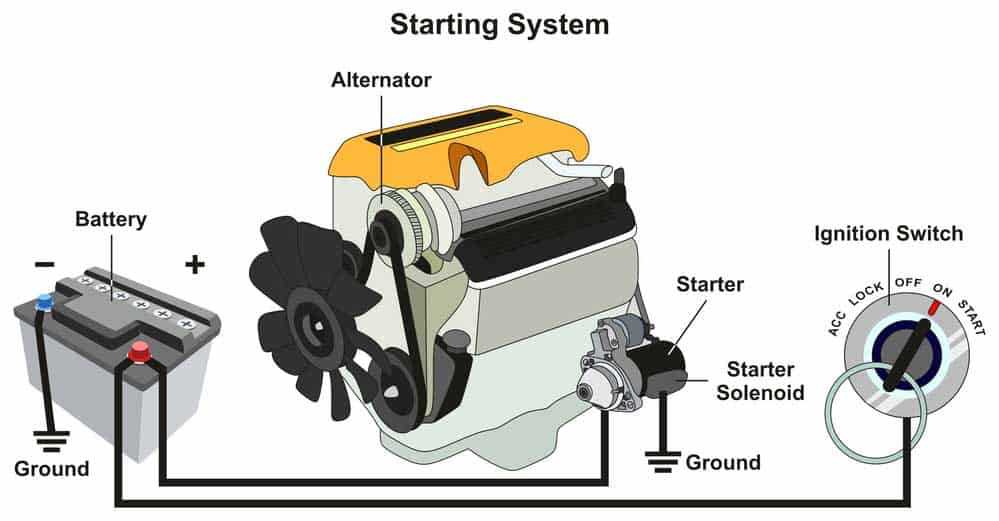

Step-by-Step Electrical Link Setup for 12V Systems
Begin by verifying the battery’s terminal voltage matches the 12V designation–deviations above 13.2V or below 10.5V indicate potential charging faults or parasitic loads.
Identify the ignition switch’s two primary output posts: one for accessory circuits (typically marked “ACC”), the other for engine activation (“IGN” or “B”). Use a multimeter to confirm continuity–resistance exceeding 0.5 ohms suggests corrosion or damaged contacts.
- Connect the activation lead from the ignition switch to the control terminal of the relay–this is the smaller post, often labeled “S” or “50.”
- Ensure the relay’s main power post (“B” or “30”) links directly to the positive battery terminal via a 4-gauge cable; include an inline fuse within 18 cm of the battery post.
- Attach the relay’s motor feed post (“M” or “87”) to the heavy-duty electric motor’s input post with another 4-gauge link–avoid intermediate splices.
Secure the system ground by routing a 4-gauge strap from the electric motor’s negative post to the engine block or chassis frame, selecting bare metal free of paint, powder coating, or oxidation. Use a wire brush to remove contaminants if resistance exceeds 0.2 ohms.
Test the high-current pathway before final tightening: engage the ignition switch while monitoring voltage drop across the relay’s main contacts. A result above 0.4V mandates replacement of the relay or cleaning of oxidized surfaces with 120-grit sandpaper.
For sequential safety validation: disconnect the ground strap temporarily, attempt ignition, and verify no arc occurs at the motor post–sparking confirms stray voltage paths requiring isolation of auxiliary circuits.
Finalize with protective measures: apply dielectric grease to terminal connections and wrap exposed links with adhesive-lined heat shrink tubing. Recheck all fasteners to 15 Nm torque using a calibrated wrench.

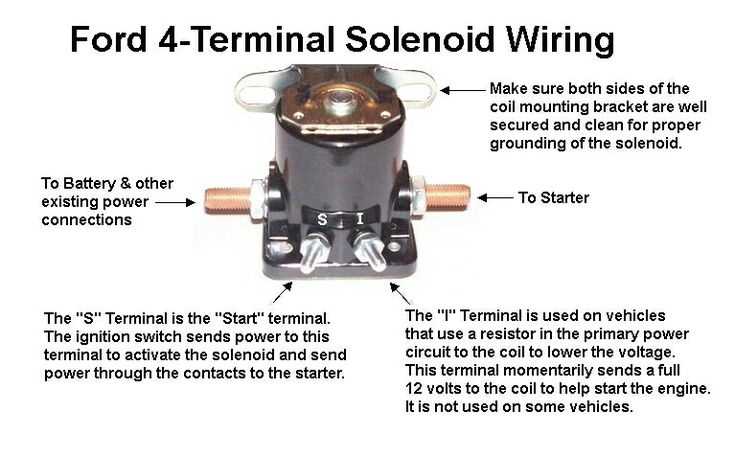

Common Errors in Connecting a Four-Terminal Control Relay
Mixing input and output contacts leads to immediate circuit failure. The large terminals handle high current–typically marked B+ (battery) and M (motor)–while the smaller ones carry control signals, usually labeled S (switch) and I (ignition). Swapping these results in no engine crank or uncontrolled motor engagement. Always verify contact labels with a multimeter: battery-side should read 12V, motor-side 0V at rest.
Ignoring ground path integrity causes intermittent operation. The relay housing or mounting bracket must bond electrically to the chassis; paint, rust, or loose fasteners introduce resistance above 0.2 ohms, measured between the relay base and a clean chassis point. Use a star washer under every mounting bolt to bite through corrosion, and apply dielectric grease to thread contact points.
Voltage Drop Across Critical Paths
| Path Segment | Max Allowable Drop | Measured Points |
|---|---|---|
| Battery to Relay B+ | <0.5V | Battery positive to relay stud |
| Relay M to Motor Lug | <0.3V | Relay motor terminal to starter lug |
| Control Circuit S-I Loop | <0.1V | Relay S terminal to ignition switch |
Exceeding these thresholds under 150A load (typical for 4.0L engines) creates heat, slow cranking, or relay weld. Test while energizing; a simple 12V probe across each segment reveals hidden resistance.
Over-tightening small signal terminals damages internal contacts. Torque the control terminals (S & I) to 3.5-4.5 Nm; overtightening crushes thin copper plating, raising resistance permanently. Use a beam-type torque wrench and conical washers to prevent rotation during tightening–avoid ordinary lock washers, which increase contact surface resistance.
Leaving the motor lead unsecured invites short circuits. Route the M cable away from exhaust manifolds and sharp edges; minimum bend radius 25mm. Secure every 150mm with insulated clamps to prevent vibration abrasion. Unprotected loops contacting metal sparks, melting insulation and potentially welding the relay shut–replace any cable showing heat damage or abrasion before reconnecting.
