Begin by identifying the power source’s hot wire–typically black–and connect it to the common terminal on the first control. Use wire nuts to secure the connection, ensuring no bare copper remains exposed. The remaining terminals on this unit and its paired counterpart will carry travelers: a pair of conductors linking the two controls. These wires can be red and black, or any distinct color not already assigned to live, neutral, or ground circuits.
Run a pair of travelers between the two controls, maintaining polarity: the same color (e.g., red to red, black to black) on corresponding terminals. If more than one fixture is involved, daisy-chain them by connecting the neutral wires together–a white conductor– forming a continuous loop. Ground wires–bare or green–should be bonded at each control and fixture, then routed to a grounding bus or rod.
For the second control, attach the fixtures’ hot wires–usually black–to its common terminal. Verify each connection with a multimeter before energizing: set it to AC voltage and probe the common against ground; expect 120V (or 240V for split-phase). If voltage reads zero, recheck the travelers and neutral bonding. Label each wire at both controls with adhesive markers to simplify future maintenance.
Test the setup by toggling both controls: each should independently turn the fixtures on or off. If one control cycles the power but the other doesn’t, the travelers are cross-wired–swap one pair at a terminal to correct polarity. Always de-energize the circuit before making adjustments.

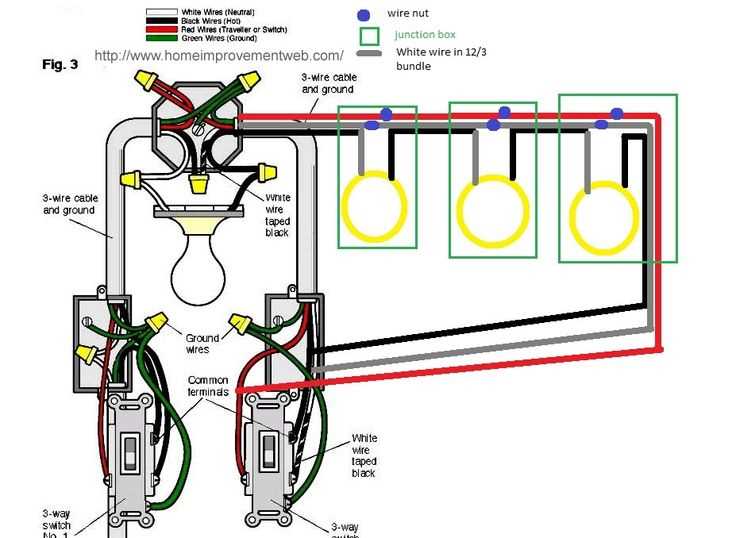

How to Wire a Dual-Control Circuit for Several Fixtures
Start by connecting the common terminal of the first control device to the power source–typically a black wire marked for load handling. The traveler terminals (often brass or gold-colored screws) on both devices must link via a pair of red and white conductors, forming the communication path between them. For each additional fixture, run a separate load wire from the second device’s common terminal, ensuring proper gauge for total amperage: 14 AWG for circuits under 15A, 12 AWG for 20A. Avoid daisy-chaining fixtures; each should have its own feed to prevent voltage drop.
Key Component Connections
| Terminal Type | Wire Color | Function |
|---|---|---|
| Common (First Device) | Black | Hot input from breaker |
| Traveler Terminals | Red, White | Inter-device communication |
| Common (Second Device) | Black (multiple) | Output to fixtures |
| Ground | Green/Bare | Safety bonding |
Use wire nuts or lever connectors to join neutrals only at the fixture box, never within the control enclosures–this violates NEC 300.3(B) for parallel conductor routing. Ground conductors must terminate at every box and fixture, even if the device lacks a dedicated ground screw.
Test each branch before finalizing connections. With power restored, manipulate both controls; all fixtures should toggle simultaneously. If one fails to respond, verify the traveler pair continuity using a multimeter–miswired paths often cause single-point control. For circuits exceeding 800W total, consider splitting loads between two breakers to prevent nuisance tripping, especially in LED installations where inrush currents may peak unexpectedly.
Label all conductors at both ends to simplify future maintenance. Mark traveler wires distinctly (e.g., red/white stripes) and avoid reusing white wires as grounded conductors–this complies with NEC 200.7(C) color-coding requirements. When installing in metal boxes, bond the control yoke to the grounded conductor using a pigtail; plastic boxes require no special grounding beyond the fixture’s equipment ground.
For installations in damp locations, use weatherproof covers rated NEMA 3R or higher, and seal cable entries with duct seal to prevent moisture ingress. Replace any corroded terminals immediately–oxidation increases resistance, creating potential fire hazards. When extending the circuit to more than four fixtures, calculate voltage drop using the formula VD = (2 * L * R * I) / 1000, where L is length in feet, R is wire resistance per 1000ft, and I is current. Exceeding 3% drop necessitates upsizing conductors or shortening the run.
Key Principles of Three-Point Circuit Control for Several Fixtures
Begin by connecting the common terminal of the first control point to the power source–use a 12-gauge copper conductor for circuits under 20 amperes to prevent voltage drop across longer runs. The traveler screws on both controls must link via identical colored wires (typically red and black) to maintain polarity; miswiring here creates intermittent functionality or complete failure. For each additional fixture beyond the first, splice the neutral line directly from the power feed to avoid daisy-chaining, as this overloads the terminal connections and increases resistance. Install a grounding pigtail at each junction box, securing it to the green or bare screw with a torque of 12–15 in-lbs to ensure proper fault path continuity even if a device loosens over time.
Test continuity between traveler pairs with a multimeter set to ohms before energizing–readings should match the wire’s gauge (e.g., ~0.5 ohms per 100 feet for 12 AWG). If one fixture remains illuminated regardless of toggle position, inspect the common terminal on the secondary control; it’s often mistakenly paired with a traveler. For installations exceeding 30 feet between controls, upsize the traveler wires to 10-gauge or install a repeater at the midpoint to compensate for signal degradation. Always label wires at termination points with heat-shrink tubing or printed tags to simplify future troubleshooting.
Step-by-Step Installation for Dual-Control Circuits with Several Lamps
Begin by shutting off the power at the circuit breaker to prevent electrical hazards. Verify the absence of current using a non-contact voltage tester on both terminals at each control point and the connected fixtures. Failure to confirm de-energization risks severe injury or equipment damage.
Identify the two control boxes and label the common (dark-colored) screw on each device–these are the critical connection points. The remaining screws on both units will link to the traveler wires, typically red and black. For installations with more than two luminaires, run a 14-3 cable between the fixtures to maintain proper conductor pairing.
Attach the neutral wire (white) directly to each lamp’s terminal, bypassing the controls entirely. Bundle all neutrals together with a wire nut at each junction box. If existing wiring lacks a neutral at one box, reroute a 14-2 cable from the nearest power source or another fixture to establish continuity–skipping this step will prevent proper operation.
Connect the common screw on the first control to the incoming hot conductor (black). At the second control, link its common to the feed wire heading toward the lamps. Secure the traveler wires (red and black) to the remaining screws on both controls, ensuring consistent color-coding across all connections. Miswiring travelers will render the system inoperable or cause erratic behavior.
For each additional luminaire beyond the first, splice the feed wire (black) into the next fixture’s hot terminal while maintaining a continuous neutral line. Use pigtail connections to avoid loose strands; improper splicing leads to arcing and potential fire hazards. Test each segment with a multimeter before finalizing–readings should show zero volts when all fixtures are off and full voltage when activated.
After securing all connections, restore power and verify functionality. Toggle each control; all lamps should respond identically to changes in position. If flickering or inconsistent response occurs, recheck traveler connections and common terminals. Once confirmed, tuck wires into the boxes and secure the faceplates–exposed conductors pose safety risks even when de-energized.
Avoiding Critical Errors in Three-Pole Circuit Configurations for Clustered Fixtures
Begin by labeling every conductor at both control points before termination. Standard NM-B cable contains a hot (black or red), neutral (white), and ground (bare/green). Misidentifying these leads to reversed polarity, causing flickering or non-functional endpoints. Use a multimeter in continuity mode to verify runs between junction points–expect ~0 ohms resistance on intact paths. If readings fluctuate unexpectedly, inspect for nicked insulation or loose connections within terminal screws. Aluminum wire requires anti-oxidant paste; copper can corrode over time without it, increasing resistance.
Terminal Missteps and Traveler Confusion
- Attach common terminals (typically darker-colored screws) first–these connect to the power source or load, not travelers.
- Traveler wires must bridge both toggles identically; swapping them creates erratic behavior.
- Loose terminal screws generate heat–torque to 12-15 in-lbs using a calibrated screwdriver.
- Avoid backstab connections; they’re prone to failure under frequent use.
- Daisy-chaining fixtures? Dedicate one switch as the power-in point to prevent overloading.
Grounding errors manifest as intermittent operation or shock hazards. Bond all metallic junction boxes to the grounding conductor with a pigtail splice. If retrofitting older metal boxes without a ground wire, install a GFCI breaker rated for the circuit amperage (usually 15A for 14AWG or 20A for 12AWG). For circuits feeding more than three endpoints, upsize the conductor gauge–14AWG maxes at 15A, while 12AWG handles 20A continuously. Overloaded wires overheat, degrading insulation and increasing fire risk.
