Locating precise internal wiring maps for vintage electronics models requires targeting service manual archives from authorized repair centers. Start with verified databases like Electronic Repair Net or Vintage Tech Schematics, which catalog manufacturer-issued technical documentation. These repositories often include exact PCB traces, component placement grids, and voltage paths–critical for diagnosing power supply failures or signal distortion. Avoid unvalidated forum uploads; even slight discrepancies in resistor values or IC pinouts can lead to irreversible board damage.
For models manufactured between 1985 and 2000, focus on original equipment manufacturer (OEM) schematics rather than third-party reproductions. OEM layouts detail unifying design conventions like:
- Horizontal/vertical deflection circuits – verify yoke coil resistance (typically 15–30Ω) and flyback transformer secondary outputs (25–35kV for CRT models).
- Video processing ICs – common failure points include LA7840 (vertical output) and TA8759AN (RGB decoding), each requiring ±5% tolerance replacements.
- Power regulation – check standby/active voltage rails (e.g., +112V, +12V, +5V) against PCB silk-screen markings before probing.
Always cross-reference capacitor polarities with the layout; reversed electrolytics on switching boards will explode under load.
When dismantling chassis, document cable routing sequences for tuner modules and main boards. Disconnect high-voltage leads first–use a grounded discharge wand rated for 50kV to neutralize CRT anode capacitance before handling. For modern equivalents needing reverse-engineering, use a multimeter in continuity mode to trace tracks from known points (e.g., fuse holder, bridge rectifier) to downstream components. Note that surface-mount revisions may omit through-hole adaptor pads present in older revisions.
Digital oscilloscopes with 100MHz bandwidth are mandatory for diagnosing sync-separator outputs (e.g., pins 27–29 on legacy MCUs). Without scope validation, intermittent raster collapse or color bleeding cannot be systematically isolated. For offline access, download PDFs in hierarchical folders organized by model prefix and production year–for example, CT-32XX/1998/Service_Vol1.pdf.
How to Decode TV Circuit Blueprints Like a Technician
Start by locating the power supply section on the board layout–it’s typically near the AC input socket, marked by larger capacitors (1000µF or higher) and a bridge rectifier. Trace the lines from the main transformer to identify voltage rails: look for labels like +B (90–150V), +12V, or +5V. If the screen stays dark but audio works, check the horizontal output transistor (often a 2SCxx or BUxxxx series) for continuity against ground–failure here cuts the high-voltage feed to the CRT.
For horizontal sync issues, test the flyback transformer windings with an ohmmeter:
- Primary winding: 0.1–1Ω (low resistance, expect slight buzz)
- Secondary (to CRT anode): infinite resistance (open loop, no direct contact)
- Focus/divider outputs: mid-range (50–300Ω, varies by model)
Replace any winding showing zero ohms–this often resolves flickering or horizontal collapse. Keep spare diodes (1N4007) handy; line output stages frequently blow these under voltage spikes.
Common Fault Points Across Models
Capacitors in the vertical deflection circuit (usually electrolytic, 1000µF/35V) dry out over time, causing vertical shrinking. Swap all three in the trio: coupling, bootstrap, and feedback. For intermittent color loss, test the crystal oscillator (4.43MHz for PAL) with a frequency counter–drift outside ±50Hz kills chroma. RGB amplifiers cluster near the CRT base; cold solder joints here manifest as distorted hues or missing colors.
To diagnose audio distortion, probe the LA7520 or similar sound IC pins:
- Input (pin 2): 0.1–0.3Vpp (demodulated signal)
- Volume control (pin 12): 0–5V (DC, zero volts = mute)
- Output (pin 18): 2–4Vpp (clean waveform)
Crackling? Replace the 10µF/16V coupling capacitor feeding the final amplifier stage–it’s a 90% failure cause. Keep a 220nF polyester film cap as a universal dropout for decoupling tests.
When replacing the tuner, note IF frequency alignment: 38.9MHz (PAL-B/G). Desolder the can first, then clean the RF shield cavity with IPA. Reflow all three connection points to the mainboard–poor grounding here triggers weak or ghosted reception. For complete vertical collapse, check resistors in the vertical IC’s feedback loop (e.g., 10kΩ, marked “VR01” or “VR12”); open circuits here often look like IC failure but are trivial to replace.

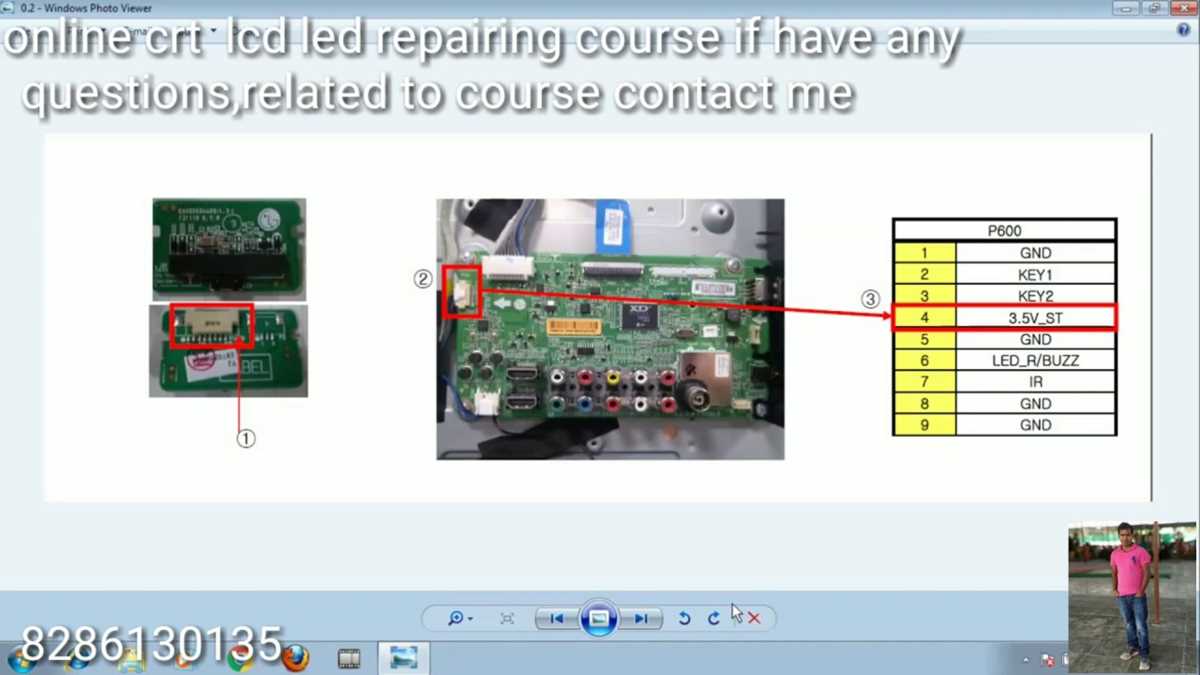

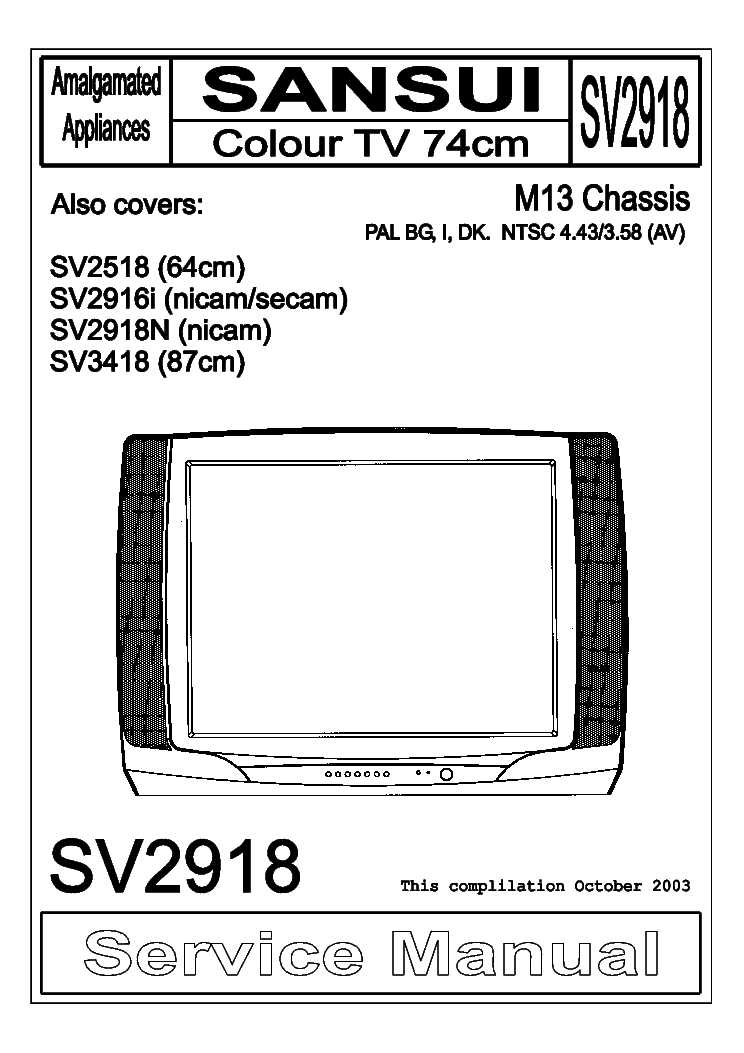

Locating Authentic Circuit Blueprints for Sansui Televisions Online
Start with the manufacturer’s support portal. Sansui’s official website often hosts service documentation for legacy models under the “Support” or “Downloads” sections. Filter results by model number–exact matches yield wiring layouts, component maps, and service manuals. Models like the AU-X999 or TU-D21 may have PDFs hidden in subdirectories. Use search operators: `site:sansui.com “service manual” [model]` for direct links.
Electronics repair forums archive original materials. Badcaps.net threads frequently attach scanned copies of board layouts, especially for CRT-era units. Search by chassis code (e.g., “ST-33” or “SP-45”) instead of model names–they’re less ambiguous. Other hubs include Elektrotanya.com (Hungarian but English-searchable) and EEVblog forums, where users upload zipped archives of internal guides.
| Forum/Resource | URL | Best For |
|---|---|---|
| Badcaps.net | https://www.badcaps.net/forum | CRT/PDP repair schematics |
| Elektrotanya | https://elektrotanya.com | PDF service manuals |
| EEVblog | https://www.eevblog.com/forum | Obscure digital TV boards |
Specialized databases index technical drawings. UEETek.com aggregates manufacturer releases, including older Sansui LED backlighting diagrams. HiFi Engine’s “Manuals” tab categorizes audio-visual equipment by brand and date, though membership is required for downloads. For physical copies, eBay sellers bundle printed service literature with obsolete parts–search listings tagged “NOS” (New Old Stock).
YouTube repair channels occasionally dissect specific devices, pausing to highlight connections. Search `”[model] disassembly” + “board layout”`–channels like *Shango066* overlay component IDs over footage. Not exhaustive, but useful when no documentation exists. Similarly, Korean repair site *Repair.wiki* cross-references schematic symbols to real-world traces.
University electronics labs sometimes retain vintage manuals. Email departments with embedded systems programs (e.g., MIT OpenCourseWare, Cambridge Engineering Library) quoting the model’s chassis number–archivists may digitize requested files. Corporate archives like Sony’s *Service Direct* inherited Sansui’s legacy files during asset transfers, accessible via paid account.
Torrent sites list complete service packs, though legal ambiguity persists. Isohunt or Archive.org’s collections often include ISO images with circuit traces for series like the AU-X99. Use checksums (e.g., `sha256sum`) to verify downloaded files against trusted sources–modified copies circulate with malware payloads.
Chipset manufacturers’ datasheets occasionally map out entire boards. Locate the main IC (e.g., Toshiba TAxxxx for analog sets) via multimeter continuity tests, then search the IC’s datasheet–application notes sometimes include reference schematics. For digital models, the HDMI receiver spec sheet may detail trace routing.
Local repair shops might share scans if contacted directly. Target shops specializing in 80s–2000s home electronics–some maintain filing cabinets of original prints. Offer to reimburse scanning costs. Libraries in Japan (Sansui’s origin) hold physical copies in technical collections; digital lending requests via *WorldCat* can expedite access.
Key Components in TV Circuit Reference Layouts
Locate the power supply regulator IC–typically marked as STR or MCZ series–near the primary transformer coil. Verify input voltage ranges on accompanying capacitors (e.g., 400V 100µF for mains filtering) and cross-check against annotated tolerances in the board’s service manual. Failure here often causes erratic shutdowns or dim displays.
Trace horizontal output transistors (commonly 2SD or 2SC types) by following thick copper traces from the flyback transformer. These devices handle high current (often exceeding 3A) and require heatsinks; if overheating occurs, replace with exact matching specs–substitutes like modern MOSFETs rarely work reliably. Measure emitter-base voltages during operation; deviations beyond ±0.2V suggest partial breakdown.
Yoke connectors and deflection coils demand visual inspection for cracked solder joints or discoloration–oxidation here disrupts image linearity. For vertical deflection issues, scrutinize the LA78xx or TDAxxxx IC; probe pins 4–7 with an oscilloscope to confirm sawtooth waveform integrity. Crushed or uneven waveforms indicate failing feedback circuitry, often resolved by replacing adjacent electrolytic capacitors (low ESR variants mandatory).
Step-by-Step Signal Tracing in Vintage TV Circuit Blueprints
Locate the power supply section first. On most vintage TV layouts, the main DC lines originate from a centralized transformer and rectifier block, typically annotated with voltages like +115V, +24V, or +12V. Use a multimeter set to DC mode, probe the filter capacitors–electrolytic types marked with polarity–to confirm stable output. If readings fluctuate or drop below 90% of labeled values, suspect dried-out capacitors, corroded solder joints, or a failing bridge rectifier. Replace components with exact voltage and capacitance ratings to avoid overloading downstream stages.
Trace the video path from the tuner’s IF output to the CRT driver board. Follow the labeled traces (e.g., “Video Out,” “Y Signal”) through intermediate amplifiers, often marked as Qxxx or ICxxx, where xxx denotes a sequential number. Each amplifier stage should incrementally boost the signal; abnormal waveform clipping or attenuation at any point indicates a faulty transistor or resistor. Use an oscilloscope with a ×10 probe to avoid circuit loading. Probe the base, emitter, and collector of each transistor–waveforms should mirror the input with minimal distortion.
Identify the horizontal and vertical deflection circuits by locating the flyback transformer and yoke connectors. The horizontal output transistor–a high-voltage type like BU208–will have a distinct heat sink. Measure the flyback’s secondary winding voltages against the schematic’s specified values (often +180V, +24V, -30V). If voltages are absent or erratic, check the horizontal oscillator IC (commonly a TBA950 or equivalent) for correct frequency output at pin 2 or 3. Replace any cracked or overheated resistors in the feedback loop to restore sync stability.
Examine the sound section by tracking the audio signal from the IF detector (often a TDAxxxx IC) through pre-amplifiers to the power amplifier IC (e.g., LA4260). Confirm the presence of a 1kHz sine wave at the detector output–absence suggests a failed ceramic filter or detector diode. At the power amplifier IC, measure DC offsets at the output pins; values exceeding ±50mV indicate internal failure. Bypass capacitors (typically 1000µF) should be tested for ESR–values above 5Ω warrant replacement to prevent muffled or distorted audio.
Isolate CRT-related faults by verifying the RGB drive signals at the neck board connectors. Each color channel (R, G, B) should exhibit a 60Vpp waveform with synchronized blanking pulses. If one channel is missing, trace backward to the video output IC–common culprits include open emitter resistors or cracked solder joints on the neck board. The focus and screen voltage pots should yield adjustable DC levels between 0-1kV; erratic adjustments point to high-voltage leakage in the flyback or deteriorated carbon tracks in the potentiometers. Use a high-voltage probe for accurate measurements to avoid false readings from a standard multimeter.
