Begin with the color-coded conductor requirements outlined in the 2023 compliance guide: 10 AWG minimum for engine circuits, 12 AWG for lighting, and 14 AWG for instrumentation. Verify all connections using a megohmmeter set to 500V DC–resistance values below 1 megohm indicate insulation failure, requiring immediate replacement. Avoid tinned copper for grounding applications; bare copper strand (ASTM B3) withstands saltwater corrosion at 95% efficiency over 20 years.
Install dual-circuit protection on all critical paths: a 15A breaker for navigation lights and a 20A breaker for bilge pumps. Use heat-shrink adhesive-lined terminals (MIL-DTL-23053/5 Class 2) for splices–crimp pressure must reach 120 psi to prevent moisture ingress. Label each termination point with laser-etched polyimide tags (UL 969) resistant to UV degradation and fuel exposure.
Route high-current cables (e.g., starter motors) above fluid lines and maintain 3″ minimum clearance from exhaust manifolds. Secure bundles with nylon spiral wrap (MIL-W-83420) spaced every 18″–metallic ties corrode within 48 months in humid environments. Test all ground connections to the hull with a milliohm meter; readings above 0.1Ω demand sandblasting of contact surfaces to SAE 2.5 striations before bonding.
For AC systems, isolate neutral and ground at the first disconnect panel using a dual-pole breaker rated for 30mA residual current. Use tinned aluminum busbars (ASTM B236) for main distribution–copper busbars oxidize within 3 years in coastal zones. Seal all external penetrations with 3M 5200 marine adhesive; silicone sealants fail under vibration testing per ASTM D4299.
Electrical Schematics for Vessel Systems: Critical Operational Guidelines
Isolate ignition-sensitive circuits with dual-rated relays rated for 20A resistive/15A inductive loads–standard off-the-shelf automotive relays fail under prolonged saltwater exposure within 18 months, while marine-grade variants maintain integrity for 5+ years. Test dielectric strength between conductors and bonding points quarterly using a 1,000V insulation tester; readings below 2MΩ indicate compromised sheathing requiring immediate replacement of that segment.
- Twist paired signal cables at a minimum of 4 twists per 30cm to neutralize induced noise from alternator fields and VHF transmit cycles.
- Route all harnesses through thermoplastic conduit with a continuous bend radius no tighter than 8× the outer diameter of the bundled assembly to prevent conductor fatigue.
- Label every junction block terminal with heat-shrink tubing printed with UV-resistant ink–legible markings degrade 70% faster under direct sunlight than in below-deck applications.
Equip bilge pump circuits with latching relays triggered by float switches, ensuring pumps remain energized independently of helm panel power states–a single momentary interruption during flooding can disable the entire system if relying solely on a non-latching design.
Understanding Standardized Electrical System Elements and Color Schemes
Begin by identifying critical conductors in low-voltage installations: ignition, power distribution, and grounding paths must adhere to precise color designations to prevent cross-circuit interference. The primary ignition feed–traditionally marked in yellow–should never share a bus with accessory lines like navigation or bilge pump circuits, typically isolated using red or brown sheathing. For systems exceeding 50A, double-layer insulation with heat-resistant sleeves is mandatory; verify manufacturer specs for temperature derating if operating in engine compartments or near exhaust manifolds.
Key Circuit Identification Reference
| Function | Color Code | Minimum Gauge (AWG) | Termination Requirements |
|---|---|---|---|
| Battery Positive | Red | 4 | Crimped ring terminal (tinned) |
| Ground | Black or Green | 4 | Direct chassis bond (oxide-free) |
| Alternator Output | Orange | 6 | Fused link within 7 inches |
| Navigation Lights | Brown | 14 | IP67-rated connectors |
Use a calibrated multimeter to verify voltage drop across connections–acceptable limits are <0.2V for 12V systems and <0.5V for 24V configurations. For multi-bank battery setups, isolate charging circuits using diodes or relays; reversed polarity on brown-striped wires (indicating instrumentation feeds) can trigger false sensor readings. Always route high-current cables away from data buses; specify minimum 6-inch separation from NMEA 2000 networks to prevent induced EMI. Replace any degraded sheathing showing discoloration or brittleness–UV exposure accelerates failure in standard PVC coatings, so opt for cross-linked polyolefin variants in exposed installations.

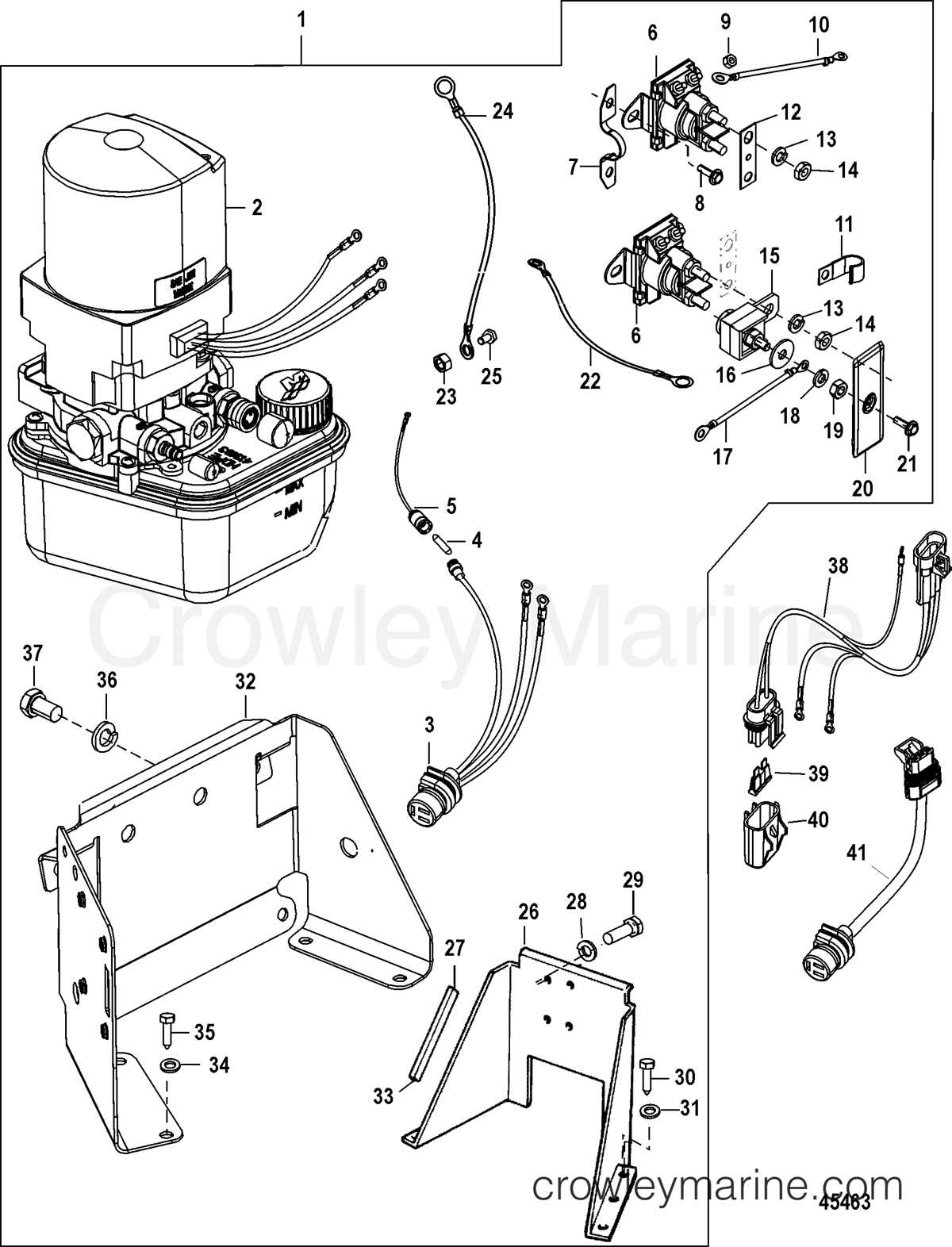

Interpreting Standardized Engine Electrical Schematics: A Practical Approach
Locate the power distribution block first–typically marked with thick red lines or a series of parallel connections at the top of the schematic. Identify terminal designations like “B+” or “IGN” (ignition) and trace each line downward to the corresponding relay, fuse, or sensor. Ignore generic labels such as “ACC” (accessory) unless the component directly relates to engine control circuits; these often lead to non-critical peripherals and obscure core paths.

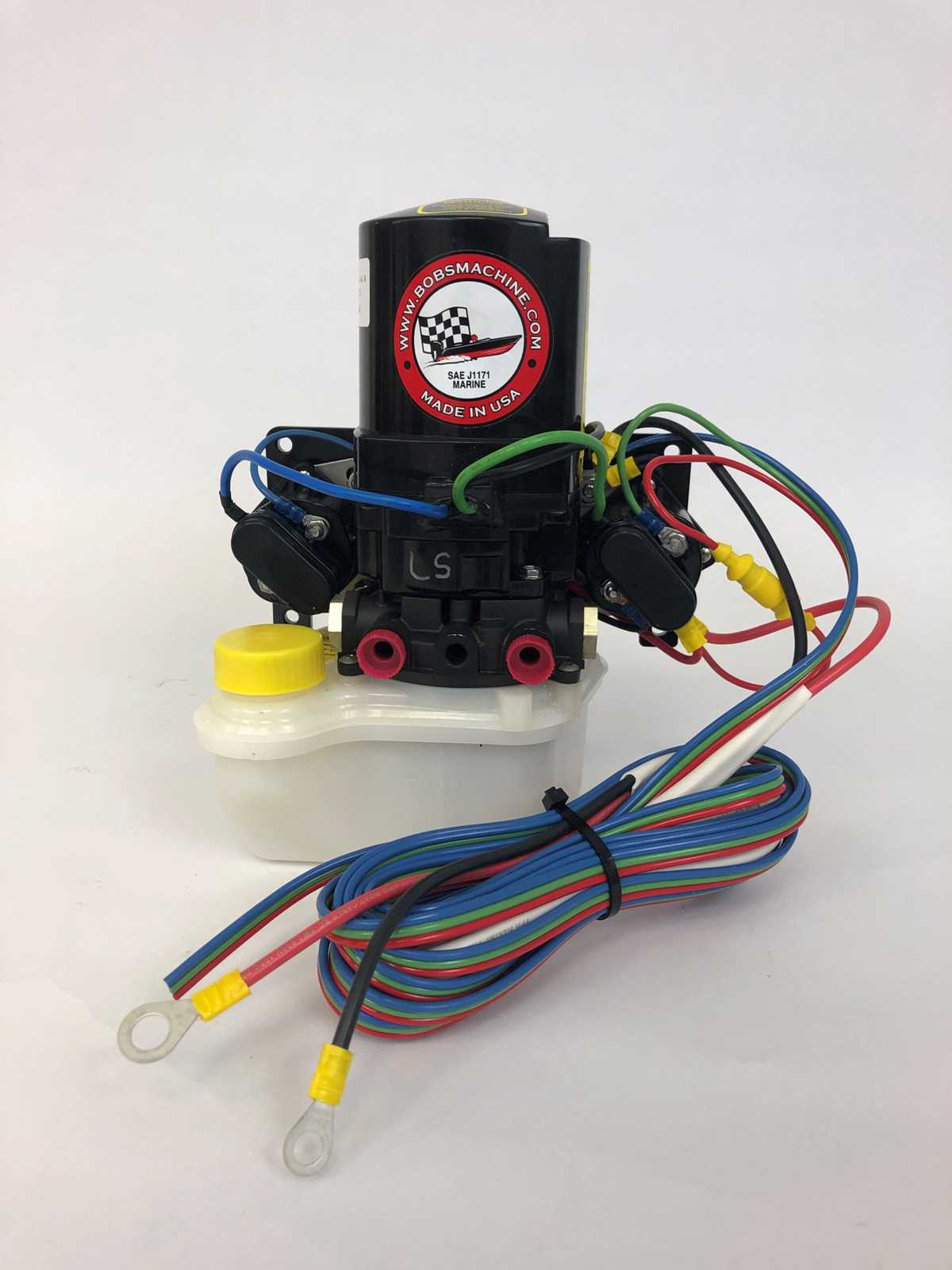

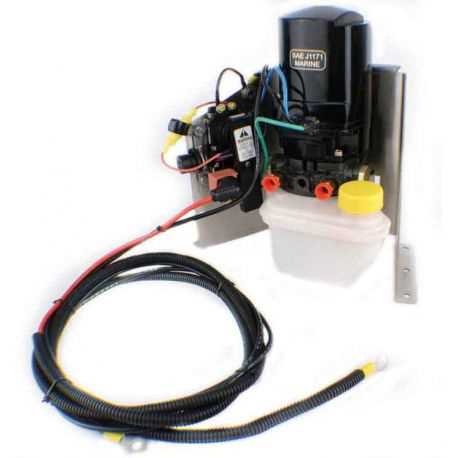

Decoding Component Symbols and Wire Color Codes
Cross-reference symbols with the legend provided in the manufacturer’s documentation–capacitors appear as two parallel lines, solenoids as a coil atop a switch, and ground points as a downward triangle or horizontal line with three descending strokes. Wire colors follow a strict hierarchy: red signifies unprotected positive, orange denotes switched power (after relay), black/white stripes indicate ground, and blue or yellow typically carry sensor signals. Verify these against the physical harness to confirm no deviations exist in splice points or aftermarket modifications.
Isolate high-current circuits–those supplying starters, alternators, or fuel pumps–by their gauge thickness on the schematic. Heavy-gauge wires (6-10 AWG) are visually thicker or noted with a separate weight marker (e.g., “6AWG”). Compare these with lower-gauge sensor lines (18-22 AWG) to avoid misrouting that risks voltage drop or fire hazards. Check for inline fuses on these paths, ensuring ratings match the schematic’s margin notes (e.g., “15A MAX”).
Test continuity using a multimeter set to ohms (200Ω range) by probing connector pins while referencing pinout tables. For example, an oil pressure sender’s resistance should read 240-330Ω when immersed in engine oil but spike above 1kΩ when dry. Discrepancies between measured values and schematic tolerances (often listed in sidebars) pinpoint faulty components, corrosion, or misrouted connections. Record deviations immediately and replace or reroute segments before proceeding to live power tests.
Critical Errors in Electrical System Installation and Prevention Strategies
Mismatching conductor gauge with current demand causes overheating–use AWG 10 for 30A circuits, AWG 12 for 20A, and verify derating factors for bundled cables. Undersized wiring fails under prolonged loads, especially in engine compartments where ambient temperatures exceed 50°C. Reference ABYC E-11 Table XVI for exact requirements rather than relying on generic automotive tables.
Ignoring color-coding leads to misconnections during maintenance–adhere strictly to ISO 10133: brown for positive, blue for negative, green/yellow for grounding, and additional circuits in violet or gray. Skipping terminal labeling compounds this issue; use heat-shrink labels with thermal printers to withstand saltwater exposure. Corrosion-resistant terminals (tinned copper) prevent voltage drop in high-humidity environments.
Overlooking surge protection invites damage from voltage spikes–install transient voltage suppressors at the distribution panel and engine control units. Inverters and alternators require dedicated suppression; a single MOV device may suffice for 12V systems, but 24V setups need coordinated Zener diodes. Test suppressors annually with a multimeter in diode mode; replace if leakage current exceeds 0.5mA.
Grounding buses often become single points of failure–separate engine, DC negative, and bonding grounds into isolated buses connected at a single point to prevent galvanic corrosion. Use 316 stainless steel fasteners for bonding and ensure all metal surfaces are bare before attachment. A 1Ω resistance between bonded components and the ground bus indicates proper installation.
Improper fuse placement exposes entire branches to faults–locate fuses within 7 inches of the power source and never daisy-chain without intermediate protection. For bilge pumps, place the fuse between the battery and switch to prevent short-circuit fires when submerged. Use slow-blow fuses for inductive loads (50% over nominal current) and fast-acting types for resistive circuits.
Modifying Vessel Electrical Schematics for Diverse Power Setups
First, identify the voltage requirements of your vessel’s equipment. Most recreational power systems operate at 12V or 24V, while commercial or high-power applications may use 48V or higher. Verify the voltage rating of each component–engines, navigation lights, bilge pumps, and communication devices–to avoid mismatches. A 24V alternator paired with 12V batteries will cause premature failure, while a 12V bilge pump on a 24V system risks burnout within hours.
Use a dual-battery configuration for redundancy, separating house loads (lights, radios) from critical systems (starter, electronics). Install a battery isolator or automatic charging relay (ACR) to prevent draining both banks simultaneously. For lithium batteries, ensure compatibility with the alternator’s charging profile–many standard regulators lack the necessary voltage cutoffs, leading to overheating. Test charging currents under load; lithium-ion often requires 20-30% higher amperage than lead-acid counterparts.
Adapt fuse and circuit breaker sizing based on cable gauge and maximum current draw. Refer to the American Boat and Yacht Council (ABYC) standards: a 10-gauge wire carrying 30A must use a fuse no larger than 30A, but derate for ambient temperatures above 30°C (add 6% per 5°C increase). Oversized fuses accelerate wire insulation failure, while undersized ones cause nuisance trips. Label each breaker with its connected circuit–ambiguity during troubleshooting wastes critical time.
Integrating Non-Standard Power Sources
Solar panels and wind generators demand charge controllers with appropriate voltage thresholds. MPPT (Maximum Power Point Tracking) controllers yield 10-30% more efficiency than PWM (Pulse Width Modulation) types, but require precise voltage matching–an 18V panel on a 12V system needs a buck converter. Avoid mixing charging sources without a priority controller; a wind generator spinning at full speed while solar panels idle risks overcharging the batteries.
For 120V/240V AC integration, use pure sine wave inverters to protect sensitive electronics. Match inverter wattage to sustained loads (e.g., a 2000W inverter for a 1200W microwave), but account for surge ratings–compressors and pumps may draw 2-3x their running wattage at startup. Hardwire high-power devices directly to the inverter output; plug-in power strips risk voltage drop and overheating. Ground AC neutrals separately from DC negatives to prevent galvanic corrosion.
Document every modification. Record wire lengths, gauge, fuse ratings, and connection points in a schematic. Use color-coded heat shrink tubing at terminals: red for positive, black for negative, yellow for switched circuits, and blue for ground. Test continuity with a multimeter before energizing–shorts in bilge areas often go undetected until catastrophic failure. Update the schematic after each change; outdated references create avoidable hazards.
- Verify battery type compatibility before connecting charging sources.
- Derate fuse values for temperature extremes.
- Isolate AC neutrals from DC grounds.
- Use MPPT controllers for solar/wind inputs above 50W.
- Label all breakers with load descriptions.
