Begin by identifying the two primary elements: the run unit (typically marked with a higher microfarad value, e.g., 35 MFD) and the start device (usually 5 MFD or lower). Connect the run unit’s labeled terminals–”HERM” and “C”–directly to the compressor’s corresponding ports using 10-gauge wire. The start device must bridge the “HERM” terminal and an auxiliary point (often marked “COM” or “5”) on the compressor. Verify voltage compatibility: 115V systems require a single-phase hookup, while 230V setups need dual lines with a neutral bypass.
Use a multimeter to test continuity before energizing the circuit. Set the meter to ohms (Ω) and probe the run and start components individually. A reading near 0 Ω indicates a functional path; infinity (∞) signals a failed part requiring replacement. Secure all connections with ring terminals crimped with a ratcheting tool–loose fittings risk arcing and overheating. Route wires through a flexible conduit if exposed to vibration or moisture, ensuring minimum 6-inch separation from moving parts.
Install a hard-start kit (e.g., Supco SPP6 or equivalent) if the compressor struggles to initiate. Wire the kit’s relay between the run unit’s “C” terminal and the start device’s output, following the manufacturer’s polarity guidelines. For 12V DC systems, integrate a dual-function relay to isolate the start sequence from the main control board–this prevents voltage drops on sensitive electronics. Label all wires with heat-shrink tubing or engraved tags to simplify future diagnostics.
Avoid common pitfalls: never reverse the run/start polarity, as this will destroy the compressor’s windings within minutes. Oversized wires (e.g., 8-gauge for 10-gauge circuits) won’t improve performance but may hinder proper terminal seating. If the system cycles rapidly, check for low refrigerant or a faulty pressure switch–both mimic electrical failures. For troubleshooting, refer to the RV’s service schematic (often found behind the interior control panel) rather than generic diagrams, as pinouts vary by model.
How to Connect Your RV Cooling System Energy Storage Unit
Locate the run and start components behind the access panel on your RV’s rooftop cooling unit. Most models use a round 15–30 microfarad unit for steady operation, paired with a 50–80 microfarad oval booster for initial voltage spike. Use a multimeter to test stored charge before handling–even a disconnected unit can retain lethal voltage. Mark each lead with masking tape: “R” for run, “S” for start, “C” for common. The run lead should connect to the hermetic motor’s auxiliary winding, while the start lead goes to the main winding via a centrifugal switch or solid-state relay.
Follow these steps for proper reconnection:
- Unplug the RV from shore power and set the breaker to “off.”
- Discharge both units by shorting terminals with an insulated screwdriver–verify with multimeter.
- Remove the retaining bracket and slide out the failed component.
- Match the new unit’s microfarad rating and voltage (typically 370VAC) to the label on the original.
- Attach the spade connectors firmly–loose terminals cause arcing and premature failure.
- Reinstall the panel and test with a soft start kit if frequent cycling occurs.
Dual-component setups in larger RVs (15,000+ BTU) often split functions: a cylindrical unit handles continuous current while an adjacent oval helps overcome inertia at startup. Always replace both simultaneously–mismatched ratings shorten motor life. Check the schematic sticker inside the panel for model-specific lead order; Dometic and Coleman units differ in terminal orientation despite identical shapes. If the motor hums but doesn’t spin, swap the start and common leads–reverse polarity prevents engagement.
Troubleshooting Common Issues
- Unit won’t start: Test for 120VAC at the relay. If present, probe the storage cell’s leads–0V indicates internal failure. Replace if bulging or leaking oil.
- Intermittent operation: Tighten all connections with a torque screwdriver (8–10 in-lbs). Oxidized terminals cause voltage drop; clean with wire brush before reattaching.
- Motor overheats: Ensure the run component is sized for 1.2x the motor’s FLA rating. Undersized units cause excessive heat buildup.
- Irregular clicking: Bypass the relay with a jumper wire briefly. If the unit starts, replace the relay–the contacts are pitted.
Store spare parts in a static-shielded bag to prevent moisture absorption, which alters microfarad values. Label each with the RV’s make/model/year–generic replacements often misalign with original tolerances.
Identifying the Right Energy Storage for Your RV Cooling Unit
Select a replacement part that matches the original microfarad (µF) rating and voltage specifications–common values for RV cooling units are 35–50 µF at 370–440 VAC. Verify the physical dimensions; dual-run components typically measure 2.5–3.5 inches in length with either round or oval profiles. Check the terminal configuration: most RV systems use a two-post design with ¼-inch spade connections, though some older models may require push-on connectors.
Prioritize quality: Choose an oil-filled or metallized polypropylene type for sustained performance under high thermal loads. Brands like Supco, Mars, and Turbo 2000 provide verified compatibility with Dometic, Coleman, and Carrier units. Avoid generic no-name parts–they fail prematurely, risking compressor overload. If the original marking is unreadable, locate the model number on the cooling unit’s data plate to cross-reference exact specs with manufacturer manuals or verified supplier databases.
Step-by-Step Guide to Accessing the Energy Storage in an RV Cooling System
Disconnect power immediately by switching off the breaker or unplugging the RV. Verify absence of current with a non-contact voltage detector near the cooling unit’s electrical housing. Safety goggles and insulated gloves reduce risk of arc flash or accidental shorts.
Remove the outer shroud by locating the screws or clips securing it–typically along the edges or hidden under decorative trim. Use a screwdriver or nut driver matching the fastener type. Lift the shroud away carefully; some models have wiring harnesses attached that may require gentle disconnection.
Identify the energy storage component, usually a cylindrical or oval canister mounted adjacent to the compressor or fan motor. Trace the high-voltage leads–gauged wires, often color-coded–to confirm its location before proceeding. Avoid touching terminals unless voltage is confirmed absent.
Label all connecting conductors using masking tape and a permanent marker. Note terminal designations like “Herm,” “Fan,” and “Common” if present. Photograph the arrangement from multiple angles for reassembly reference. This prevents miswiring errors that could damage the cooling mechanism.
Release the retaining bracket with a socket or wrench if the canister is secured. Some units use a snap-fit design–apply firm, even pressure to avoid cracking the housing. Gently rock the component side-to-side while pulling upward to free it from its mounting.
Inspect the leads for corrosion, fraying, or discoloration before detachment. Use needle-nose pliers to remove spade connectors or a small screwdriver for set screws. If terminals appear burnt or swollen, replacement is necessary due to compromised dielectric integrity.
Compare the physical dimensions, voltage rating (e.g., 370V or 440V), and microfarad (µF) value of the old and new components. Mismatched ratings can cause motor burnout or inefficient cooling cycles. Reinsert the storage unit in the same orientation as removed, ensuring proper alignment of mounting holes and terminals.
Reattach conductors in the exact configuration documented earlier. Tighten all connections securely–loose fits create resistance, generating heat and potential failures. Reinstall the shroud, restoring all fasteners and wiring harnesses. Power on and monitor the cooling system for abnormal noises, vibration, or tripped circuit protection before closing the access panel.
How to Read and Interpret an RV Cooling Component Electrical Schematic

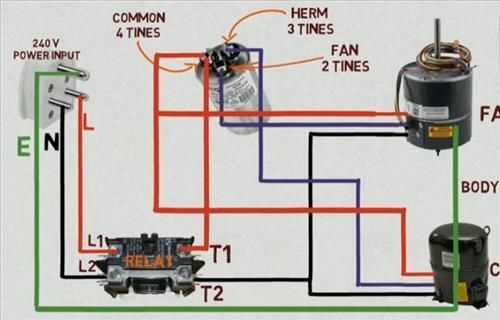

Identify the run and start terminals first–they’re typically marked “Herm” and “Fan” on the energy storage unit. Herm connects to the compressor, Fan to the blower motor, and the common terminal bridges both circuits. Mismatches here cause immediate failure, so verify labels against the legend before proceeding.
Trace the power flow from the contactor. A 220V or 110V line enters the contactor’s L1/L2 inputs, splits to the thermal protector, then merges at the energy storage unit’s common terminal. If voltage doesn’t reach both Herm and Fan terminals, inspect the thermal cut-out or faulty relay–common culprits in stalled RV climate systems.
Check dual-component setups separately. Models with split energy storage units show two ovals or circles linked by a dashed line; the dashed line often denotes a shared clamshell casing. Measure resistance across each half–expect 3-10 ohms for the run side, 20-50 ohms for the start side. Values outside these ranges signal internal failure.
| Terminal Pair | Expected Resistance (Ohms) | Fault Indicators |
|---|---|---|
| Common → Herm | 3-10 | >15 or OL (open circuit) |
| Common → Fan | 3-10 | >15 or OL |
| Start → Run | 20-50 | 100 |
Decoding Auxiliary Symbols
Look for small rectangles with diagonal slashes–these indicate noise-suppressing varistors. Squiggly lines branching off terminals denote resistor jumpers used in hard-start kits. Both components sit off the main circuits but share the same mounting bracket; missing or misrouted jumpers will delay compressor kick-in by 3-5 seconds.
Confirm grounding continuity last. The schematic’s ground path is a straight line terminating in an inverted triangle or chassis symbol. Test from the ground lug on the contactor to the RV’s frame–resistance should read below 1 ohm. Corroded frame points or missing star washers add 5-10 ohms, compromising thermal protection trips.
