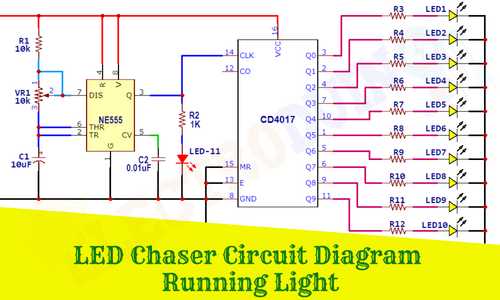

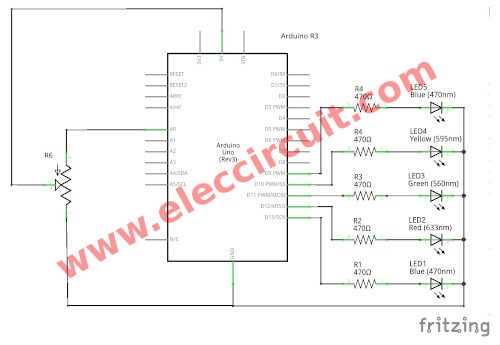

Start with a 555 timer IC configured in astable mode to generate precise pulses. Set the timing components–10 kΩ resistor, 100 kΩ potentiometer, and 10 μF capacitor–to control the speed of the sequence. The output triggers a decade counter like the CD4017, which cycles through ten outputs sequentially. Each output connects to a transistor driver (2N2222 or BC547) handling up to 200 mA per channel, sufficient for standard 3 mm or 5 mm diodes at 20 mA.
Avoid powering more than five diodes per channel directly from the counter–exceeding this risks damaging the IC. Use separate 12 V DC for the diodes and 5 V for logic to prevent interference. Add flyback diodes across each relay coil if using mechanical switching for inductive loads. For smoother transitions, replace the 555 with a microcontroller like the ATtiny85, programming delays with millis() instead of delay() to allow non-blocking operation.
Calculate resistor values using R = (Vsupply – Vforward) / Iforward. For 12 V supply and 2 V forward voltage, a 510 Ω resistor limits current to 20 mA per diode. Space traces at least 0.5 mm apart on PCB layouts to prevent crosstalk between high-speed switching channels. Test continuity with a multimeter before applying full voltage–shorts in transistor bases cause cascading failures.
For battery-powered setups, add a 470 μF capacitor across the power rails to stabilize voltage drops during switching. Use MOSFETs (IRFZ44N) for higher current demands beyond 500 mA per channel. Adjust the CD4017’s reset pin wiring to loop the sequence–connect output Q9 back to reset for a continuous cycle, or leave it floating for a single pass. Always isolate logic ground from power ground to prevent noise coupling.
Sequential Illumination Setup Guide
Start with a 555 timer IC configured in astable mode to generate clock pulses. Use a 10kΩ resistor between pins 7 and 2, a 1µF capacitor from pin 2 to ground, and a 1kΩ resistor from pin 6 to pin 7. This setup yields approximately 1Hz pulses–ideal for visible chaser effects. Pair the timer with a 4017 decade counter: connect pin 3 of the 555 to pin 14 of the 4017. Each output (Q0–Q9) drives a separate transistor stage (e.g., 2N2222) to handle current for up to 10 illumination elements.
- For custom timing: adjust the capacitor value. A 470nF reduces frequency to ~0.5Hz; 100nF increases it to ~5Hz.
- Add a 10kΩ pull-down resistor on each transistor base to prevent ghosting.
- Use 220Ω series resistors for standard 5mm emitters (forward voltage ~2V, current ~20mA).
- Power the 4017 from 5–12V; ensure the supply matches your emitters’ requirements.
- To extend beyond 10 stages: cascade a second 4017 by linking Q9’s output to the second counter’s clock input.
For compact installations, replace discrete transistors with an ULN2003 Darlington array. Each channel sinks up to 500mA, eliminating the need for individual driver components. Keep trace widths on PCB layouts at ≥1mm for 250mA paths to avoid overheating. Test the sequence with a logic probe before soldering emitters–verify counter outputs toggle correctly before connecting loads.
Key Parts Needed to Build a Sequential Illumination Sequence
Opt for a 5V to 12V DC power supply to ensure stable performance–anything beyond risks overheating microchips or shortening component lifespan. A 9V battery adapter works for portable setups, but a regulated bench supply prevents voltage fluctuations that distort timing.
The core logic comes from a shift register–74HC595 is ideal for cascading patterns, offering 8 outputs per unit. If delays matter, pair it with a 555 timer IC to govern refresh rates; standard values (R1=10kΩ, R2=100kΩ, C=10µF) yield ~1Hz, but tweak resistors to fine-tune speeds.
- Current-limiting resistors: Use 220Ω for standard diodes; switch to 470Ω if running 12V to avoid burnout. Measure forward voltage (typically 1.8V–3.3V per diode) and calculate via
(Vsupply – Vf) / If. - Diodes: Pick THT 5mm clear lenses for visibility; SMD variants need reflow soldering but save space. Verify max current (20mA–50mA) to align with resistor limits.
- Optional oscillator: For precision, a crystal (16MHz) paired with capacitors (22pF) keeps timing consistent, though bulkier than RC networks.
A microcontroller like ATtiny85 simplifies logic but requires programming–Arduino’s shiftOut() handles sequencing with minimal code. Without coding, breadboard the shift register directly, though manual wiring risks misconnections.
Verify layout with a continuity tester before powering; diodes mounted backward or misaligned shift register outputs create erratic behavior. Use decoupling capacitors (0.1µF) across IC power pins to filter noise, especially in longer chains.
For modularity, add screw terminals or JST connectors between stages–this lets you swap damaged sections without full rewiring. Label each stage’s input/output to streamline troubleshooting.
Solder joints should be concave and glossy; rough or bulbous connections generate resistance that distorts behavior. Heat sinks aren’t needed for low-current setups but consider a small fan if running >10 diodes simultaneously.
Step-by-Step Wiring Guide for Sequential Illumination Motion
Begin by selecting a shift register IC like the 74HC595 for cascading signals. Confirm its pinout: VCC (pin 16), GND (pin 8), data (pin 14), clock (pin 11), latch (pin 12), and outputs Q0-Q7 (pins 15, 1-7). Use a 5V regulated supply with a 100nF decoupling capacitor across the IC’s power pins to prevent voltage spikes.
Wire the first emitter cluster to Q0 (pin 15) via a 220Ω resistor. Repeat for Q1-Q7 (pins 1-7) to subsequent clusters. For eight segments, this creates a linear cascade. If extending beyond eight, chain a second 74HC595: connect its data input (pin 14) to Q7’ (pin 9) of the first IC, ensuring shared clock and latch lines.
| IC Pin | Component Connection | Resistor Value |
|---|---|---|
| Q0 (15) | First segment anode | 220Ω |
| Q1 (1) | Second segment anode | 220Ω |
| Q2 (2) | Third segment anode | 220Ω |
| Q7 (7) | Eighth segment anode | 220Ω |
Program a microcontroller with the following timing sequence: set data high for one clock cycle, toggle clock high then low, repeat for each bit. Latch the outputs simultaneously after all bits shift. Example code for Arduino:
digitalWrite(dataPin, HIGH);
shiftOut(dataPin, clockPin, LSBFIRST, 0b00000001);
digitalWrite(latchPin, HIGH);
digitalWrite(latchPin, LOW);
delay(100);
shiftOut(dataPin, clockPin, LSBFIRST, 0b00000010);
For bidirectional motion, preload both ICs with shifted patterns (e.g., 0x81 for peripheral activation), then rotate bits left or right via code. Use 74HC164 for simplified cascading with two data inputs but omit latch control–ideal for longer chains exceeding 16 segments.
Test each stage independently before chaining. Measure current draw per segment: typical 5mm emitters draw 20mA; ensure the shift register’s max 70mA output per pin isn’t exceeded. For larger loads, use ULN2803 Darlington arrays (sink current) between IC outputs and segments.
Optimize power distribution: route VCC traces directly from the regulator to ICs, avoiding common paths with segment wiring. Add a 10μF bulk capacitor near the supply entry point. For outdoor use, enclose the assembly in a sealed enclosure with desiccant to prevent corrosion on copper traces.
Tune speed by adjusting the delay between shifts. For smooth motion, use 50-150ms intervals. Faster speeds require thicker traces (1.5mm width for >300mA) or copper pours. Document each connection with a labeled schematic for maintenance–color-code wires (red for VCC, black for GND, yellow for data lines).
Frequent Errors in Sequential Glow Setup Construction
Connecting power sources without calculating voltage drop causes inconsistent brightness. Each meter of wire may reduce voltage by 0.1-0.3V; for a 12V system, this accumulates quickly. Measure the total path length and select thicker gauge wire–18AWG for lengths under 5m, 16AWG for 5-10m–to compensate. Skipping this step leads to dim segments at the far end or premature failure of components due to overheating.
Incorrect Resistor Sizing Shortens Component Lifespan
Using a 220Ω resistor for all segments ignores current differences between colors. Red typically requires 150-200Ω, while blue and white need 100-130Ω. Calculate using (Source Voltage – Forward Voltage) / Current; a 5V supply with 3.2V forward voltage and 20mA current demands a 90Ω resistor, not the generic 220Ω. Overestimating resistance cuts luminosity; underestimating burns out diodes.
Improper solder joints create intermittent connections. Use rosin flux and a temperature-controlled iron (300-350°C) to avoid cold joints. Heat the pad and component lead simultaneously for 2-3 seconds, then apply solder to the junction–not the iron tip. Test each joint with a multimeter in continuity mode; a single faulty connection disrupts the entire sequence.
Ignoring Heat Dissipation Damages Controllers
PWM drivers like the WS2812B generate heat under 5V input. Mount them on a copper plane or aluminum substrate; even a 2x3cm copper clad absorbs enough heat to prevent thermal throttling. Overlooking this reduces refresh rates and color accuracy, especially in strips longer than 30 units. Use thermal adhesive or silicone pads for direct heat transfer.
Powering arrays directly from microcontrollers exceeds their 20-50mA current limits. A 5-meter strip with 60 diodes per meter draws 3-4A; Arduino’s 5V pin delivers only 0.5A. Attach an external DC adapter with matching voltage and current ratings, and fuse the positive line with a 5A slow-blow. Failure to do so risks browning out the controller or melting traces on the board.
