Start by disconnecting power at the circuit breaker before handling any electrical components. Locate the terminal strip on the control board–eight labeled slots marked R, C, Y, G, W, O/B, L, and E indicate primary connections. Use 18-gauge solid copper wire for all low-voltage links to ensure stable signal transmission. Cross-reference your system’s voltage requirements: 24V AC typically powers the thermostat circuit, while 120V/240V lines handle condenser and fan motors.
R connects to the transformer’s red wire–this delivers power to the board. C (common) grounds the circuit; skip this and the system won’t energize. Y triggers cooling–link it to the contactor coil in the outdoor unit. G activates the furnace blower; verify the motor runs in manual mode before wiring. W controls heating–attach it to the relay on gas/electric furnaces or heat pump staging. O/B switches between reheat and defrost modes on heat pumps; polarity matters for proper operation.
Color-coding isn’t universal–always confirm with a multimeter. Black wires often carry 120V/240V, but never assume. Label each wire before removal if replacing an old board. For dual-fuel systems, L and E terminals handle auxiliary heat stages; miswiring here trips safety cutoffs. Test continuity between terminals before restoring power–short circuits blow fuses instantly.
Use crimp connectors or terminal blocks rated for 20A minimum. Loose screws cause intermittent failures or overheating. After wiring, energize the circuit and check for error codes. If the display flashes “Open Circuit Y1”, re-examine the Y and C connections. For “Reverse Polarity” errors, swap R and C wires. Heat pumps need the O/B wire toggled between heating and cooling; incorrect settings damage the compressor.

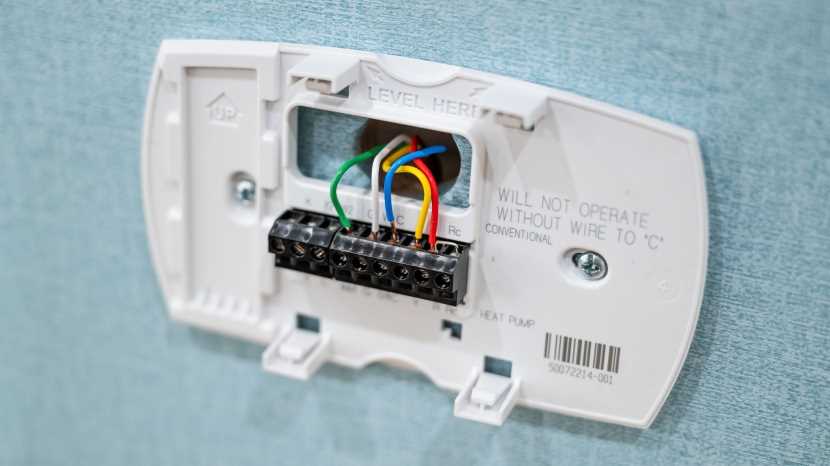

Installation Schematic for Honeywell Thermostat Model Reference
Identify the low-voltage control unit terminals before connecting. The HVAC system typically uses labeled ports: R (power), C (common), W (heat), Y (cool), G (fan). For dual-transformer setups, note Rc (cooling power) and Rh (heating power) – jumper these if the system shares a single transformer. Verify compatibility: heat pumps require an O/B (reversing valve) terminal, omitted in standard furnaces.
Terminal Pairing Matrix
| System Type | Required Connections | Optional Add-Ons |
|---|---|---|
| Gas Furnace + AC | R → Rh, W → W, Y → Y, G → G | None |
| Heat Pump (No Aux) | R → Rc/Rh, Y → Y, O/B → O/B, G → G | Emergency Heat (E) |
| Boiler + Radiant | R → R, W → W | Circulator Pump (P) |
Disable power at the breaker before handling wires. Use a multimeter to confirm less than 30V AC between terminals. Twist exposed ends clockwise, secure with wire nuts, then fold excess into the wall box. For variable-speed fans, connect the G terminal to the HVAC’s dedicated fan relay to avoid erratic behavior.
Pinpointing the Right Connection Points on Your Thermostat Model
Begin by locating the labeled terminals on the backplate of your device. The standard configuration includes slots marked R (power), W (heating), Y (cooling), G (fan), and C (common). Confirm these labels match the factory-provided reference sheet–manufacturers occasionally adjust terminal assignments for specific HVAC systems. For dual-transformer setups, separate Rc (cooling power) and Rh (heating power) slots will appear; connect accordingly to avoid damaging low-voltage circuits.
Verify the gauge of your supplied conductor matches the terminal’s capacity. Most terminals accommodate 18- to 22-gauge solid copper wire, but thicker wires (e.g., 16-gauge) require stripping an additional 1/8 inch of insulation to ensure full insertion. Use a non-contact voltage tester to confirm circuits are de-energized before handling. Insert wires fully until the terminal’s spring clamp engages–loose connections cause intermittent failures or system resets.
Handling Non-Standard Configurations
If your HVAC system deviates from conventional setups (e.g., heat pumps, multi-stage units, or auxiliary heat), refer to the equipment’s manual for exact terminal mapping. For heat pumps, the O/B slot controls the reversing valve–energize it for cooling mode in most installations, but check manufacturer specs for exceptions. Auxiliary heat sources may require a W2 or E terminal; jumper wires between R and these slots only if explicitly directed.
Label all conductors before disconnecting any existing setup, using masking tape or dedicated wire markers. Cross-reference each wire’s origin (furnace, air handler, outdoor unit) with the terminal’s purpose. For smart or communicating systems, ensure compatibility by matching the C wire to the low-voltage transformer’s common side–omitting this step prevents Wi-Fi module power delivery. Recheck all connections with a multimeter set to continuity mode before restoring power.
Step-by-Step Electrical Hookups for HVAC Systems
Disconnect power at the main circuit breaker before handling any terminal connections. Verify absence of voltage using a non-contact tester on all incoming lines. Label each conductor with its designated terminal identifier–R (red), C (blue), W (white), Y (yellow), G (green)–to eliminate cross-connection risks. Strip 3/8 inch of insulation from copper ends, ensuring no stray strands remain, and insert firmly into terminal screws without twisting.
Controller Board and Furnace Interface
Locate the control board inside the furnace cabinet–typically secured behind a snap-off panel. Match the transformer secondary output (24V) to the R and C terminals; incorrect polarity trips internal fuses. Attach Y to the compressor relay coil and W to the heat sequencer or relay for gas valve activation. Secure G to the indoor blower motor relay; use a 18-gauge solid core for runs under 30 feet, 16-gauge stranded for extended ductwork pathways exceeding 50 feet.
Route low-voltage conductors away from high-voltage lines by a minimum 1-inch air gap or use conduit separators. Tape exposed splices with UL-listed electrical-rated vinyl tape, overlapping each wrap by 50% to maintain insulation integrity. After re-energizing, monitor initial startup amperage draw with a clamp meter–expect 0.5A for fan relay engagement, 1.2A for compressor contactor pull-in, and no greater than 3.5A sustained on R-C circuit during thermostat communication pulses.
Test safety interlocks by simulating temperature extremes–manually activate the high-pressure cutoff switch (should interrupt Y circuit within 2 seconds) and verify induced draft motor responsiveness under G circuit demand. Log pre- and post-installation resistance readings across each terminal pair; deviations exceeding 0.2Ω from factory specifications indicate potential corrosion or loose connections.
Frequent Errors During Thermostat Installation
Mislabeling power terminals leads to immediate system failures. The 24VAC common wire (often blue) must connect to the “C” terminal without exception. Confusing it with “Rc” or “Rh” causes shorts, tripping circuit breakers. Verify terminal assignments with a multimeter before fastening wires–measure continuity between “R” and “C” to confirm proper voltage.
Skipping polarity checks on low-voltage circuits invites intermittent faults. Though thermostat circuits operate on AC, reversing “R” and “C” wires disrupts transformer function. Mark wires with tape during removal to prevent swaps, especially in dual-transformer setups where “Rc” and “Rh” serve separate systems. Label the furnace-side connections identically.
Overlooking jumper wire requirements between “Rc” and “Rh” creates heating/cooling gaps. Single-transformer systems need this jumper; removing it unknowingly forces the HVAC unit to run only heating or cooling. If both modes fail, inspect the jumper first–replace corroded or broken jumpers with 18-gauge solid copper wire.
Neglecting wire gauge compatibility strains the entire climate control setup. Using 20-gauge stranded wire instead of 18-gauge solid increases resistance, causing voltage drops. At 15 feet, 20-gauge wire loses ~0.5V per leg, degrading compressor performance. Replace undersized wires with properly rated cables, stripping only 5mm of insulation to avoid exposing excess conductor.
- Forgetting to disable power before handling connections risks electrocution or board damage. Always flip the furnace switch or circuit breaker–confirm power-off with a non-contact voltage tester.
- Improper grounding introduces phantom faults. Never connect the “C” wire to a neutral bus–bond it directly to the transformer’s common terminal to prevent interference in digital signals.
- Using backstabs instead of screw terminals loosens connections over time. Tighten screws to 4-5 inch-pounds; overtightening strips threads on plastic terminals.
- Ignoring wire color standards causes debugging nightmares. While most systems follow red (“R”), white (“W”), yellow (“Y”), green (“G”), blue (“C”), some older setups vary–always trace wires to their source.
Follow-Up Checks After Installation
Failing to test all modes after setup reveals hidden misconfigurations. Activate heating, cooling, and fan modes separately–listen for relay clicks and verify compressor engagement. If cooling blows warm air, check refrigerant levels or reversed “Y” and “G” wires. Document compressor runtimes; short cycles indicate improper “C” wire placement.
Assuming compatibility with all HVAC types wastes hours. Heat pumps require an “O/B” wire for reversing valves–omitting it locks the system into auxiliary heating. For gas furnaces, confirm the white wire connects to “W,” not “W2,” to avoid triggering two-stage heating unintentionally. Review manufacturer schematics for stage-specific wiring.
- Run a system report from the thermostat interface to verify voltage readings. “R” to “C” should read 24-28VAC; deviations indicate transformer issues.
- Check for loose wire nuts at the furnace–tug gently on each connection. A single loose nut disrupts the entire control sequence.
- Monitor for error codes on startup. Code 5, for example, signals a missing “C” wire or open circuit in cooling mode.
- Reinstall wall plates securely after testing. Vibrations from loose mounts can dislodge terminals over time.
