For robust communication between differential signaling systems and single-ended ports, implement a MAX485 (or equivalent) transceiver paired with a TTL-to-serial bridge like MAX232. This combination handles voltage level translations while managing signal direction control–critical for half-duplex operations. Start with a 5V power supply; decouple with a 0.1µF capacitor near the chip’s VCC pin to suppress noise.
Wire the transceiver’s RO (receiver output) to the bridge’s TTL input, and connect DI (driver input) to the bridge’s TTL output. Use a 120Ω termination resistor across the differential lines at both ends of the bus to prevent reflections. Include a pull-up resistor (10kΩ) on the DE (driver enable) and RE (receiver enable) pins if automatic direction control isn’t needed–this keeps the driver active and receiver disabled by default.
Avoid common pitfalls: ground loops degrade performance, so tie all grounds (device, transceiver, bridge) to a single point. For long cables (>50m), add a 10Ω resistor in series with the driver output to limit current spikes. Test with a known working protocol (e.g., Modbus ASCII) at 9600 baud before scaling to higher speeds–this isolates hardware issues from software timing errors.
Three key components define reliability: proper termination, clean power filtering, and controlled signal direction. Skipping termination causes data corruption; omitting decoupling capacitors risks erratic behavior. Use twisted-pair cabling to reduce electromagnetic interference (EMI). For full-duplex needs, replace the MAX485 with a MAX490 and add a second MAX232 chip, though this doubles power consumption–weigh this against simplex efficiency.

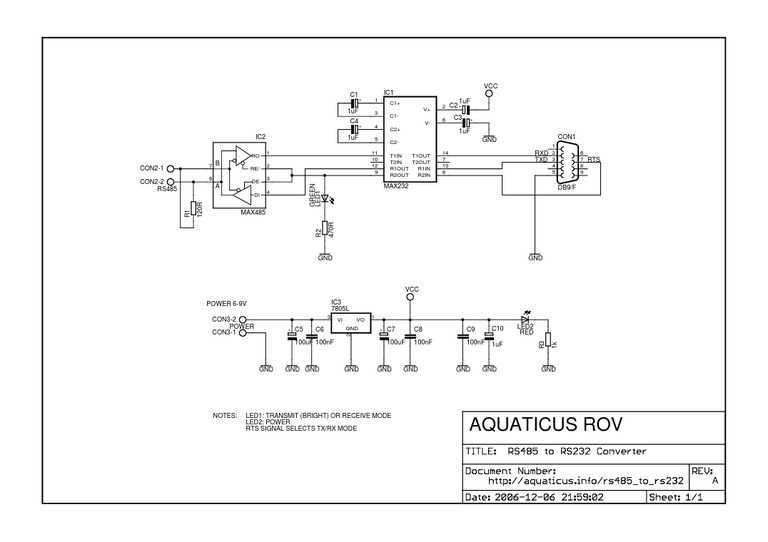

Building a Serial Interface Adapter: Key Schematics
For reliable bidirectional communication between differential and single-ended signaling systems, integrate a MAX485 (or SN75176) transceiver IC as the core component. Connect the A and B pins to the differential pair via 120Ω termination resistors–critical for noise suppression on twisted-pair cables over 50m. The RO (receiver output) and DI (driver input) pins bridge the IC to a TTL-level serial port, where a MAX232 charge-pump IC converts logic levels to ±12V standards. This two-stage design ensures compatibility with legacy devices while mitigating signal degradation.
Power requirements demand attention: the MAX485 operates at 5V, while the MAX232 needs a 5-15V supply for proper charge-pump operation. Use a low-dropout regulator (e.g., AMS1117) if input voltage fluctuates. Decoupling capacitors (0.1µF ceramic) across VCC and GND pins of both ICs prevent transients. For full-duplex operation, employ separate transceivers with direction-control signals (DE/RE pins tied to a GPIO); half-duplex setups merge DE/RE into a single control line, requiring software handshaking.
Design layout must prioritize ground integrity: star-connect all GND references at a single point near the power source to avoid ground loops. Route differential traces as short, parallel pairs with spacing ≤0.5mm to maintain impedance. Add a 10kΩ pull-down resistor on the receiver’s driver-enable pin (DE) to default to listen mode when idle. Protect inputs with TVS diodes (e.g., SMAJ15CA) rated for 15V to clamp surges from industrial environments. Test signal integrity with an oscilloscope: clean transitions should show
- Recommended components:
- MAX485/MAX232 ICs (SOIC-16 package for compact boards)
- 120Ω ¼W resistors (precision metal film for stability)
- 0.1µF X7R ceramic capacitors (size 0805 or smaller)
- TVS diodes with a 15V standoff voltage
- USB-C or barrel jack for +5V input (pre-regulate with AMS1117)
- Critical checks before deployment:
- Verify differential voltage swing (200mV–6V p-p at receiver)
- Confirm charge-pump outputs (±10V minimum on MAX232)
- Test loopback at 115200 bps with error-free data
- Measure current draw (
PCB Layout Considerations
Avoid placing the transceiver near switching regulators or high-speed logic (e.g., MCUs) to reduce EMI. Keep the signal path from A/B terminals to the IC
Key Components Required for Serial Interface Bridging
Select an isolated transceiver module like the MAX1485 or ADM2483 for reliable bidirectional signaling and built-in protection against surges. These ICs handle differential pair transmission while guarding against common-mode noise up to ±15 kV ESD, making them suitable for industrial-grade bridging.
Choose a UART-to-UART bridge IC such as the FT232R or CP2102 to manage asynchronous data translation. These components include embedded USB drivers, eliminating the need for custom firmware on the host side while supporting baud rates up to 3 Mbps with automatic flow control.
Incorporate termination resistors of 120 Ω on both ends of the twisted-pair line. This matches the characteristic impedance of typical cable (100-130 Ω) and prevents signal reflections that distort transmissions at high data rates or long distances (over 1200 meters).
Use a dual-voltage linear regulator to supply stable logic levels, ensuring the UART operates at 5 V while the differential transceiver requires 3.3 V. The LM1117 or AMS1117 provides precise voltage regulation with a dropout of less than 1 V, critical for maintaining signal integrity.
Add transient voltage suppressors (TVS) like the SMAJ12A across the differential lines to clamp voltage spikes exceeding ±20 V, protecting the transceiver from inductive load switching and environmental interference common in industrial environments.
Opt for a galvanically isolated DC-DC converter when bridging systems with different grounding potentials. Modules such as the NME0505SC deliver 1 kV isolation while converting 5 V to 5 V, preventing ground loops that introduce noise into the communication link.
Integrate pull-up/pull-down resistors (4.7 kΩ) on control lines (RTS, CTS) to define default states and ensure compatibility with half-duplex protocols. This prevents undefined logic levels during initialization or power-up sequences.
For extended distance applications, include a low-capacitance coupling transformer or optocoupler on the differential lines. Devices like the HCPL-4502 offer 10 Mbps bandwidth with 2500 Vrms isolation, enabling safe operation across electrically noisy or high-potential environments.
Step-by-Step Wiring Guide for the Interface Adapter
Begin by identifying the terminal blocks on both the serial communication module and the differential bus transceiver. Pin 2 (TX) of the D-sub 9 connector must connect to the data input (DI) of the MAX485 IC, while Pin 3 (RX) links to the data output (RO). Ensure the ground reference (Pin 5) is bridged between both devices to maintain signal integrity.
For stable power delivery, attach a 5V supply to the VCC pin of the transceiver chip. Use a decoupling capacitor (0.1µF) between VCC and GND, positioned as close as possible to the IC to filter noise. If the adapter will run in half-duplex mode, connect RE (Receive Enable) and DE (Driver Enable) pins together and pull them to VCC via a 10kΩ resistor for default transmit mode.
Signal Line Connections
Strip 5mm of insulation from the twisted-pair cables and solder A (non-inverting) and B (inverting) terminals of the differential line to the corresponding pads on the transceiver–typically labeled A and B. If terminating resistors are needed (for bus lengths >300m), solder a 120Ω resistor between these pads. Avoid daisy-chaining more than 32 devices without a repeater; signal degradation increases exponentially beyond this limit.
When integrating opto-isolation, place a 6N137 optocoupler between the serial module’s TX/RX lines and the transceiver’s DI/RO. This requires an additional 5V supply isolated from the main power rail. Configure the optocoupler’s output side with a 470Ω pull-up resistor on the transistor collector to ensure clean logic transitions. Test continuity with a multimeter before applying power.
For full-duplex operation, split the DI/RO signals into separate RX and TX channels. Use an additional transceiver IC–one for transmit, one for receive–with RE and DE permanently enabled for their respective functions. Cross-connect the A/B lines between transceivers: TX-A to RX-A, TX-B to RX-B. Verify polarity with an oscilloscope; inverted signals will corrupt data. If no scope is available, swap A/B pairs–correct orientation manifests as symmetrical square waves during transmission.
Finalize by securing connections with heat-shrink tubing or conformal coating to prevent short circuits in industrial environments. Label all wires with their function (e.g., “TX-A,” “GND”) using adhesive sleeves or permanent marker. Power on the system and monitor activity with a serial terminal set to 9600 baud, 8-N-1 configuration. The absence of echo indicates successful reception; transmit errors manifest as garbled characters or dropped packets. Recheck solder joints if issues persist.

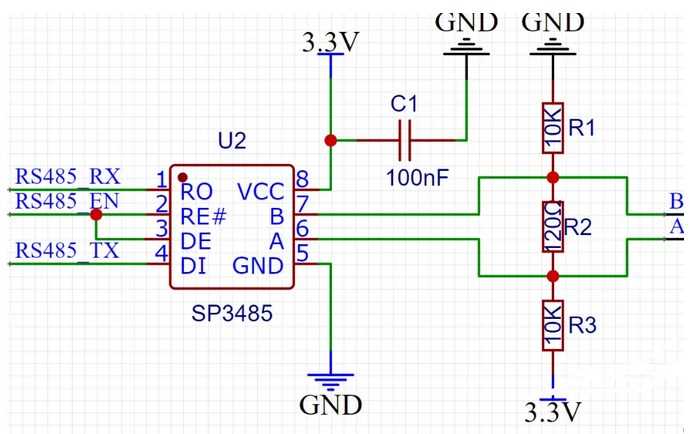

Selecting the Right Transceiver IC for Differential and Serial Data Streams
Opt for the MAX3485 or SN65HVD72 for robust differential signaling in half-duplex configurations. These chips tolerate ±15 kV ESD, operate at 10 Mbps, and include fail-safe bias resistors preventing undefined bus states. The MAX3485 draws 300 µA supply current, while the SN65HVD72 extends range to 4000 ft at 115 kbps. Pair either with a 120 Ω termination resistor at both ends to match the cable impedance; avoid placing terminators mid-bus as reflections degrade integrity.
For full-duplex differential links, select the MAX488; its separate driver and receiver enable simultaneous bidirectional flow. The chip embeds thermal shutdown at 150 °C, short-circuit protection, and a 250 kbps slew-rate limit eliminating external slew-rate capacitors. Confirm supply voltage matches your logic levels–5 V logic swings the bus ±5 V, whereas 3.3 V swings ±3 V, halving the noise margin. Include a 0.1 µF decoupling capacitor per VCC pin within 0.1 inches to suppress high-frequency spikes.
The MAX232E remains the go-to for single-ended serial bridging; its internal charge pump generates ±10 V from 5 V, eliminating external high-voltage rails. Dual drivers/receivers fit a single DIP-16 footprint; specify the “E” variant for ±15 kV ESD protection. If space constrains, the MAX3221 shrinks to TSSOP-16, adding auto-powerdown after 30 seconds idle. Keep trace lengths under 6 inches between transceiver and UART to prevent ground bounce exceeding ±0.25 V threshold.
