Use the T568A or T568B termination schemes for all straight-through network links–never mix them on the same cable run. T568B is the default for most installations: pin 1 → orange-white, pin 2 → orange, pin 3 → green-white, pin 6 → green. For crossover applications (direct device-to-device without a switch), swap the transmit and receive pairs: pins 1 and 2 of one end must connect to pins 3 and 6 of the other.
Ensure solid-core copper conductors in Cat5e or higher for runs exceeding 50 meters; stranded wire is permissible only for patch cords under 10 meters. Strip the jacket precisely 12–14 mm to expose the twisted pairs, maintaining at least 12.5 mm of untwisted conductor length inside the connector. Excessive untwisting degrades NEXT (near-end crosstalk) below acceptable thresholds.
Verify continuity with a cable tester before termination: each pair must show less than 0.1 Ohm resistance and no opens or shorts between adjacent wires. Shielded cables (FTP/STP) require an unbroken drain wire connected to the connector’s metallic shell–omit this step only in unshielded environments where EMI is negligible.
For Power over Ethernet (PoE), pairs 1–2 and 3–6 must carry both data and power. Confirm the connected devices support 802.3af/at/bt; exceeding 60 W on a single pair risks overheating thin conductors. Use AWG 22 or thicker for PoE+ (up to 30 W) and AWG 20 for 60–90 W PoE++.
Practical Steps for Standard Connector Configuration
Begin by stripping 2 cm of the cable jacket to expose the twisted pairs, ensuring minimal untwisting–no more than 12 mm–to maintain signal integrity. Arrange the wires in the T568B sequence: orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. This pinout supports gigabit Ethernet and backward compatibility. Use a flush-cutting tool to trim excess wire, leaving 10-12 mm exposed beyond the jacket for proper insertion into the connector.
Insert the wires into the connector with the tab facing downward. Push firmly until each conductor reaches the front edge, visible through the clear plastic. Verify the jacket sits 5-6 mm inside the connector to ensure strain relief. A crimper die must match the connector type–8P8C for Ethernet–and apply even pressure to avoid partial punch-downs.
Common Pitfalls and Fixes
| Issue | Cause | Solution |
|---|---|---|
| No link | Crossed pairs (e.g., TX reversed) | Re-terminate using T568A/B consistently |
| Intermittent signal | Excessive untwisting (>12 mm) | Rewire with shorter untwisting |
| Short circuits | Loose strands touching adjacent pins | Trim cleanly; reinsert wires fully |
| Poor performance | Mismatched pairs (e.g., solid/stranded) | Use compatible connectors for cable type |
Test each connection with a dedicated tester. A basic unit with LED indicators confirms continuity; advanced models like Fluke DSX-8000 measure crosstalk and return loss. For field repairs, a compact toolkit should include a pass-through connector for stranded cables, reducing retries. Avoid pre-terminated patch cords longer than 5 meters unless Cat6a or better, as signal degradation compounds over distance.
Advanced Terminating Tips
For PoE applications, prioritize connectors with gold-plated contacts (≥50 microns) to prevent corrosion under sustained current. When terminating shielded cables (FTP/STP), ground the foil shield to the connector’s metal shell, removing only enough foil to fit the jacket inside. For outdoor use, apply gel-filled boots after termination to prevent moisture ingress–silicone seals between jacket and boot prevent capillary action.
Document each cable run with labels at both ends. Use a consistent scheme: Rack-A1-Port1 for server connections, Floor2-WS05 for workstations. For modular panels, color-code ports to match patch panel labels (e.g., orange for VoIP, blue for data). Store spare parts–connectors, boots, crimp dies–near the work area to avoid delays; a $20 tray reduces search time during installations.
Standard T568A and T568B Pinout Connections for Ethernet Cables
Select T568B as the default termination scheme for new network installations to maintain compatibility with existing infrastructure in commercial and residential settings. This standard assigns pin 1 to the white/orange conductor and pin 2 to the solid orange, creating a consistent color-coding scheme recognized by switches, routers, and patch panels worldwide. T568A remains a viable alternative, particularly in government projects or legacy systems, but requires documentation to avoid mismatches during future maintenance.

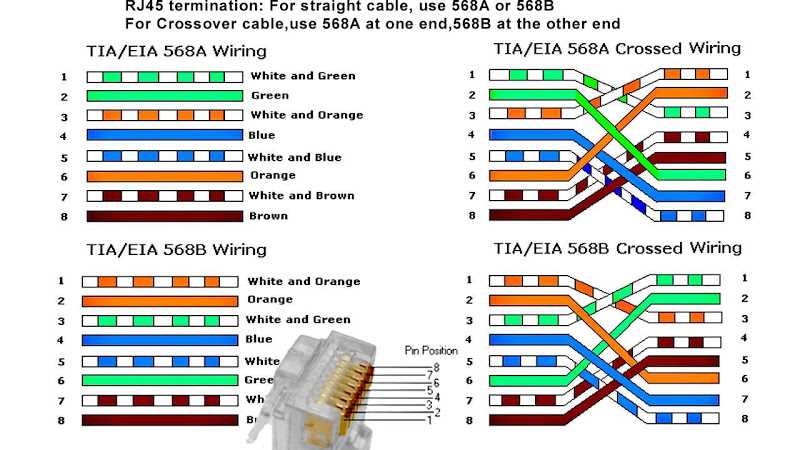

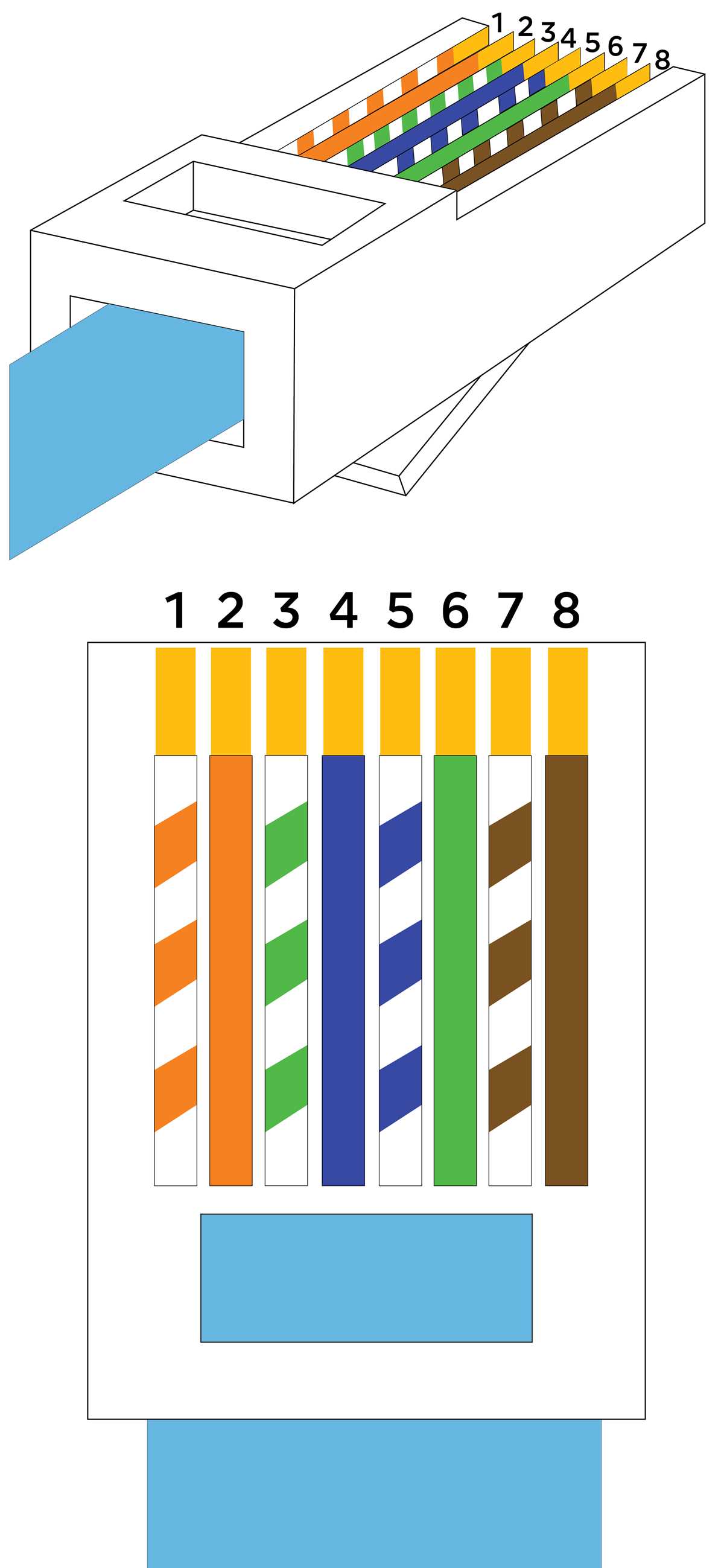

Terminate both ends of a straight-through cable using the same scheme–either T568A or T568B–to ensure proper data transmission between devices like PCs, printers, and network switches. Pin assignments for T568B are as follows: 1 (white/orange), 2 (orange), 3 (white/green), 4 (blue), 5 (white/blue), 6 (green), 7 (white/brown), 8 (brown). T568A swaps the orange and green pairs, assigning pin 1 to white/green and pin 2 to green, while retaining the brown pair positions.
Use a crossover configuration only when directly connecting two devices of the same type, such as two computers or two switches, without an intermediary hub. For a crossover cable, terminate one end with T568A and the other with T568B. This reverses the transmit and receive pairs–pins 1–2 and 3–6–enabling communication without MDI/MDIX auto-sensing. Modern devices often handle this automatically, but manual crossover remains necessary for older hardware.
When crimping connectors, ensure each conductor reaches the end of the plug without overlapping adjacent wires, which can cause crosstalk or signal degradation. Verify continuity with a cable tester after termination, checking for proper pair alignment and no opens or shorts. A common mistake–swapping pins 3 and 6–can disrupt Gigabit Ethernet performance, as these pairs carry critical differential signals.
Label all patch cables and keystone jacks with their termination standard to prevent confusion during troubleshooting. For example, mark T568B installations with blue tags and T568A with green. Document the scheme in network diagrams, especially in mixed environments, to streamline future expansions or repairs. Consistency reduces errors when technicians replace damaged cables or reconfigure ports.
For Power over Ethernet (PoE) applications, prioritize solid-core conductors with thicker gauges (e.g., 23 or 24 AWG) to minimize voltage drop over long runs. Pair assignments remain identical to standard T568A/B, but ensure compliance with IEEE 802.3af/at/bt standards for power delivery. PoE injectors and powered devices expect pins 1–2 and 3–6 to carry voltage, so avoid untwisting pairs beyond 0.5 inches from the termination point.
Avoid mixing termination schemes within a single cable run or patch panel. While testing may reveal functional connectivity, the inconsistency introduces risk for future upgrades or diagnostic tools relying on standard pair assignments. Stick to one scheme per project or facility segment to maintain reliability in data transmission and simplify compliance with industry best practices.
Step-by-Step Crimping Instructions for Straight and Crossover Cables
Begin by stripping 2 cm of the outer jacket from the cable using a precision stripper, ensuring the twisted pairs remain intact. Unravel each pair just enough to arrange the conductors in the correct sequence without damaging the insulation–excessive untwisting degrades signal integrity. For a standard connection (T56B), align wires left to right: white-orange, solid orange, white-green, solid blue, white-blue, solid green, white-brown, solid brown. For a cross-configuration, swap the transmit and receive pairs: positions 1 and 2 (white-orange/solid orange) with 3 and 6 (white-green/solid green).
Precise Trimming and Connector Insertion
Trim the conductors to a uniform 1.2 cm length using flush cutters, maintaining a clean diagonal cut to prevent fraying. Slide the wires into the modular plug until each touches the internal stops–the jacket should extend 3–4 mm inside the connector to ensure strain relief. Verify alignment by holding the plug against a light source; misaligned wires will reflect light inconsistently. If any conductor appears recessed, remove the plug and retry–partial insertion causes intermittent connectivity.
Position the connector in the crimping tool’s die, aligning the gold contacts with the conductors. Apply firm, steady pressure until the tool’s ratchet releases–avoid partial crimps, which weaken the connection. Immediately test each pin for continuity using a network tester; failing pins require re-termination. For cross-configurations, confirm the tester’s crossover mode is active to validate swapped pairs. Store spare plugs in anti-static bags to prevent contact oxidation.
Reinforce the termination by securing the cable to a strain-relief boot or zip-tying it to a fixed point within 10 cm of the plug. Avoid sharp bends (minimum 4x cable diameter) near terminations to prevent impedance mismatches. For outdoor applications, apply dielectric grease to connections before sealing with heat-shrink tubing to prevent moisture ingress. Document cable runs with labels on both ends for troubleshooting efficiency.
Color Coding and Pin Assignment for Network Standards
For Ethernet connections using the T568A standard, arrange conductors in this sequence: white/green (pin 1), green (pin 2), white/orange (pin 3), blue (pin 4), white/blue (pin 5), orange (pin 6), white/brown (pin 7), brown (pin 8). This arrangement supports 10BASE-T, 100BASE-TX, and 1000BASE-T networks but prioritizes backwards compatibility with telephone systems. Cross-connects between switches or routers require a straight-through cable following this scheme.
When configuring PoE (Power over Ethernet) devices, T568B ordering is mandatory to avoid interference: white/orange (1), orange (2), white/green (3), blue (4), white/blue (5), green (6), white/brown (7), brown (8). Pins 1, 2, 3, and 6 carry data, while pins 4, 5, 7, and 8 handle power delivery in Mode A (endspan) setups. Verify conductor gauge (minimum 24 AWG for 30W, 22-23 AWG for 60W+) to prevent voltage drop. Shielded twisted-pair cabling (Cat 6a or higher) reduces insertion loss in PoE deployments.
Specialized Configurations
- Crossover cables: Swap pairs 1-2 with 3-6 (T568A on one end, T568B on the other). Required for direct NIC-to-NIC connections, though most modern interfaces support Auto-MDI/MDIX.
- 10GBASE-T: All four pairs are active; maintain strict pair twists (max 13mm untwisted at termination) to meet alien crosstalk limits. Use Cat 6a or Cat 7 for channel lengths up to 100m.
- Gigabit Ethernet (1000BASE-T): Bidirectional signaling occurs on all pairs simultaneously. Avoid mixing T568A and T568B in the same channel–stick to one standard per installation.
- T1/E1 circuits: Use pins 1-2 (Tx) and 4-5 (Rx) for primary pairs; pins 3-6 serve as spare or clock synchronization. Terminate with RJ48C connectors, not standard 8P8C plugs.
For industrial environments (e.g., PROFINET or EtherCAT), observe manufacturer-specific mappings. Siemens PROFINET typically uses: orange/white (1) → Tx+, orange (2) → Tx-, green/white (3) → Rx+, blue (4) → spare, blue/white (5) → spare, green (6) → Rx-. Always consult device datasheets–some protocols invert polarity on pins 3 or 6. Test continuity with a cable certifier; impedance mismatches beyond ±5Ω can degrade signal integrity in 10G+ links.
