For reliable network connections, use the T568B standard: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown. This arrangement ensures backward compatibility with most commercial and residential setups while minimizing crosstalk in Cat5e or higher cables. Deviating from this sequence risks signal degradation, particularly in Gigabit Ethernet implementations where all eight conductors are active.
When terminating ends, maintain consistent tension on each wire–no more than 12mm of untwisted pairs–to preserve signal integrity. Use a crimping tool with 24-26 AWG rated dies to avoid damaging conductors during compression. Test continuity with a cable analyzer immediately after termination; expected results include
For Power over Ethernet (PoE) applications, verify compliance with IEEE 802.3af/at: pins 1-2 and 3-6 carry positive voltage (48V), while pins 4-5 and 7-8 serve as ground. Never exceed 600mA per pair to prevent overheating in solid-core cables. Shielded connectors (e.g., Cat6a) require grounding the foil at both ends to suppress electromagnetic interference–skip this step only if the entire link, including switches and patch panels, is unshielded.
Replace terminators every 2-3 years in high-flex environments (e.g., patch cords near workstations) or after exposure to temperatures above 60°C. Over-crimping or exceeding 1.5lb pull force on any conductor degrades performance irreversibly. Always label both ends of each cable with length, date, and intended use (VLAN/VoIP/Data) to streamline future diagnostics.
Connecting an 8P8C Termination: Step-by-Step Instructions
Strip the outer jacket 1.5 inches from the cable end using a precision cutter–excess length risks poor contact, while insufficient exposes conductors to damage. Avoid nicking the inner pairs; a clean incision ensures consistent signal transmission.
Separate the four twisted pairs immediately after stripping. Unravel only enough to arrange conductors in the target sequence–typically T568A or T568B–without untwisting more than 0.5 inches. Maintain twist integrity to minimize crosstalk; even a half-inch of untwisted wire can degrade performance by 3-5 dB.
- T568A sequence: white-green, green, white-orange, blue, white-blue, orange, white-brown, brown.
- T568B sequence: white-orange, orange, white-green, blue, white-blue, green, white-brown, brown.
Align the wires flat against the connector housing, ensuring each strand reaches the termination point. Use sharp scissors to trim the excess length precisely; uneven cuts cause intermittent connections. Verify the jacket sits just inside the connector strain relief–misalignment increases pull-out risk under tension.
Insert the prepared end into the crimping tool’s die, then squeeze firmly until the contacts pierce the insulation. Check each conductor visually: a faint copper glint should appear at the front of the housing. Skip this step and resistance readings may rise 10-15 ohms due to incomplete piercing.
Test connectivity with a dedicated continuity checker or multimeter. Probe each pin against its corresponding wire; acceptable resistance ranges 0.5–2 ohms. Higher values indicate poor contact–re-terminate immediately. For gigabit networks, verify all eight paths; a single faulty connection downgrades the link to 100 Mbps.
Secure the cable with a boot or zip tie if strain relief is critical. Avoid tightly cinching near terminations; compression can deform conductors and degrade signal integrity over time. Label both ends with the chosen standard–T568B is dominant in North America, T568A in Asia–to prevent mismatches during troubleshooting.
Step-by-Step Termination for T568A and T568B Configurations
Begin by stripping the outer jacket of the twisted-pair cable 1.5 inches from the end, exposing the eight conductors without nicking their insulation. Use specialized scissors or a stripping tool for precision; frayed or uneven cuts will degrade signal integrity.

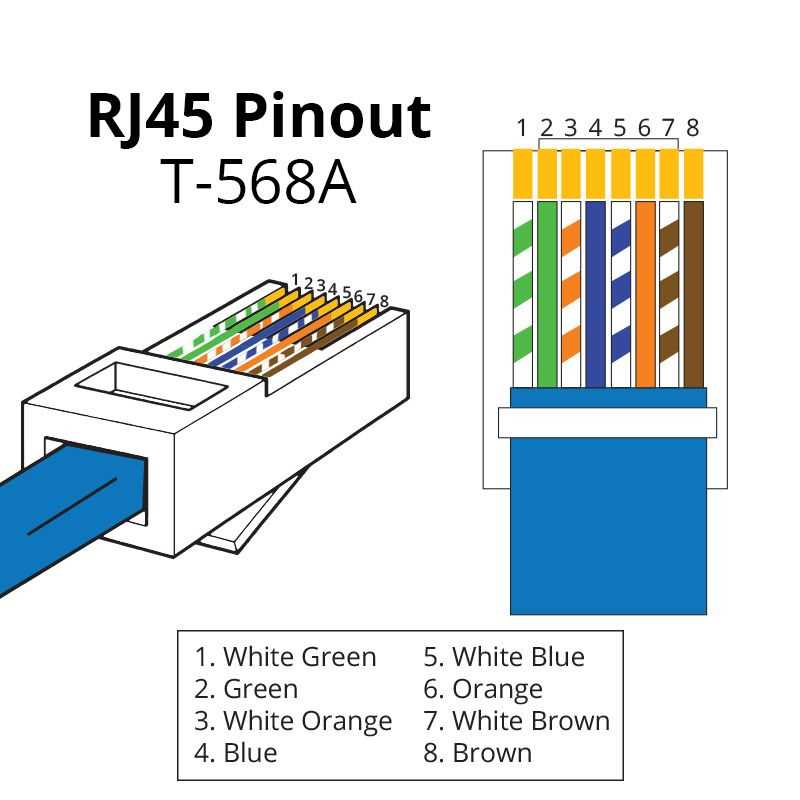

- T568A standard: Align wires left to right in this sequence:
- White-green
- Green
- White-orange
- Blue
- White-blue
- Orange
- White-brown
- Brown
- T568B standard: Follow this order instead:
- White-orange
- Orange
- White-green
- Blue
- White-blue
- Green
- White-brown
- Brown
Straighten each conductor with thumb and forefinger, eliminating twists within 0.5 inches of the jacket. Ensure no stray strands remain crossed–mismatched pairs cause crosstalk. Trim wires uniformly to 0.5 inches from the jacket edge for consistent insertion depth.
Crimping Procedure
Insert prepared conductors into the connector, maintaining pair alignment. Verify positions by holding the connector against a light source–all wires must reach the contact blades fully. If any wire retracts, re-strip and retry.
Use a ratcheting crimp tool for termination. Position the connector so contacts face upward, then compress the tool until it releases automatically. Apply firm, even pressure; inadequate crimping causes intermittent faults. Inspect the connector for:
- Clean cuts at wire tips
- Visible wire ends flush with contact blades
- Fully engaged plastic latch
Verification Methods
Test with a network analyzer or continuity checker. Probe each contact to confirm conductivity matches the selected standard. T568A should pair white-green/green to pins 3/6 and white-orange/orange to 1/2; T568B swaps these assignments. Detect split pairs by observing:
- Unstable link speeds (100Mbps instead of 1Gbps)
- Intermittent connectivity
- Excessive packet loss
For patch cables, crimp both ends identically (T568A-to-T568A or T568B-to-T568B). Crossover cables require one T568A and one T568B end–match white-orange to white-green and orange to green for proper transmit/receive reversal.

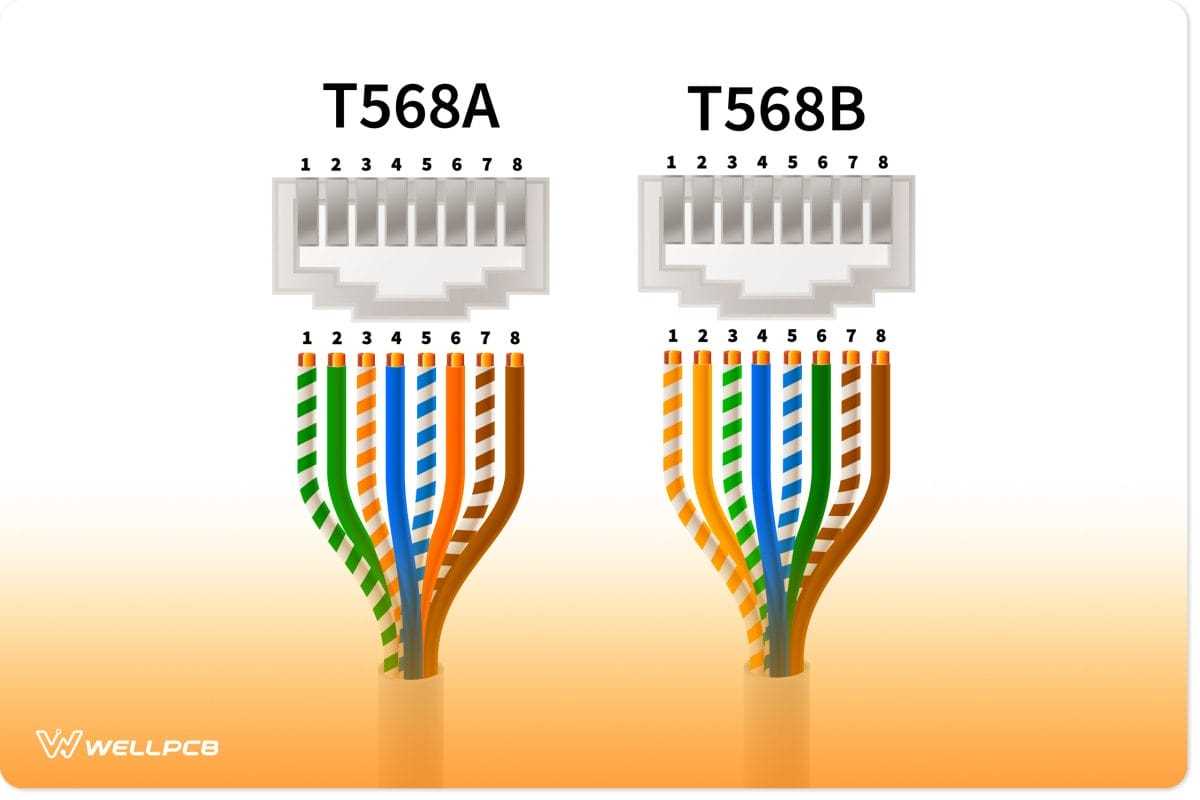

Color Code Matching for Straight-Through and Crossover Ethernet Pinouts
Align conductors precisely for T568A or T568B standards in direct-connection assemblies. T568A assigns the first pair (blue) to pins 4–5, orange to 3–6, green to 1–2, and brown to 7–8. T568B swaps orange and green pairs–orange moves to 1–2, green to 3–6–while retaining the same blue and brown assignments. Always verify consistency across both ends to prevent transmission errors.

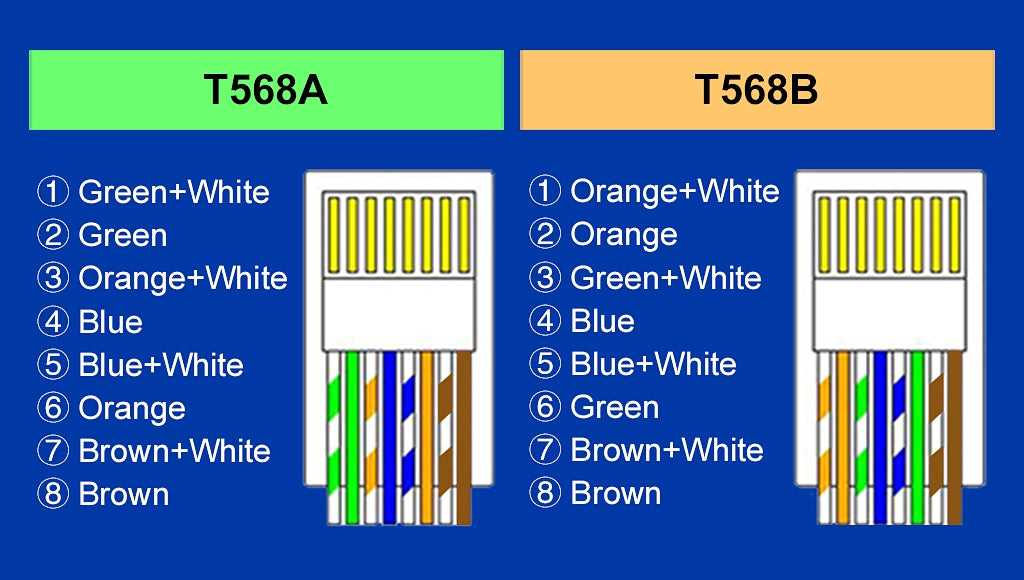

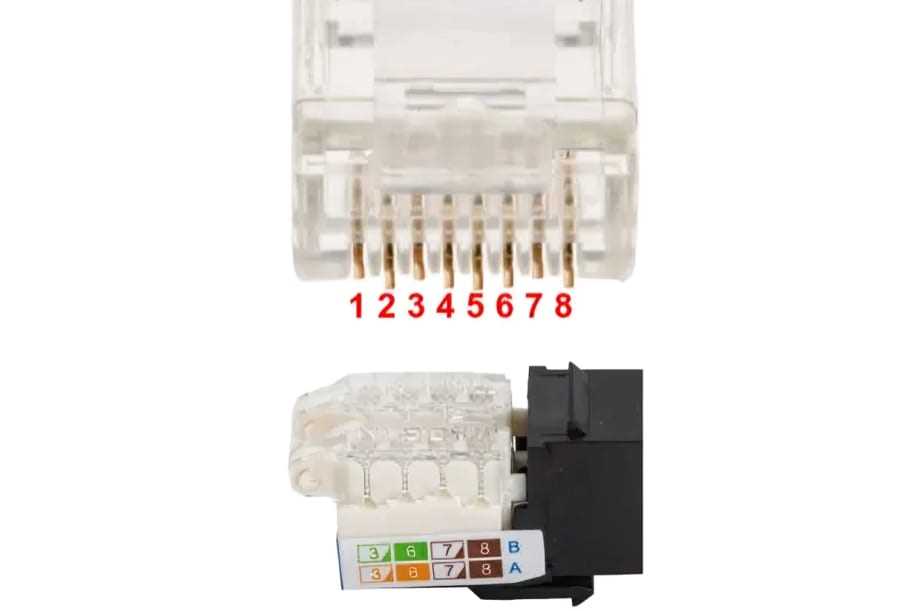

Standard Pinouts Comparison
| Pin | T568A | T568B |
|---|---|---|
| 1 | White/Green | White/Orange |
| 2 | Green | Orange |
| 3 | White/Orange | White/Green |
| 4 | Blue | Blue |
| 5 | White/Blue | White/Blue |
| 6 | Orange | Green |
| 7 | White/Brown | White/Brown |
| 8 | Brown | Brown |
For crossover links, invert pairs at one end–pins 1–2 and 3–6 swap places while 4–5 and 7–8 remain identical. This configuration bridges transmission pairs (TX+/TX–) from one device directly to reception pairs (RX+/RX–) on another. Ensure the send-receive crossover by matching T568A to T568B or vice versa, avoiding duplicate T568A-to-T568A connections which fail link negotiation.
Trim conductors to uniform length–excessive variance degrades signal integrity. Confirm polarity: striped conductors always precede solid-color mates in every pair. Test continuity before securing terminators to rule out open circuits or shorted contacts.
Tools Needed to Terminate Network Terminations
Use a high-quality network cable stripper with adjustable depth to avoid nicking conductors–models like the Klein Tools VDV110 or Paladin 11017 cut insulation cleanly at 18–24 AWG without damaging twisted pairs. Pair it with a precision snip (e.g., Hakko CHP-170) for trimming excess wire to 12.5–13.5 mm past the jacket, ensuring consistent termination lengths. A magnifying lamp (minimum 5x magnification) helps inspect conductor alignment before crimping, especially for stranded cables where stray strands cause shorts. Store connectors in a static-resistant case (ANSI/ESD S20.20 compliant) to prevent contamination.
Crimping Essentials
Select a ratcheted crimp tool (e.g., Ideal 30-526 or Platinum Tools EZ-RJPRO) with die sets for both T568A/B and shielded variants; non-ratcheted tools risk incomplete crimps. Verify the tool’s gauge tolerance matches the cable–UTP requires 22–26 AWG, while STP demands 24–22 AWG. For stranded wire, use connectors with internal strain relief (e.g., Panduit CJ880-10-L) to prevent conductor fatigue. Post-crimp, test continuity with a micro-ohmmeter (Fluke DM100) and verify pair-to-pair resistance (should be
Common Mistakes When Aligning Conductors Before Termination
Failing to trim conductor ends evenly causes connection failures. Leave no more than 12–15 mm of exposed copper beyond the sheath; excess length forces conductors out of sequence when crimped. Use sharp flush cutters–dull tools fray strands, increasing resistance. Verify alignment against the connector’s pin layout before cutting; re-stripping wastes time and damages insulation.
Ignoring twists in pairs disrupts signal integrity. Each pair must retain its natural twist up to 3–5 mm from the termination point. Pulling strands straight beyond this length introduces crosstalk, particularly in Gigabit Ethernet applications. Hold pairs with tweezers near the sheath while arranging to prevent accidental separation.
Incorrect Sequence and Color Code Violations
Swapping T568A and T568B standards within a single installation creates incompatibility. Stick to one standard per network segment; mixing causes link failures detectable only with cable testers. Double-check the color order against a physical reference–the white-striped conductors should always lead their solid-colored counterparts in the sequence.
Overlooking strain relief shortens connector lifespan. Insert conductors fully until each touches the connector’s front lip; partial insertion leaves gaps, allowing moisture ingress or contact corrosion. Tug gently on the cable after crimping–proper termination withstands 8–10 N of pull force without shifting.
Skipping final visual inspection increases error rates. Examine each conductor through the connector’s transparent housing–misaligned strands appear offset or retracted. If any conductor sits below the contact surface, re-terminate immediately; forcing a faulty connection risks intermittent faults under load.
