Use the T568A or T568B termination standard for consistent performance. T568B is more common in enterprise environments, but T568A is backward-compatible with USOC wiring and may be preferable in legacy setups. Both configurations assign specific color codes to eight contact points–ensure these match at both ends for straight-through cables or follow crossover schemes when connecting similar devices like switches.
Straight-through cables (T568B/T568B) should link dissimilar hardware: switches to routers, computers to switches, or access points to switches. Crossover cables (T568A/T568B) bridge identical devices–switch to switch, router to router, or PC to PC. Incorrect pairing introduces interference, reduced throughput, or complete link failure. Verify continuity with a cable tester before deployment to detect miswirings or shorts.

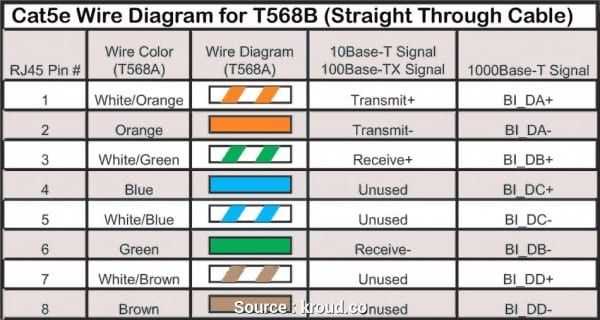

Follow these pin assignments for T568B:
- Pin 1: Orange/White (transmit +)
- Pin 2: Orange (transmit –)
- Pin 3: Green/White (receive +)
- Pin 4: Blue
- Pin 5: Blue/White
- Pin 6: Green (receive –)
- Pin 7: Brown/White
- Pin 8: Brown
Strip the outer jacket 2–2.5 cm from the end, untwist pairs no more than 1.2 cm, align wires precisely, and trim to uniform length before inserting into the plug. Excessive untwisting degrades signal integrity–Cat5e tolerates minor untwisting, but Cat6 and above demand strict adherence. Crimp with 11–12 kg of force (25–30 lb) using a ratcheted crimper to ensure secure terminations.
For Gigabit Ethernet, all four pairs must be properly terminated–older 10/100Mbps connections only use pins 1, 2, 3, and 6, but Gigabit leverages the full eight contacts. Shielded twisted pair (STP) requires grounding the shield at one end only; unshielded twisted pair (UTP) neglects this step. Avoid sharp bends (radius
Ethernet Plug Pinout Configuration Guide
Start by ensuring you have the correct tools: a crimping tool, CAT5 or CAT6 cable, and 8P8C modular plugs. Strip about 1.5 inches of the outer jacket from the cable end, exposing the twisted pairs without damaging the internal wires. Untwist each pair just enough to separate the individual conductors–excessive untwisting degrades signal integrity.
Standard T568B arrangement is preferred for most networks: arrange the wires from left to right as orange-white, orange, green-white, blue, blue-white, green, brown-white, brown. Verify the order twice before cutting the wires to fit the plug; even a slight misalignment can cause crosstalk or connection failures. Trim the wires to a uniform length, leaving approximately 0.5 inches exposed beyond the jacket.
Insert the wires into the plug with the clip facing downward. Push firmly until each conductor reaches the end of its channel–this ensures proper contact with the plug’s pins. The jacket should extend slightly into the plug to prevent strain; if it doesn’t, recut and reinsert. Tug gently on each wire to confirm it’s seated correctly–loose wires lead to intermittent connections.
Use a ratchet crimping tool to secure the plug, applying steady pressure until the tool releases. Avoid over-crimping, which can damage the plug’s internal contacts. Test the connection with a cable tester: all eight pins should light sequentially. If any pin fails, recrimp or replace the plug–continuity issues often stem from improper wire seating or insufficient crimp pressure.
For PoE (Power over Ethernet) applications, follow T568B strictly–polarity must match on both ends. Even minor deviations in wiring can disrupt power delivery or data transmission. Use solid-core cable for fixed installations and stranded for patch cords; mixing types compromises performance. Label both ends of the cable for easy troubleshooting later.
Shielded twisted pair (STP) cables require grounding at both ends to prevent interference. Connect the foil or braided shield to the plug’s metal housing if the device supports it. For unshielded (UTP) cables, maintain consistent twist rates for each pair–variations increase susceptibility to noise. Avoid coiling excess cable tightly, as this induces signal degradation.
Color-coding deviations, such as T568A, are acceptable only for specific legacy systems. Always document any variations from the standard to prevent confusion during maintenance. For gigabit Ethernet, all four pairs must carry data; avoid repurposing any wires for other functions unless explicitly supported by the equipment.
Final inspection: check for bent pins, exposed copper beyond the plug housing, or jacket compression near the strain relief. Replace any suspect assemblies immediately–subtle defects often cause intermittent or difficult-to-diagnose faults. Store unused cables in a dry, temperature-controlled environment to prevent oxidation or jacket brittleness over time.
Step-by-Step Guide to Assembling an 8P8C Plug for Network Cables
Begin by stripping 2.5–3 cm of the outer jacket from the twisted-pair cable using a precision stripper or diagonal cutters, ensuring no nicks on the internal wires. Rotate the tool once around the cable to score the jacket, then slide it off without twisting to preserve the pairs’ integrity.
Untwist each of the four pairs only to the point where the wires reach the plug’s contacts–no farther than 1 cm from the jacket. Arrange the conductors in the T568B sequence: white-orange, solid-orange, white-green, solid-blue, white-blue, solid-green, white-brown, solid-brown. Hold the wires between thumb and forefinger, pinching at the jacket to maintain alignment.
Slide the aligned conductors into the 8P8C modular plug until the copper strips at the front rest against the wire ends. Each filament must extend fully into its channel; if one falls short, remove the plug and trim the wires uniformly with flush cutters. Verify the jacket sits just inside the plug’s strain-relief clamp–approximately 5 mm from the rear.
Insert the loaded plug into a ratcheting crimp tool, ensuring the plug’s orientation aligns with the die cavity. Apply steady pressure until the handles click; two distinct snaps confirm both the contacts and strain-relief barbs have pierced insulation and jacket. Release the tool only after the final click to avoid incomplete termination.
Inspect each contact point under direct light: eight gold-colored blades should have clean, symmetrical indentations compressing the conductors. Tug the cable firmly–no movement should occur at the plug. Use a network cable tester set to “wiremap” mode; watch for eight consecutive LEDs lighting in order from pin 1 to pin 8 without skips or cross-talk.

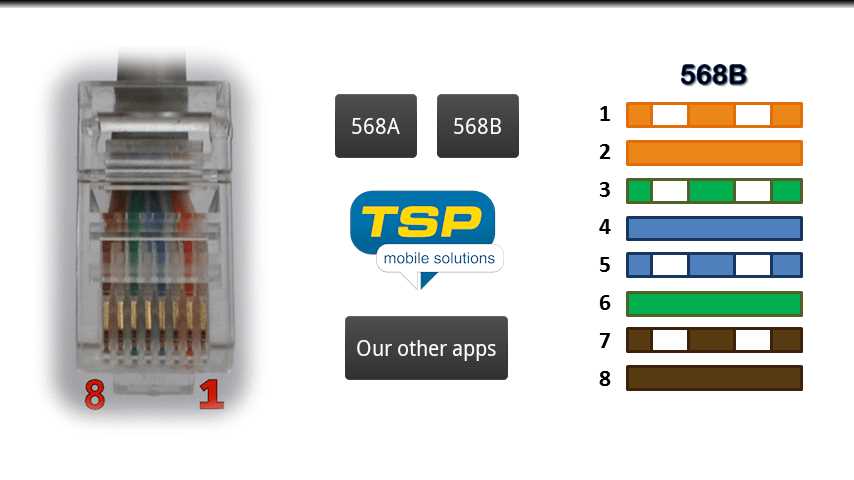

- White-orange → pin 1 (transmit +)
- Solid-orange → pin 2 (transmit –)
- White-green → pin 3 (receive +)
- Solid-blue → pin 4 (bi-directional)
- White-blue → pin 5 (bi-directional)
- Solid-green → pin 6 (receive –)
- White-brown → pin 7 (unused in Gigabit)
- Solid-brown → pin 8 (unused in Gigabit)
If pins 1, 2, 3, or 6 fail continuity checks, slice off the plug and re-terminate, focusing on consistent twist clearance. For Gigabit applications, every pair must maintain integrity; omit the step only if Fast Ethernet suffices. Replace any tool whose blades dull after 20–25 terminations to prevent insulation creep.
Secure the newly assembled cable with a Velcro tie or plastic clip 5 cm from the plug, then route along baseboards or conduit, keeping a minimum 30 cm separation from power lines to reduce interference. Label each end immediately with permanent marker or printed sleeve indicating length, category, and T568B standard for rapid identification during troubleshooting.
Quick Troubleshooting Reference
- No link on any port → test for swapped pairs (e.g., solid-orange on pin 1 instead of white-orange).
- Intermittent drops → check for loose contact blades; re-crimp or replace plug.
- Crosstalk errors → verify untwist distance ≤1 cm; use shielded cable if still detected.
- Physical damage → dissect failed plug under microscope; look for hairline cracks under strain-relief barbs.
T568A vs T568B Wiring Standards: How to Choose the Right One
Opt for T568B if you’re working in a new installation or commercial environment–it dominates 90% of global deployments due to compatibility with major networking hardware. T568A remains the default for residential and legacy systems, especially in North America, where it aligns with USOC wiring for voice applications. The choice isn’t about performance; both deliver identical signal integrity when implemented correctly.

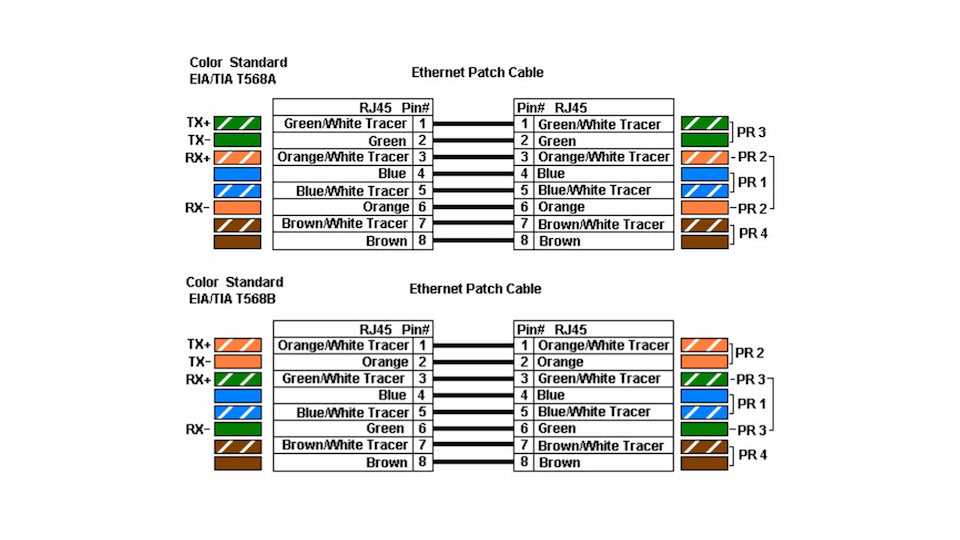

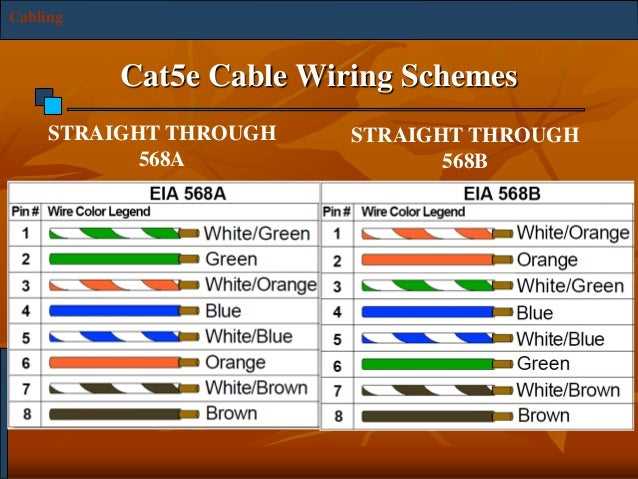

The critical difference lies in pin assignments. Below is a direct comparison of conductor pair mappings:
| Pin | T568A Pair/Color | T568B Pair/Color |
|---|---|---|
| 1 | White-Green | White-Orange |
| 2 | Green | Orange |
| 3 | White-Orange | White-Green |
| 4 | Blue | Blue |
| 5 | White-Blue | White-Blue |
| 6 | Orange | Green |
| 7 | White-Brown | White-Brown |
| 8 | Brown | Brown |
Always maintain consistency–terminate both ends of a cable with the same standard. Mixing T568A on one end and T568B on the other creates a crossover configuration, suitable only for direct device-to-device connections like PC-to-PC or switch-to-switch links. For patch cables and standard networking, uniform termination is mandatory to avoid signal reflection and crosstalk.
Check existing infrastructure before proceeding. If a building uses T568A throughout, continuing with T568A avoids miswiring and ensures compatibility with existing panels, jacks, and horizontal cabling. Changing standards mid-installation introduces unnecessary complexity and potential points of failure, particularly in large-scale networks where thousands of terminations may exist.
Color codes simplify troubleshooting. T568B assigns the orange pair to pins 1-2 and the green pair to pins 3-6, mirroring the order of common analog telephone wiring. This reduces confusion for technicians familiar with legacy telecom setups. T568A swaps these pairs, placing green on pins 1-2 and orange on pins 3-6–preferred for backward compatibility with older POTS lines.
Document your chosen standard on every cable, jack, and patch panel. Use indelible labels with “A” or “B” to prevent future misalignment. Test each termination immediately with a cable certifier; even a single pin misplacement degrades performance. Follow ANSI/TIA-568 guidelines for official certification–non-compliant installations risk failing Cat 5e, Cat 6, or higher category performance tests.
