Use a 6P4C modular connector for most residential landline setups–this ensures compatibility with older systems and provides sufficient signal clarity. If working with a wall plate or keystone module, verify that the wiring follows the T568A standard for consistency. For North American installations, pair the green and red wires (tip and ring) on terminals 3 and 4. European configurations often use blue and white-blue instead, but local telephone service providers may specify otherwise–check their documentation first.
Strip no more than 6mm of insulation from each conductor to avoid short circuits. Twist strands tightly before inserting them into the connector to prevent fraying, which can cause intermittent connections. If using a punch-down tool, apply firm but controlled pressure to avoid damaging the terminal blocks. For surface-mounted ports, secure the jack firmly to prevent tension on the wires over time.
Test the connection with a multimeter set to continuity mode. Measure between the jack’s active terminals and the corresponding wires in the cable–resistance should be near zero. If a dial tone is absent, reverse the polarity of the active pair (swap tip and ring) before assuming a wiring fault. For systems requiring a second line, utilize terminals 2 and 5, but confirm whether your service supports dual-channel operation.
Avoid using untwisted or solid-core wires longer than 10 meters without amplification–signal degradation becomes noticeable. If extending beyond this length, switch to CAT3 or better cabling and consider a small inline amplifier. For temporary setups, crimp connectors tightly and avoid sharp bends near the plug to prevent internal breaks. Always label both ends of the cable to simplify troubleshooting later.
Understanding Standard Telecommunication Connector Pinouts
For a direct connection, use the two central pins (3 and 4) of the 6P2C connector. These carry the analog signal in most residential setups, eliminating unnecessary wires. Strip 6–8 mm of insulation from each wire, twist the copper strands lightly, and insert them into the designated slots without overlapping adjacent contacts.
Color coding follows two common schemes: USOC (United States) and BT (British). USOC assigns red (ring) to pin 3 and green (tip) to pin 4. BT reverses this with blue (tip) on pin 4 and white/blue (ring) on pin 3. Verify the scheme before crimping–polarity errors cause no signal or echo.
For devices requiring power (like fax machines or old answering systems), add yellow (pin 2) and black (pin 5) to feed -48V DC. Ensure the power source matches device specs–exceeding 20 mA may damage low-power hardware. Test continuity with a multimeter before finalizing connections.
Twisted-pair cables (CAT3 or higher) reduce noise interference. Maintain twist ratios up to 13 mm from the terminal; untwisting beyond this weakens signal integrity. Use gold-plated contacts for corrosion resistance–cheaper alternatives degrade within months in humid conditions.

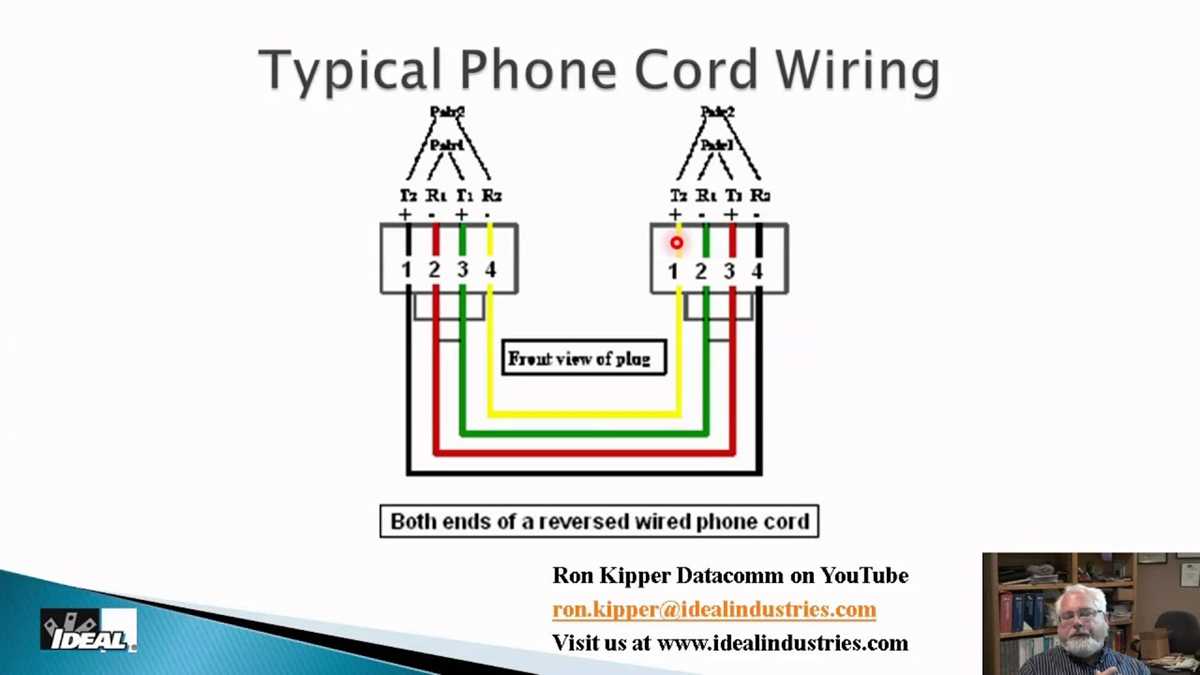

Extension connections demand mirrored wiring: incoming lines on one side, outgoing on the opposite end. Cross-pin 3 to 3 and 4 to 4; mixing these introduces crosstalk. For multi-line setups (e.g., two lines on a single connector), assign pin 1 (white/blue) and pin 6 (blue/white) to the second line.
Testing requires a lineman’s tool set. Short pins 3 and 4 on the cable end–dial tone confirms correct polarity. Absence indicates reversed wires or severed copper. Shielded cables (with drain wire) ground pin 1 to eliminate static on long runs, critical for VoIP adapters prone to electromagnetic interference.
Identifying Standard Telecommunication Connector Pin Arrangements for Analog Lines
Begin by examining the connector housing: the standardized 6-position plug or socket typically uses only two central contacts (positions 3 and 4) for basic analog service. Hold the connector with the tab facing downward–position 1 is on the left, position 6 on the right.
Verify the wiring sequence with a multimeter in continuity mode. Touch one probe to the tip of a plug or the subminiature copper strand where the wire exits, and the other to position 4 of the socket. A tone confirms the correct lead; repeat for position 3, which should correspond to the ring. Deviations usually indicate crossed pairs or an atypical wiring scheme.

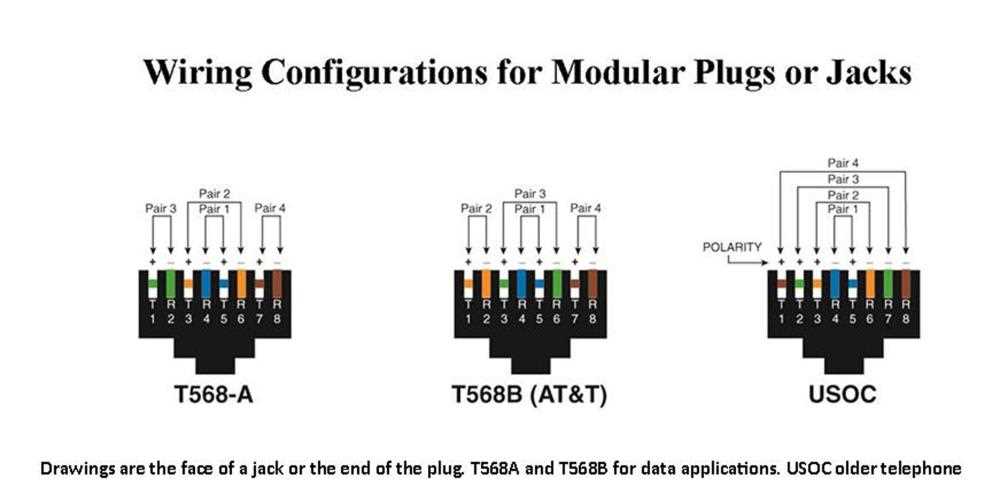

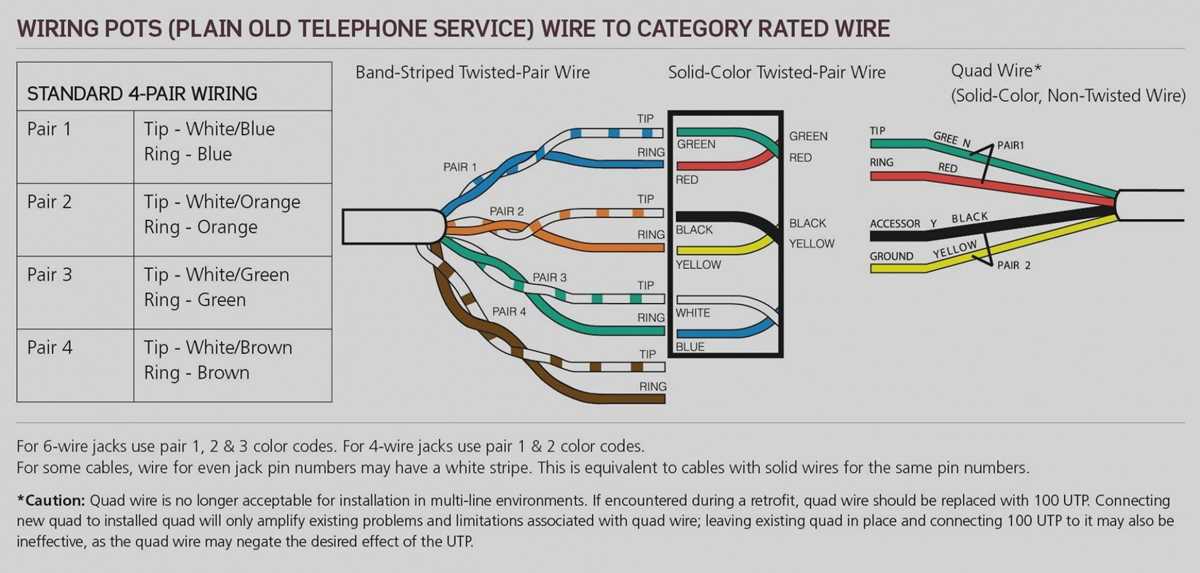

Common color-coding follows one of two schemes:
- USOC: Tip (position 4) – green; Ring (position 3) – red
- T568A: Tip – white/blue stripe; Ring – blue/white stripe
- T568B: Tip – white/orange stripe; Ring – orange/white stripe

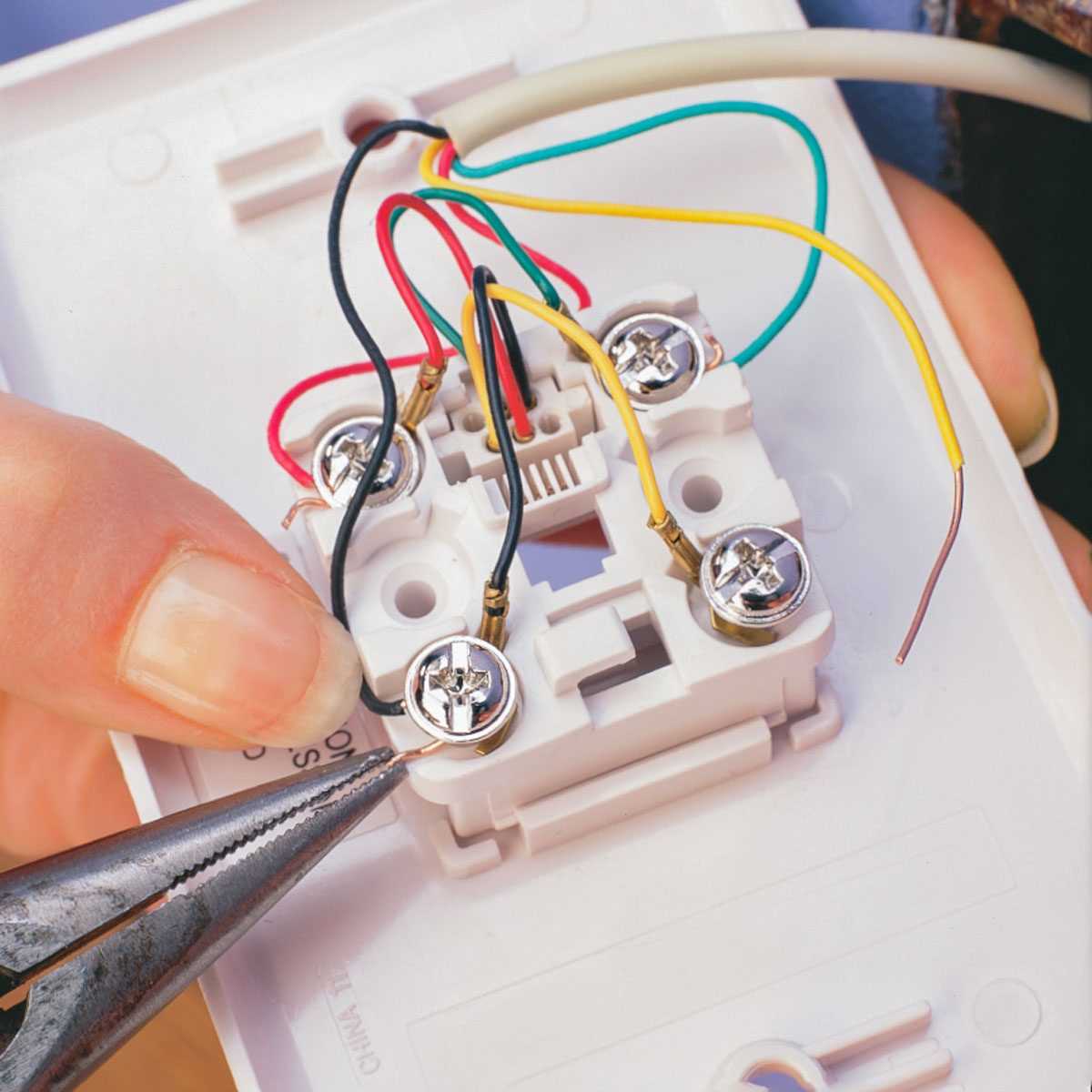

Locate the demarcation point inside the building–usually a small plastic enclosure mounted near the entry. Inside, two screw terminals connect the incoming line (from the service provider) to the internal wiring. Match the screw colors to the connector positions: the central screws (typically red and green) align with positions 3 and 4, respectively.
When re-terminating, strip only 3–4 mm of insulation to prevent shorting. Insert the exposed conductor fully into the terminal block, securing it with a firm twist of the screw. For crimped plugs, ensure the conductor extends just beyond the copper contact before crimping–excess length risks breakage, insufficient length causes disconnection.
Troubleshooting Miswired Terminations
If dial tone is absent or distorted:
- Disconnect all equipment and test the line directly at the network interface. Use a known-good cord to isolate whether the fault lies in the cable or the port.
- Check for reversed polarity by swapping connections on positions 3 and 4 at both ends. While many devices tolerate polarity reversal, some fax machines or older answering systems do not.
- Inspect for partial shorts–measure resistance between tip and ring: values below 1 MΩ suggest moisture intrusion or damaged insulation.
For multi-line systems (e.g., four-conductor cords), positions 2 and 5 carry additional signals–typically a second analog circuit or ground reference. Treat these as secondary assignments: confirm their necessity before modifying the primary pair, as unnecessary disruptions can affect caller ID or DSL signals sharing the same physical infrastructure.
Step-by-Step Guide to Stripping and Preparing Conductors for Connector Termination
Use a precision wire stripper calibrated for 24–26 AWG copper pairs–standard for analog terminal blocks. Adjust the cutting depth to 6–8 mm, ensuring insulation removal without nicking the strands. Rotate the tool 360° around the conductor once, then pull the stripped section away in one motion. Verify the exposed metal is clean; oxidized or frayed ends require recutting at a 90° angle with flush-cut pliers. Group color-coded pairs (typically red-green, black-yellow, or blue-white) and fan them apart by 3 mm at the tips to prevent shorts during crimping.
Critical Checks Before Termination
- Confirm conductor length: 12–14 mm of stripped wire for standard modular plugs, 9–11 mm for punch-down terminals.
- Twist rate: Maintain 2–3 twists per inch for optimal signal integrity; untwist only enough to insert into the connector.
- Inspection: Shine a 5x magnifier on stripped ends–discard any with nicks exceeding 10% of wire diameter.
- Avoid kinking: Bend radius should not exceed 4x the conductor’s outer diameter during handling.
For stranded conductors, pre-tin the tips with 60/40 rosin-core solder (max 1 mm blob) to prevent fraying; solid copper pairs require no tinning. Store prepared wires in a humidity-controlled tray (max 50% RH) if termination is delayed beyond 30 minutes.
Implementing Connector Configurations for Single-Line vs. Dual-Line Communication Ports
For single-line connections, use the two centermost contacts (pins 3 and 4) on a standard 6-position modular outlet. Strip 6mm of insulation from each conductor, insert the solid copper into the terminal slots until the insulation touches the contact, then crimp firmly using a 6P2C plug or punch down with a 110 tool. Polarity matters only if the device requires power over the line–ensure the tip (positive) wire connects to the left terminal when facing the outlet.
Dual-line installations demand all four inner contacts (pins 2, 3, 4, and 5). Line 1 occupies the innermost pair (3 and 4), while Line 2 uses the adjacent pair (2 and 5). Color coding follows: red/green for Line 1, yellow/black for Line 2. Cross-pairing causes crosstalk; verify continuity with a multimeter before securing connections. Avoid using pins 1 and 6–these are reserved for advanced applications like DSL filtering.
Termination Practices for Optimal Signal Integrity
Twist pairs only at the point of termination, maintaining the factory twist ratio (approximately 2-3 twists per inch) to minimize interference. Excessive untwisting increases susceptibility to noise. For wall plates, use keystone modules rated for Category 3 or higher–lower grades degrade voice clarity and prevent future upgrades to VoIP or higher-speed data.
Test each line with a telephone set or butt set before finalizing connections. Listen for dial tone, dial several numbers from each line in a dual setup, and check for echo or hum. If issues persist, disconnect and inspect for reversed wires, loose terminals, or damaged conductors. Strand conductors should never be used–solid copper (22-26 AWG) is mandatory for reliable contact pressure in both plugs and outlets.
Special Considerations for Mixed-Use Scenarios
When integrating a fax machine or modem on a dual-line system, assign it to Line 2 to isolate it from frequent voice use. For PBX systems, consult the system documentation–some require reversed polarity on Line 2. In environments with alarm systems, preserve the outer pin pairs (1 and 6) for the alarm interface, but never share them with telephone lines unless the alarm panel explicitly supports this configuration.
Label every connection at both ends with line numbers and device names. In commercial setups, document the wiring route, including cable lengths and intermediate punch-down locations. Use cable ties to bundle conductors, keeping them separate from power lines to prevent induced noise. Replace any damaged jacks immediately–corroded contacts or bent pins compromise signal quality and may cause intermittent failures.
