Use 18-gauge solid copper wire for all connections to ensure stable current delivery and prevent voltage drop. The transformer should output 16–24V AC at a minimum of 10VA–check the label on the existing power supply before proceeding. If the transformer lacks sufficient capacity, replace it rather than risk overheating.
Strip ¼ inch of insulation from each wire end, twist strands tightly, and secure connections with insulated butt splices or wire nuts rated for indoor use. Avoid solder alone–vibration from door operation can break joints over time. Label each wire before disconnecting old hardware: typically, red for power, white for neutral, and green/yellow for ground.
Mount the sensor base within 4–6 inches of the door frame to capture motion effectively. Route wires through ½-inch conduit if running externally to protect against moisture and rodents. Test continuity with a multimeter before sealing connections–resistance should read below 1 ohm on each pair.
Connect the red wire to the transformer’s hot terminal, white to neutral, and ground to the chassis or ground bar. If the sensor requires a front panel button, splice its terminals in parallel with the existing chime. Verify voltage at the sensor’s terminals before powering–16V AC minimum ensures reliable operation without false triggers.
Tuck excess wire into the junction box in clockwise loops to ease future service. Secure covers with screws–do not rely on adhesive, as expansion and contraction can loosen mounts. Power up and trigger the device three times: each response should complete within 2–3 seconds. If latency exceeds this, check for loose connections or undersized wiring.
How to Connect Your Smart Entry Device: Electrical Schema Guide
Start by turning off the power at the circuit breaker to prevent shocks. Use a non-contact voltage tester to confirm the wires are safe to handle. Most modern chime kits require a transformer outputting 16-24 volts AC, with at least 10 volt-amperes (VA) capacity. Check your existing chime’s voltage rating–it’s often printed on the transformer or inside the chime’s cover.
Identify the front and rear terminals inside your existing chime box. The front terminal connects to the button outside, while the rear terminal links to the transformer. Some setups include a third terminal for a secondary button or light; ignore this unless your equipment explicitly requires it. Mark each wire with painter’s tape to avoid confusion during reconnection.
For installations replacing an old mechanical button, disconnect the two wires from the previous unit and strip ¼ inch of insulation from each. Secure these to the matching terminals on your new device–polarity doesn’t matter for AC circuits. If your device has a built-in battery, ensure the transformer’s voltage matches the manufacturer’s minimum requirement to maintain charge. A 16V/30VA transformer is typically sufficient.
Use a multimeter set to AC voltage mode to verify the transformer’s output before connecting. Probe the two wires from the transformer; readings below 16V indicate a weak or incompatible power source. Replace undersized transformers with a UL-listed model rated for outdoor use. Avoid daisy-chaining transformers from multiple devices–dedicate a single source to prevent voltage drops.
If your chime lacks a transformer or the existing one is inadequate, mount a new 16V/30VA unit near the circuit breaker. Run 18-gauge solid copper wire from the transformer’s low-voltage terminals to the device’s power inputs. Keep runs under 50 feet to minimize resistance losses. Secure connections with weatherproof wire nuts if exposed to moisture.
Proprietary setups with power kits replace the chime’s internal diode or resistor. Follow the accessory’s instructions to bypass or modify the chime’s circuitry. If your model lacks a mechanical chime, the kit’s jumper wires simulate the button press signal. Double-check all connections against the schematic included with the kit–reversing wires can damage components.
After restoring power, test the device with the companion app. If it fails to power on, recheck the transformer’s output and wire tightness. For intermittent issues, inspect for loose terminals or corroded wires. Use dielectric grease on outdoor connections if installed in humid climates. Keep firmware updated to patch compatibility bugs with older chime models.
Essential Equipment and Supplies for Video Entry System Hookup
Start with a multimeter rated for at least 600V AC/DC to verify circuit integrity before connecting any components. Ensure it includes continuity testing for low-resistance checks on terminal connections. Fluke 117 or Klein Tools MM700 provide reliable readings for both voltage and resistance.
Use 18-22 AWG copper wiring, solid or stranded, with insulation rated for 60°C minimum–UL-listed THHN or THWN types resist short circuits under 15A loads. Pre-stripped wire in 100-foot spools simplifies splicing, but manual stripping with Klein Katapult or Ideal T-Stripper ensures clean cuts without nicks. A crimping tool with insulated terminals (blue for 16-14 AWG, red for 22-18 AWG) secures connections without corrosion risk. Avoid twist-on wire nuts; lever-style splices like Wago 221 or push-in connectors like Ideal In-Sure offer vibration-resistant bonds.
Key Components Checklist
| Item | Specification | Purpose |
|---|---|---|
| Circuit tester | Non-contact voltage pen (Klein NCVT-3) | Detects live wires before handling |
| Drill | DeWalt DCD796 (20V) with 1/4″ masonry bit | Mounting screws into brick/concrete |
| Fish tape | Gardner Bender GBM-50 (50 ft) | Pulling wires through walls |
| Junction box | 4″ square, metallic (Hubbell Raco 814) | Housing transformer connections |
| Transformer | 16VAC, 30VA (Honeywell AT140A1000) | Steps down voltage for device power |
For outdoor installations, silicone-filled splice kits like Scotchcast 82-A prevent moisture ingress at terminal points. Use a torque screwdriver (Wiha 28392) set to 5 in-lbs to tighten power terminals without stripping threads on compression lugs. Masonry anchors from Hilti or Tapcon hold mounting brackets securely–opt for 3/16″ x 1-1/4″ stainless steel screws with 3/8″ plastic caps to cover heads.
Label every wire with heat-shrink tubing or Brady BMP71 markers before termination. A thermal imaging camera (FLIR ONE Pro) identifies hotspots post-installation if voltage drop exceeds 5%. Keep a fiberglass ladder (Little Giant Velocity) for multi-story heights–aluminum conducts stray current. Dispose of wire scraps immediately; coiled 18AWG can create inductive loops with 120V circuits.
Step-by-Step Guide to Finding Your Home’s Existing Chime Connections

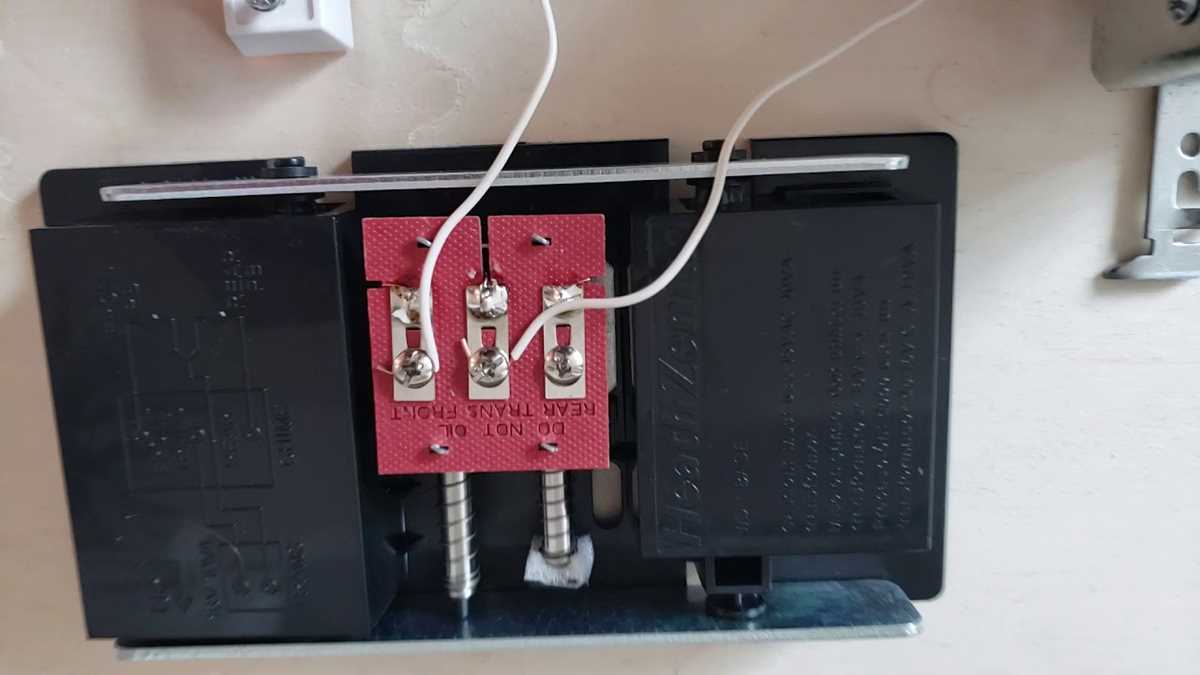

Start by locating the central alert unit, typically mounted on an interior wall near the front entry or in a hallway. Remove the faceplate carefully–most models snap off or have one or two screws. Inside, you’ll find two or three terminals: a transformer input (often labeled “T” or “TRANS”), a push button circuit (“FRONT” or “BUTTON”), and sometimes a neutral (“N”) or ground. Note the wire colors attached to each terminal, as these will guide you to the corresponding cables elsewhere in the house.

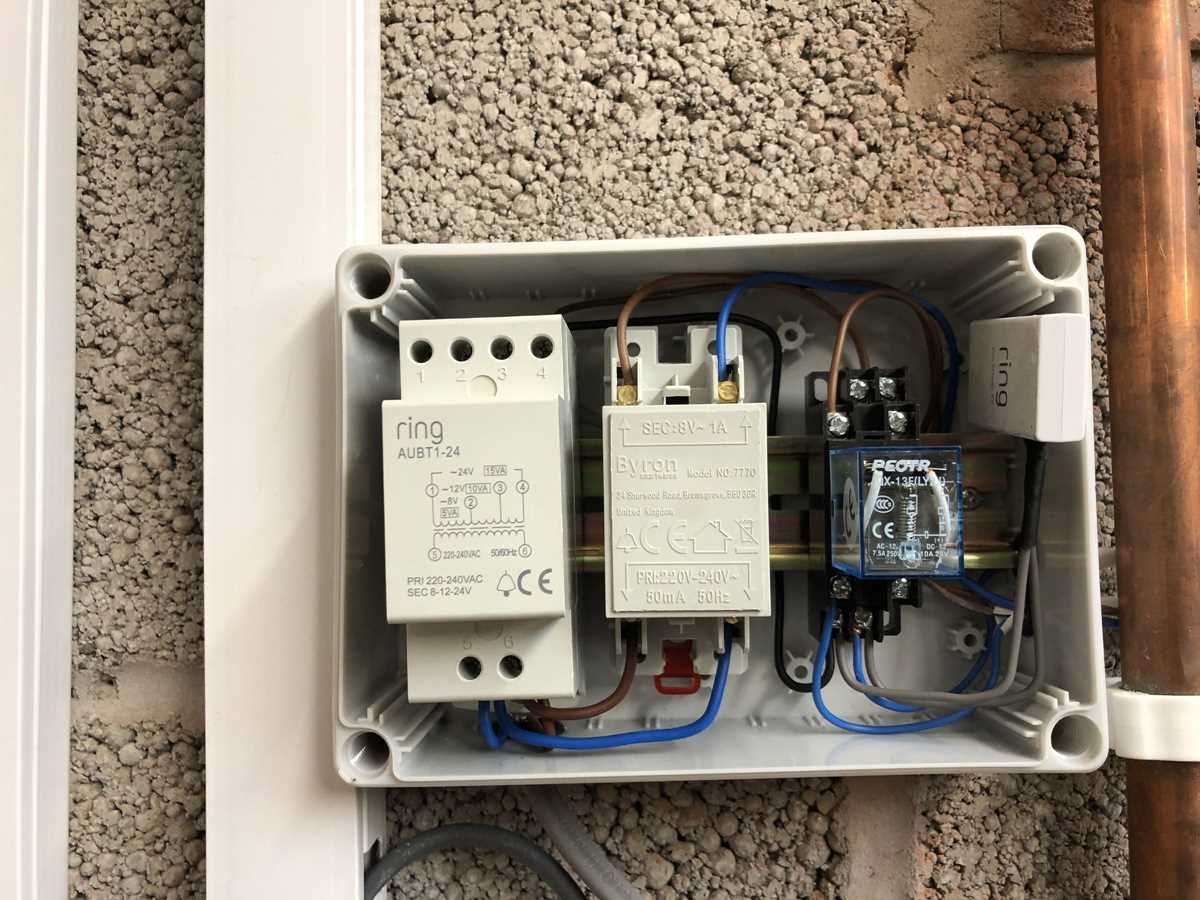

Trace the low-voltage cables from the chime box to their next connection point–usually the power source. Follow the wiring along baseboards, door frames, or through walls, checking for junction boxes where the lines might split. If wires disappear into a wall, probe gently with a non-contact voltage tester to confirm their path. The transformer is typically found in the basement, utility closet, or garage, hidden behind other fixtures. Look for a small metal or plastic box with two thick wires (16–22 AWG) leading to it, often secured to an electrical outlet box or directly to a junction.
At the transformer, verify the output voltage between the two terminals–it should read between 16V and 24V AC when the system is active. If the reading is zero, the transformer may be faulty or disconnected. Check the circuit breaker panel for a dedicated switch labeled “chime,” “entry alert,” or similar; if flipped, reset it. If no breaker is marked, test adjacent switches–some older homes wire the transformer to a general lighting or outlet circuit.

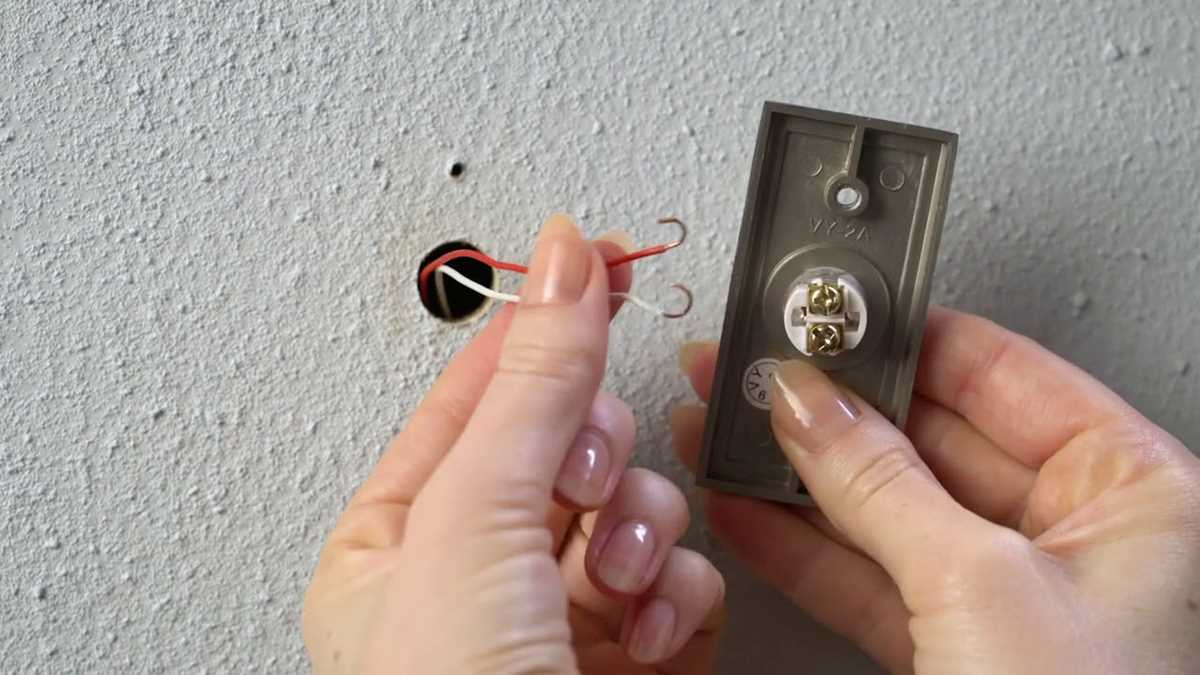

Finally, inspect the push button outside the door. Remove the exterior plate to expose the wiring: one cable connects to the alert circuit, while the other may attach to a grounding screw or a second terminal. Ensure both wires are firmly secured and free of corrosion. If the setup includes a backlight, note additional cables that may power LEDs or nightlights. Reassemble the button once confirmed, then return to the chime box to test the circuit by momentarily bridging the button terminals with a screwdriver–if the alert sounds, the wiring is intact and ready for integration.
How to Safely Remove an Existing Chime and Prep Conductors for Your New Smart Entry System
Cut power at the circuit breaker before touching any low-voltage components. Locate the correct fuse by testing the push-button outside with a multimeter set to AC voltage–readings above 10V confirm live current. Label the breaker with masking tape to prevent accidental reactivation while working. This step eliminates risks of short circuits or electric shocks during disassembly.
Detach the existing transformer wires first to simplify removal. Unscrew the terminal screws marked “FRONT” and “TRANS” on the power unit, then wrap each exposed copper tip with electrical tape. Pull wires gently through the wall cavity to avoid snapping brittle insulation. If the cables resist, apply heat from a hairdryer to soften old adhesive or caulk securing them in place.
Scrape oxidation or paint from the stripped ends using a utility knife or fine-grit sandpaper. Clean conductors down to bare metal for optimal connectivity with the new system. Avoid twisting the strands–straighten them instead with needle-nose pliers to ensure uniform contact. Test continuity with the multimeter; resistance should read near zero ohms for reliable signal transfer.
Inspect the wall box for debris or moisture before installing the new interface. Seal gaps around protruding wires with silicone caulk to prevent drafts or insect entry. If the existing conduit is too tight, enlarge it slightly with a rotary tool and a metal-cutting bit–just enough to accommodate the thicker connectors of modern smart hardware.
Secure loose conductors with plastic strain-relief clips to prevent tension on connections later. Bundle excess length neatly using zip ties, leaving 6–8 inches of slack for future adjustments. Snap a photo of the final wire layout before covering the junction box; this reference simplifies troubleshooting if installation issues arise.
