For seamless integration of multicolor tape modules, begin by identifying the common anode (+12V) and individual cathode channels (R, G, B) on your controller. Use a 4-pin JST SM connector to link the ribbon’s input end to the power driver–polarity errors here will disable color transitions entirely. If voltage drop exceeds 0.5V across a 5-meter segment, insert an auxiliary injection point at the midpoint using thicker 18AWG wires instead of relying solely on the thin traces embedded in the flexible PCB.
Controller selection directly impacts performance: MOSFET-based drivers handle 12A loads with thermal stability, while cheaper IC-based units may overheat at 70% duty cycle. Connect the dimming signal wire (usually white or yellow) to a PWM pin on your microcontroller; ensure the signal stays below 5V to avoid logic-level incompatibility. Ground loops introduce flicker–avoid them by routing a dedicated return wire from the ribbon’s end back to the power supply’s negative terminal, not sharing it with high-current loads.
Test each color channel individually before final assembly: attach a multimeter in diode mode to verify the cathode channels read ~0.7V when powered. If one channel fails to illuminate, recheck solder joints at the ribbon’s cut points–tinned copper foil degrades after repeated flexing. For addressable variants, data polarity reversals corrupt pixel commands; use a 470Ω resistor on the data line to prevent backfeeding from reflections.
Power supply choice dictates longevity: switching regulators achieve 90% efficiency at 12V but introduce HF noise; linear supplies eliminate ripple but waste energy. Keep voltage ≥11.7V at the farthest point to maintain luminous consistency. Shielding isn’t optional outdoors: wrap data lines in foil tape grounded at one end to block EMI from adjacent motors or Wi-Fi routers.
Connecting Multicolor Illumination Tapes: A Detailed Guide
Begin by identifying the controller’s output terminals–each marked for red, green, blue, and common anode (CA) or cathode (CC). Use a multimeter in continuity mode to verify these connections if labels are unclear. For CA configurations, the shared terminal will have a positive voltage, while CC variants share a ground.
Select wire gauges based on tape length: 20 AWG suffices for runs under 5 meters, while 18 AWG is mandatory for 5–10 meters to prevent voltage drop. Tin all wire ends before soldering to minimize oxidation, and apply heat-shrink tubing to insulate joints. Avoid twisting wires–crimp connectors or solder directly for reliability.
Power supply requirements depend on tape density and length. A 5-meter, 60-pixel-per-meter reel at full brightness demands ~18W per channel (5V) or ~60W total. Calculate amperage by dividing wattage by voltage: 60W/5V = 12A. Always oversize the power supply by 20% to accommodate surges.

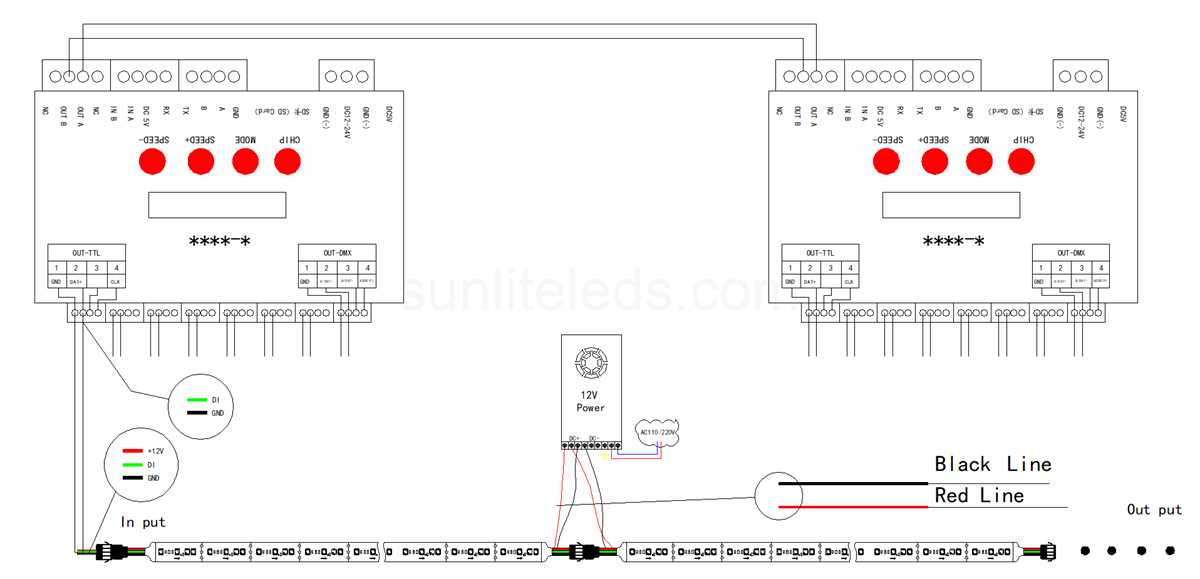

For addressable setups (e.g., WS2812B), connect data in (DI) to the controller’s signal output and data out (DO) to the next segment’s input. Maintain consistent voltage via injection points every 3 meters–connect power wires in parallel, not daisy-chain, to avoid dimming or color shifts at the far end.
Ground loops cause flickering. Mitigate this by:
- Joining all ground wires at a single point near the power supply.
- Using shielded cable for data lines in noisy environments.
- Avoiding shared power sources with high-current devices (motors, compressors).
Test each segment before final installation. Use a spare 12V power adapter to verify colors independently of the controller. If hues appear desaturated, check for reversed polarity or insufficient current. For CA tapes, reverse the common wire and R/G/B if colors are inverted.
Troubleshooting Voltage Drop
Symptoms include dimming, color inconsistency, or failure to illuminate. Solutions:
- Shorten run length–split into multiple powered segments.
- Increase wire gauge–double the cross-section for every additional 10 meters.
- Add capacitors (1000µF) across power inputs at injection points to smooth current delivery.
- For 12V systems, use a buck converter near the tape end to boost voltage locally.
Mounting considerations dictate connection durability. For outdoor use, seal joints with waterproof silicone and use IP67-rated connectors. In marine applications, opt for tinned copper wires and corrosion-resistant terminals. Always route wiring away from sharp edges or moving parts, securing with clips every 30 cm to prevent strain on solder points.
Selecting an Optimal Power Source for Color-Changing Tape
Choose a power supply with a voltage matching your circuit’s requirements–typically 12V or 24V. Multiply the tape’s wattage per meter by its length, then add 20% buffer to ensure stable operation under full brightness. For example, a 5m installation drawing 14.4W/m needs at least 86.4W; a 100W unit suffices. Check the amperage rating: divide total watts by voltage (e.g., 100W/12V = 8.3A). Always use supplies with dedicated protection–short-circuit, over-voltage, and thermal shutdown–to prevent degradation.
Key Specifications Comparison
| Type | Voltage | Max Current | Efficiency | Cooling |
|---|---|---|---|---|
| Enclosed | 12V/24V | 5A–30A | ≥85% | Fan/Heatsink |
| Open Frame | 12V/24V | 2A–10A | ≥80% | Passive |
| Wall Plug | 5V/12V | 1A–5A | ≥75% | None |
Prioritize enclosed units for installations exceeding 3m; their dual-layer PCB and aluminum casing dissipate heat efficiently, extending lifespan. For multi-segment setups, opt for a single high-capacity source over multiple low-current adapters–this reduces voltage drop by up to 40% across junctions. Verify UL/CE certification markings; counterfeit supplies often lack surge protection, risking flicker or failure under 3A loads.
Step-by-Step Guide to Connecting a Multicolor Illumination Tape to a Driver
First, verify the voltage requirements of your color-changing ribbon–most operate at 12V or 24V DC. Check the label on the reel or datasheet for exact specifications. Mismatched power supplies can cause flickering, dimming, or permanent damage. Cut the tape only along the marked copper pads, typically spaced every 50mm (2 inches), to avoid disrupting the circuit. Use low-temperature solder or pre-soldered connectors (e.g., JST SM, 4-pin) to attach wires securely, ensuring polarity matches: red (positive), black/white (negative), and the remaining two wires for color channels (often green and blue).

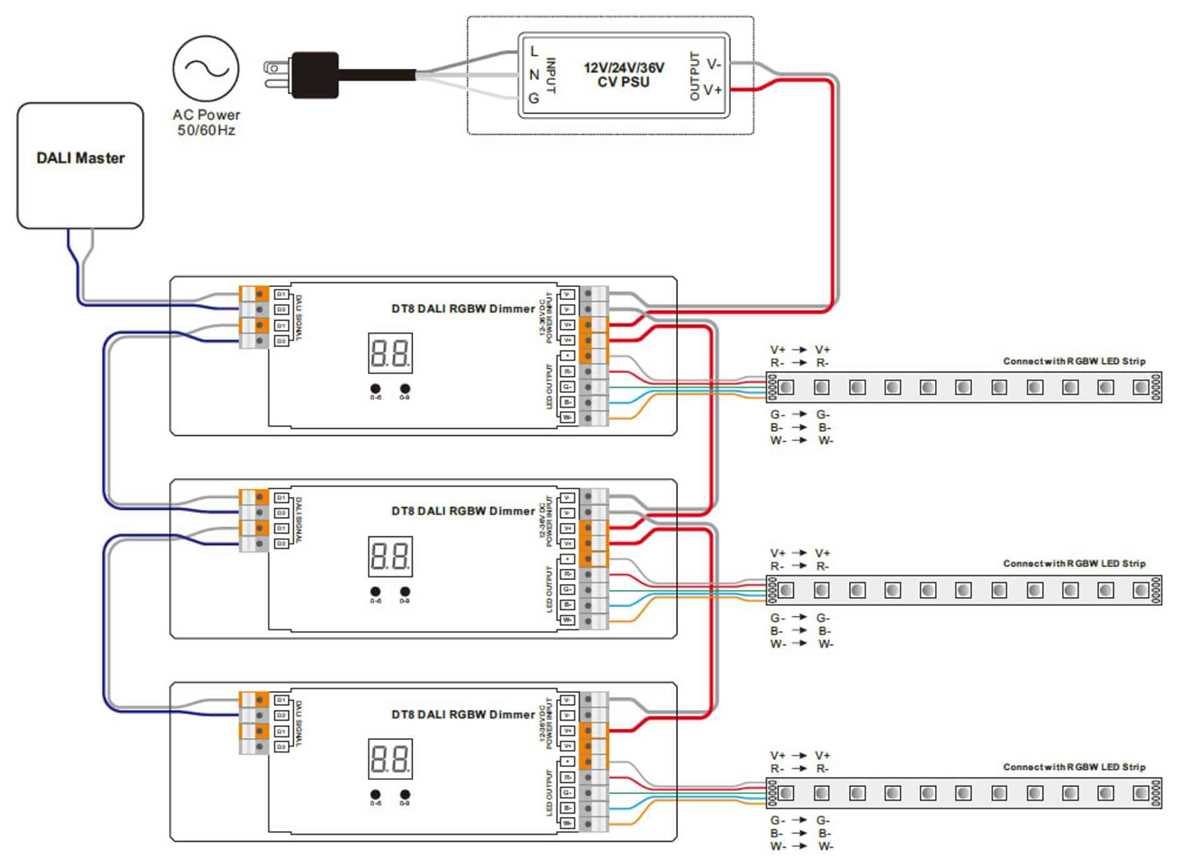

Wiring the Controller and Power Supply
Connect the driver’s output terminals to the illumination tape’s wires, matching colors precisely. For common anode setups (positive shared), wire the red (+) to the power supply’s positive terminal; for common cathode (negative shared), connect the black/white (-). Use a multimeter in continuity mode to test connections–no reading indicates a loose or incorrect link. If the ribbon fails to light, recheck polarity and ensure the power supply delivers at least 20% more wattage than the tape’s total consumption (e.g., a 5m 60-LED/m reel at 12V draws ~3.6W/m, requiring a 2A (24W) adapter).
Install the modular unit between the power source and the tape, securing it to a dry, heat-resistant surface. Use heat-shrink tubing on splices to prevent short circuits, especially near moisture-prone areas like kitchens or outdoor installations. For extended lengths (>10m), add an amplifier every 5m to maintain consistent brightness. Double-check all connections before powering on–reverse polarity or crossed wires can destroy the tape instantly. If issues persist, bypass the controller and test the tape directly with the power supply to isolate faults.
- Tools needed: wire strippers, soldering iron (
- Avoid twisting wires–use twisted pairs only for signal integrity in long runs.
For waterproof variants (IP65+), seal cut ends with silicone adhesive before applying end caps.

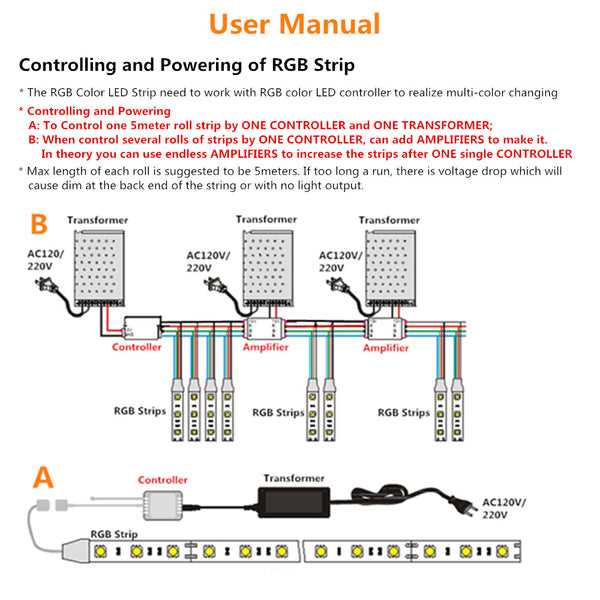

Connecting Multiple Color-Changing Flexible Circuits for Longer Runs
Parallel branching is the only reliable method for extending flexible circuits beyond the length supported by a single power supply. Each segment must connect directly to the controller’s output terminals–never daisy-chain more than three meters of 12 V tape or four meters of 24 V tape in sequence, as voltage drop will cause uneven intensity and premature failure at the far end.
Use 18 AWG copper wire for runs under 5 meters and 16 AWG for distances up to 10 meters; anything longer demands a dedicated power feed from the transformer with 14 AWG or thicker. Label every joint with heat-shrink tubing marked in millimeters to match the circuit’s width (typically 8–12 mm), eliminating guesswork during troubleshooting.
Split the load across separate controller channels if the total current exceeds 80 % of the device’s rating. A 150 W driver, for example, can safely handle ~12 A; exceeding this triggers thermal shutdown within minutes. Install inline fuses rated 20 % above each branch’s maximum draw–locate them no farther than 30 cm from the connection point to protect against shorts before they reach the main line.
Mount power injection points every 4–5 meters on horizontal runs and every 2–3 meters on vertical climbs. Secure splices with solder sleeves rather than crimp connectors; cold-squeeze joints corrode within weeks in humid environments. Apply waterproof silicone sealant over exposed connections if indoor humidity exceeds 70 % or outdoor exposure is unavoidable.
Test each segment with a multimeter before finalizing connections–set the meter to 20 V DC and verify the tap maintains ≥11.2 V (for 12 V) or ≥22.6 V (for 24 V) at the farthest point. Drop below these thresholds, and color fidelity shifts toward blue or pink, and dynamic effects (such as chasing or gradients) lag noticeably.
Calculate total wattage by multiplying the tape’s linear power (usually 7.2 W/m for standard density) by the combined length, then add 25 % buffer. A 20-meter run therefore requires a transformer rated ≥180 W. Under-sizing causes flicker during peak brightness, and sustained overload reduces lifespan by 40–60 %.
