Start with a balanced impedance of 50 ohms as the foundation for RF signal paths. This value ensures minimal reflections and maximum power transfer between components. Verify trace widths on the PCB using a microstrip calculator based on the substrate’s dielectric constant and thickness. For 1.6mm FR-4 at 2.4 GHz, aim for a trace width of 2.8mm to maintain the target impedance.
Separate analog and digital ground planes with a single-point connection near the power source. This prevents high-frequency noise from coupling into sensitive RF sections. Place decoupling capacitors–100nF ceramic for general purpose and 10pF to 100pF for high-frequency stability–directly at the component pads to filter voltage fluctuations.
Use via stitching around critical traces and ground pours to reduce parasitic inductance. Each via should have a diameter of 0.3mm with a 0.8mm pitch for effective shielding. Avoid placing vias under inductors or capacitors to prevent altering their self-resonant frequency.
Limit trace lengths to λ/10 or shorter to minimize phase shifts. For 5 GHz signals (λ ≈ 60mm), keep traces under 6mm. Use coplanar waveguide layouts for frequencies above 1 GHz–gap widths should match trace widths for consistent impedance.
Select RF transistors with fT ≥ 5× operating frequency to avoid gain roll-off. For a 2 GHz amplifier, choose a device like the BFP420 (fT = 25 GHz). Bias networks must include temperature compensation–use a resistor divider with a diode or integrated bias controllers like the ADL5324.
Test all connections with a vector network analyzer before powering the circuit. Calibrate using SOLT (Short-Open-Load-Thru) standards. Target S11 ≤ -10 dB and S21 ≥ desired gain across the operating bandwidth. If reflections exceed limits, adjust trace spacing or component placement iteratively.

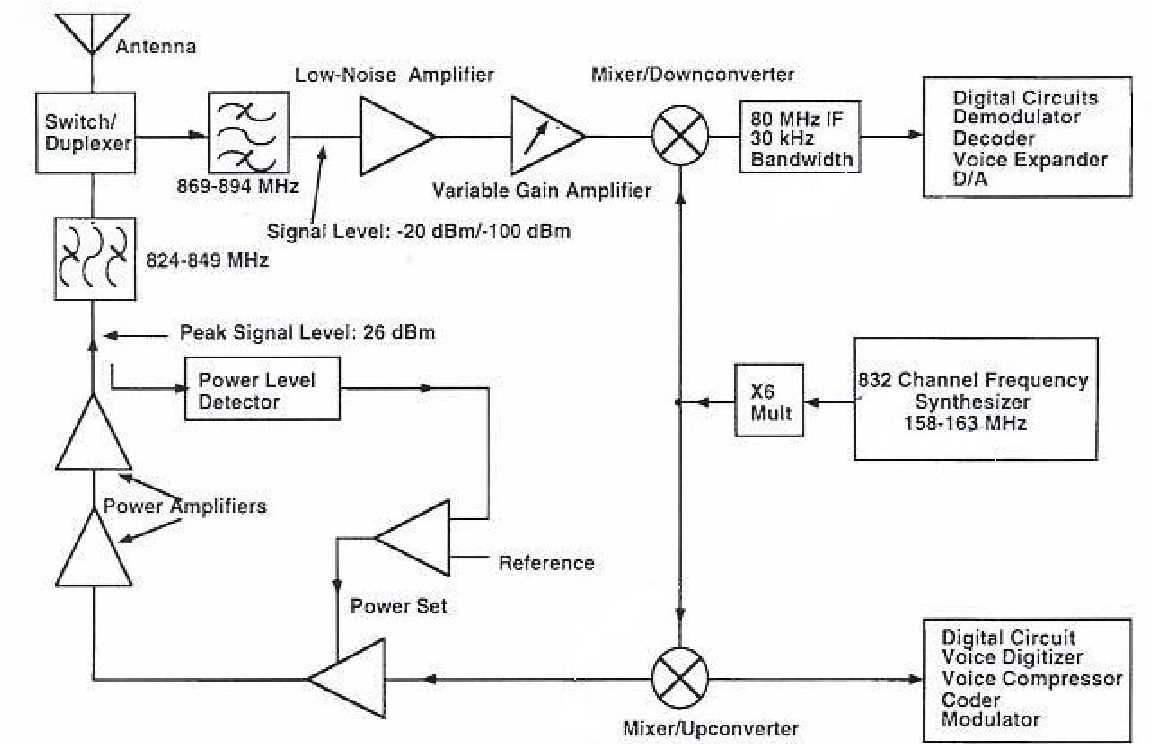

Designing RF Circuit Blueprints for High-Frequency Performance
Place grounding vias every 2–3 mm along transmission lines to minimize parasitic inductance, especially near active components like LNAs or mixers. Use stitching vias at the edge of the reference plane to connect top and bottom ground layers, reducing loop area for return currents in the 1–6 GHz range. For PCB stackups, prioritize dual-core constructions (e.g., 4-layer with 1 oz copper on outer layers and ½ oz on inner) to balance cost and signal integrity.
Choose trace widths based on impedance targets: 50 Ω requires ~0.5 mm width on standard FR-4 (εr = 4.2) with 0.2 mm dielectric thickness. For differential pairs, maintain 100 Ω impedance with 0.3 mm spacing between traces. Always validate with a 2D field solver–margin errors above ±5% degrade SNR in receivers by 3–7 dB. Avoid 90° bends; use mitered or rounded corners to prevent reflections (> -20 dB return loss at 5 GHz).
Component Placement for Thermal and Electrical Stability
Locate power amplifiers ≥1 cm from sensitive components (e.g., VCOs, filters) to prevent thermal drift and phase noise coupling. Position decoupling caps (100 pF for RF, 0.1 µF for DC) no farther than 2 mm from IC power pins, using via-in-pad for compact layouts. For SAW filters, ensure a clearance zone of ≥5 mm around the footprint to avoid detuning from nearby metallization or solder mask.
Route control lines (SPI, I2C) perpendicular to RF traces to minimize crosstalk–keep ≥0.8 mm separation for signals up to 2 GHz. Use coplanar waveguide (CPW) topology for balanced lines when ground planes are limited, but ensure the gap between signal and ground traces is ≤3× the trace width. For connectors, align pin assignments to match the target impedance (e.g., SMA for 50 Ω, BNC for 75 Ω) and avoid right-angle transitions unless compensated with a taper.
Validate layouts with a network analyzer after fabrication–probe S11 and S21 at critical nodes. Expect -30 dB or better return loss at the design frequency; deviations indicate impedance mismatches or parasitic coupling. For prototyping, use modular RF blocks (e.g., pre-matched amplifiers, tunable filters) to isolate errors before integrating into a monolithic layout.

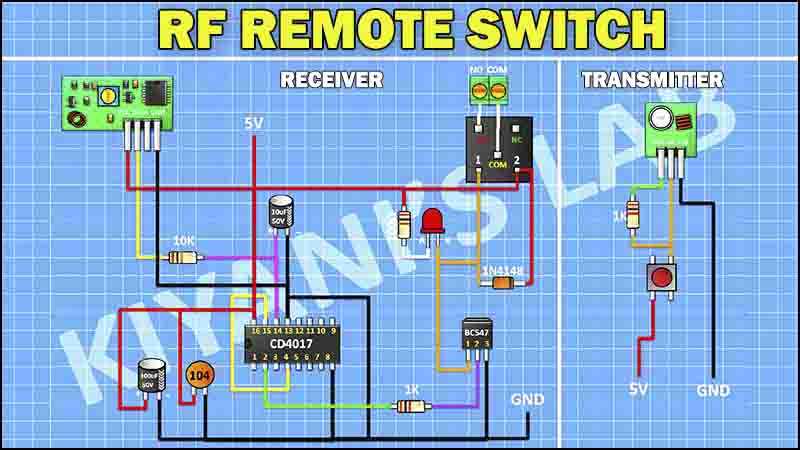

Key Components for Drawing an RF Circuit Layout
Start with precise transmission line calculations. Microstrip and coplanar waveguide designs demand controlled impedance, typically 50Ω for most RF systems. Use substrate parameters–dielectric constant (εr), loss tangent (tanδ), and thickness–to determine trace width via tools like LineCalc or Saturn PCB. A 1.6mm FR-4 substrate with εr of 4.4 requires a 3mm trace for 50Ω microstrip at 2.45GHz, while Rogers 4350B (εr 3.66) needs only 1.7mm. Account for skin effect: copper thickness (typically 1oz or 35μm) affects attenuation above 1GHz. Exceeding recommended widths causes impedance mismatches, leading to signal reflections up to -10dB at discontinuities.
Isolate RF traces from digital and power lines. Maintain a minimum 3x trace-width clearance between RF and other paths; for GHz signals, increase to 5x. Ground pours under RF lines reduce crosstalk by >20dB at 5GHz. Use stitching vias along ground planes, spaced no farther than λ/10 apart (6mm for 5GHz). Avoid 90° bends–replace with mitered or curved traces to minimize impedance disruption, which can add 0.5dB loss per bend at 10GHz. Differential pairs require matched lengths within 0.1mm to prevent phase errors >5° at 28GHz.
Place bypass capacitors and inductors at the IC’s power pins, not just the board’s edge. For LNAs and PAs, select capacitors with self-resonant frequency (SRF) >3x the operating frequency–typical 100pF MLCCs fail above 1.5GHz. Use 0402 or 0603 packages to reduce parasitic inductance; an 0201 10nF capacitor has 100Ω at the target frequency–Murata BLM18PG102SN1 (1000Ω at 100MHz) outperforms generic beads by 30dB in noise suppression.
Route RF connectors (SMA, U.FL) with direct, uninterrupted paths to PCB traces. A 90° edge-launch SMA connector adds 0.3dB insertion loss at 6GHz; right-angle connectors double this. Keep connector pads solder-mask defined to prevent solder bridging, which degrades VSWR by 15% at 18GHz. For modular designs, use board-edge connectors like Samtec’s RF531 series, which maintain 0.5mm from signal layers to eliminate resonance at harmonics.
Thermal management dictates component placement for PAs. LDMOS transistors (e.g., NXP’s BLF8G27LS-160P) require a thermal pad with 50μm nickel-gold plating–bare copper increases thermal resistance by 30%. Attach heatsinks with thermal interface material (TIM) like Bergquist GF4000 (1.4W/m·K); avoid silicone-based TIMs, which degrade above 85°C. Ground vias under thermal pads must be >0.3mm diameter, spaced
Validate the layout with electromagnetic (EM) simulation before fabrication. Use Ansys HFSS or Keysight ADS Momentum for 3D field analysis; 2.5D solvers like Sonnet fail above 10GHz due to via coupling effects. Model all discontinuities–stubs, T-junctions, and via transitions–as individual S-parameter blocks. A single unmodeled via can introduce 1.5dB loss at 24GHz. Export Gerber files with IDF or STEP models for mechanical clearance checks; RF shields (e.g., Laird’s S240) require 0.2mm keep-out zones around solder pads to avoid shorting. Verify stackup with the PCB vendor–FR-4’s εr varies ±0.2 between production lots, causing impedance shifts up to 8Ω at 10GHz.
Matching Impedance in RF Circuits: Practical Methods
Begin with a Smith chart to visualize impedance transformations. Plot the complex load (e.g., 30 + j25 Ω) and identify the shortest path to the center (50 Ω). Use a series inductor to cancel capacitive reactance or a shunt capacitor for inductive loads, adjusting component values via the equation X = (Z₀² – R² – X²)/X, where Z₀ is the target impedance (typically 50 Ω), R and X are the load’s real and imaginary parts. For real-world validation, measure S₁₁ with a vector network analyzer (VNA) and fine-tune components in 5-10% increments until return loss exceeds 20 dB at the target frequency.
For narrowband matching, employ a L-section network–the simplest topology. Calculate values using Q = √(Rₚ/Rₛ – 1), where Rₚ is the parallel resistance (e.g., 50 Ω) and Rₛ the series resistance (e.g., 10 Ω). The reactive components follow X₁ = Q·Rₛ (series) and X₂ = Rₚ/Q (shunt). At 2.4 GHz, a 3 Ω load benefits from a 0.68 nH series inductor and a 3.3 pF shunt capacitor. Avoid excessive Q (>10) to prevent bandwidth shrinkage and component stress. Verify with a VNA sweep; ideal matching yields minimal phase shift in the reflection coefficient.
Wideband matching necessitates a multi-element network like the Chebyshev transformer. Use a 3-section design for 1-3 GHz coverage: start with a 25 Ω quarter-wave section (εᵣ=4.4, ~11 mm at 2 GHz), followed by 35 Ω and 50 Ω sections. Simulate in ADS or Qucs before PCB fabrication, ensuring tapered transitions between sections to reduce parasitic effects. For microstrip implementations, maintain 50 Ω trace width (e.g., 1.5 mm on 1.6 mm FR-4) and compensate for discontinuities with T-junction mitering (cut angle: 45°, corner removal: ~50% of trace width). Measure group delay; variations >1 ns indicate impedance discontinuities requiring rework.
Common Mistakes When Designing RF Amplifier Layouts
Neglecting impedance matching between stages causes signal reflection, reducing gain and increasing noise. Use a network analyzer to verify 50Ω (or specified) impedance at every node. Mismatches as small as 5Ω can degrade performance by 10% in high-frequency designs.
Incorrect Grounding Practices
Star grounding is critical for RF amplifiers to prevent ground loops. Connect all ground points to a single central node with
- Place decoupling capacitors (100nF + 10μF) within 2mm of IC power pins.
- Use 0402 or smaller packages for RF frequencies to minimize lead inductance.
- Avoid placing capacitors across inductor paths–this forms unintended resonators.
Trace routing near amplifiers must account for coupling effects. Keep input and output traces separated by at least 3x their width or use a grounded shield trace between them. Parallel traces longer than 10mm at frequencies above 500MHz can couple undesired signals, distorting the output.
- Bend traces at 45° angles to reduce impedance discontinuities.
- Keep control lines (e.g., bias, VGS) away from RF paths–cross-talk thresholds drop to -40dB for 0.3mm separations at 2GHz.
- Avoid right-angle bends; they radiate energy and degrade rise times by 15-20%.
Overlooking thermal management in power amplifiers leads to thermal runaway. Mount FETs/transistors on a dedicated ground pad with vias to a heat sink. For GaN devices, maintain junction temperatures below 150°C–each 10°C increase reduces lifespan by 50%. Use thermal vias spaced no more than 1mm apart, filled with conductive epoxy.
Component placement near tuning elements (e.g., trimmer capacitors, varactors) requires precision. Position them within 5mm of the tuned node to avoid parasitic effects. For PCB-based inductors, keep adjacent components >0.5mm away to prevent detuning–self-resonant frequency shifts by 20% if spacing is halved. Always simulate layouts in EM tools like ADS or Sonnet before prototyping.
