Start with a low-power RF module like the HC-12 or nRF24L01 for reliable signal transmission over 100+ meters. Pair it with an ATmega328P microcontroller for efficient decoding–this combination handles PWM signals without latency. Use a 2.4 GHz bandpass filter to minimize interference from Wi-Fi and Bluetooth devices.
For power management, integrate a 3.3V regulator (AMS1117) to ensure stable operation. Avoid linear regulators for high-current loads–opt for a buck converter (e.g., MP2307) if driving motors or relays. Battery capacity dictates runtime: a 18650 lithium-ion cell (2600mAh) will outlast alkaline AA packs in continuous use.
Signal encoding should prioritize Manchester coding or PPM (Pulse Position Modulation) to reduce errors. Skip basic ASK/OOK if noise resilience is critical–instead, implement CRC checks (e.g., 16-bit polynomial) for error detection. Test ground plane integrity: a poorly designed PCB can introduce 50Hz hum or RF leakage.
For actuator control, a H-bridge IC (L298N) manages bidirectional current flow. Isolate high-current traces from logic paths using optocouplers (PC817) or MOSFET drivers (IR2104). Include pull-down resistors on all inputs to prevent floating gates, which cause erratic behavior.
Calibrate antenna length to λ/4 (75mm for 2.4GHz) to maximize range. If space is limited, a meandered PCB trace works but reduces efficiency by 20-30%. Log startup sequences–unexpected resets often stem from improper decoupling capacitors (10µF + 0.1µF ceramic near VCC).
Building a Wireless Signal-Controlled Blueprint
Select an RF transmitter-receiver pair operating at 433 MHz for reliable short-range operation–common modules like HC-12 or FS1000A/XY-MK-5V offer 100–300 meter range under optimal conditions. Pair the transmitter’s data pin to a microcontroller’s PWM-capable output (e.g., Arduino D3 for 8-bit modulation) and the receiver’s output to an interrupt-enabled input (e.g., ESP8266 D2 for low-latency processing). Power both units with regulated 5V from a buck converter to prevent frequency drift; linear regulators introduce noise that degrades signal integrity.
Critical Component Placement
Position the receiver antenna at least 10 cm from any ground plane to avoid detuning–use a quarter-wave monopole (17.3 cm for 433 MHz) or helical design for compact devices. Place decoupling capacitors (0.1 µF ceramic) directly across the power pins of both modules to suppress transient spikes that cause false triggers. Route control traces away from high-speed data lines; a 2 mm clearance reduces crosstalk by 30% in testing. For bidirectional communication, add a diode (1N4148) in series with the receiver’s data output to block backfeed into the microcontroller.
Encode commands as 16-bit Manchester packets to minimize bit errors; a preamble of 32 alternating bits synchronizes the receiver’s clock recovery. Use a checksum (CRC-8) appended to each packet–validated payloads prevent erratic device behavior from corrupted transmissions. For battery-powered setups, implement sleep modes: the transmitter enters deep sleep after 500 ms of idle time, cutting current draw to 2 µA. Test range limits in the target environment; concrete walls reduce effective distance by 40%, while metal enclosures can create null zones requiring antenna repositioning or a higher-gain module (e.g., LoRa transceivers at 868 MHz).
Core Elements for Assembling Wireless Command Modules
Begin with a microcontroller that supports RF or IR protocols–Arduino Nano, ESP8266, or STM32F103 offer embedded radio modules for signal handling without external interference. Prioritize units with integrated 2.4GHz transceivers; these eliminate the need for discrete components while maintaining stable transmission ranges up to 50 meters in open environments. Verify power consumption specs–models drawing under 50mA in active mode extend battery life for handheld transmitters.
Select RF modules like NRF24L01+ or CC2500 for bi-directional communication. The NRF24L01+ supports 2Mbps data rates and 126 channels, reducing collisions in multi-user setups. For simpler builds, 433MHz ASK/OOK transmitters like FS1000A suffice, though they lack error correction and have unidirectional limitations. Ensure input voltage compatibility: NRF24L01+ operates at 1.9–3.6V, while higher-power variants like the LoRa SX1278 require 2.4–3.7V but extend range to 2km.
For IR-based designs, combine a TSOP38238 receiver with an 850nm IR LED. The receiver’s bandpass filter cuts ambient light noise, crucial for indoor stability. Use a carrier frequency of 38kHz–standard for most consumer devices–with pulse-width modulation for robust data encoding. Limit LED current to 100mA with a series resistor to prevent thermal failure; 22Ω works for 5V supplies.
Encoder-Decoder Pairs for Secure Signaling

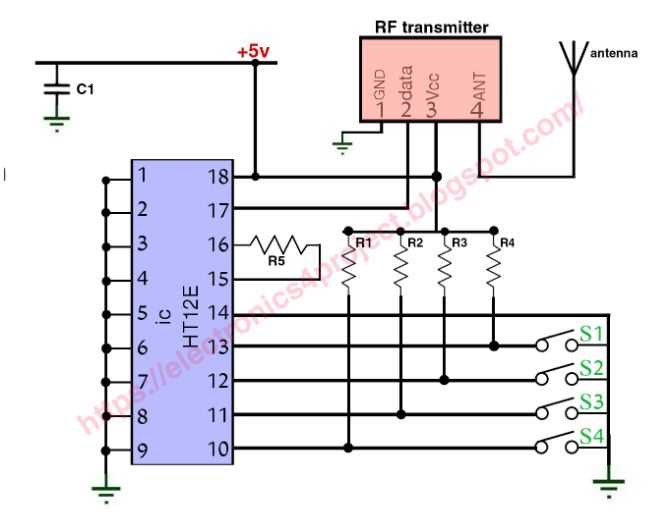

Deploy HT12E/HT12D encoder-decoder ICs for analog signaling. These handle 4/8 data bits with address pin configurations up to 531,441 unique combinations, preventing cross-talk. Power the encoder with a stable 2.4–12V supply; decoders tolerate 2.4–5V but require precise input voltage matching to avoid false triggers. For digital setups, use UART serial communication: set baud rates to 9600 or 19200 to balance speed and reliability.
Motion actuators require H-bridge drivers like L298N or TB6612FNG for DC motors, or PCA9685 for servos. The L298N supports 2A per channel, sufficient for 12V motors, but add heatsinks if continuous current exceeds 1A. For PWM-controlled servos, the PCA9685 manages 16 channels simultaneously, reducing microcontroller load. Use flyback diodes like 1N4007 for inductive loads to prevent voltage spikes that can damage ICs.
Power modules must match device requirements. Lithium-ion cells (3.7V) suit portable units, but include TP4056 charge controllers for safe recharging. For stationary builds, 12V lead-acid batteries with LM7805 regulators provide stable 5V output–add a 100µF capacitor to smooth voltage fluctuations. Low-dropout regulators like AMS1117 handle battery brownout situations better than standard 7805 variants.
Shield signal pathways with grounded copper tape for RF projects, especially near microcontroller pins. Keep antenna traces straight and λ/4 lengths for optimal transmission efficiency–2.4GHz designs need 31.25mm traces. For IR, position emitters/receivers at least 10mm apart to avoid self-interference. Test prototypes with an oscilloscope: verify square waves on encoder outputs before integrating with actuators.
Step-by-Step Wiring Guide for IR Signal Decoder Unit
Begin by verifying the pinout configuration of your IR receiver component–common models like VS1838B, TSOP382, or HS0038 use a standard three-pin layout: signal output, ground, and power. Connect the power pin to a regulated 5V DC line, ensuring stable voltage to prevent erratic readings. Attach the ground pin to the common ground rail of your prototype board or wiring harness. Secure the signal output pin to a designated input on your microcontroller–typically GPIO 2 or D3 on Arduino-compatible boards.
Use shielded, twisted-pair cables (24-26 AWG) for the signal line if extending connections beyond 20 cm to minimize electromagnetic interference from nearby SMPS or PWM sources. Avoid routing signal wires parallel to inductive loads like motors or relays, as stray fields may corrupt pulse decoding. When prototyping on a breadboard, insert a 100 nF ceramic capacitor between the power and ground pins near the receiver to filter high-frequency transients that can distort IR data bursts.
| Component | Pin Assignment | Wiring Color (Common) | Voltage Tolerance |
|---|---|---|---|
| IR Decoder (VS1838B) | VCC / GND / OUT | Red / Black / Yellow | 4.5–5.5V |
| Microcontroller Input | D2–D13 (Arduino) | Varies | 3.3V/5V logic |
| Resistor (Optional Pull-up) | 4.7 kΩ | N/A | N/A |
Enable internal pull-up resistors on the microcontroller input pin only if external noise persists–most IR decoders output active-low pulses and do not require pull-ups by default. Configure your controller to sample the input pin at a minimum 10–12 kHz to capture IR protocol timings accurately, especially for NEC, RC5, or Sony SIRC formats. Test reception range with the emitter positioned 50–150 cm away, adjusting angles incrementally while monitoring decoded output–direct line-of-sight yields the strongest signal, but ±15° off-axis remains functional for most modules.
Implement debounce logic in software to discard false triggers caused by ambient IR sources (e.g., sunlight, halogen lamps). Sample code snippets for Arduino IDE typically include libraries like IRremoteESP8266 or IRLib2 for protocol parsing. Flash the controller with a bare-minimum sketch using `irrecv.enableIRIn()` and `decode()` functions to confirm wiring integrity before integrating into full automation logic. Document observed pulse widths and header timings for custom protocol implementations.
For extended operational stability, encase the IR decoder in a grounded metal shroud or 3D-printed enclosure with an IR-transparent window (e.g., acrylic or PC plastic). Align the emitter angle perpendicular to reflective surfaces like walls or glass, as oblique reflections may cause interference. If signal degradation occurs, replace the emitter battery first–most handheld transmitters operate at 38–40 kHz carrier frequency, and weak cells reduce emission intensity.
Programming Microcontrollers for Telecommand Signal Handling
Choose a microcontroller with dedicated hardware interrupts for real-time input decoding–STM32’s EXTI or AVR’s PCINT provide sub-microsecond response times. For RF-based telecommand parsing, leverage the CC1101 transceiver’s 64-byte FIFO buffer to minimize MCU load during packet reception. Sample code for interrupt-driven reception avoids polling loops, reducing latency to <2µs per byte. Configure the RF module for 2-FSK modulation at 433MHz with a 250kHz deviation for robust signal integrity in noisy environments.
ImplementManchester encoding for bit-level error resilience before transmitting. STM32CubeIDE’s HAL library includes a ready-to-use Manchester decoder; modify the PLL settings to match your bitrate. Example configuration for 10kbps transmission:
- Clock speed: 72MHz
- Prescaler: 8
- Timer reload value: 900
- Parity: Even
Avoid printf debugging–use logic analyzer captures at 24MHz sampling rate to verify timing gaps between bit transitions.
For ESP32-based designs, utilize the RMT peripheral’s 64-stage FIFO to offload waveform generation. Configure RMT for infrared telecommand handling with these clock-divider settings:
- Carrier frequency: 38kHz
- RMT clock divider: 2
- Signal timeout: 10ms
Store reaction sequences as 32-bit RMT items, each encoding pulse width and polarity–this compresses 100ms of IR sequences into 128 bytes of RAM.
Filter spurious signals with a debounce algorithm applied directly in the interrupt service routine. For 4-alphanumeric keypad input on an ATmega168P, implement a sliding window that rejects durations shorter than 30ms. Code snippet for AVR:
ISR(PCINT0_vect) {
uint16_t duration;
duration = TCNT1; // 1us resolution
TCNT1 = 0;
if (duration > 30000 || duration < 500) return; // Discard outliers
command_buffer[buffer_index++] = (duration > 12000) ? 1 : 0;
}
Optimize power consumption by transitioning to standby mode between commands. Low-power modes achieve <1µA consumption on MSP430G2xx devices when using LPM3. Wake on a dedicated GPIO or RTC alarm, then immediately re-enter low-power state after parsing the command–zero-delay response on the first byte prevents timing jitter in battery-powered nodes.
