Build this infrared-activated ventilator system by connecting a 5V relay module to the power input of a DC blower. Use an IR receiver (VS1838B) wired directly to a microcontroller–an ATtiny85 is sufficient–with a 100nF capacitor between signal pin and ground to filter noise. Route the relay coil through a 2N2222 transistor, driven by the microcontroller’s output pin, with a base resistor of 2.2 kΩ.

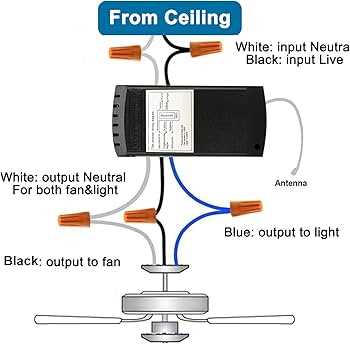

Place the IR receiver where it has line-of-sight to the handheld transmitter, typically within 5–7 meters. Ensure the ventilator’s power cable (12V DC) runs through the relay’s normally open contacts, cutting all supply when idle. Program the microcontroller to decode NEC protocol pulses; a single-button press should toggle the relay state, holding it high for 500 ms to avoid bounce.
Add a red LED with a 470 Ω resistor in series to ground to indicate activation. For safety, fuse the entire power line with a 2 A fast-blow fuse. Test continuity before applying mains-adapter voltage; incorrect wiring risks damaging both the relay’s coil and the DC motor’s windings.
Mount the components on perfboard, keeping high-voltage traces separate. Label every connection–ground, 5V, signal, and the relay’s common/NO pins–to debug quickly. A finished prototype should respond instantly to the handheld emitter, cycling the ventilator between off and maximum speed without delay.
Wireless Airflow Regulator Schematic Guide
Select a microcontroller with low power consumption, such as the ATmega328P or ESP8266, for signal processing efficiency. Ensure the chosen chip supports infrared or RF protocols matching your transmitter’s frequency, typically 38kHz for IR or 433MHz/2.4GHz for RF modules. A 5V regulator (e.g., LM7805) is critical for stable operation, especially if powering from a 9V or 12V adapter.
Incorporate a triac (e.g., BT136) or relay for speed adjustment when using an AC blower. For DC models, an H-bridge (L298N) or MOSFET (IRF540N) allows precise voltage control. Place a snubber circuit (0.1µF capacitor + 100Ω resistor) across the triac to suppress voltage spikes, preventing erratic behavior during switching.
Design the receiver module with a dedicated sensor–VS1838B for IR or XY-MK-5V for RF–positioned away from power lines to reduce interference. A 10kΩ pull-down resistor on the sensor’s output pin stabilizes the signal before feeding it to the microcontroller. Test the sensor’s range (IR: 5-8m; RF: 20-50m) before finalizing the PCB layout.
Power Supply Optimization
Avoid linear regulators if battery life is a priority; replace them with a buck converter (e.g., LM2596) for 80%+ efficiency. For mains-powered units, use a fuse (1A slow-blow) in series with the transformer primary. Decouple the microcontroller’s power pins with a 0.1µF ceramic capacitor positioned within 2mm of the VCC/GND pads to minimize noise.
Include a power-on reset circuit–a 10kΩ resistor + 10µF capacitor–to ensure reliable startup. For wireless transmitters, use a coin-cell holder (CR2032) or rechargeable Li-ion battery (18650) with a TP4056 charging module. Always add reverse polarity protection (1N4007 diode) to prevent damage during battery swaps.

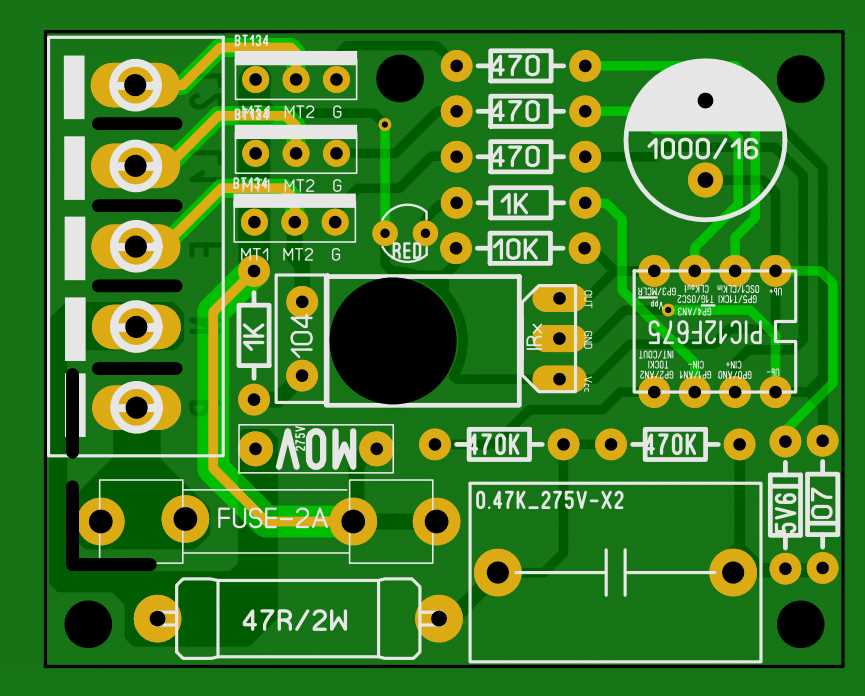

Group components by function on the PCB to reduce trace length: keep the power section isolated from the signal paths. Use wide traces (2mm minimum) for high-current routes (e.g., blower connections) to prevent overheating. For multi-speed setups, label each button’s corresponding speed (e.g., “Low/Medium/High/Turbo”) on the transmitter’s enclosure for user clarity.
Validate the schematic with a multimeter: check for shorts on VCC/GND and confirm AC voltage levels at the blower terminals. Flash the microcontroller with a test routine to blink an LED upon receiving a signal, ensuring the wireless link works before integrating mechanical parts. For final assembly, use heat-shrink tubing on solder joints and secure loose wires with zip ties to withstand vibration.
Key Parts for Assembling a Wireless Speed Regulator
Begin with a microcontroller–opt for an ESP8266 or ATmega328P for reliable signal processing without excessive power draw. These chips handle wireless protocols like Wi-Fi or RF while supporting PWM for speed adjustments. Ensure compatibility with 3.3V or 5V logic depending on connected modules to avoid voltage mismatches.
Select an H-bridge motor driver such as the L298N or DRV8871 to manage current flow to the blower. These ICs tolerate inductive loads up to 2-4A, preventing back EMF damage during switching. Pair with a Schottky diode (e.g., 1N5822) across motor terminals to clamp voltage spikes, prolonging driver lifespan.
For wireless transmission, integrate a 433MHz RF module (HC-12) or Bluetooth transceiver (HC-05). RF offers 100m range in open spaces, while Bluetooth suits short-distance (~10m) setups with smartphone pairing. Choose based on application needs–RF avoids pairing delays but lacks encryption; Bluetooth enables secure two-way communication.
Include a 10kΩ linear potentiometer or rotary encoder (e.g., KY-040) for manual speed dialing. Encoders allow precise multi-turn adjustments, whereas potentiometers simplify design but wear over time. Add a tactile push button (6mm x 6mm, 50mA rating) for mode toggling–debounce with a 0.1µF capacitor to prevent false triggers.
Power the system via a 12V DC adapter or 3S LiPo battery (11.1V) regulated to 5V/3.3V using an AMS1117 LDO or buck converter (LM2596). Calculate current demand: drivers draw 1-2A, microcontrollers ~50mA, wireless modules ~100mA. Over-specify by 30% to handle transient loads.
Step-by-Step Wiring Guide for IR Signal Processor Unit
Begin by connecting the IR sensor’s output pin to the microcontroller’s digital input–use pin D2 on an Arduino Uno or GPIO 4 on an ESP-based board. Ensure the sensor’s ground aligns with the power supply’s common ground; a floating reference causes erratic signal interpretation. For stable operation, add a 10µF decoupling capacitor across the sensor’s power pins, soldered within 2 cm of the module.
- Power the sensor with 5V DC; exceeding 5.5V risks permanent damage.
- Strip 5 mm of insulation from the connection wires–tinned copper strands prevent fraying.
- Avoid routing signal wires parallel to motor leads; route them perpendicularly to reduce EMI.
- Verify signal integrity with a logic analyzer–pulses should measure between 0.8–1.2 ms for NEC protocol.
- Program the microcontroller to decode IR pulses using a library like
IRremotefor consistent parsing.
Configuring the Processor for Adjustable Blower Speeds Using an Infrared Transmitter
Begin by selecting a compatible microcontroller with at least one PWM-capable pin and a hardware interrupt for IR signal reception–such as the ATmega328P or ESP8266. Flash the firmware with a library like IRremote or IRMP, ensuring it supports NEC, RC5, or your transmitter’s protocol. Define the pin assignments early: connect the IR receiver data line to a digital input pin (e.g., D2) and the PWM output to a MOSFET gate (e.g., D9) for duty cycle modulation.
Implement the IR protocol decoding in the main loop or an ISR to minimize latency. For NEC, expect a 9ms leading pulse, followed by a 4.5ms space, then 32-bit data. Store decoded values in an array, then map the address/command pairs to specific speed levels (e.g., 0xFFA25D → 25% duty cycle, 0xFF629D → 50%, 0xFFE21D → 75%, 0xFF22DD → 100%). Use analogWrite() for PWM generation, but verify the microcontroller’s clock speed–most Arduino-compatible boards generate ~490Hz or ~980Hz PWM frequencies.
Adjust the MOSFET’s switching speed by adding a 10kΩ pull-down resistor to the gate and a flyback diode across the motor windings. This prevents inductive voltage spikes from damaging the semiconductor. For higher-current blowers, replace the MOSFET with a dedicated motor driver IC like the L298N or DRV8871, which includes built-in protection and supports up to 3.6A continuous current.
Calibration and Noise Filtering
Add a 30-second timeout after the last IR signal to default to a safe low speed (≤30% duty cycle), reducing wear from unexpected power cycles. Filter spurious IR noise by requiring at least two identical decoded commands within 200ms before acting–discard single-pulse anomalies. For precision, correlate the PWM duty cycle directly to RPM: measure the blower’s no-load RPM at 100% duty and scale linearly (e.g., 1800 RPM at 25%, 3600 RPM at 50%).
Store speed settings in EEPROM if persistent state is needed across power-offs. Write a checksum to detect corruption and revert to factory defaults if invalid data is read. For multi-button transmitters, use the eeprom_update_byte() function to minimize write cycles, extending the chip’s lifespan beyond the typical 100,000-write limit.
Optimize power consumption by reducing the microcontroller’s clock frequency to 8MHz when idle if using an external resonator. Disable unused peripherals like ADC or UART to cut current draw below 1mA. For battery-operated systems, implement a sleep mode triggered by a 10-minute inactivity timer, waking only on an IR signal edge detected by a hardware interrupt.
Advanced Features
Add a failsafe by monitoring the microcontroller’s VCC voltage–if it drops below 4.5V, force the PWM to 0% duty cycle to prevent erratic motor behavior. For dual-motor systems (e.g., primary + dampener), use Timer1’s dual-channel PWM output on compatible chips like the ATmega16U2, ensuring independent speed adjustment. Validate the entire setup with an oscilloscope: check for clean PWM pulses (no ringing on the MOSFET gate) and verify IR signal timing against the protocol’s datasheet.
