Begin with a 433 MHz RF transmitter-receiver pair–these modules handle short-range signals reliably under 100 meters. Opt for the XY-MK-5V transmitter and XY-FST receiver for stable performance at under $5 per set. Avoid cheaper alternatives prone to interference from household electronics.
Select a PT2262/PT2272 encoder-decoder chipset for signal modulation. PT2262 transmits 8-bit addresses and 4-bit data, while PT2272 decodes on the vehicle side. Verify voltage compatibility–both chips operate between 3V and 15V, but align with your power source (e.g., 12V automotive battery).
Wire the transmitter’s ground, data, and VCC pins to a microcontroller like Arduino Nano or STM32. Use the RCSwitch library for Arduino to simplify coding: switch.send(5555, 24) sends a 24-bit code. For STM32, configure GPIO pins as outputs and clock the encoder at 3 kHz for optimal signal clarity.
On the receiver end, connect the PT2272’s VT pin to a transistor (e.g., 2N2222) to drive relays controlling motors. Use 1N4007 diodes across relay coils to prevent voltage spikes. For precision, add a 7805 regulator to drop 12V to 5V for the decoder and microcontroller.
Test signal integrity with an oscilloscope–clean pulses should appear on both encoder’s OUT and decoder’s D0-D3 pins. If interference occurs, reduce transmission distance or add a 1 μF capacitor between the decoder’s VCC and GND. For extended range, replace the antenna with a 17.3 cm copper wire (quarter-wave at 433 MHz).
Avoid LM7805 linear regulators if powering multiple peripherals–switch to a LM2596 buck converter for higher efficiency. Ensure all grounds are common to prevent signal degradation. For larger payloads, substitute relays with L298N motor drivers capable of 2A per channel.

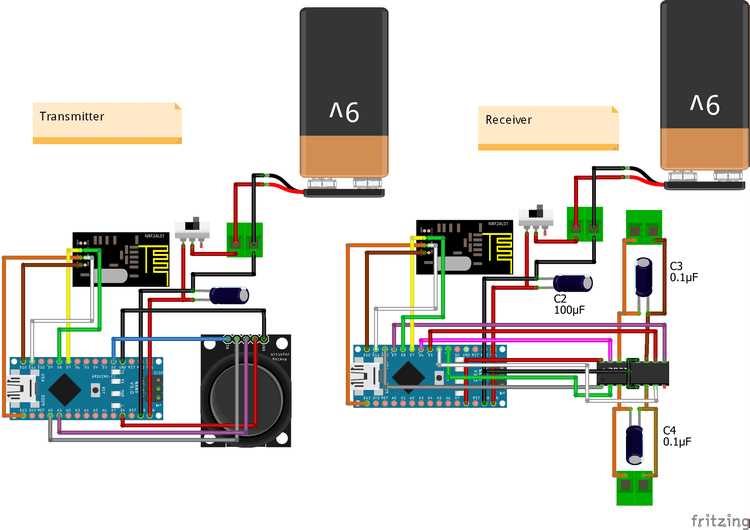

Building a Wireless Vehicle Control Schematic
Start with a microcontroller–preferably an Arduino Nano or ESP32–as the command hub. Connect its digital pins to a L298N motor driver (dual H-bridge) to regulate power delivery to DC motors. Ensure voltage compatibility: the driver handles 6–35V, but opt for a 7.4V LiPo battery to balance performance and longevity. Signal transmission relies on a 433MHz RF module (like XY-MK-5V) paired with a matching transceiver on the handheld unit. Test range indoors–expect 30–50m with obstacles; outdoors, 100–150m is achievable.
- Receiver setup: Solder the RF module’s
DATApin to the microcontroller’sRXpin. Use a 5V voltage regulator (AMS1117) if the battery exceeds 5V to protect components. - Motor connections: Bridge the motor driver’s
IN1/IN2(left motor) andIN3/IN4(right motor) to the microcontroller’s PWM-capable pins (e.g.,D3/D5/D6/D9on Arduino). Ground the driver’sENA/ENBpins via jumpers for full-speed operation; omit jumpers and wire to PWM pins for variable control. - Power isolation: Separate circuit ground (GND) from motor ground to avoid noise interference–route only the signal ground back to the microcontroller.
Validate the schematic before assembly: check continuity with a multimeter across all soldered points, paying special attention to RF module antenna length (17.3cm for 433MHz). Use a 100nF ceramic capacitor across each motor’s power terminals to suppress electrical noise. When programming, implement failsafes: if signal loss exceeds 500ms, trigger an immediate stop via digitalWrite(IN1-IN4, LOW). Flash the microcontroller with code that includes debounce logic for the remote’s inputs to prevent erratic responses during transmission hiccups.

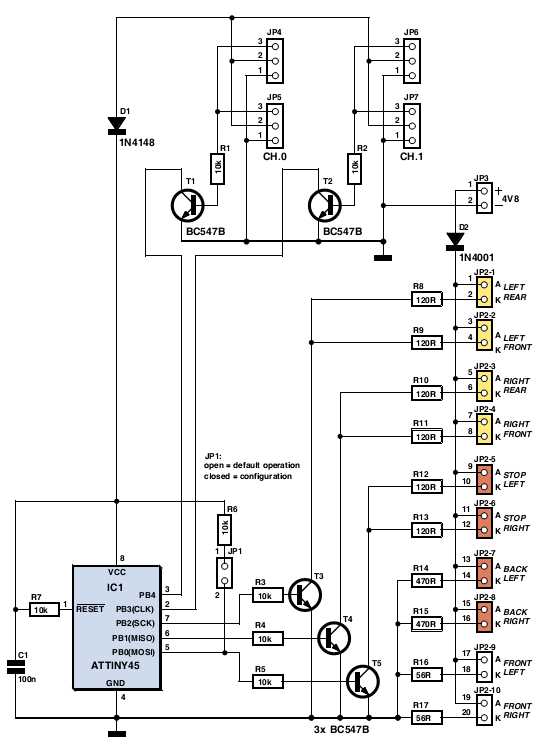

Key Components for a Basic Radio-Controlled Vehicle Wiring Layout
Start with a 7.2V nickel-metal hydride (NiMH) battery pack as the primary power source–cheaper than lithium-ion and sufficient for entry-level builds. Ensure it includes a Tamiya connector for quick swaps, but solder directly to the speed controller if weight reduction is critical. Avoid generic no-name batteries; brands like Venom, Traxxas, or Turnigy provide consistent discharge rates.
Use a brushed electronic speed control (ESC) rated for 15–30 amps. Higher amperage handles sudden acceleration better but adds bulk. Connect the ESC’s red/black wires to the battery’s positive/negative terminals, then solder the motor’s wires directly to the ESC’s output tabs–avoid bullet connectors here for lower resistance. For reverse functionality, opt for an ESC with forward/reverse capability, not just brake.
A 540-sized brushed motor delivers 15,000–20,000 RPM at 7.2V, ideal for 1/10-scale chassis. Choose between high-turn (lower RPM, higher torque) or low-turn (faster, less torque) based on terrain. Ball bearings reduce friction over bushings but aren’t mandatory for short runs. Clean motor solder joints with flux and rosin-core solder to prevent voltage drops.
Install a proportional 2.4GHz receiver with at least 3 channels. Bind it to a controller using a bind plug before securing the antenna–extend it vertically or along a roll cage to minimize interference. Channel 1 controls steering (servo), Channel 2 drives the ESC, and Channel 3 can trigger auxiliary functions like lights or winches. Avoid using the receiver’s onboard voltage regulator for servos; power them via a separate BEC for stability.
Steering and Gear Essentials
Select a metal-gear servo with 15–25 kg·cm torque for responsive cornering. Plastic gears strip under heavy loads, especially off-road. Secure the servo’s PWM signal wire to the receiver’s Channel 1, and ground/positive wires to the BEC (5V). For smooth steering, use a servo saver or a gyro to absorb shocks–even a cheap ADS901 prevents servo burnout.
Gear the drivetrain with a 12-tooth pinion and 64-tooth spur for balanced speed/acceleration on paved surfaces. For off-road, switch to a 10-tooth pinion for lower gearing. Mesh gears precisely–0.1mm gap prevents binding but avoids slop. Use hardened steel gears for durability; nylon is lighter but wears quickly. Lubricate with Tamiya gear grease (not WD-40) to silence operation and reduce wear.
Add a 3-amp fuse between the battery and ESC to prevent fires. Polyethylene-insulated 16-gauge silicone wire handles current surges better than PVC. Twist power wires to reduce electromagnetic interference (EMI) and keep them away from signal cables. For modular builds, use Deans or XT60 connectors, but solder less critical auxiliary wires (e.g., lights) directly.
Include an on/off switch with a waterproof boot–or omit it entirely for direct battery connection, but add a charging port access panel. Test the layout with a multimeter: 7.2V at the ESC, 5V at the servo, and 0Ω continuity across ground paths. For troubleshooting, keep a spare 9V battery and buzzer to check circuits without draining the main pack.
Connecting Brushless Motors and ESCs in RC Models: Key Steps
Start by matching the ESC’s current rating to the motor’s requirements–undersized controllers overheat. Check the motor’s KV rating (RPM per volt) and ensure the ESC supports its voltage range (e.g., 2S–6S LiPo). Solder three bullet connectors between the motor and ESC, aligning phases correctly: swap two wires if the motor spins backward.
Secure the ESC near the model’s power source but away from sensitive electronics–carbon fiber frames act as heat sinks. Use silicone wiring (12–16 AWG) for connections, twisting wires to reduce electromagnetic interference. Attach a capacitor (220–680µF) across the ESC’s power input to smooth voltage spikes that damage components.
Program the ESC via its USB linker or transmitter sticks. Set throttle range (0–100%) first–most controllers require full reverse-neutral-full forward calibration. Disable low-voltage cutoff for bench testing, but enable it for real runs (3.3V–3.5V per cell). Adjust timing (medium/high for outrunners, low for inrunners) and braking strength based on terrain (softer for wheels, stronger for tracks).
Tips for Reliable Operation
Avoid powering the receiver from the ESC’s BEC if it’s linear–use a switching BEC for currents >3A. Test static thrust with a wattmeter before mounting: current draw should peak under stall load (e.g., 60A for a 50A ESC). Waterproof ESCs only if absolutely necessary–sealed units trap heat. For multi-rotor setups, connect the ESC’s signal wire to the flight controller’s designated output, not a shared bus.
Balance the propeller or gear ratio to prevent overloading: a 10×6 prop on a 1200KV motor at 11.1V should draw ~15A at full throttle. If the ESC cuts out during acceleration, increase the start-up power setting (often labeled “soft/hard start”) or reduce acceleration ramp time. Recheck solder joints for cold spots–use rosin flux and a temperature-controlled iron (350–400°C).
Monitor temperatures during runs: ESCs should stay below 80°C; motors below 100°C. Replace worn bearings promptly–vibration kills controllers faster than heat. For high-voltage setups (8S+), add a separate 12V fan blowing directly onto the ESC’s heat plate. Log runtimes with a telemetry system to detect anomalies, like inconsistent amp draw, which signals bearing wear or phase loss.
Step-by-Step Guide to Wiring Control Unit Boards
Start by identifying the power pins on both the receiver and transmitter modules. Most RF modules operate at 5V DC, but verify this against the datasheet–some older models require 3.3V. Use a multimeter to confirm the voltage output of your power supply before connecting it. Incorrect voltage will damage the components permanently.
Connect the ground (GND) first–this establishes a stable reference point. Solder the GND pin from the receiver to the GND of the transmitter, then link both to the main power supply’s negative terminal. Skip this step, and signal interference may corrupt transmissions. Use thick gauge wire (22 AWG or lower) to minimize resistance.
- Receiver: Link the DATA OUT pin to the microcontroller’s input (e.g., Arduino’s digital pin 2).
- Transmitter: Attach the DATA IN pin to the microcontroller’s output (e.g., digital pin 3).
- Avoid using long wires–keep connections under 20 cm to prevent signal degradation.
- Add a 0.1µF ceramic capacitor between VCC and GND on both boards to filter noise.
For wireless units operating at 433MHz or 2.4GHz, orient antennas vertically for optimal range. Coiled antennas should be fully extended; straight wire antennas should be trimmed to ¼ wavelength (e.g., 17.3 cm for 433MHz). Test range in an open area–obstacles like walls or metal reduce effectiveness by up to 70%.
Before powering on, double-check all solder joints for cold connections or shorts. Use a continuity tester to verify each link. Power the system in incremental steps: start with the receiver, then the transmitter, and finally the microcontroller. Observe LED indicators on the boards–steady light confirms proper operation, while flickering signals instability. If transmission fails, recheck wiring against the module’s pinout diagram.
